Lamborghini Aventador LP750 SV Roadster - LIGHTS 1

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

View All

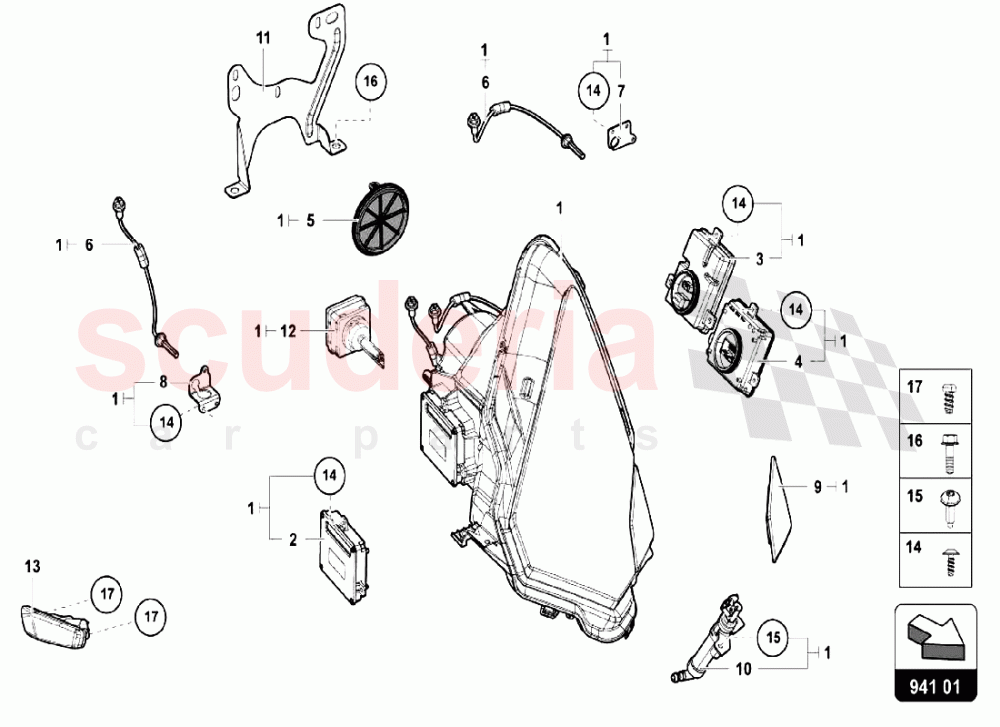

LIGHTS 1 of Lamborghini Lamborghini Aventador LP750 SV Roadster Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
001 471941004L
HEADLIGHT, RH 		- 1 Enquire
001 471941003L
HEADLIGHT, LH 		- 1 Enquire
002 4G0907397H
CONTROL UNIT 		- 2 Enquire
003 8K0941597E
CONTROL UNIT FOR GAS DISCHARGE LAMP 		- 2 Enquire
004 4G0907397J
POWER MODULE FOR DAY DRIVING LIGHTS 		- 2 Enquire
005 470941158
BUNGS 		- 2 Enquire
006 470971397
CABLE 		- 2 Enquire
007 470999640C
ARM 		- 2 Enquire
008 470999640B
ARM 		- 1 Enquire
008 470999640A
ARM 		- 1 Enquire
009 470955275
COVER 		- 1 Enquire
009 470955276
COVER 		- 1 Enquire
010 470955102
INJECTOR UNIT FOR HEADLIGHT CLEANING 		- 1 Enquire
010 470955101
INJECTOR UNIT FOR HEADLIGHT CLEANING 		- 1 Enquire
011 470941121
LH BRACKET 		- 1 Enquire
011 470941122A
SECURING ELEMENT 		- 1 Enquire
012 470941102
BULB 		- 1 Enquire
013 470945120B
SIDE MARKER LIGHT 		- 1 Enquire
013 470945119B
SIDE MARKER LIGHT 		- 1 Enquire
014 470998182
SOCKET HEAD BOLT 		- 15 Enquire
015 470998182A
SOCKET HEAD BOLT 		- 2 Enquire
016 N90780903
OVAL HEXAGON SOCKET HEAD BOLT 		- 4 Enquire
017 N10656802
OVAL HEAD PANEL SCREW 		- 4 Enquire
