FRONT TUNNEL - SWITCHES 1 of Lamborghini Lamborghini Aventador LP750 SV Roadster

View All

Lamborghini Aventador LP750 SV Roadster - FRONT TUNNEL - SWITCHES 1

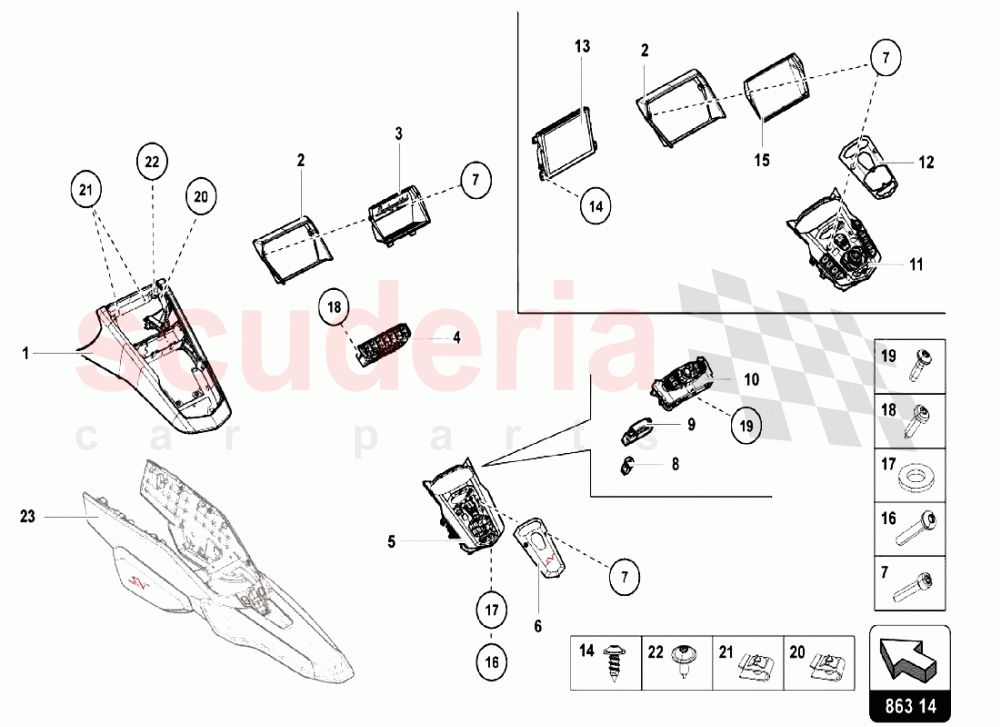

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
001	470863315A	Lining For Console (leather Interior - Supply Vin)	470863315A Lining For Console (leather Interior - Supply Vin)	-	1	Enquire
002	470863567A	CORNER TRIM	470863567A CORNER TRIM	-	1	Enquire
002	470919165	TRIM	470919165 TRIM	-	1	Enquire
003	470919180C	TRIM	470919180C TRIM	-	1	Enquire
004	471941567F	Control Panel With Pushbuttons (with Start And Stop System - Standard Interior )	471941567F Control Panel With Pushbuttons (with Start And Stop System - Standard Interior )	-	1	Enquire
004	471941567K	CONTROL PANEL WITH PUSHBUTTONS	471941567K CONTROL PANEL WITH PUSHBUTTONS	-	1	Enquire
004	471941567J	MULTIPLE SWITCH (START AND STOP - WITHOUT PARK SENSOR -WITHOUT LIFTING - BLACK H77)	471941567J MULTIPLE SWITCH (START AND STOP - WITHOUT PARK SENSOR -WITHOUT LIFTING - BLACK H77)	-	1	Enquire
004	471941567D	MULTIPLE SWITCH (WITHOUT PARK SENSOR - WITHOUT START AND STOP)	471941567D MULTIPLE SWITCH (WITHOUT PARK SENSOR - WITHOUT START AND STOP)	-	1	Enquire
004	471941567M	CONTROL PANEL WITH PUSHBUTTONS	471941567M CONTROL PANEL WITH PUSHBUTTONS	-	1	Enquire
004	471941567Q	MULTIPLE SWITCH (START AND STOP - WITHOUT PARK SENSOR -WITHOUT LIFTING - SHINY BLACK)	471941567Q MULTIPLE SWITCH (START AND STOP - WITHOUT PARK SENSOR -WITHOUT LIFTING - SHINY BLACK)	-	1	Enquire
005	470919609F	OPERATING UNIT FOR MULTIMEDIA SYSTEM -MMI- WITH JOYSTICK	470919609F OPERATING UNIT FOR MULTIMEDIA SYSTEM -MMI- WITH JOYSTICK	-	1	Enquire
006	470907047	ORNAMENT	470907047 ORNAMENT	-	1	Enquire
007	WHT003088	HEXAGON SOCKET FLAT HEAD BOLT	WHT003088 HEXAGON SOCKET FLAT HEAD BOLT	-	-	Enquire
008	470905217A	START BUTTON	470905217A START BUTTON	-	1	Enquire
009	470959674A	Multiple Switch (drive Select, Black H77)	470959674A Multiple Switch (drive Select, Black H77)	-	1	Enquire
010	470820043G	DISPLAY AND CONTROL PANEL FOR ELECTRONICALLY CONTROLLED AIR CONDITIONING (WITH HEATED SEATS - BLACK H77)	470820043G DISPLAY AND CONTROL PANEL FOR ELECTRONICALLY CONTROLLED AIR CONDITIONING (WITH HEATED SEATS - BLACK H77)	-	1	Enquire
010	470820043J	DISPLAY AND CONTROL PANEL WITH CU FOR ELECTRONICALLY CONTROLLED AIR-CONDITIONING	470820043J DISPLAY AND CONTROL PANEL WITH CU FOR ELECTRONICALLY CONTROLLED AIR-CONDITIONING	-	1	Enquire
010	470820043F	DISPLAY AND CONTROL PANEL FOR ELECTRONICALLY CONTROLLED AIR CONDITIONING (WITHOUT HEATED SEATS - BLACK H77)	470820043F DISPLAY AND CONTROL PANEL FOR ELECTRONICALLY CONTROLLED AIR CONDITIONING (WITHOUT HEATED SEATS - BLACK H77)	-	1	Enquire
011	470919609C	DISPLAY UNIT	470919609C DISPLAY UNIT Carbon	-	1	Enquire
013	8R0919604A	DISPLAY UNIT	8R0919604A DISPLAY UNIT	-	1	Enquire
014	N90986803	HEXAGON SOCKET HEAD PANEL BOLT	N90986803 HEXAGON SOCKET HEAD PANEL BOLT	-	4	Enquire
015	470919180B	TRIM	470919180B TRIM	-	1	Enquire
016	N10582103	OVAL HEAD COUNTERSUNK BOLT WITH MULTI-POINT SOCKET HEAD	N10582103 OVAL HEAD COUNTERSUNK BOLT WITH MULTI-POINT SOCKET HEAD	-	2	Enquire
017	N01152427	WASHER	N01152427 WASHER	-	2	Enquire
018	N10656302	HEXAGON SOCKET OVAL HEAD BOLT	N10656302 HEXAGON SOCKET OVAL HEAD BOLT	-	2	Enquire
019	N10625802	HEXAGON SOCKET FLAT HEAD BOLT	N10625802 HEXAGON SOCKET FLAT HEAD BOLT	-	4	Enquire
020	N0154487	SPEED NUT	N0154487 SPEED NUT	-	4	Enquire
021	N90526602	SPEED NUT	N90526602 SPEED NUT	-	2	Enquire
022	N90944603	OVAL HEXAGON SOCKET HEAD BOLT	N90944603 OVAL HEXAGON SOCKET HEAD BOLT	-	2	Enquire
