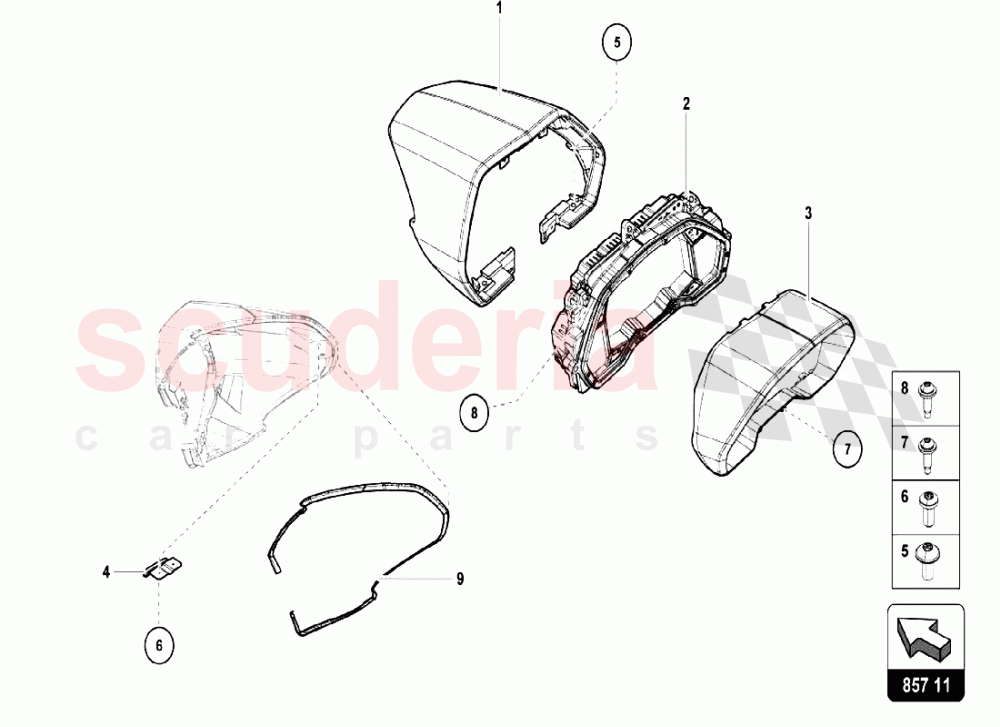

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
001	471858277D	TRIM	471858277D TRIM	$1,834.69	1
001	471858277B	TRIM	471858277B TRIM	$825.27	1
002	470920900F	COMBI-INSTRUMENT (SUPERVELOCE)	470920900F COMBI-INSTRUMENT (SUPERVELOCE)	$10,564.50	1
002	470920900G	COMBI-INSTRUMENT	470920900G COMBI-INSTRUMENT	$8,346.75	1
003	471857343	Blanket	471857343 Blanket	$2,190.87	1
003	471857343A	BLANKET	471857343A BLANKET	$8,991.90	1
004	410858573	BRACKET	410858573 BRACKET	$77.88	1
005	N10586402	SOCKET HEAD HEXAGON BOLT WITH CONE IN STOCK	N10586402 SOCKET HEAD HEXAGON BOLT WITH CONE IN STOCK	$3.55	4
006	N91030702	HEXAGON SOCKET FLAT HEAD BOLT IN STOCK	N91030702 HEXAGON SOCKET FLAT HEAD BOLT IN STOCK	$0.48 MSRP: ~~7.32~~ (93.4% off)	2
007	N91085101	SEMI ROUND BOLT (COMBI) WITH HEXAGON SOCKET HEAD IN STOCK	N91085101 SEMI ROUND BOLT (COMBI) WITH HEXAGON SOCKET HEAD IN STOCK	$0.76 MSRP: ~~7.31~~ (89.6% off)	2
008	N10738101	HEX SOCKET HEAD BOLT (COMBI) IN STOCK	N10738101 HEX SOCKET HEAD BOLT (COMBI) IN STOCK	$0.88	5
009	410819018	SEALING TAPE	410819018 SEALING TAPE	$30.59	1
