Lamborghini Aventador LP750 SV Coupe - REAR BRAKES DISCS CCB

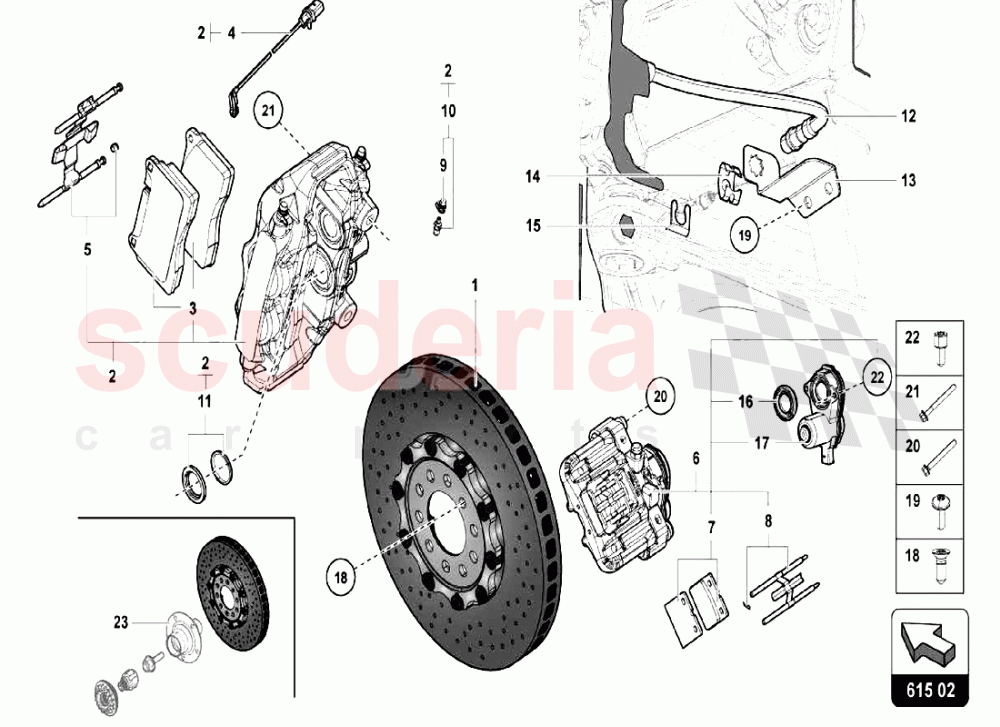

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
001	470615602F	RH REAR BRAKE DISK (CARBOCERAMIC BRAKE)	470615602F RH REAR BRAKE DISK (CARBOCERAMIC BRAKE)	-	1	Enquire
001	470615601F	LH REAR BRAKE DISK (CARBOCERAMIC BRAKE)	470615601F LH REAR BRAKE DISK (CARBOCERAMIC BRAKE)	-	1	Enquire
002	470615406C	RH REAR BRAKE CALIPER (YELLOW REAR CALIPERS)	470615406C RH REAR BRAKE CALIPER (YELLOW REAR CALIPERS)	-	1	Enquire
002	470615406D	RH REAR BRAKE CALIPER (GREY REAR CALIPERS)	470615406D RH REAR BRAKE CALIPER (GREY REAR CALIPERS)	-	1	Enquire
002	470615406F	RH REAR BRAKE CALIPER (RED REAR CALIPERS)	470615406F RH REAR BRAKE CALIPER (RED REAR CALIPERS)	-	1	Enquire
002	470615406E	RH REAR BRAKE CALIPER (ORANGE REAR CALIPERS)	470615406E RH REAR BRAKE CALIPER (ORANGE REAR CALIPERS)	-	1	Enquire
002	470615406B	RH REAR BRAKE CALIPER (BLACK REAR CALIPERS)	470615406B RH REAR BRAKE CALIPER (BLACK REAR CALIPERS)	-	1	Enquire
002	470615405E	LH REAR BRAKE CALIPER (ORANGE REAR CALIPERS)	470615405E LH REAR BRAKE CALIPER (ORANGE REAR CALIPERS)	-	1	Enquire
002	470615405C	LH REAR BRAKE CALIPER (YELLOW REAR CALIPERS)	470615405C LH REAR BRAKE CALIPER (YELLOW REAR CALIPERS)	-	1	Enquire
002	470615405F	LH REAR BRAKE CALIPER (RED REAR CALIPERS)	470615405F LH REAR BRAKE CALIPER (RED REAR CALIPERS)	-	1	Enquire
002	470615405B	LH REAR BRAKE CALIPER (BLACK REAR CALIPERS)	470615405B LH REAR BRAKE CALIPER (BLACK REAR CALIPERS)	-	1	Enquire
002	470615405D	LH REAR BRAKE CALIPER (GREY REAR CALIPERS)	470615405D LH REAR BRAKE CALIPER (GREY REAR CALIPERS)	-	1	Enquire
003	470698451D	BRAKE PAD SET	470698451D BRAKE PAD SET	-	1	Enquire
004	470698437	BRAKE PAD WEAR INDICATOR	470698437 BRAKE PAD WEAR INDICATOR	-	1	Enquire
005	470698135A	1 SET FIXING PARTS FOR DISC BRAKE PADS	470698135A 1 SET FIXING PARTS FOR DISC BRAKE PADS	-	1	Enquire
006	470615403A	LH HAND BRAKE CALIPER	470615403A LH HAND BRAKE CALIPER	-	1	Enquire
006	470615404A	RH HAND BRAKE CALIPER	470615404A RH HAND BRAKE CALIPER	-	1	Enquire
007	470698451A	1 SET OF BRAKE PADS FOR DISK BRAKE	470698451A 1 SET OF BRAKE PADS FOR DISK BRAKE	-	1	Enquire
008	470698135B	1 SET FIXING PARTS FOR DISC BRAKE PADS	470698135B 1 SET FIXING PARTS FOR DISC BRAKE PADS	-	1	Enquire
009	7D0611483	DUST CAP	7D0611483 DUST CAP	-	1	Enquire
010	8A0615273	1 SET BLEEDER VALVES WITH DUST CAP	8A0615273 1 SET BLEEDER VALVES WITH DUST CAP	-	1	Enquire
011	470698671	Gasket Set For Fixed Calliper (rear)	470698671 Gasket Set For Fixed Calliper (rear)	-	1	Enquire
012	470611775A	BRAKE HOSE	470611775A BRAKE HOSE	-	1	Enquire
013	470611847A	RETAINER FOR BRAKE HOSE	470611847A RETAINER FOR BRAKE HOSE	-	1	Enquire
013	470611848A	RETAINER FOR BRAKE HOSE	470611848A RETAINER FOR BRAKE HOSE	-	1	Enquire
014	4D0611715B	RETAINING SPRING	4D0611715B RETAINING SPRING	-	2	Enquire
017	470998281	SERVOMOTOR FOR BRAKE CALLIPER HOUSING WITH ASSEMBLY PARTS	470998281 SERVOMOTOR FOR BRAKE CALLIPER HOUSING WITH ASSEMBLY PARTS	-	1	Enquire
018	N10648301	HEX SOCKET COUNTERSUNK BOLT	N10648301 HEX SOCKET COUNTERSUNK BOLT	-	2	Enquire
019	N10714801	OVAL HEXAGON SOCKET HEAD BOLT	N10714801 OVAL HEXAGON SOCKET HEAD BOLT	-	4	Enquire
020	N91105601	HEX COLLARED BOLT	N91105601 HEX COLLARED BOLT	-	4	Enquire
021	N10731501	HEX COLLARED BOLT	N10731501 HEX COLLARED BOLT	-	4	Enquire
022	N10285506	SOCKET HEAD BOLT WITH INNER HEX ROUND HEAD, SELF-LOCKING	N10285506 SOCKET HEAD BOLT WITH INNER HEX ROUND HEAD, SELF-LOCKING	-	4	Enquire
