AIR CONDITIONING SYSTEM 1 of Lamborghini Lamborghini Aventador LP750 SV Coupe

View All

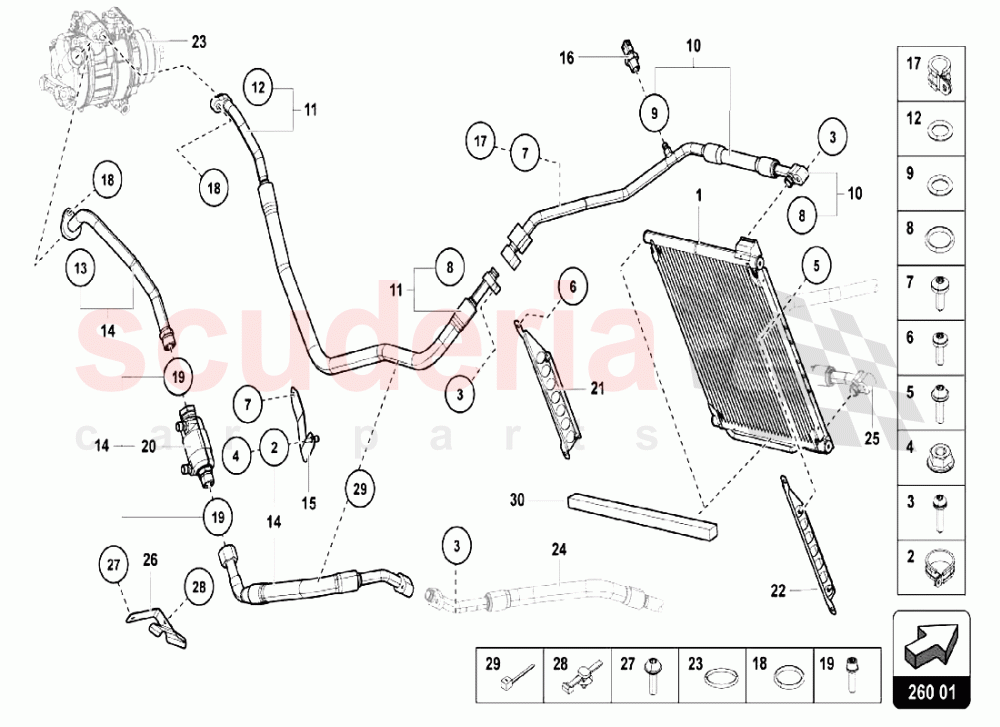

Lamborghini Aventador LP750 SV Coupe - AIR CONDITIONING SYSTEM 1

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
001	470260401A	A/C CONDENSER	470260401A A/C CONDENSER	-	1	Enquire
002	N90942301	CLAMP	N90942301 CLAMP	-	1	Enquire
003	N10347204	HEXAGON SOCKET HEAD BOLT, SELF-LOCKING	N10347204 HEXAGON SOCKET HEAD BOLT, SELF-LOCKING	-	3	Enquire
004	N01508213	HEXAGON COLLAR NUT	N01508213 HEXAGON COLLAR NUT	-	1	Enquire
005	N10569501	ROUND-HEAD SCREW WITH INNER HEXAGON SOCKET HEAD	N10569501 ROUND-HEAD SCREW WITH INNER HEXAGON SOCKET HEAD	-	4	Enquire
006	N10451408	OVAL HEXAGON SOCKET HEAD BOLT	N10451408 OVAL HEXAGON SOCKET HEAD BOLT	-	4	Enquire
007	N91096701	OVAL HEXAGON SOCKET HEAD BOLT	N91096701 OVAL HEXAGON SOCKET HEAD BOLT	-	2	Enquire
008	4E0260749B	SEAL RING	4E0260749B SEAL RING	-	2	Enquire
009	7H0820896	O-RING	7H0820896 O-RING	-	1	Enquire
010	470260702D	FLANGED PIPE	470260702D FLANGED PIPE	-	1	Enquire
011	470260701B	FLANGED PIPE	470260701B FLANGED PIPE	-	1	Enquire
012	4E0260749A	SEAL RING	4E0260749A SEAL RING	-	1	Enquire
013	8E0260749C	SEAL RING	8E0260749C SEAL RING	-	1	Enquire
014	470260709C	FLANGED PIPE	470260709C FLANGED PIPE	-	1	Enquire
015	470201809	BRACKET	470201809 BRACKET	-	1	Enquire
016	4H0959126C	PRESSURE SENDER FOR REFRIGERANT CIRCUIT	4H0959126C PRESSURE SENDER FOR REFRIGERANT CIRCUIT	-	1	Enquire
017	N0206405	CLAMP	N0206405 CLAMP	-	1	Enquire
018	N10414402	SOCKET HEAD BOLT WITH HEXAGON SOCKET HEAD	N10414402 SOCKET HEAD BOLT WITH HEXAGON SOCKET HEAD	-	2	Enquire
021	470260427A	BRACKET	470260427A BRACKET	-	1	Enquire
022	470260428A	BRACKET	470260428A BRACKET	-	1	Enquire
026	470260761	BRACKET	470260761 BRACKET	-	1	Enquire
027	N91032702	ROUND-HEAD SCREW WITH INNER HEXAGON SOCKET HEAD	N91032702 ROUND-HEAD SCREW WITH INNER HEXAGON SOCKET HEAD	-	1	Enquire
028	3W0971838	CABLE TIES	3W0971838 CABLE TIES	-	1	Enquire
029	N10562301	CABLE TIES	N10562301 CABLE TIES	-	2	Enquire
030	470260423	SPONGE	470260423 SPONGE	-	2	Enquire
