HARD-TOP of Lamborghini Lamborghini Aventador LP720 Roadster

View All

Lamborghini Aventador LP720 Roadster - HARD-TOP

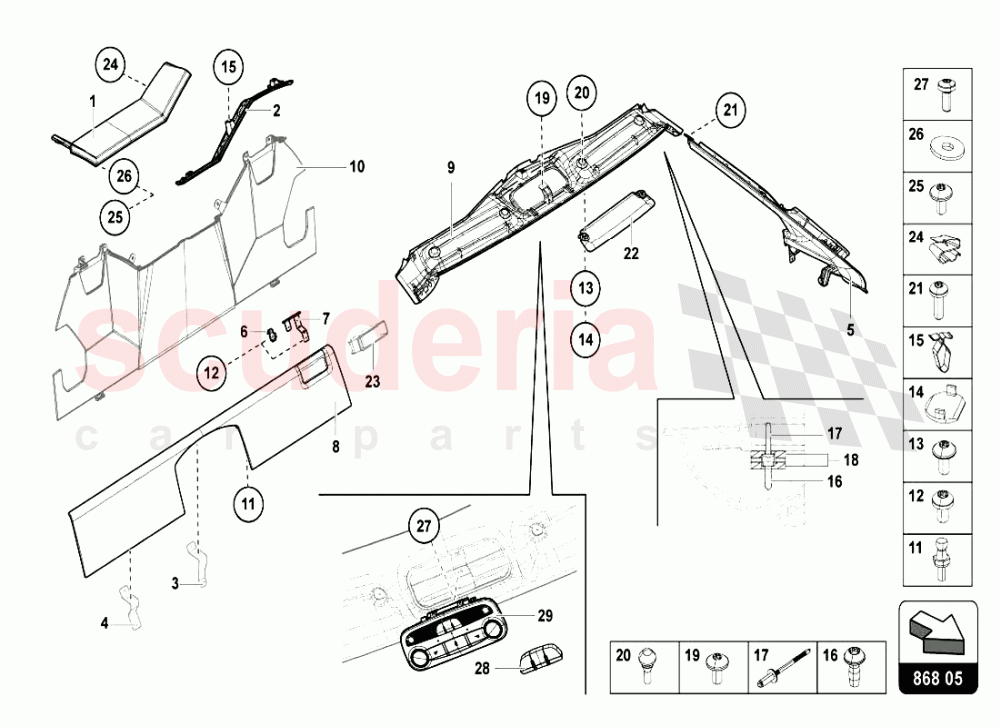

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
001	475867480A	REAR PANEL TRIM	475867480A REAR PANEL TRIM	-	1	Enquire
002	475867043A	REAR COVERING PANEL LEFT (LEATHER INTERIOR - SUPPLY VIN)	475867043A REAR COVERING PANEL LEFT (LEATHER INTERIOR - SUPPLY VIN)	-	1	Enquire
002	475867044A	REAR COVERING PANEL RIGHT (LEATHER INTERIOR - SUPPLY VIN)	475867044A REAR COVERING PANEL RIGHT (LEATHER INTERIOR - SUPPLY VIN)	-	1	Enquire
005	476867233C	A-PILLAR TRIM	476867233C A-PILLAR TRIM	-	1	Enquire
005	476867234C	A-PILLAR TRIM	476867234C A-PILLAR TRIM	-	1	Enquire
006	475868027	BRACKET	475868027 BRACKET	-	2	Enquire
007	475868743	BRACKET	475868743 BRACKET	-	2	Enquire
008	475868571A	REAR BENCH (LEATHER INTERIOR - SUPPLY VIN)	475868571A REAR BENCH (LEATHER INTERIOR - SUPPLY VIN)	-	1	Enquire
009	475867512B	ROOF TRIM	475867512B ROOF TRIM	-	1	Enquire
011	WHT002783	BALL PIN	WHT002783 BALL PIN	-	4	Enquire
012	N10406602	OVAL HEXAGON SOCKET HEAD BOLT	N10406602 OVAL HEXAGON SOCKET HEAD BOLT	-	4	Enquire
013	N10586401	OVAL HEXAGON SOCKET HEAD BOLT	N10586401 OVAL HEXAGON SOCKET HEAD BOLT	-	4	Enquire
014	8J7857621	COVER CAP	8J7857621 COVER CAP	-	4	Enquire
015	4A0867276B	CLIP	4A0867276B CLIP	-	6	Enquire
016	N10602101	HEXAGON SOCKET FLAT HEAD BOLT	N10602101 HEXAGON SOCKET FLAT HEAD BOLT	-	6	Enquire
017	N90931101	POP RIVET	N90931101 POP RIVET	-	6	Enquire
018	470860173	SECURING ELEMENT	470860173 SECURING ELEMENT	-	12	Enquire
019	N91096601	HEXAGON SOCKET FLAT HEAD BOLT	N91096601 HEXAGON SOCKET FLAT HEAD BOLT	-	1	Enquire
020	470867492	STOP BUFFER	470867492 STOP BUFFER	-	4	Enquire
021	N10196103	OVAL SOCKET HEAD BOLT WITH HEX DRIVE	N10196103 OVAL SOCKET HEAD BOLT WITH HEX DRIVE	-	6	Enquire
022	475857551	SUN VISOR LEFT (INTERNI IN PELLE - FORNIRE VIN)	475857551 SUN VISOR LEFT (INTERNI IN PELLE - FORNIRE VIN)	-	1	Enquire
022	475857552	SUN VISOR RIGHT (INTERNI IN PELLE - FORNIRE VIN)	475857552 SUN VISOR RIGHT (INTERNI IN PELLE - FORNIRE VIN)	-	1	Enquire
024	N90776001	CLIP	N90776001 CLIP	-	2	Enquire
025	N10124308	OVAL HEXAGON SOCKET HEAD BOLT	N10124308 OVAL HEXAGON SOCKET HEAD BOLT	-	2	Enquire
026	WHT002961	WASHER	WHT002961 WASHER	-	2	Enquire
027	N10569501	ROUND-HEAD SCREW WITH INNER HEXAGON SOCKET HEAD	N10569501 ROUND-HEAD SCREW WITH INNER HEXAGON SOCKET HEAD	-	1	Enquire
028	470857364	STOP BUFFER	470857364 STOP BUFFER	-	1	Enquire
029	8J0947111CJ6PS	INTERIOR AND READING LIGHT	8J0947111CJ6PS INTERIOR AND READING LIGHT	-	1	Enquire
029	8J0947111BS	INTERIOR AND READING LIGHT	8J0947111BS INTERIOR AND READING LIGHT	-	1	Enquire
029	8J0947111BS6PS	INTERIOR AND READING LIGHT	8J0947111BS6PS INTERIOR AND READING LIGHT	-	1	Enquire
029	8J0947111CJ	INTERIOR AND READING LIGHT	8J0947111CJ INTERIOR AND READING LIGHT	-	1	Enquire
