AIR CONDITIONING SYSTEM 3 of Lamborghini Lamborghini Aventador LP720 Coupe

View All

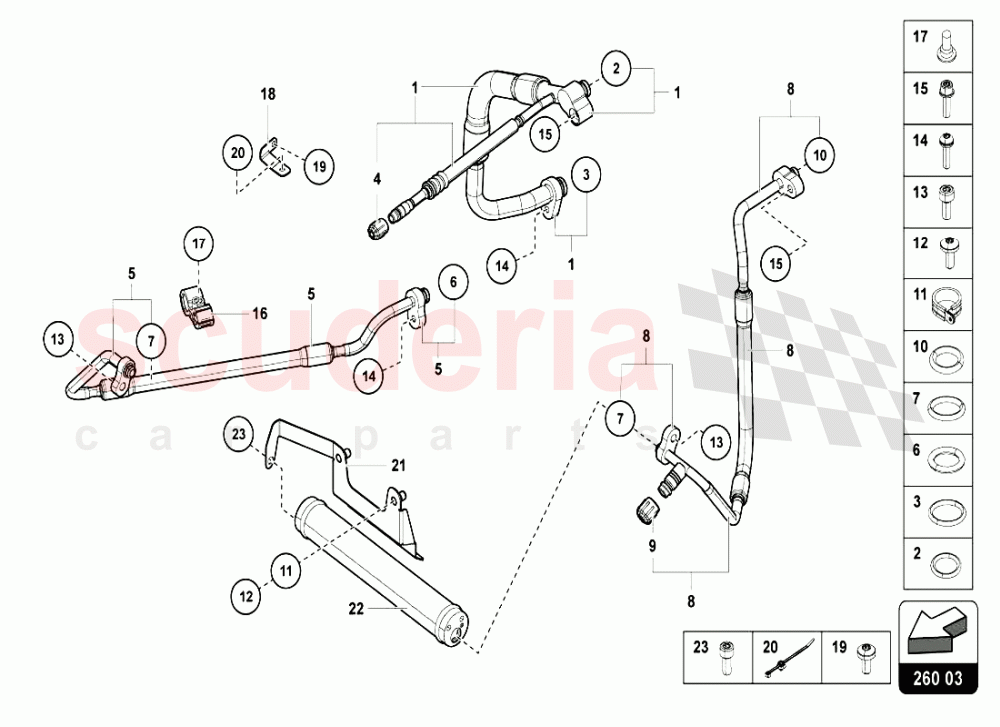

Lamborghini Aventador LP720 Coupe - AIR CONDITIONING SYSTEM 3

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
001	470260741B	FLANGED PIPE	470260741B FLANGED PIPE	$606.18	1
002	4E0260749B	SEAL RING IN STOCK	4E0260749B SEAL RING IN STOCK	$6.45 MSRP: ~~7.06~~ (8.6% off)	1
003	8E0260749C	SEAL RING	8E0260749C SEAL RING	$5.66 MSRP: ~~7.09~~ (20.2% off)	1
004	3C0820231	PROTECTIVE CAP	3C0820231 PROTECTIVE CAP	$18.96	1
005	470260711B	FLANGED PIPE	470260711B FLANGED PIPE	$231.85	1
006	4E0260749A	SEAL RING IN STOCK	4E0260749A SEAL RING IN STOCK	$6.67 MSRP: ~~7.06~~ (5.5% off)	1
007	8E0260749	O-ring (10,8x1,82) IN STOCK	8E0260749 O-ring (10,8x1,82) IN STOCK	$6.06 MSRP: ~~7.24~~ (16.3% off)	2
008	470260704B	FLANGED PIPE	470260704B FLANGED PIPE	$553.78	1
009	3C0820581	PROTECTIVE CAP	3C0820581 PROTECTIVE CAP	$18.96	1
010	3D0260749C	SEAL RING IN STOCK	3D0260749C SEAL RING IN STOCK	$6.67 MSRP: ~~7.10~~ (6.1% off)	1
011	N91123701	CLAMP	N91123701 CLAMP	$4.64	2
012	N91096701	OVAL HEXAGON SOCKET HEAD BOLT IN STOCK	N91096701 OVAL HEXAGON SOCKET HEAD BOLT IN STOCK	$1.63	2
013	N91084201	SOCKET HEAD BOLT WITH INNER MULTIPOINT HEAD (KOMBI) IN STOCK	N91084201 SOCKET HEAD BOLT WITH INNER MULTIPOINT HEAD (KOMBI) IN STOCK	$3.21 MSRP: ~~7.21~~ (55.5% off)	2
014	N10347204	HEXAGON SOCKET HEAD BOLT, SELF-LOCKING	N10347204 HEXAGON SOCKET HEAD BOLT, SELF-LOCKING	$2.29 MSRP: ~~7.26~~ (68.5% off)	2
015	N10414402	SOCKET HEAD BOLT WITH HEXAGON SOCKET HEAD IN STOCK	N10414402 SOCKET HEAD BOLT WITH HEXAGON SOCKET HEAD IN STOCK	$3.11 MSRP: ~~7.07~~ (56% off)	2
016	8E0260759AP	BRACKET FOR REFRIGERANT HOSE	8E0260759AP BRACKET FOR REFRIGERANT HOSE	$4.90	1
017	8D0201441C	PANEL NUT	8D0201441C PANEL NUT	$3.11	1
018	470260759	BRACKET FOR CONNECTOR HOUSING	470260759 BRACKET FOR CONNECTOR HOUSING	$22.66	1
019	N10335206	HEXAGON SOCKET FLAT HEAD BOLT IN STOCK	N10335206 HEXAGON SOCKET FLAT HEAD BOLT IN STOCK	$1.43	1
020	N90666101	CABLE TIES	N90666101 CABLE TIES	$1.03 MSRP: ~~7.32~~ (85.9% off)	1
021	470260419C	BRACKET	470260419C BRACKET	$50.74	1
022	6X0820191A	DRIER	6X0820191A DRIER	$192.27	1
023	N90972501	HEXAGON SOCKET HEAD BOLT	N90972501 HEXAGON SOCKET HEAD BOLT	$1.43 MSRP: ~~7.21~~ (80.2% off)	1
