Lamborghini Aventador LP720 Coupe - BATTERY - BATTERY MOUNTING

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

View All

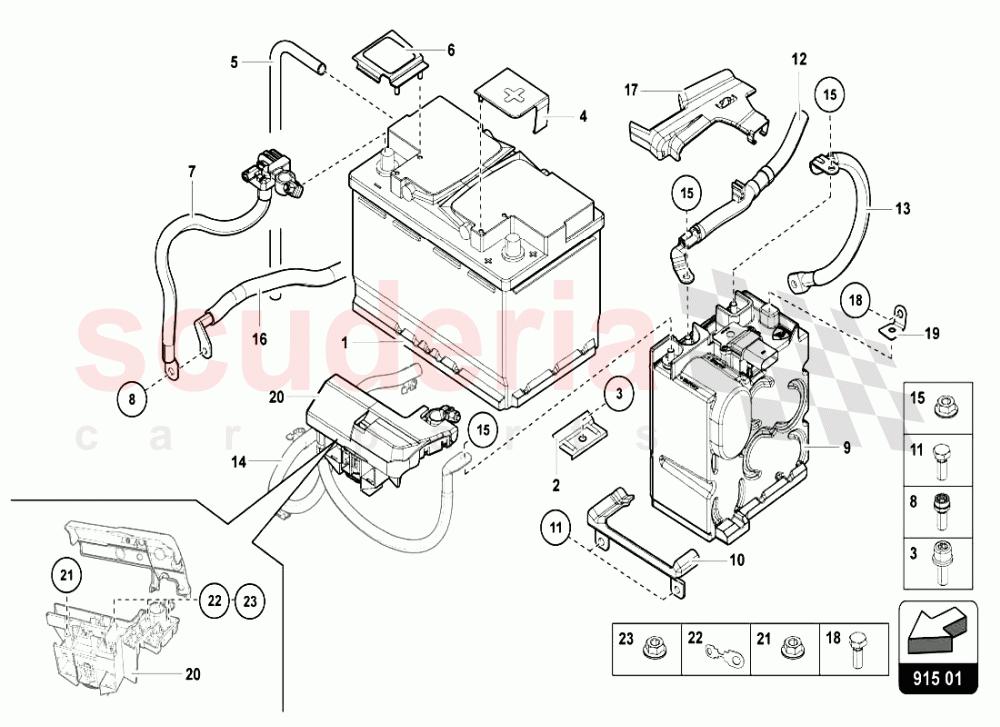

BATTERY - BATTERY MOUNTING of Lamborghini Lamborghini Aventador LP720 Coupe Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
001 5GM915105AE
BATTERY, FILLED AND CHARGED 		$398.27 1
002 8D0803123A
CLAMPING STRIP FOR BATTERY 		$5.45 2
003 N10347804
HEXAGON SOCKET HEAD BOLT (COMBI)
IN STOCK 		$1.68 2
004 8K0915429C
BATTERY POS. TERMINAL COVER 		$11.77 1
005 4F0915531
CORRUGATED PIPE 		$14.38 1
006 1K0971813F
COVER CAP
IN STOCK 		$6.11 1
007 8X0915181
CONTROL UNIT FOR BATTERY MONITORING 		$268.81 1
008 N91048802
SCREW WITH INT. SERRATIONS
IN STOCK 		$34.48 1
009 470971417B
MAGNETO
IN STOCK 		$2,290.70 1
010 470803123
ARM 		$44.23 1
011 N10664901
SOCKET HEAD COLLARED BOLT WITH INNER MULTIPOINT HEAD
IN STOCK 		$3.05 (58% off) 2
012 470971013
WIRING SET FOR ROOF CONSOLE 		$106.72 1
013 470971008
WIRING 		$463.71 1
015 N10609201
HEXAGON COLLAR NUT
IN STOCK 		$0.43 (94.1% off) 3
016 470971250
EARTH LINE 		$283.60 1
017 470972899A
COVER 		$75.00 1
018 N10653201
HEX COLLARED BOLT
IN STOCK 		$1.96 1
019 410905131
SECURING PLATE 		$27.77 1
020 8J0915459
CENTRAL PROTECTION 		$239.25 1
021 N90295502
HEXAGON COLLAR NUT 		$2.08 (71.5% off) 1
022 N10424905
STRIP FUSE 		$5.85 3
023 N90488005
HEX. NUT WITH WASHER 		$1.96 (73.1% off) 3
