Lamborghini Aventador LP700 Roadster - EXHAUST SYSTEM 3

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

View All

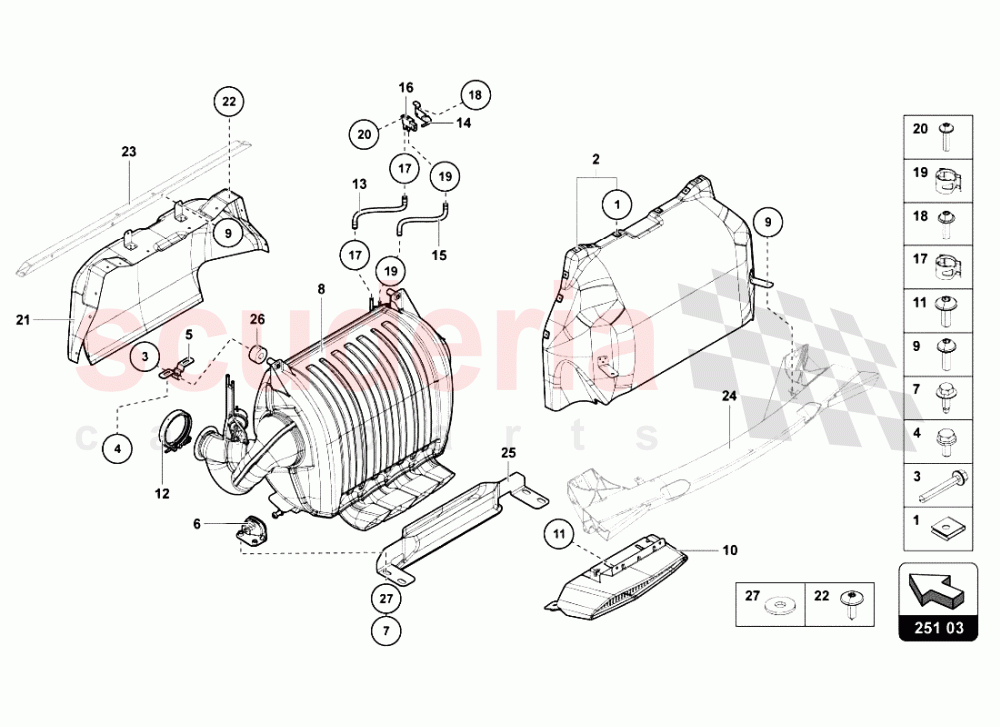

EXHAUST SYSTEM 3 of Lamborghini Lamborghini Aventador LP700 Roadster Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
001 N10433701
SPEED NUT
IN STOCK 		$1.37 12
002 470825709B
Heat Shield 		$3,918.00 1
003 N10680201
HEXAGON COLLARED BOLT WITH MULTI-POINT SOCKET HEAD (DUO) 		$3.71 2
004 N10005207
SCREW M8X18 		$7.53 4
005 470251303C
SUPPORT 		$106.33 2
006 7L0253144B
BRACKET 		$52.82 2
007 N0195307
HEX COLLARED BOLT
IN STOCK 		$2.96 (58.5% off) 4
008 470251051G
SILENCER WITH CATALYST (CHINA) 		$23,676.00 1
008 470251051F
SILENCER WITH CATALYST 		$9,590.02 1
009 N91032702
ROUND-HEAD SCREW WITH INNER HEXAGON SOCKET HEAD
IN STOCK 		$1.68 4
010 470253697C
AESTHETIC END 		$670.71 1
011 N90780903
OVAL HEXAGON SOCKET HEAD BOLT
IN STOCK 		$0.98 2
012 420251143
CLIP
IN STOCK 		$91.21 2
013 470131850
VACUUM HOSE 		$115.61 2
014 470971796
BRACKET 		$27.56 1
014 470971806A
BRACKET 		$63.38 1
015 470131849
VACUUM HOSE 		$115.19 2
016 59906051A
PRESSURE DIFFERENCE SENDER 		$124.33 2
017 3C0131483A
SPRING BAND CLAMP 		$3.55 4
018 N10569501
ROUND-HEAD SCREW WITH INNER HEXAGON SOCKET HEAD
IN STOCK 		$2.15 2
019 3C0131483
SPRING BAND CLAMP 		$3.51 4
020 N10637302
OVAL HEXAGON SOCKET HEAD BOLT
IN STOCK 		$0.95 (86.9% off) 2
021 470825613B
HEAT SHIELD 		$2,782.25 1
022 N90775001
HEXAGON SOCKET HEAD PANEL BOLT
IN STOCK 		$2.04 12
025 470825497
HEAT SHIELD 		$249.34 1
026 470825981
SPACER 		$21.78 2
027 WHT001942
WASHER
IN STOCK 		$3.30 4
