PEDALBOX ASSEMBLY of Lamborghini Lamborghini Aventador LP700 Roadster

View All

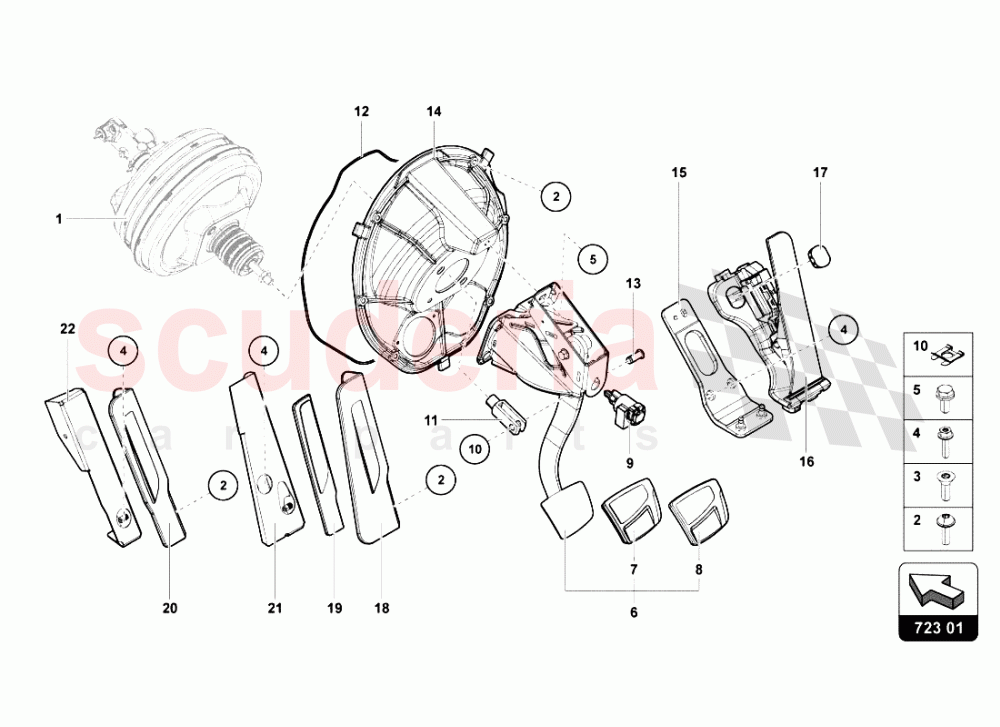

Lamborghini Aventador LP700 Roadster - PEDALBOX ASSEMBLY

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
002	N91032702	ROUND-HEAD SCREW WITH INNER HEXAGON SOCKET HEAD	N91032702 ROUND-HEAD SCREW WITH INNER HEXAGON SOCKET HEAD	-	6	Enquire
003	N10648601	SCREW M6X30	N10648601 SCREW M6X30	-	2	Enquire
004	N91054201	HEXAGON SOCKET HEAD BOLT, SELF-LOCKING	N91054201 HEXAGON SOCKET HEAD BOLT, SELF-LOCKING	-	5	Enquire
005	N10049308	HEXAGON HEAD BOLT (COMBI)	N10049308 HEXAGON HEAD BOLT (COMBI)	-	1	Enquire
006	472723140	BRAKE PEDAL	472723140 BRAKE PEDAL RHD	-	1	Enquire
006	471723140	BRAKE PEDAL	471723140 BRAKE PEDAL LHD	-	1	Enquire
007	400721174D	CAP FOR FOOT BRAKE PEDAL	400721174D CAP FOR FOOT BRAKE PEDAL	-	1	Enquire
008	400721780A	COVER	400721780A COVER	-	1	Enquire
009	4F0945459B	BRAKE LIGHT SENSOR	4F0945459B BRAKE LIGHT SENSOR	-	1	Enquire
010	N0126481	RETAINING WASHER	N0126481 RETAINING WASHER	-	1	Enquire
011	470721339	SUSPENSION LUG	470721339 SUSPENSION LUG	-	1	Enquire
012	470805675A	SEAL	470805675A SEAL	-	1	Enquire
013	470721375	PIN	470721375 PIN	-	1	Enquire
014	471805057A	BRACKET FOR PEDAL CLUSTER	471805057A BRACKET FOR PEDAL CLUSTER	-	1	Enquire
015	470721531B	STOP FOR ACCELERATOR PEDAL	470721531B STOP FOR ACCELERATOR PEDAL	-	1	Enquire
016	400721503G	ACCELERATOR PEDAL	400721503G ACCELERATOR PEDAL	-	1	Enquire
017	1K0721989	CAP	1K0721989 CAP	-	1	Enquire
018	471864891	FOOTREST DRIVER SIDE	471864891 FOOTREST DRIVER SIDE	-	1	Enquire
019	401864431	RUBBER FOOT MAT	401864431 RUBBER FOOT MAT	-	1	Enquire
021	471864419B	SUPPORT	471864419B SUPPORT	-	1	Enquire
023	N91165701	HEX SOCKET HEAD BOLT (COMBI)	N91165701 HEX SOCKET HEAD BOLT (COMBI)	-	2	Enquire
