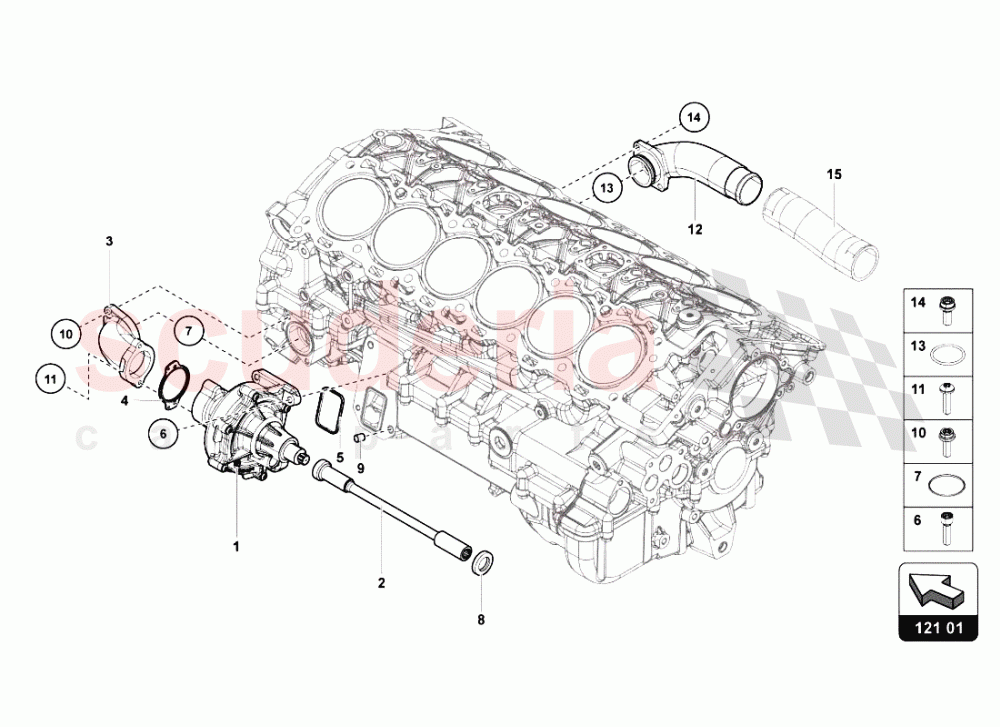

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
001	7M121011K	COOLANT PUMP IN STOCK	7M121011K COOLANT PUMP IN STOCK	$4,192.68	1
002	7M115120E	INPUT SHAFT	7M115120E INPUT SHAFT	$1,219.11	1
003	7M121071A	COOLANT HOSE	7M121071A COOLANT HOSE	$1,626.36	1
004	7M121139	SEAL WATER PUMP IN STOCK	7M121139 SEAL WATER PUMP IN STOCK	$15.50 MSRP: ~~17.65~~ (12.2% off)	1
005	7M103181	SEAL WATER PUMP IN STOCK	7M103181 SEAL WATER PUMP IN STOCK	$27.62	1
006	N10518405	SOCKET HEAD BOLT WITH MULTI- POINT INNER DRIVE, SELF-LOCK. IN STOCK	N10518405 SOCKET HEAD BOLT WITH MULTI- POINT INNER DRIVE, SELF-LOCK. IN STOCK	$3.48 MSRP: ~~7.10~~ (51% off)	4
007	N90180902	O-RING COOLANT PUMP IN STOCK	N90180902 O-RING COOLANT PUMP IN STOCK	$5.14 MSRP: ~~7.22~~ (28.8% off)	1
008	7M121437	SEAL RING IN STOCK	7M121437 SEAL RING IN STOCK	$55.48	1
009	7M103143A	DOWEL SLEEVE	7M103143A DOWEL SLEEVE	$34.96	2
010	N10689302	SOCKET HEAD BOLT WITH INNER MULTIPOINT HEAD IN STOCK	N10689302 SOCKET HEAD BOLT WITH INNER MULTIPOINT HEAD IN STOCK	$3.11 MSRP: ~~7.17~~ (56.6% off)	2
011	N91071701	HEXAGON SOCKET FLAT HEAD BOLT IN STOCK	N91071701 HEXAGON SOCKET FLAT HEAD BOLT IN STOCK	$1.68 MSRP: ~~7.22~~ (76.7% off)	2
012	470121069B	COOLANT HOSE	470121069B COOLANT HOSE	$211.02	1
013	N90928101	O-RING IN STOCK	N90928101 O-RING IN STOCK	$12.73	1
014	N91048802	SCREW WITH INT. SERRATIONS IN STOCK	N91048802 SCREW WITH INT. SERRATIONS IN STOCK	$34.48	2
