Battery - Battery Mounting

Lamborghini Aventador LP700 Roadster

Find Your Part

Lamborghini Aventador LP700 Roadster - BATTERY - BATTERY MOUNTING

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

View All

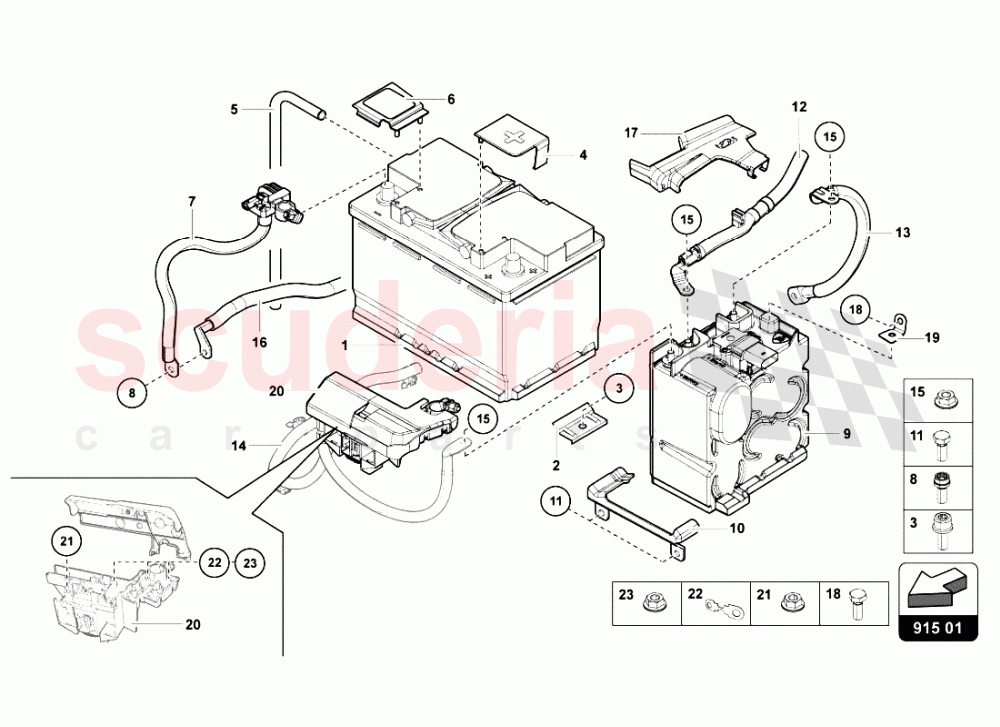

BATTERY - BATTERY MOUNTING of Lamborghini Lamborghini Aventador LP700 Roadster Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
001 5GM915105AE
BATTERY, FILLED AND CHARGED 		- 1 Enquire
002 8D0803123A
CLAMPING STRIP FOR BATTERY 		- 2 Enquire
003 N10347804
HEXAGON SOCKET HEAD BOLT (COMBI) 		- 2 Enquire
004 8K0915429C
BATTERY POS. TERMINAL COVER 		- 1 Enquire
005 4F0915531
CORRUGATED PIPE 		- 1 Enquire
006 1K0971813F
COVER CAP 		- 1 Enquire
007 8X0915181
CONTROL UNIT FOR BATTERY MONITORING 		- 1 Enquire
008 N91048802
SCREW WITH INT. SERRATIONS 		- 1 Enquire
009 470971417B
MAGNETO 		- 1 Enquire
010 470803123
ARM 		- 1 Enquire
011 N10664901
SOCKET HEAD COLLARED BOLT WITH INNER MULTIPOINT HEAD 		- 2 Enquire
012 470971013
WIRING SET FOR ROOF CONSOLE 		- 1 Enquire
013 470971008
WIRING 		- 1 Enquire
015 N10609201
HEXAGON COLLAR NUT 		- 3 Enquire
016 470971250
EARTH LINE 		- 1 Enquire
017 470972899A
COVER 		- 1 Enquire
018 N10653201
HEX COLLARED BOLT 		- 1 Enquire
019 410905131
SECURING PLATE 		- 1 Enquire
020 8J0915459
CENTRAL PROTECTION 		- 1 Enquire
021 N90295502
HEXAGON COLLAR NUT 		- 1 Enquire
022 N10424905
STRIP FUSE 		- 3 Enquire
023 N90488005
HEX. NUT WITH WASHER 		- 3 Enquire
