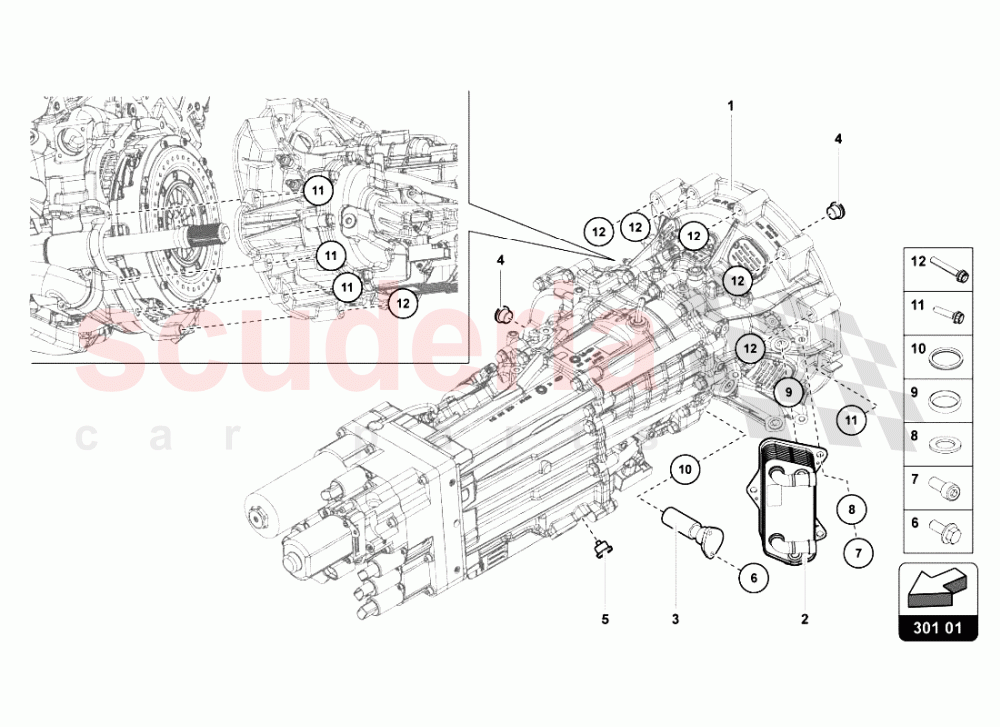

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
002	2E409061B	OIL COOLER	2E409061B OIL COOLER	-	1	Enquire
003	B9525558	OIL FILTER WITH FLANGE ARRIVING SOON	B9525558 OIL FILTER WITH FLANGE ARRIVING SOON	-	1	Enquire
004	B9525820	BUNGS	B9525820 BUNGS	-	2	Enquire
005	B9525151	OIL DRAIN PLUG, MAGNETIC	B9525151 OIL DRAIN PLUG, MAGNETIC	-	1	Enquire
006	470598270	HEX COLLARED BOLT	470598270 HEX COLLARED BOLT	-	2	Enquire
010	N91028901	O-RING	N91028901 O-RING	-	1	Enquire
011	N91129401	12-POINT HEAD BOLT	N91129401 12-POINT HEAD BOLT	-	4	Enquire
012	N91129501	12-EDGE FLANGE SCREW	N91129501 12-EDGE FLANGE SCREW	-	6	Enquire
013	470325565	Bungs (m18x1,5)	470325565 Bungs (m18x1,5)	-	2	Enquire
