Front Brakes Discs Ccb of Lamborghini Lamborghini Aventador LP700 Coupe

View All

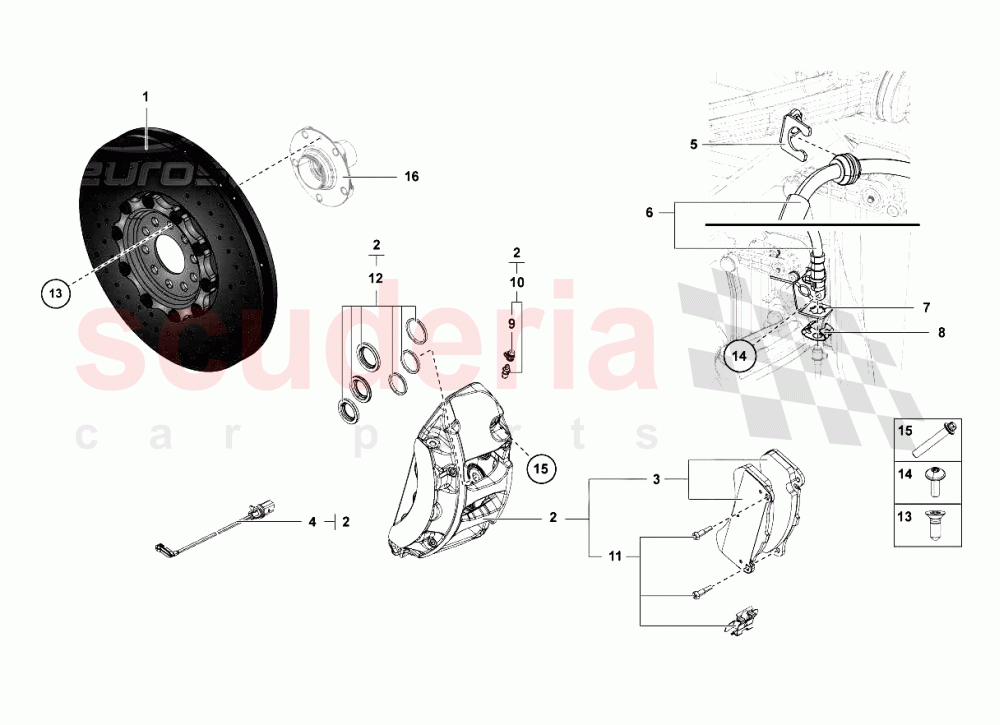

Lamborghini Aventador LP700 Coupe - Front Brakes Discs Ccb

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
001	470615301C	Lh Front Brake Disk (carboceramic Brake)	470615301C Lh Front Brake Disk (carboceramic Brake)	-	1	Enquire
001	470615302C	Rh Front Brake Disk (carboceramic Brake)	470615302C Rh Front Brake Disk (carboceramic Brake)	-	1	Enquire
002	470615105H	Lh Front Brake Caliper (carboceramic Brake -calipers) Grey Front	470615105H Lh Front Brake Caliper (carboceramic Brake -calipers) Grey Front	-	1	Enquire
002	470615106G	Rh Front Brake Caliper (carboceramic Brake Front Calipers) Yellow	470615106G Rh Front Brake Caliper (carboceramic Brake Front Calipers) Yellow	-	1	Enquire
002	470615106T	Brake Caliper Housing (carboceramic Brake, Red Front Calipers-right Front Red)	470615106T Brake Caliper Housing (carboceramic Brake, Red Front Calipers-right Front Red) (red)	-	1	Enquire
002	470615105AM	LH Front Brake Caliper Green	470615105AM LH Front Brake Caliper Green	-	1	Enquire
002	470615106AM	RH Front Brake Caliper Green	470615106AM RH Front Brake Caliper Green	-	1	Enquire
002	470615105G	Lh Front Brake Caliper (carboceramic Brake -front Calipers) Yellow	470615105G Lh Front Brake Caliper (carboceramic Brake -front Calipers) Yellow	-	1	Enquire
002	470615105F	LH FRONT BRAKE CALIPER (CARBOCERAMIC BRAKE -CALIPERS) BLACK FRONT	470615105F LH FRONT BRAKE CALIPER (CARBOCERAMIC BRAKE -CALIPERS) BLACK FRONT	-	1	Enquire
002	470615106H	RH FRONT BRAKE CALIPER (CARBOCERAMIC BRAKE CALIPERS) GREY FRONT	470615106H RH FRONT BRAKE CALIPER (CARBOCERAMIC BRAKE CALIPERS) GREY FRONT	-	1	Enquire
002	470615106F	RH FRONT BRAKE CALIPER (CARBOCERAMIC BRAKE CALIPERS) BLACK FRONT	470615106F RH FRONT BRAKE CALIPER (CARBOCERAMIC BRAKE CALIPERS) BLACK FRONT	-	1	Enquire
002	470615106J	RH FRONT BRAKE CALIPER(CARBOCERAMIC BRAKE)	470615106J RH FRONT BRAKE CALIPER(CARBOCERAMIC BRAKE)	-	1	Enquire
002	470615105J	LH FRONT BRAKE CALIPER (CARBOCERAMIC BRAKE -FRONT CALIPERS) ORANGE	470615105J LH FRONT BRAKE CALIPER (CARBOCERAMIC BRAKE -FRONT CALIPERS) ORANGE	-	1	Enquire
003	470698151	BRAKE PAD SET ARRIVING SOON	470698151 BRAKE PAD SET ARRIVING SOON	-	1	Enquire
004	470698137	BRAKE PAD WEAR INDICATOR	470698137 BRAKE PAD WEAR INDICATOR	-	1	Enquire
006	470611707A	Hose	470611707A Hose	-	1	Enquire
007	470611851A	Bracket (left)	470611851A Bracket (left)	-	1	Enquire
007	470611852A	Bracket (right)	470611852A Bracket (right)	-	1	Enquire
008	4D0611715B	RETAINING SPRING	4D0611715B RETAINING SPRING	-	2	Enquire
009	7D0611483	DUST CAP	7D0611483 DUST CAP	-	4	Enquire
010	8A0615273	1 SET BLEEDER VALVES WITH DUST CAP	8A0615273 1 SET BLEEDER VALVES WITH DUST CAP	-	4	Enquire
011	470698135	1 SET FIXING PARTS FOR DISC BRAKE PADS	470698135 1 SET FIXING PARTS FOR DISC BRAKE PADS	-	1	Enquire
012	470698507	Set Of Gaskets For Brake Caliper Housing	470698507 Set Of Gaskets For Brake Caliper Housing	-	1	Enquire
013	N10648301	HEX SOCKET COUNTERSUNK BOLT	N10648301 HEX SOCKET COUNTERSUNK BOLT	-	2	Enquire
014	N10714801	OVAL HEXAGON SOCKET HEAD BOLT	N10714801 OVAL HEXAGON SOCKET HEAD BOLT	-	4	Enquire
015	WHT005181	HEX COLLARED BOLT	WHT005181 HEX COLLARED BOLT	-	4	Enquire
