Exhaust System 3 of Lamborghini Lamborghini Aventador LP700 Coupe

View All

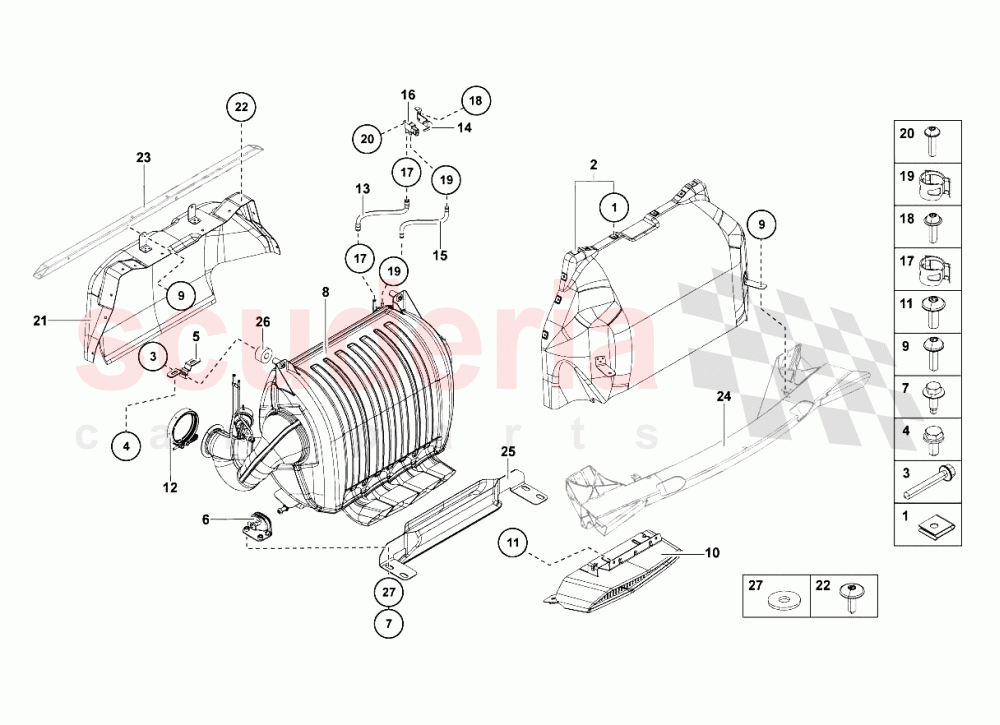

Lamborghini Aventador LP700 Coupe - Exhaust System 3

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
001	N10433701	SPEED NUT	N10433701 SPEED NUT	-	12	Enquire
002	470825709A	Heat Shield	470825709A Heat Shield	-	1	Enquire
003	N10680201	HEXAGON COLLARED BOLT WITH MULTI-POINT SOCKET HEAD (DUO)	N10680201 HEXAGON COLLARED BOLT WITH MULTI-POINT SOCKET HEAD (DUO)	-	2	Enquire
004	N10005207	SCREW M8X18	N10005207 SCREW M8X18	-	4	Enquire
005	470251303	Support	470251303 Support	-	2	Enquire
006	7L0253144B	BRACKET	7L0253144B BRACKET	-	2	Enquire
007	N0195307	HEX COLLARED BOLT	N0195307 HEX COLLARED BOLT	-	4	Enquire
008	470251051C	Silencer With Catalyst	470251051C Silencer With Catalyst	-	1	Enquire
008	470251051D	SILENCER WITH CATALYST	470251051D SILENCER WITH CATALYST	-	1	Enquire
009	N91032702	ROUND-HEAD SCREW WITH INNER HEXAGON SOCKET HEAD	N91032702 ROUND-HEAD SCREW WITH INNER HEXAGON SOCKET HEAD	-	4	Enquire
010	470253697C	AESTHETIC END	470253697C AESTHETIC END	-	1	Enquire
010	470253697B	EXHAUST TERMINALS COVER	470253697B EXHAUST TERMINALS COVER	-	1	Enquire
011	N90780903	OVAL HEXAGON SOCKET HEAD BOLT	N90780903 OVAL HEXAGON SOCKET HEAD BOLT	-	2	Enquire
012	420251143	CLIP	420251143 CLIP	-	2	Enquire
013	470131850	VACUUM HOSE	470131850 VACUUM HOSE	-	2	Enquire
014	470971806	Rh Bracket	470971806 Rh Bracket	-	1	Enquire
014	470971796	BRACKET	470971796 BRACKET	-	1	Enquire
015	470131849	VACUUM HOSE	470131849 VACUUM HOSE	-	2	Enquire
016	59906051A	PRESSURE DIFFERENCE SENDER	59906051A PRESSURE DIFFERENCE SENDER	-	2	Enquire
017	3C0131483A	SPRING BAND CLAMP	3C0131483A SPRING BAND CLAMP	-	4	Enquire
018	N10569501	ROUND-HEAD SCREW WITH INNER HEXAGON SOCKET HEAD	N10569501 ROUND-HEAD SCREW WITH INNER HEXAGON SOCKET HEAD	-	2	Enquire
019	3C0131483	SPRING BAND CLAMP	3C0131483 SPRING BAND CLAMP	-	4	Enquire
020	N10637302	OVAL HEXAGON SOCKET HEAD BOLT	N10637302 OVAL HEXAGON SOCKET HEAD BOLT	-	2	Enquire
021	470825613B	HEAT SHIELD	470825613B HEAT SHIELD	-	1	Enquire
022	N90775001	HEXAGON SOCKET HEAD PANEL BOLT	N90775001 HEXAGON SOCKET HEAD PANEL BOLT	-	12	Enquire
025	470825497	HEAT SHIELD	470825497 HEAT SHIELD	-	1	Enquire
026	470825981	SPACER	470825981 SPACER	-	2	Enquire
027	WHT001942	WASHER	WHT001942 WASHER	-	4	Enquire
