Rear Drive Shaft of Lamborghini Lamborghini Aventador LP700 Coupe

View All

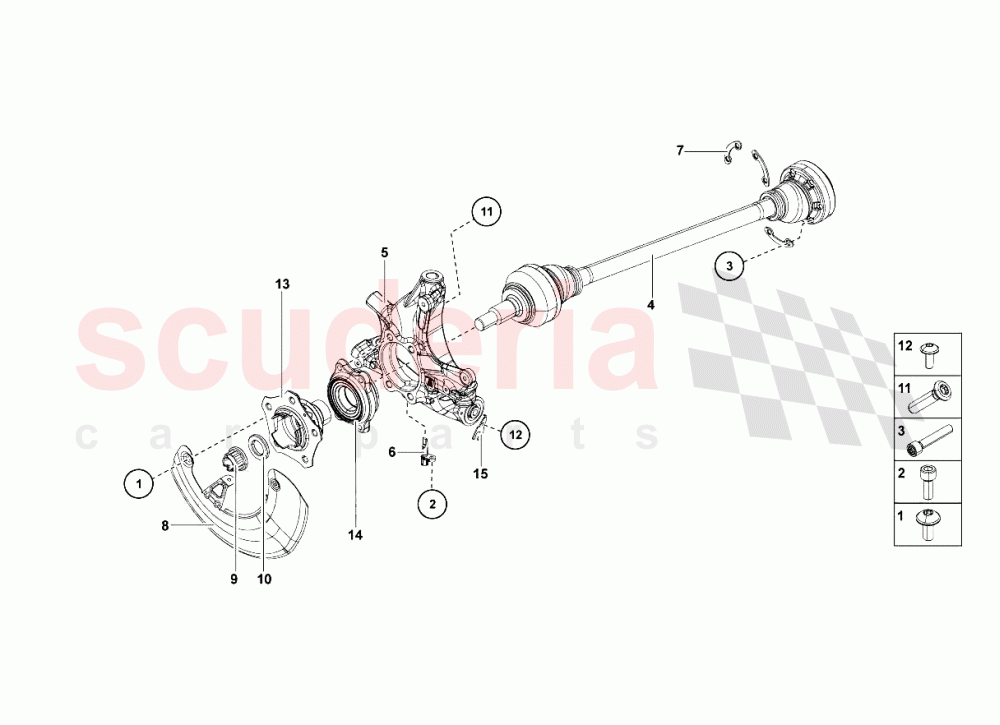

Lamborghini Aventador LP700 Coupe - Rear Drive Shaft

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
001	N90737804	SOCKET HEAD BOLT WITH INNER MULTIPOINT HEAD	N90737804 SOCKET HEAD BOLT WITH INNER MULTIPOINT HEAD	-	6	Enquire
002	N01474011	SOCKET HEAD BOLT WITH HEXAGON SOCKET HEAD	N01474011 SOCKET HEAD BOLT WITH HEXAGON SOCKET HEAD	-	2	Enquire
003	N10667901	SOCKET HEAD BOLT WITH INNER MULTIPOINT HEAD	N10667901 SOCKET HEAD BOLT WITH INNER MULTIPOINT HEAD	-	12	Enquire
004	470501203E	LH REAR DRIVESHAFT	470501203E LH REAR DRIVESHAFT	-	1	Enquire
004	470501204E	RH REAR DRIVESHAFT	470501204E RH REAR DRIVESHAFT	-	1	Enquire
005	470505433C	REAR LEFT HUB CARRIER	470505433C REAR LEFT HUB CARRIER	-	1	Enquire
005	470505433D	REAR LEFT HUB CARRIER (UNTIL THE VIN GLA04209 - CONTACT YOUR AREA MANAGER)	470505433D REAR LEFT HUB CARRIER (UNTIL THE VIN GLA04209 - CONTACT YOUR AREA MANAGER)	-	1	Enquire
005	470505434D	REAR RIGHT HUB CARRIER (UNTIL THE VIN GLA04209 - CONTACT YOUR AREA MANAGER)	470505434D REAR RIGHT HUB CARRIER (UNTIL THE VIN GLA04209 - CONTACT YOUR AREA MANAGER)	-	1	Enquire
005	470505434C	REAR RIGHT HUB CARRIER	470505434C REAR RIGHT HUB CARRIER	-	1	Enquire
006	4E0927803F	SPEED SENSOR	4E0927803F SPEED SENSOR	-	1	Enquire
006	4E0927804F	SPEED SENSOR	4E0927804F SPEED SENSOR	-	1	Enquire
007	7L0407357B	SPACER	7L0407357B SPACER	-	1	Enquire
008	470615612B	RH PROTECTION	470615612B RH PROTECTION	-	1	Enquire
008	470615611B	LH PROTECTION	470615611B LH PROTECTION	-	1	Enquire
009	WHT006779	12 POINT SOCKET SHOULDERED NUT SELF-LOCKING	WHT006779 12 POINT SOCKET SHOULDERED NUT SELF-LOCKING	-	2	Enquire
010	400501226	SPACER RING	400501226 SPACER RING	-	2	Enquire
011	WHT000237A	TRIPLE SQUARE BOLT M1 2X 1.5 X 45	WHT000237A TRIPLE SQUARE BOLT M1 2X 1.5 X 45	-	8	Enquire
012	N91055501	OVAL HEXAGON SOCKET HEAD BOLT	N91055501 OVAL HEXAGON SOCKET HEAD BOLT	-	2	Enquire
013	470501652B	WHEEL HUB	470501652B WHEEL HUB	-	2	Enquire

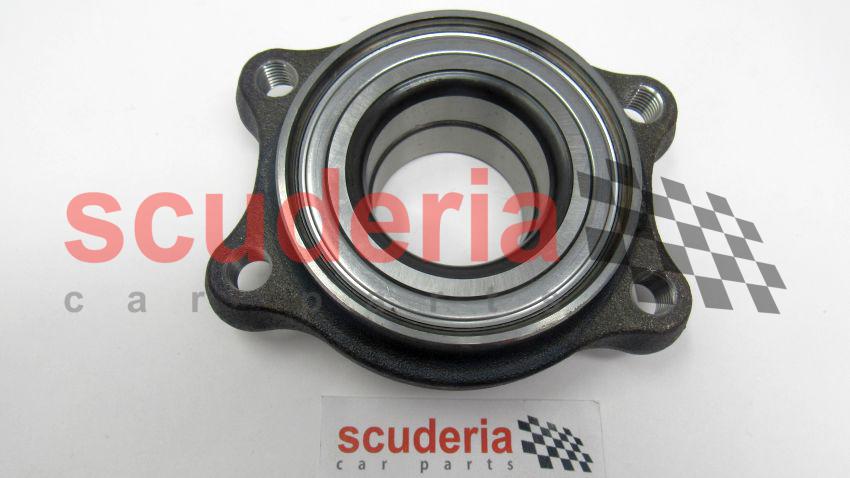

014	4E0407625F	DOUBLE (ANGLED) BALL BEARING WITH FLANGE	4E0407625F DOUBLE (ANGLED) BALL BEARING WITH FLANGE	-	2	Enquire
015	470971930	CABLE TERMINAL	470971930 CABLE TERMINAL	-	2	Enquire
