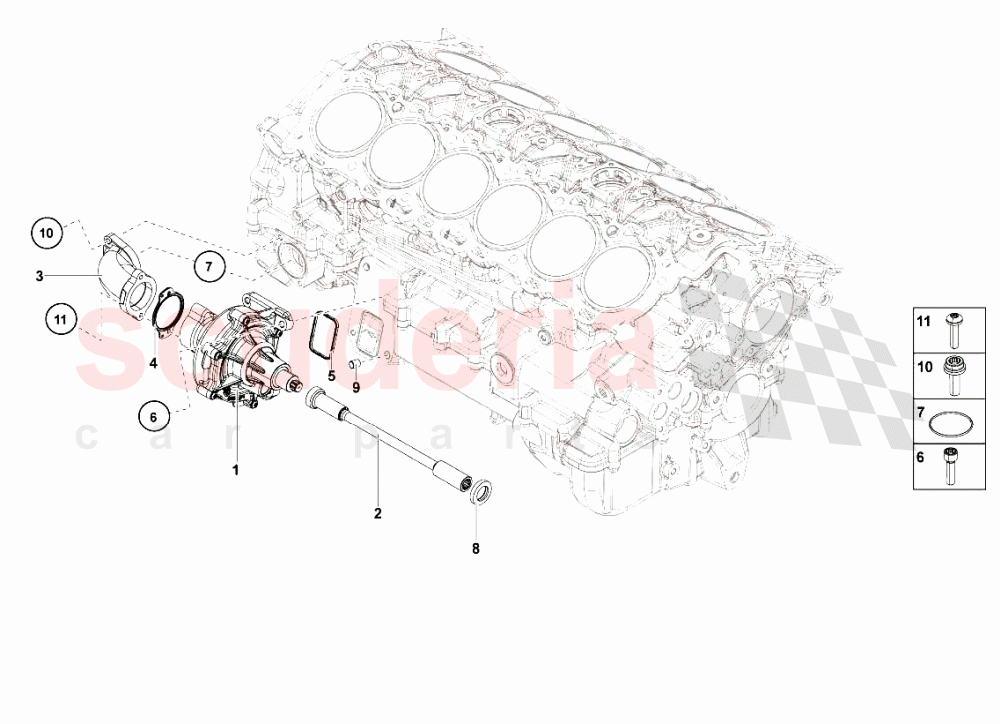

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
001	7M121011K	COOLANT PUMP IN STOCK	7M121011K COOLANT PUMP IN STOCK	-	1	Enquire
002	7M115120E	INPUT SHAFT	7M115120E INPUT SHAFT	-	1	Enquire
003	7M121071A	COOLANT HOSE	7M121071A COOLANT HOSE	-	1	Enquire
004	7M121139	SEAL IN STOCK	7M121139 SEAL IN STOCK	-	1	Enquire
005	7M103181	SEAL IN STOCK	7M103181 SEAL IN STOCK	-	1	Enquire
006	N10518405	SOCKET HEAD BOLT WITH MULTI- POINT INNER DRIVE, SELF-LOCK. IN STOCK	N10518405 SOCKET HEAD BOLT WITH MULTI- POINT INNER DRIVE, SELF-LOCK. IN STOCK	-	4	Enquire
007	N90180902	O-RING IN STOCK	N90180902 O-RING IN STOCK	-	1	Enquire
008	7M121437	SEAL RING IN STOCK	7M121437 SEAL RING IN STOCK	-	1	Enquire
009	7M103143A	DOWEL SLEEVE	7M103143A DOWEL SLEEVE	-	2	Enquire
010	N10689302	SOCKET HEAD BOLT WITH INNER MULTIPOINT HEAD IN STOCK	N10689302 SOCKET HEAD BOLT WITH INNER MULTIPOINT HEAD IN STOCK	-	2	Enquire
011	N91071701	HEXAGON SOCKET FLAT HEAD BOLT IN STOCK	N91071701 HEXAGON SOCKET FLAT HEAD BOLT IN STOCK	-	2	Enquire
