Electrical System 4

Lamborghini Aventador LP700 Coupe

Find Your Part

Lamborghini Aventador LP700 Coupe - Electrical System 4

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

View All

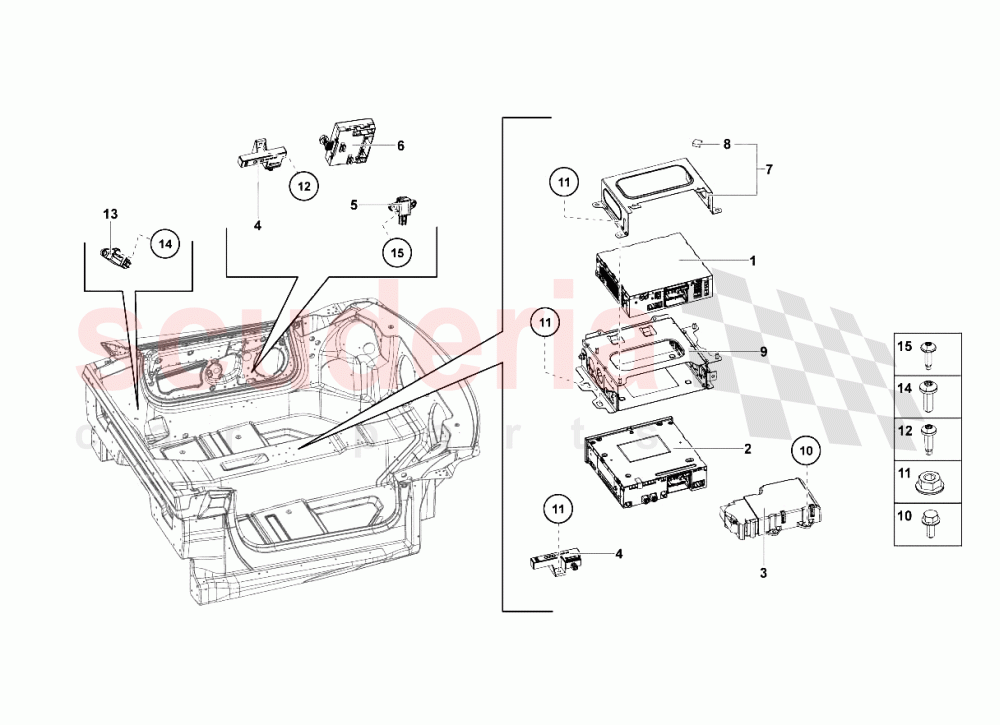

Electrical System 4 of Lamborghini Lamborghini Aventador LP700 Coupe Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
001 4G0035061
RADIO UNIT (WITH DAB) 		- 1 Enquire
001 4G0035056
RADIO European and Australian market 		$827.96 1
001 4G0035080
RADIO USA and Canadian models. 		$2,264.77 1
002 470035666
Multimedia System 		$4,260.74 1
002 470035662
Multimedia System (china) 		$9,341.38 1
002 470035774
Multimedia System (korea) 		$9,341.38 1
003 470959655A
CONTROL UNIT FOR AIRBAG 		$497.32 1
004 8K0907247
AERIAL FOR ACCESS AND START AUTHORISATION (KESSY) 		$48.11 3
005 8K0955557C
PRESSURE SENSOR 		$80.38 2
006 470959793
LH ELEC. CONTROL UNIT FOR DOOR 		$207.66 1
006 470959792
RH ELEC. CONTROL UNIT FOR DOOR 		$201.63 1
007 470035314
BRACKET 		$60.65 1
008 443201365H
SPACER 		- 4 Enquire
009 471035313
BRACKET 		- 1 Enquire

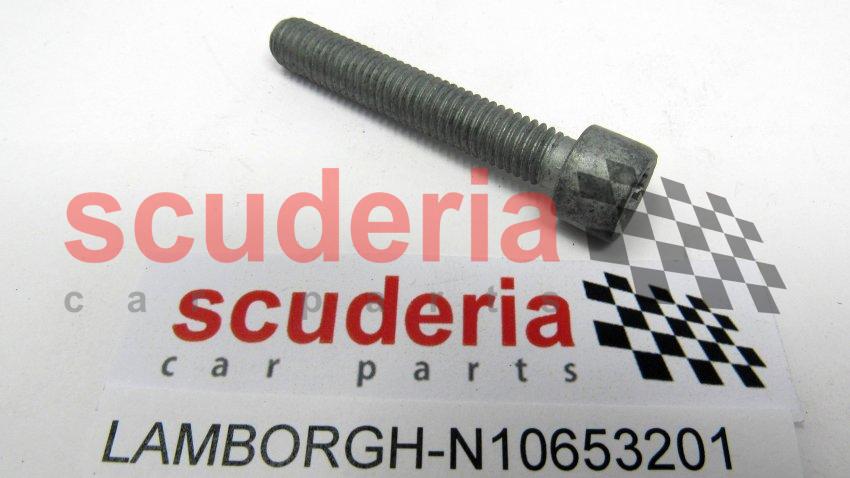

010 N10653201
HEX COLLARED BOLT
IN STOCK 		$1.96 8
011 N01508210
HEXAGON COLLAR NUT
IN STOCK 		$1.96 10
012 N10595002
ROUND HD. SCREW
IN STOCK 		$1.47 4
013 1K0909606C
CRASH SENSOR FOR AIRBAG 		$209.01 2
014 N10196103
OVAL SOCKET HEAD BOLT WITH HEX DRIVE
IN STOCK 		$1.34 4
015 N10684701
OVAL HEXAGON SOCKET HEAD BOLT
IN STOCK 		$1.19 (83.7% off) 4
