ELECTRIC AXLE COOLING of Ferrari Ferrari SF90 XX Stradale USA

View All

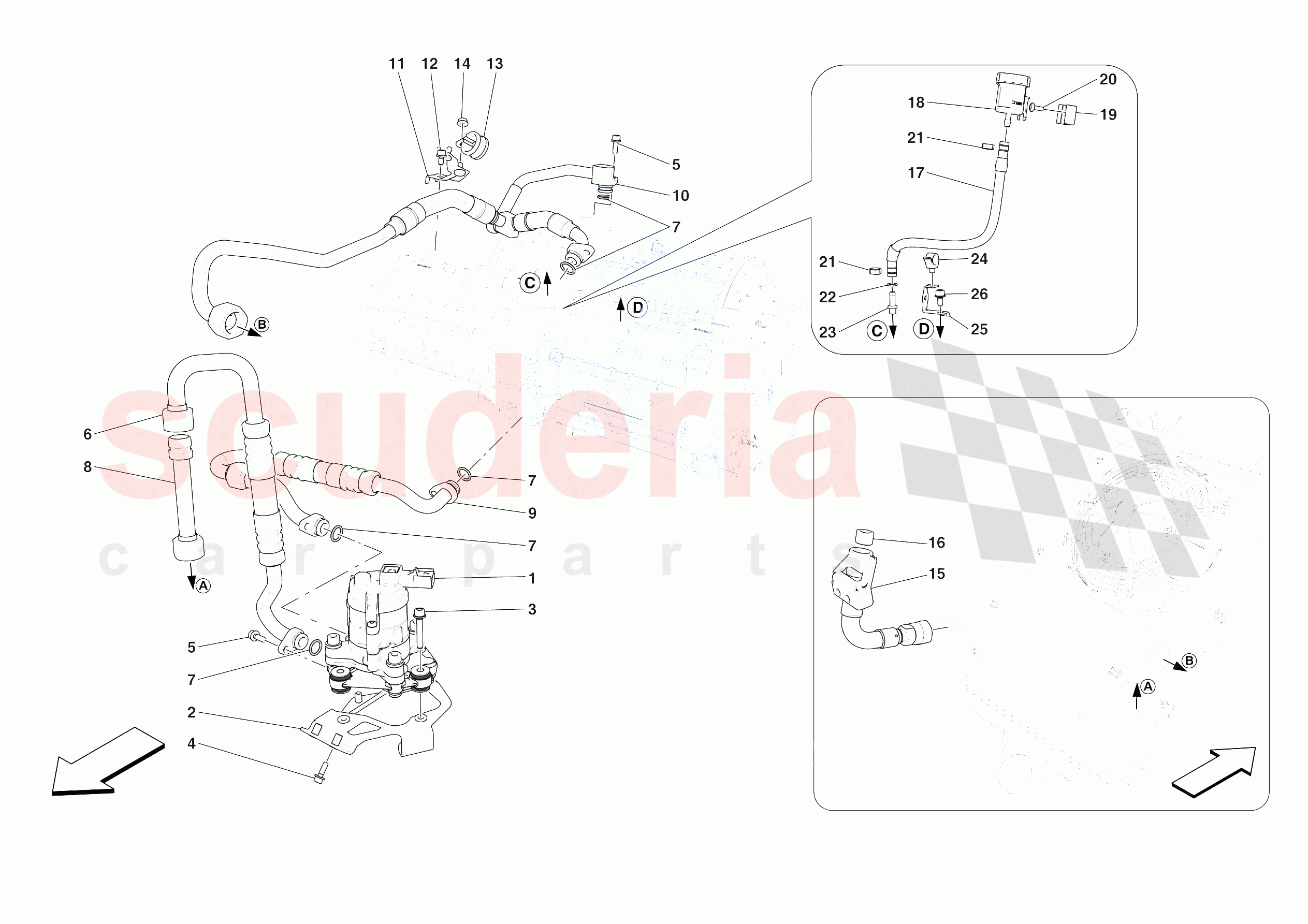

Ferrari SF90 XX Stradale USA - ELECTRIC AXLE COOLING

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	894450	COMPL. PUMP WITH PLATE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	898510	PUMP MOUNTING BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	231622	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	85833700	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	231619	SOCKET HEAD SCREW M6 X 22 WITH WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	898513	OIL DELIVERY PIPE FROM PUMP TO RADIATOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	286421	O-RING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	898515	STRAIGHT PIPE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	898512	OIL SUCTION PIPE FROM AXLE TO PUMP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	898517	OIL RETURN PIPE FROM RADIATOR TO AXLE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	883407	BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	248334	SCREW M6 X 14MM	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	291225	P clip Bracket With Sheath	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14040614	NUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	955410	OIL FILLER PIPE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	282756	THREADED PLUG	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	335820	VENT PIPE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	773829	DCT EXPANSION TANK	Enquire	To Order
	773829	DCT EXPANSION TANK	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	301886	TANK BREATHER MOUNT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	85629300	SCREW M6 X 20	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	13432070	HOSE COLLAR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	127497	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	968342	CONNECTOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	198253	CLIP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	862859	LH BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	231627	SCREW	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
0001	894450	COMPL. PUMP WITH PLATE	894450 COMPL. PUMP WITH PLATE	-	1	Enquire
0002	898510	PUMP MOUNTING BRACKET	898510 PUMP MOUNTING BRACKET	-	1	Enquire
0003	231622	SCREW	231622 SCREW M6 X 35	-	3	Enquire
0004	85833700	SCREW	85833700 SCREW M5 X 16	-	4	Enquire
0005	231619	SOCKET HEAD SCREW M6 X 22 WITH WASHER	231619 SOCKET HEAD SCREW M6 X 22 WITH WASHER M6 X 18	-	7	Enquire
0006	898513	OIL DELIVERY PIPE FROM PUMP TO RADIATOR	898513 OIL DELIVERY PIPE FROM PUMP TO RADIATOR	-	1	Enquire
0007	286421	O-RING	286421 O-RING	-	5	Enquire
0008	898515	STRAIGHT PIPE	898515 STRAIGHT PIPE	-	1	Enquire
0009	898512	OIL SUCTION PIPE FROM AXLE TO PUMP	898512 OIL SUCTION PIPE FROM AXLE TO PUMP	-	1	Enquire
0010	898517	OIL RETURN PIPE FROM RADIATOR TO AXLE	898517 OIL RETURN PIPE FROM RADIATOR TO AXLE	-	1	Enquire
0011	883407	BRACKET	883407 BRACKET	-	1	Enquire
0012	248334	SCREW M6 X 14MM	248334 SCREW M6 X 14MM M6 X 12	-	1	Enquire
0013	291225	P clip Bracket With Sheath	291225 P clip Bracket With Sheath	-	1	Enquire
0014	14040614	NUT	14040614 NUT	-	1	Enquire
0015	955410	OIL FILLER PIPE	955410 OIL FILLER PIPE	-	1	Enquire
0016	282756	THREADED PLUG	282756 THREADED PLUG	-	1	Enquire
0017	335820	VENT PIPE	335820 VENT PIPE	-	1	Enquire
0018	773829	DCT EXPANSION TANK	773829 DCT EXPANSION TANK	-	1	Enquire
0018	773829	DCT EXPANSION TANK	773829 DCT EXPANSION TANK	-	1	Enquire
0019	301886	TANK BREATHER MOUNT	301886 TANK BREATHER MOUNT	-	1	Enquire
0020	85629300	SCREW M6 X 20	85629300 SCREW M6 X 20 M6 X 20	-	1	Enquire
0021	13432070	HOSE COLLAR	13432070 HOSE COLLAR 16.2 mm	-	2	Enquire
0022	127497	WASHER	127497 WASHER	-	1	Enquire
0023	968342	CONNECTOR	968342 CONNECTOR M10 X 1	-	1	Enquire
0024	198253	CLIP	198253 CLIP	-	1	Enquire
0025	862859	LH BRACKET	862859 LH BRACKET	-	1	Enquire
0026	231627	SCREW	231627 SCREW M8 X 16	-	1	Enquire
