Ferrari SF90 XX Stradale Europe RH - GEARBOX OIL HEAT EXCHANGER AND PIPES - HEAT EXCHANGER AND REAR PIPES

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
904075 RH AXLE SHAFT SHIELD Enquire To Order
Photo Part No Description Price (each) Stock
811160 LH AXLE SHAFT SHIELD Enquire To Order
Photo Part No Description Price (each) Stock
945225 SOLENOID SHIELD Enquire To Order
Photo Part No Description Price (each) Stock
815572 FRONT BRACKET OF RH SHIELD Enquire To Order
Photo Part No Description Price (each) Stock
811159 FRONT BRACKET OF LH SHIELD Enquire To Order
Photo Part No Description Price (each) Stock
248334 SCREW M6 X 14MM Enquire To Order
Photo Part No Description Price (each) Stock
812109 REAR BRACKET OF RH SHIELD Enquire To Order
Photo Part No Description Price (each) Stock
768810 REAR BRACKET OF LH SHIELD Enquire To Order
Photo Part No Description Price (each) Stock
231627 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
879352 WATER RETURN PIPE ON GEARBOX Enquire To Order
Photo Part No Description Price (each) Stock
262111 JUBILEE CLAMP Enquire To Order
Photo Part No Description Price (each) Stock
805287 GASKET Enquire To Order
Photo Part No Description Price (each) Stock
231619 SOCKET HEAD SCREW M6 X 22 WITH WASHER Enquire To Order
Photo Part No Description Price (each) Stock
951829 WATER DELIVERY PIPE ON GEARBOX Enquire To Order
Photo Part No Description Price (each) Stock
951828 WATER DELIVERY PIPE ON CRANKCASE Enquire To Order
Photo Part No Description Price (each) Stock
803918 GASKET Enquire To Order
Photo Part No Description Price (each) Stock
329367 RETAINER BLOCK Enquire To Order
Photo Part No Description Price (each) Stock
871673 BRACKET Enquire To Order
Photo Part No Description Price (each) Stock
329368 RETAINER BLOCK BUSH Enquire To Order
Photo Part No Description Price (each) Stock
329366 RETAINER BLOCK PLATE Enquire To Order
Photo Part No Description Price (each) Stock
231624 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
803878 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
803876 BRACKET Enquire To Order
Photo Part No Description Price (each) Stock
10441790 BRACKET WITH SHEATH Enquire To Order
Photo Part No Description Price (each) Stock
879178 BRACKET Enquire To Order
View All

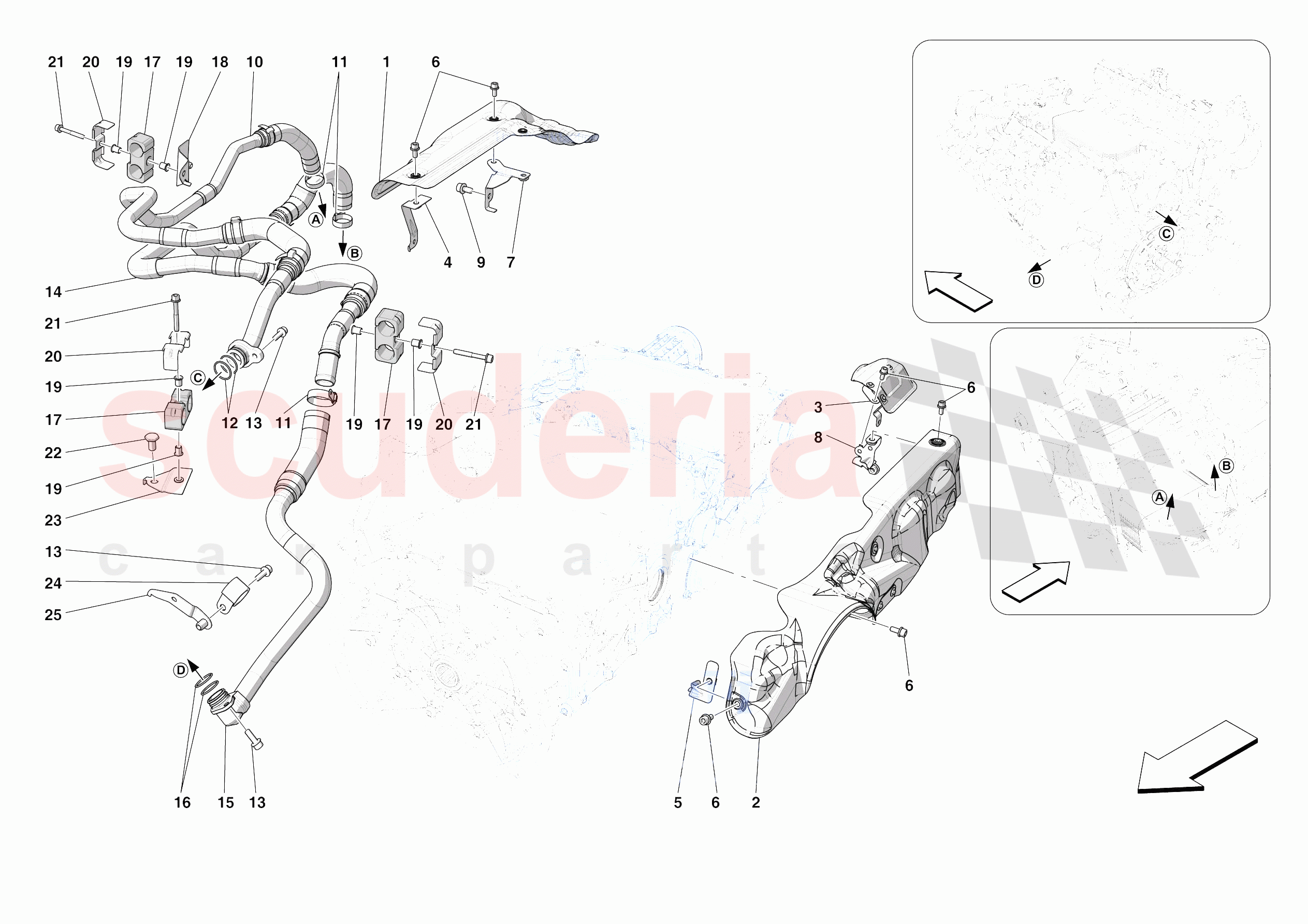

GEARBOX OIL HEAT EXCHANGER AND PIPES - HEAT EXCHANGER AND REAR PIPES of Ferrari Ferrari SF90 XX Stradale Europe RH Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
0001 904075
RH AXLE SHAFT SHIELD 		- 1 Enquire
0002 811160
LH AXLE SHAFT SHIELD 		- 1 Enquire
0003 945225
SOLENOID SHIELD 		- 1 Enquire
0004 815572
FRONT BRACKET OF RH SHIELD 		- 1 Enquire
0005 811159
FRONT BRACKET OF LH SHIELD 		- 1 Enquire
0006 248334
SCREW M6 X 14MM
M6 X 14 		- 13 Enquire
0007 812109
REAR BRACKET OF RH SHIELD 		- 1 Enquire
0008 768810
REAR BRACKET OF LH SHIELD 		- 1 Enquire
0009 231627
SCREW
M8 X 16 		- 2 Enquire
0010 879352
WATER RETURN PIPE ON GEARBOX 		- 1 Enquire
0011 262111
JUBILEE CLAMP 		- 3 Enquire
0012 805287
GASKET 		- 2 Enquire
0013 231619
SOCKET HEAD SCREW M6 X 22 WITH WASHER
M6 X 18 		- 3 Enquire
0014 951829
WATER DELIVERY PIPE ON GEARBOX 		- 1 Enquire
0015 951828
WATER DELIVERY PIPE ON CRANKCASE 		- 1 Enquire
0016 803918
GASKET 		- 2 Enquire
0017 329367
RETAINER BLOCK 		- 3 Enquire
0018 871673
BRACKET 		- 1 Enquire
0019 329368
RETAINER BLOCK BUSH 		- 6 Enquire
0020 329366
RETAINER BLOCK PLATE 		- 3 Enquire
0021 231624
SCREW
M6 X 45 		- 3 Enquire
0022 803878
SCREW
M10 		- 1 Enquire
0023 803876
BRACKET 		- 1 Enquire
0024 10441790
BRACKET WITH SHEATH 		- 1 Enquire
0025 879178
BRACKET 		- 1 Enquire
