TIMING SYSTEM DRIVE of Ferrari Ferrari SF90 XX Stradale Europe RH

View All

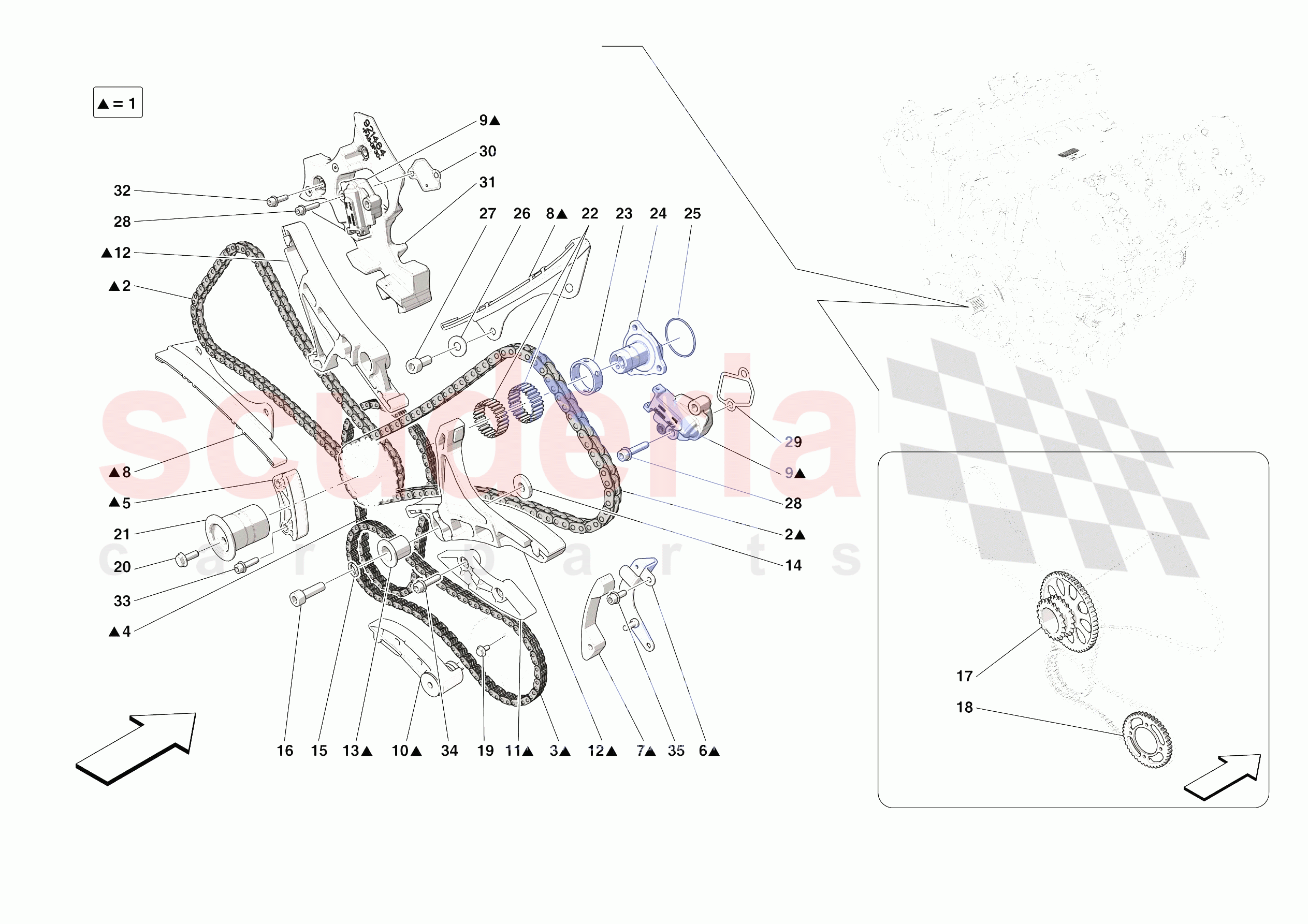

Ferrari SF90 XX Stradale Europe RH - TIMING SYSTEM DRIVE

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	847179	VALVE TIMING AND PUMP DRIVE SYSTEM	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	334198	VALVE TIMING CHAIN	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	337920	PUMP DRIVE CHAIN	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	271880	CHAIN	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	306094	FIXED SHOE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	847568	COMPL. MOUNT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	257626	SHOE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	847572	FIXED SHOE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	297696	TENSIONER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	847574	MOBILE SHOE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	847573	FIXED SHOE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	871916	MOBILE SHOE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	175303	BUSH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	288341	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	284900	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14306421	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	804110	DRIVE GEAR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	310416	PUMP DRIVE GEAR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	284899	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	284898	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	804112	BUSH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	267808	ROLLER BEARING CAGE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	805205	SPACER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	804111	MOUNTING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	154191	GASKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	163759	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14302821	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	282398	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	322518	GASKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	306440	GASKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	921464	LH CYLINDER BANK FILLER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	282395	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	282396	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	282397	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	282393	SCREW	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
0001	847179	VALVE TIMING AND PUMP DRIVE SYSTEM	847179 VALVE TIMING AND PUMP DRIVE SYSTEM	-	1	Enquire
0002	334198	VALVE TIMING CHAIN	334198 VALVE TIMING CHAIN	-	2	Enquire
0003	337920	PUMP DRIVE CHAIN	337920 PUMP DRIVE CHAIN	-	1	Enquire
0004	271880	CHAIN	271880 CHAIN	-	1	Enquire
0005	306094	FIXED SHOE	306094 FIXED SHOE	-	1	Enquire
0006	847568	COMPL. MOUNT	847568 COMPL. MOUNT	-	1	Enquire
0007	257626	SHOE	257626 SHOE	-	1	Enquire
0008	847572	FIXED SHOE	847572 FIXED SHOE	-	2	Enquire
0009	297696	TENSIONER	297696 TENSIONER	-	2	Enquire
0010	847574	MOBILE SHOE	847574 MOBILE SHOE	-	1	Enquire
0011	847573	FIXED SHOE	847573 FIXED SHOE	-	1	Enquire
0012	871916	MOBILE SHOE	871916 MOBILE SHOE	-	2	Enquire
0013	175303	BUSH	175303 BUSH	-	2	Enquire
0014	288341	WASHER	288341 WASHER	-	2	Enquire
0015	284900	WASHER	284900 WASHER	-	2	Enquire
0016	14306421	SCREW	14306421 SCREW M8 X 20	-	2	Enquire
0017	804110	DRIVE GEAR	804110 DRIVE GEAR	-	1	Enquire
0018	310416	PUMP DRIVE GEAR	310416 PUMP DRIVE GEAR	-	1	Enquire
0019	284899	SCREW	284899 SCREW M5 X 10	-	4	Enquire
0020	284898	SCREW	284898 SCREW M6 X 16	-	4	Enquire
0021	804112	BUSH	804112 BUSH	-	1	Enquire
0022	267808	ROLLER BEARING CAGE	267808 ROLLER BEARING CAGE	-	2	Enquire
0023	805205	SPACER	805205 SPACER	-	1	Enquire
0024	804111	MOUNTING	804111 MOUNTING	-	1	Enquire
0025	154191	GASKET	154191 GASKET Also included in engine gasket set	-	1	Enquire
0026	163759	WASHER	163759 WASHER	-	4	Enquire
0027	14302821	SCREW	14302821 SCREW M8 X 18	-	4	Enquire
0028	282398	SCREW	282398 SCREW M6 X 30	-	4	Enquire
0029	322518	GASKET	322518 GASKET Also included in engine gasket set	-	1	Enquire
0030	306440	GASKET	306440 GASKET Also included in engine gasket set	-	1	Enquire
0031	921464	LH CYLINDER BANK FILLER	921464 LH CYLINDER BANK FILLER	-	1	Enquire
0032	282395	SCREW	282395 SCREW M6 X 20	-	3	Enquire
0033	282396	SCREW	282396 SCREW M6 X 22	-	2	Enquire
0034	282397	SCREW	282397 SCREW M6 X 25	-	2	Enquire
0035	282393	SCREW	282393 SCREW M6 X 16	-	2	Enquire
