DOORS - TRIM of Ferrari Ferrari SF90 XX Stradale Europe

View All

Ferrari SF90 XX Stradale Europe - DOORS - TRIM

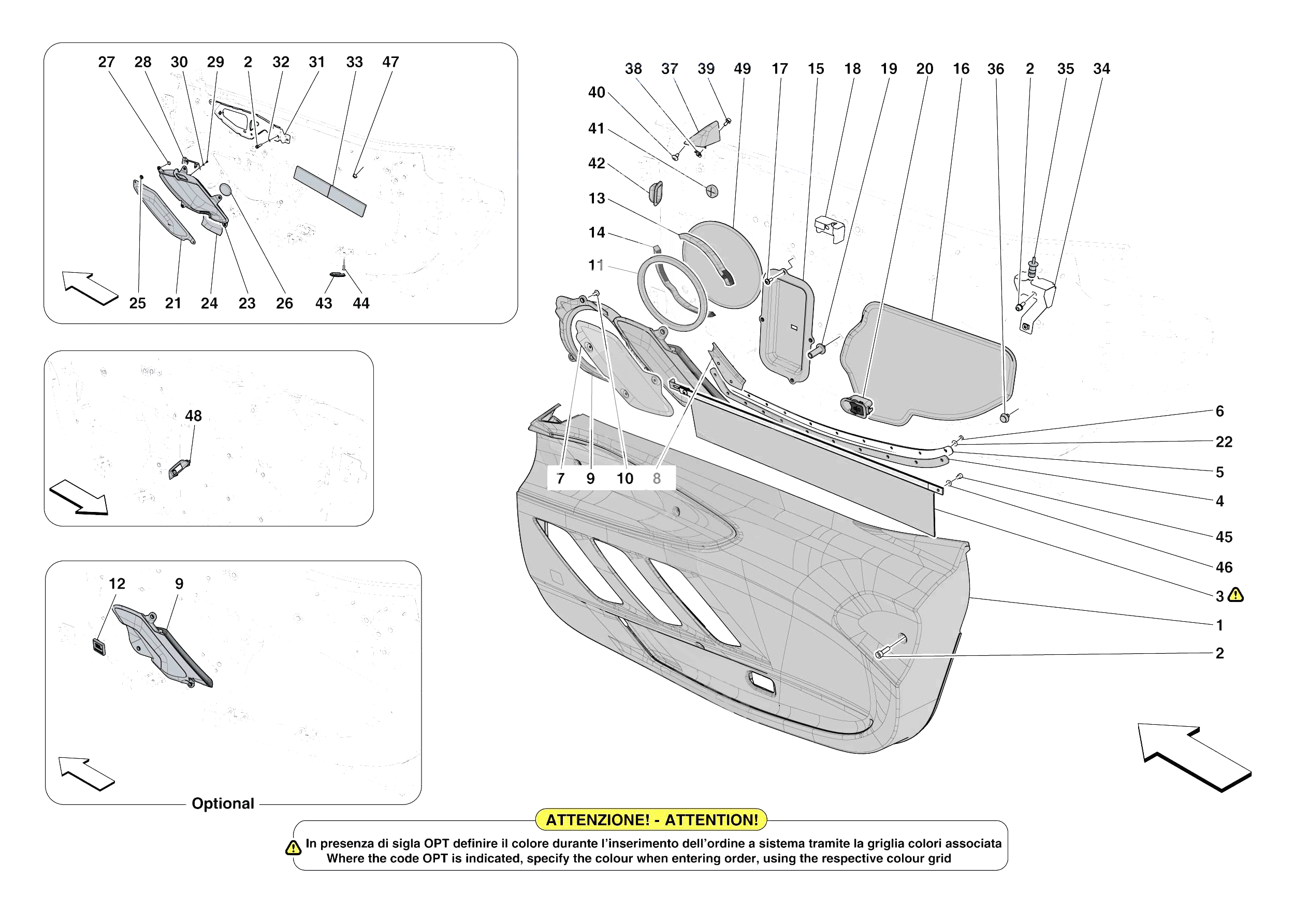

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	982729	RH DOOR PANEL SUBSTRUCTURE	Enquire	To Order
	949999	RH DOOR PANEL SUBSTRUCTURE	Enquire	To Order
	982733	RH DOOR PANEL SUBSTRUCTURE	Enquire	To Order

...and 3 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	14305387	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	914578	RH DOOR POCKET MESH	Enquire	To Order
	914550	LH DOOR POCKET MESH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	904665	RH DOOR POCKET MESH FOAM	Enquire	To Order
	904667	LH DOOR POCKET MESH FOAM	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	876227	FIORANO POCKET RETAINER BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	899480	NUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	914586	RH SPEAKER GRILLE	Enquire	To Order
	914551	LH SPEAKER GRILLE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	975133	RH DOOR PANEL LIGHT COVER	Enquire	To Order
	975125	LH DOOR PANEL LIGHT COVER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	914598	COMPL. RH GRILLE SURROUND	Enquire	To Order
	817779	COMPL. RH GRILLE SURROUND	Enquire	To Order
	945600	COMPL. RH GRILLE SURROUND	Enquire	To Order

...and 7 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	85833700	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	910851	GASKET	Enquire	To Order
	910852	GASKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	83198200	JBL LOGO	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	988476	UPPER RH WOOFER GRILLE SURROUND SEAL	Enquire	To Order
	988474	UPPER LH WOOFER GRILLE SURROUND SEAL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	988477	LOWER RH WOOFER GRILLE SURROUND SEAL	Enquire	To Order
	988475	LOWER LH WOOFER GRILLE SURROUND SEAL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	949988	RH DOOR SUBSTRUCTURE COVER	Enquire	To Order
	949980	LH DOOR SUBSTRUCTURE COVER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	878882	RH DOOR WATERPROOF MEMBRANE	Enquire	To Order
	878880	LH DOOR WATERPROOF MEMBRANE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	85833700	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	903785	RH FRONT BRACKET	Enquire	To Order
	943806	LH FRONT BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	914633	SPACER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	884011	COMPL. INTERNAL BACKUP HANDLE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	945537	RH CENTRAL GRILLE	Enquire	To Order
	950002	RH CENTRAL GRILLE	Enquire	To Order
	945284	LH CENTRAL GRILLE	Enquire	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	14446924	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	914606	RH PULL CUP	Enquire	To Order
	914603	LH PULL CUP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	914538	ANTI-VIBRATION FOAM PAD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	853181	STARLOCK	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14507187	PLUG	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	85833700	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	943200	ADAPTER MOUNT	Enquire	To Order
	945567	RH ADAPTER MOUNT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14418074	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12639478	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	903546	COMPL. RH BRACKET	Enquire	To Order
	943803	COMPL. LH BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	975634	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	142798	RUBBER SHIM	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	903799	COMPL. RH REAR BRACKET	Enquire	To Order
	943805	COMPL. LH REAR BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	781109	SHELF REINFORCEMENT PIN	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	66092400	PLASTIC TRIM CLIP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	834166	COMPL. RH MIRROR TRIANGLE TRIM	Enquire	To Order
	834165	COMPL. LH MIRROR TRIANGLE TRIM	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	68700800	CLIP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	797723	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	46401657	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	878881	DOOR SAFETY HOOK CAP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	815687	SLOT BLANKING COVER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	62797600	Allen Bolt Countersunk M6 x 20	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14304187	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	85739500	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14059217	NUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	914530	LH BUTTON PANEL	Enquire	To Order
	950056	RH BUTTON PANEL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	912149	DOOR WATERPROOF MEMBRANE	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
0001	982729	RH DOOR PANEL SUBSTRUCTURE	982729 RH DOOR PANEL SUBSTRUCTURE Matte Carbon - Base Hi-Fi version - Not for lightweight version	-	1	Enquire
0001	949999	RH DOOR PANEL SUBSTRUCTURE	949999 RH DOOR PANEL SUBSTRUCTURE Matte Carbon - Applicable for lightweight version - Not for base Hi-Fi or premium Hi-Fi version	-	1	Enquire
0001	982733	RH DOOR PANEL SUBSTRUCTURE	982733 RH DOOR PANEL SUBSTRUCTURE Matte Carbon - Premium Hi-Fi version - Not for lightweight version	-	1	Enquire
0001	982726	LH DOOR PANEL SUBSTRUCTURE	982726 LH DOOR PANEL SUBSTRUCTURE Matte Carbon - Base Hi-Fi version - Not for lightweight version	-	1	Enquire
0001	949998	LH DOOR PANEL SUBSTRUCTURE	949998 LH DOOR PANEL SUBSTRUCTURE Matte Carbon - Applicable for lightweight version - Not for base Hi-Fi or premium Hi-Fi version	-	1	Enquire
0001	982731	LH DOOR PANEL SUBSTRUCTURE	982731 LH DOOR PANEL SUBSTRUCTURE Matte Carbon - Premium Hi-Fi version - Not for lightweight version	-	1	Enquire
0002	14305387	SCREW	14305387 SCREW M6 X 20	-	8	Enquire
0003	914578	RH DOOR POCKET MESH	914578 RH DOOR POCKET MESH Alcantara - Tone-on-tone stitching; ALDT	-	1	Enquire
0003	914550	LH DOOR POCKET MESH	914550 LH DOOR POCKET MESH Alcantara - Tone-on-tone stitching; ALDT	-	1	Enquire
0004	904665	RH DOOR POCKET MESH FOAM	904665 RH DOOR POCKET MESH FOAM	-	1	Enquire
0004	904667	LH DOOR POCKET MESH FOAM	904667 LH DOOR POCKET MESH FOAM	-	1	Enquire
0005	876227	FIORANO POCKET RETAINER BRACKET	876227 FIORANO POCKET RETAINER BRACKET	-	2	Enquire
0006	899480	NUT	899480 NUT M4 X 3,2	-	22	Enquire
0007	914586	RH SPEAKER GRILLE	914586 RH SPEAKER GRILLE Not for lightweight version	-	1	Enquire
0007	914551	LH SPEAKER GRILLE	914551 LH SPEAKER GRILLE Not for lightweight version	-	1	Enquire
0008	975133	RH DOOR PANEL LIGHT COVER	975133 RH DOOR PANEL LIGHT COVER Not for lightweight version	-	1	Enquire
0008	975125	LH DOOR PANEL LIGHT COVER	975125 LH DOOR PANEL LIGHT COVER Not for lightweight version	-	1	Enquire
0009	914598	COMPL. RH GRILLE SURROUND	914598 COMPL. RH GRILLE SURROUND Base Hi-Fi version - Not for lightweight version	-	1	Enquire
0009	817779	COMPL. RH GRILLE SURROUND	817779 COMPL. RH GRILLE SURROUND Base Hi-Fi version - Not for lightweight version	-	1	Enquire
0009	945600	COMPL. RH GRILLE SURROUND	945600 COMPL. RH GRILLE SURROUND Applicable for lightweight version - Not for base Hi-Fi or premium Hi-Fi version	-	1	Enquire
0009	946375	COMPL. RH GRILLE SURROUND	946375 COMPL. RH GRILLE SURROUND Premium Hi-Fi version - Not for lightweight version	-	1	Enquire
0009	817777	COMPL. RH GRILLE SURROUND	817777 COMPL. RH GRILLE SURROUND Premium Hi-Fi version - Not for lightweight version	-	1	Enquire
0009	914528	COMPL. LH GRILLE SURROUND	914528 COMPL. LH GRILLE SURROUND Base Hi-Fi version - Not for lightweight version	-	1	Enquire
0009	817780	COMPL. LH GRILLE SURROUND	817780 COMPL. LH GRILLE SURROUND Base Hi-Fi version - Not for lightweight version	-	1	Enquire
0009	943158	COMPL. LH GRILLE SURROUND	943158 COMPL. LH GRILLE SURROUND Applicable for lightweight version - Not for base Hi-Fi or premium Hi-Fi version	-	1	Enquire
0009	943675	COMPL. LH GRILLE SURROUND	943675 COMPL. LH GRILLE SURROUND Premium Hi-Fi version - Not for lightweight version	-	1	Enquire
0009	817769	COMPL. LH GRILLE SURROUND	817769 COMPL. LH GRILLE SURROUND Premium Hi-Fi version - Not for lightweight version	-	1	Enquire
0010	85833700	SCREW	85833700 SCREW M5 X 14	-	8	Enquire
0011	910851	GASKET	910851 GASKET Base Hi-Fi version - Not for lightweight version	-	2	Enquire
0011	910852	GASKET	910852 GASKET Premium Hi-Fi version - Not for lightweight version	-	2	Enquire
0012	83198200	JBL LOGO	83198200 JBL LOGO Premium Hi-Fi version - Not for lightweight version	-	1	Enquire
0013	988476	UPPER RH WOOFER GRILLE SURROUND SEAL	988476 UPPER RH WOOFER GRILLE SURROUND SEAL Not for lightweight version	-	1	Enquire
0013	988474	UPPER LH WOOFER GRILLE SURROUND SEAL	988474 UPPER LH WOOFER GRILLE SURROUND SEAL Not for lightweight version	-	1	Enquire
0014	988477	LOWER RH WOOFER GRILLE SURROUND SEAL	988477 LOWER RH WOOFER GRILLE SURROUND SEAL Not for lightweight version	-	1	Enquire
0014	988475	LOWER LH WOOFER GRILLE SURROUND SEAL	988475 LOWER LH WOOFER GRILLE SURROUND SEAL Not for lightweight version	-	1	Enquire
0015	949988	RH DOOR SUBSTRUCTURE COVER	949988 RH DOOR SUBSTRUCTURE COVER	-	1	Enquire
0015	949980	LH DOOR SUBSTRUCTURE COVER	949980 LH DOOR SUBSTRUCTURE COVER	-	1	Enquire
0016	878882	RH DOOR WATERPROOF MEMBRANE	878882 RH DOOR WATERPROOF MEMBRANE	-	1	Enquire
0016	878880	LH DOOR WATERPROOF MEMBRANE	878880 LH DOOR WATERPROOF MEMBRANE	-	1	Enquire
0017	85833700	SCREW	85833700 SCREW M5 X 14	-	8	Enquire
0018	903785	RH FRONT BRACKET	903785 RH FRONT BRACKET	-	1	Enquire
0018	943806	LH FRONT BRACKET	943806 LH FRONT BRACKET	-	1	Enquire
0019	914633	SPACER	914633 SPACER	-	2	Enquire
0020	884011	COMPL. INTERNAL BACKUP HANDLE	884011 COMPL. INTERNAL BACKUP HANDLE	-	2	Enquire
0021	945537	RH CENTRAL GRILLE	945537 RH CENTRAL GRILLE Not for lightweight version	-	1	Enquire
0021	950002	RH CENTRAL GRILLE	950002 RH CENTRAL GRILLE Not for lightweight version	-	1	Enquire
0021	945284	LH CENTRAL GRILLE	945284 LH CENTRAL GRILLE Not for lightweight version	-	1	Enquire
0021	950001	LH CENTRAL GRILLE	950001 LH CENTRAL GRILLE Not for lightweight version	-	1	Enquire
0022	14446924	WASHER	14446924 WASHER	-	22	Enquire
0023	914606	RH PULL CUP	914606 RH PULL CUP	-	1	Enquire
0023	914603	LH PULL CUP	914603 LH PULL CUP	-	1	Enquire
0024	914538	ANTI-VIBRATION FOAM PAD	914538 ANTI-VIBRATION FOAM PAD	-	2	Enquire
0025	853181	STARLOCK	853181 STARLOCK Not for lightweight version	-	5	Enquire
0026	14507187	PLUG	14507187 PLUG	-	2	Enquire
0027	85833700	SCREW	85833700 SCREW M5 X 12	-	14	Enquire
0028	943200	ADAPTER MOUNT	943200 ADAPTER MOUNT	-	1	Enquire
0028	945567	RH ADAPTER MOUNT	945567 RH ADAPTER MOUNT	-	1	Enquire
0029	14418074	SCREW	14418074 SCREW M3 X 10	-	6	Enquire
0030	12639478	WASHER	12639478 WASHER	-	6	Enquire
0031	903546	COMPL. RH BRACKET	903546 COMPL. RH BRACKET	-	1	Enquire
0031	943803	COMPL. LH BRACKET	943803 COMPL. LH BRACKET	-	1	Enquire
0032	975634	WASHER	975634 WASHER	-	8	Enquire
0033	142798	RUBBER SHIM	142798 RUBBER SHIM	-	2	Enquire
0034	903799	COMPL. RH REAR BRACKET	903799 COMPL. RH REAR BRACKET	-	1	Enquire
0034	943805	COMPL. LH REAR BRACKET	943805 COMPL. LH REAR BRACKET	-	1	Enquire
0035	781109	SHELF REINFORCEMENT PIN	781109 SHELF REINFORCEMENT PIN	-	4	Enquire
0036	66092400	PLASTIC TRIM CLIP	66092400 PLASTIC TRIM CLIP	-	6	Enquire
0037	834166	COMPL. RH MIRROR TRIANGLE TRIM	834166 COMPL. RH MIRROR TRIANGLE TRIM	-	1	Enquire
0037	834165	COMPL. LH MIRROR TRIANGLE TRIM	834165 COMPL. LH MIRROR TRIANGLE TRIM	-	1	Enquire
0038	68700800	CLIP	68700800 CLIP	-	4	Enquire
0039	797723	SCREW	797723 SCREW M5 X 12	-	2	Enquire
0040	46401657	SCREW	46401657 SCREW M6 X 12	-	2	Enquire
0042	878881	DOOR SAFETY HOOK CAP	878881 DOOR SAFETY HOOK CAP	-	2	Enquire
0043	815687	SLOT BLANKING COVER	815687 SLOT BLANKING COVER	-	4	Enquire
0044	62797600	Allen Bolt Countersunk M6 x 20	62797600 Allen Bolt Countersunk M6 x 20 M6 X 20	-	6	Enquire
0045	14304187	SCREW	14304187 SCREW	-	4	Enquire
0046	85739500	WASHER	85739500 WASHER	-	4	Enquire
0047	14059217	NUT	14059217 NUT	-	4	Enquire
0048	914530	LH BUTTON PANEL	914530 LH BUTTON PANEL Premium Hi-Fi version - Not for lightweight version	-	1	Enquire
0048	950056	RH BUTTON PANEL	950056 RH BUTTON PANEL Premium Hi-Fi version - Not for lightweight version	-	1	Enquire
0049	912149	DOOR WATERPROOF MEMBRANE	912149 DOOR WATERPROOF MEMBRANE	-	2	Enquire
