Name: GEARBOX OIL HEAT EXCHANGER AND PIPES - HEAT EXCHANGER AND REAR PIPES
Rating: 5.0 (1 reviews)

GEARBOX OIL HEAT EXCHANGER AND PIPES - HEAT EXCHANGER AND REAR PIPES of Ferrari Ferrari SF90 XX Spider USA

View All

Ferrari SF90 XX Spider USA - GEARBOX OIL HEAT EXCHANGER AND PIPES - HEAT EXCHANGER AND REAR PIPES

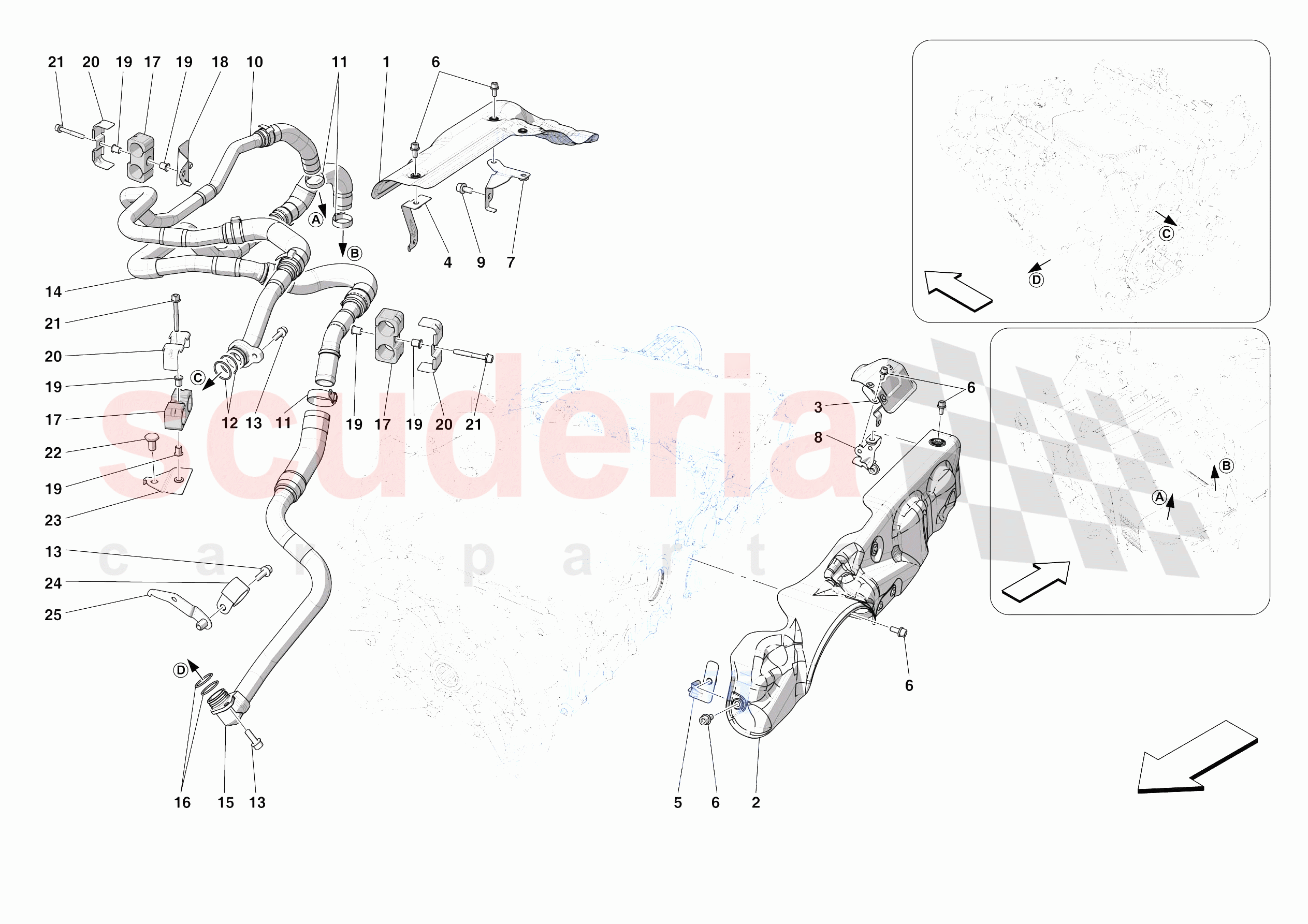

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	904075	RH AXLE SHAFT SHIELD	$98.89	To Order

Photo	Part No	Description	Price (each)	Stock
	811160	LH AXLE SHAFT SHIELD	$200.67	To Order

Photo	Part No	Description	Price (each)	Stock
	945225	SOLENOID SHIELD	$94.66	To Order

Photo	Part No	Description	Price (each)	Stock
	815572	FRONT BRACKET OF RH SHIELD	$25.79	To Order

Photo	Part No	Description	Price (each)	Stock
	811159	FRONT BRACKET OF LH SHIELD	$31.52	To Order

Photo	Part No	Description	Price (each)	Stock
	248334	SCREW	$0.68	To Order

Photo	Part No	Description	Price (each)	Stock
	812109	REAR BRACKET OF RH SHIELD	$30.08	To Order

Photo	Part No	Description	Price (each)	Stock
	768810	REAR BRACKET OF LH SHIELD	$46.52	To Order

Photo	Part No	Description	Price (each)	Stock
	231627	SCREW	$0.63	To Order

Photo	Part No	Description	Price (each)	Stock
	879352	WATER RETURN PIPE ON GEARBOX	$315.34	To Order

Photo	Part No	Description	Price (each)	Stock
	262111	JUBILEE CLAMP	$1.60	To Order

Photo	Part No	Description	Price (each)	Stock
	805287	GASKET	$1.25	To Order

Photo	Part No	Description	Price (each)	Stock
	231619	SCREW	$0.31	To Order

Photo	Part No	Description	Price (each)	Stock
	951829	WATER DELIVERY PIPE ON GEARBOX	$573.36	To Order

Photo	Part No	Description	Price (each)	Stock
	951828	WATER DELIVERY PIPE ON CRANKCASE	$157.66	To Order

Photo	Part No	Description	Price (each)	Stock
	803918	GASKET	$1.70	To Order

Photo	Part No	Description	Price (each)	Stock
	329367	RETAINER BLOCK	$8.66	To Order

Photo	Part No	Description	Price (each)	Stock
	871673	BRACKET	$22.92	To Order

Photo	Part No	Description	Price (each)	Stock
	329368	RETAINER BLOCK BUSH	$0.78	To Order

Photo	Part No	Description	Price (each)	Stock
	329366	RETAINER BLOCK PLATE	$7.03	To Order

Photo	Part No	Description	Price (each)	Stock
	231624	SCREW	$0.44	To Order

Photo	Part No	Description	Price (each)	Stock
	803878	SCREW	$5.87	To Order

Photo	Part No	Description	Price (each)	Stock
	803876	BRACKET	$20.05	To Order

Photo	Part No	Description	Price (each)	Stock
	10441790	BRACKET WITH SHEATH	$0.73	To Order

Photo	Part No	Description	Price (each)	Stock
	879178	BRACKET	$22.92	To Order

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
0001	904075	RH AXLE SHAFT SHIELD	904075 RH AXLE SHAFT SHIELD	$98.89	1
0002	811160	LH AXLE SHAFT SHIELD	811160 LH AXLE SHAFT SHIELD	$200.67	1
0003	945225	SOLENOID SHIELD	945225 SOLENOID SHIELD	$94.66	1
0004	815572	FRONT BRACKET OF RH SHIELD	815572 FRONT BRACKET OF RH SHIELD	$25.79	1
0005	811159	FRONT BRACKET OF LH SHIELD	811159 FRONT BRACKET OF LH SHIELD	$31.52	1
0006	248334	SCREW	248334 SCREW M6 X 14	$0.68	13
0007	812109	REAR BRACKET OF RH SHIELD	812109 REAR BRACKET OF RH SHIELD	$30.08	1
0008	768810	REAR BRACKET OF LH SHIELD	768810 REAR BRACKET OF LH SHIELD	$46.52	1
0009	231627	SCREW	231627 SCREW M8 X 16	$0.63 MSRP: ~~0.70~~ (10% off)	2
0010	879352	WATER RETURN PIPE ON GEARBOX	879352 WATER RETURN PIPE ON GEARBOX	$315.34	1
0011	262111	JUBILEE CLAMP	262111 JUBILEE CLAMP	$1.60	3
0012	805287	GASKET	805287 GASKET	$1.25	2
0013	231619	SCREW	231619 SCREW M6 X 18	$0.31	3
0014	951829	WATER DELIVERY PIPE ON GEARBOX	951829 WATER DELIVERY PIPE ON GEARBOX	$573.36	1
0015	951828	WATER DELIVERY PIPE ON CRANKCASE	951828 WATER DELIVERY PIPE ON CRANKCASE	$157.66	1
0016	803918	GASKET	803918 GASKET	$1.70	2
0017	329367	RETAINER BLOCK	329367 RETAINER BLOCK	$8.66	3
0018	871673	BRACKET	871673 BRACKET	$22.92	1
0019	329368	RETAINER BLOCK BUSH	329368 RETAINER BLOCK BUSH	$0.78	6
0020	329366	RETAINER BLOCK PLATE	329366 RETAINER BLOCK PLATE	$7.03	3
0021	231624	SCREW	231624 SCREW M6 X 45	$0.44	3
0022	803878	SCREW	803878 SCREW M10	$5.87	1
0023	803876	BRACKET	803876 BRACKET	$20.05	1
0024	10441790	BRACKET WITH SHEATH	10441790 BRACKET WITH SHEATH	$0.73 MSRP: ~~3.45~~ (78.8% off)	1
0025	879178	BRACKET	879178 BRACKET	$22.92	1
