Name: CYLINDER HEADS - TIMING
Rating: 4.8 (1 reviews)

View All

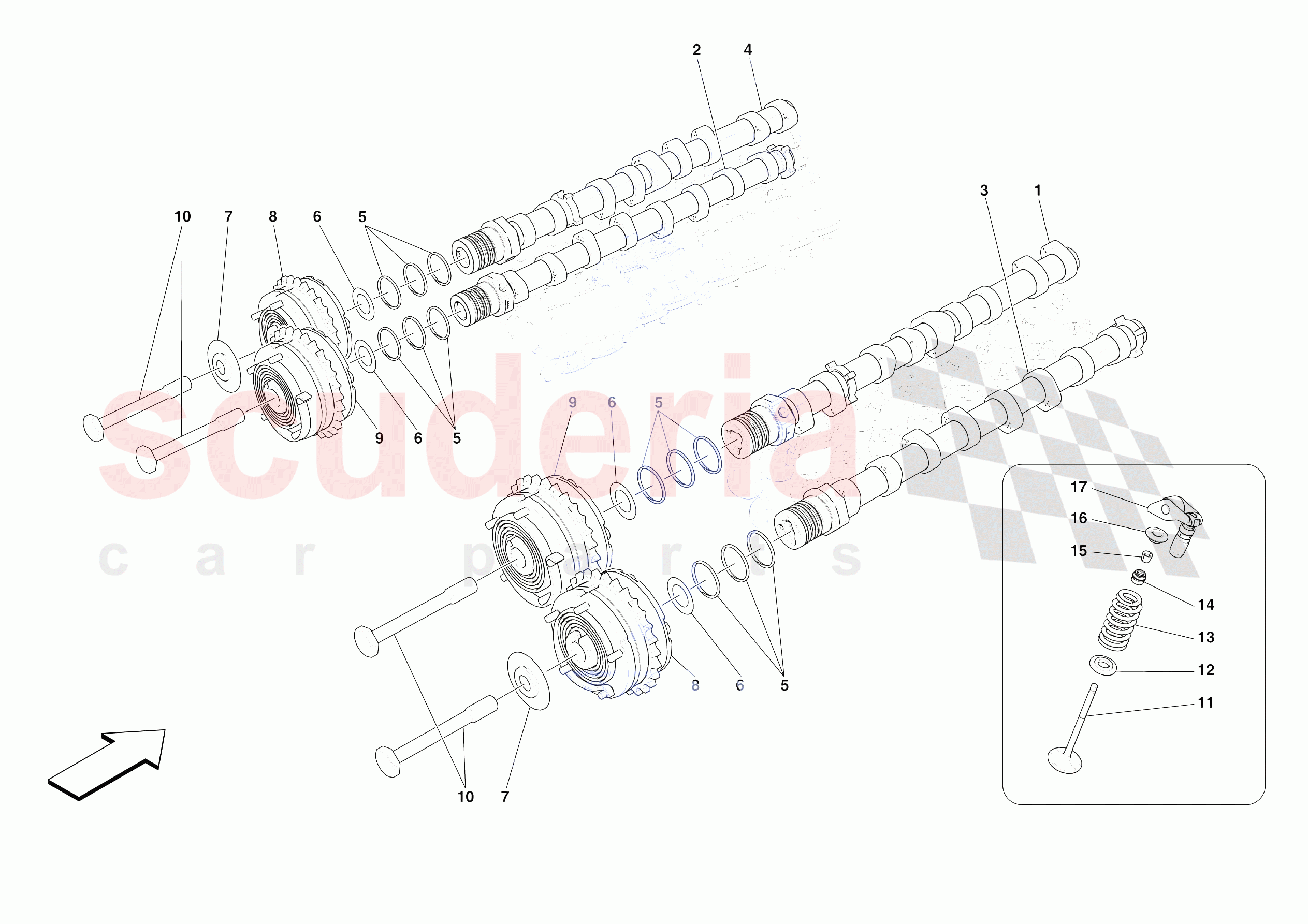

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	819432	RH INTAKE CAMSHAFT	$320.90	To Order

Photo	Part No	Description	Price (each)	Stock
	819433	LH INTAKE CAMSHAFT	$320.90	To Order

Photo	Part No	Description	Price (each)	Stock
	819434	RH EXHAUST CAMSHAFT	$320.90	To Order

Photo	Part No	Description	Price (each)	Stock
	819435	LH EXHAUST CAMSHAFT	$320.90	To Order

Photo	Part No	Description	Price (each)	Stock
	246965	O-RING	$12.03	To Order

Photo	Part No	Description	Price (each)	Stock
	240559	DIAMOND COATED WASHER	$9.51	To Order

Photo	Part No	Description	Price (each)	Stock
	296310	SPACER	$24.05	To Order

Photo	Part No	Description	Price (each)	Stock
	295300	VARIABLE VALVE TIMING ADJUSTER, EXHAUST CAMSHAFT	$577.64	To Order

Photo	Part No	Description	Price (each)	Stock
	279099	VARIABLE VALVE TIMING ADJUSTER, INTAKE CAMSHAFT	$609.73	To Order

Photo	Part No	Description	Price (each)	Stock
	287708	SCREW M14 X 1.5	$14.15	To Order

Photo	Part No	Description	Price (each)	Stock
	925693	LOWER VALVE SPRING CAP	$12.32	To Order
	287553	LOWER INTAKE VALVE SPRING CAP	$3.13	To Order

Photo	Part No	Description	Price (each)	Stock
	221473	OIL SEAL	$1.91	To Order

Photo	Part No	Description	Price (each)	Stock
	179763	VALVE SPRING SEMI-CONE	$0.91	To Order

Photo	Part No	Description	Price (each)	Stock
	313581	UPPER VALVE SPRING CAP	$9.77	To Order

Photo	Part No	Description	Price (each)	Stock
	840556	COMPL. FINGER-TAPPET	$50.15	To Order

View All

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
0001	819432	RH INTAKE CAMSHAFT	819432 RH INTAKE CAMSHAFT	$320.90	1
0002	819433	LH INTAKE CAMSHAFT	819433 LH INTAKE CAMSHAFT	$320.90	1
0003	819434	RH EXHAUST CAMSHAFT	819434 RH EXHAUST CAMSHAFT	$320.90	1
0004	819435	LH EXHAUST CAMSHAFT	819435 LH EXHAUST CAMSHAFT	$320.90	1
0005	246965	O-RING	246965 O-RING Also included in engine gasket set	$12.03	12
0006	240559	DIAMOND COATED WASHER	240559 DIAMOND COATED WASHER	$9.51	4
0007	296310	SPACER	296310 SPACER	$24.05	2
0008	295300	VARIABLE VALVE TIMING ADJUSTER, EXHAUST CAMSHAFT	295300 VARIABLE VALVE TIMING ADJUSTER, EXHAUST CAMSHAFT	$577.64	2
0009	279099	VARIABLE VALVE TIMING ADJUSTER, INTAKE CAMSHAFT	279099 VARIABLE VALVE TIMING ADJUSTER, INTAKE CAMSHAFT	$609.73	2
0010	287708	SCREW M14 X 1.5	287708 SCREW M14 X 1.5 M14 X 1.5	$14.15	4
0011	960124	INTAKE VALVE	960124 INTAKE VALVE	$38.69	16
0011	960123	EXHAUST VALVE	960123 EXHAUST VALVE	$80.26	16
0012	925693	LOWER VALVE SPRING CAP	925693 LOWER VALVE SPRING CAP	$12.32	16
0012	287553	LOWER INTAKE VALVE SPRING CAP	287553 LOWER INTAKE VALVE SPRING CAP	$3.13	16
0013	960230	SPRING	960230 SPRING	$21.48	16
0013	821149	SPRING	821149 SPRING Intake	$20.05	16
0014	221473	OIL SEAL	221473 OIL SEAL	$1.91 MSRP: ~~2.60~~ (26.5% off)	32
0015	179763	VALVE SPRING SEMI-CONE	179763 VALVE SPRING SEMI-CONE	$0.91	48
0016	313581	UPPER VALVE SPRING CAP	313581 UPPER VALVE SPRING CAP	$9.77	32
0017	840556	COMPL. FINGER-TAPPET	840556 COMPL. FINGER-TAPPET	$50.15	32
