Ferrari SF90 XX Spider Europe RH - REAR SUBFRAME

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
985886117 COMPL. PYLON BRACKET CONNECTOR CROSS PIECE $770.19 To Order
Photo Part No Description Price (each) Stock
985868160 COMPL. CENTRE REAR TRELLIS $673.92 To Order
Photo Part No Description Price (each) Stock
830363 VERTICLE TRELLIS BRACKET $11.38 To Order
Photo Part No Description Price (each) Stock
985877493 COMPL. RH REAR TRELLIS $272.77 To Order
Photo Part No Description Price (each) Stock
985877492 COMPL. LH REAR TRELLIS $272.77 To Order
Photo Part No Description Price (each) Stock
985877477 RH REAR FLANK TRELLIS $882.51 To Order
Photo Part No Description Price (each) Stock
985877476 LH REAR FLANK TRELLIS $882.51 To Order
Photo Part No Description Price (each) Stock
985745315 RH ENGINE COMPARTMENT DIAGONAL BRACE $946.70 To Order
Photo Part No Description Price (each) Stock
985745302 LH ENGINE COMPARTMENT DIAGONAL BRACE $946.70 To Order
Photo Part No Description Price (each) Stock
985896282 REAR ROOF TUB CROSS MEMBER $802.28 To Order
Photo Part No Description Price (each) Stock
959420 COMPL. LH BASE BRACKET Enquire To Order
960460 COMPL. RH BASE BRACKET Enquire To Order
Photo Part No Description Price (each) Stock
959334 COMPL. LH PYLON BRACKET $176.49 To Order
959489 COMPL. RH PYLON BRACKET $176.49 To Order
Photo Part No Description Price (each) Stock
946823 ADJUSTMENT SHIM $6.05 To Order
Photo Part No Description Price (each) Stock
16287524 SCREW $1.38 IN STOCK
Photo Part No Description Price (each) Stock
16287721 SCREW $1.17 To Order
Photo Part No Description Price (each) Stock
905706 ADJUSTMENT SHIM $10.57 To Order
Photo Part No Description Price (each) Stock
905667 ADJUSTMENT SHIM $10.57 To Order
Photo Part No Description Price (each) Stock
12643724 WASHER $0.06 IN STOCK
Photo Part No Description Price (each) Stock
16286121 SCREW $0.70 IN STOCK
Photo Part No Description Price (each) Stock
985877500 COMPL. ENGINE COMPARTMENT LID LOCK MOUNT $754.15 To Order
Photo Part No Description Price (each) Stock
830401 LOCK BRACKET THICKNESS $10.73 To Order
Photo Part No Description Price (each) Stock
16286121 SCREW $0.70 IN STOCK
Photo Part No Description Price (each) Stock
12640624 WASHER $0.15 IN STOCK
Photo Part No Description Price (each) Stock
14304824 SCREW $0.28 To Order
Photo Part No Description Price (each) Stock
830381 EXTERNAL VERTICLE TRELLIS BRACKET $10.73 To Order
Photo Part No Description Price (each) Stock
830370 UPPER BRACKET FOR REAR RH NODE $11.38 To Order
Photo Part No Description Price (each) Stock
877549 UPPER BRACKET FOR REAR LH NODE $20.29 To Order
Photo Part No Description Price (each) Stock
14639591 RIVET $1.57 To Order
Photo Part No Description Price (each) Stock
877504 COMPL. MOUNTING BRACKET FOR LH REAR COVER $38.49 To Order
Photo Part No Description Price (each) Stock
985572 SCREW $4.55 To Order
Photo Part No Description Price (each) Stock
985571 SCREW $1.65 To Order
Photo Part No Description Price (each) Stock
896312 RH FLANK INNER CARRIER PROFILE $35.28 To Order
896310 LH FLANK INNER CARRIER PROFILE $35.28 To Order
Photo Part No Description Price (each) Stock
12647724 WASHER $0.15 IN STOCK
Photo Part No Description Price (each) Stock
231625 SCREW $0.66 IN STOCK
Photo Part No Description Price (each) Stock
985877497 COMPL. RH AIR FILTER MOUNT $401.13 To Order
Photo Part No Description Price (each) Stock
985877494 COMPL. LH AIR FILTER MOUNT $401.13 To Order
Photo Part No Description Price (each) Stock
985830424 RH WHEELHOUSE BRACKET $134.77 To Order
Photo Part No Description Price (each) Stock
985830415 LH WHEELHOUSE BRACKET $134.77 To Order
Photo Part No Description Price (each) Stock
985896277 COMPL. RH VERTICAL EXTRUDED ELEMENT $401.13 To Order
985896273 COMPL. LH VERTICAL EXTRUDED ELEMENT $336.95 To Order
Photo Part No Description Price (each) Stock
896305 COMPL. RH FLANK REINFORCEMENT $385.09 To Order
896303 COMPL. LH FLANK REINFORCEMENT $385.09 To Order
Photo Part No Description Price (each) Stock
831878 BRACKET $33.68 To Order
Photo Part No Description Price (each) Stock
830360 RH FLANK ADJUSTMENT BRACKET $33.68 To Order
Photo Part No Description Price (each) Stock
985877489 COMPL. RH INTERCOOLER MOUNTING TUBE $290.06 To Order
Photo Part No Description Price (each) Stock
877491 COMPL. RH ADJUSTER CUP $17.63 To Order
Photo Part No Description Price (each) Stock
985901889 COMPL. RH FRONT ROOF TUB BRACKET $401.13 To Order
Photo Part No Description Price (each) Stock
985901877 COMPL. LH FRONT ROOF TUB BRACKET $401.13 To Order
Photo Part No Description Price (each) Stock
910807 RH COMPARTMENT BLANKING PLATE $14.75 To Order
Photo Part No Description Price (each) Stock
910805 LH COMPARTMENT BLANKING PLATE $14.75 To Order
Photo Part No Description Price (each) Stock
905399 COMPL. RH B PILLAR REINFORCEMENT $54.54 To Order
Photo Part No Description Price (each) Stock
905398 COMPL. LH B PILLAR REINFORCEMENT $54.54 To Order
Photo Part No Description Price (each) Stock
16297934 SCREW $0.68 To Order
Photo Part No Description Price (each) Stock
925914 COMPL. RH BRACKET $64.17 To Order
Photo Part No Description Price (each) Stock
925913 COMPL. LH BRACKET $64.17 To Order
Photo Part No Description Price (each) Stock
830359 LH FLANK ADJUSTMENT BRACKET $33.68 To Order
Photo Part No Description Price (each) Stock
985877488 COMPL. LH INTERCOOLER MOUNTING TUBE $290.06 To Order
Photo Part No Description Price (each) Stock
877490 COMPL. LH ADJUSTER CUP $17.63 To Order
Photo Part No Description Price (each) Stock
909590 COMPL. STRUT MOUNTING BRACKET $150.82 To Order
Photo Part No Description Price (each) Stock
263276 WASHER $0.15 IN STOCK
View All

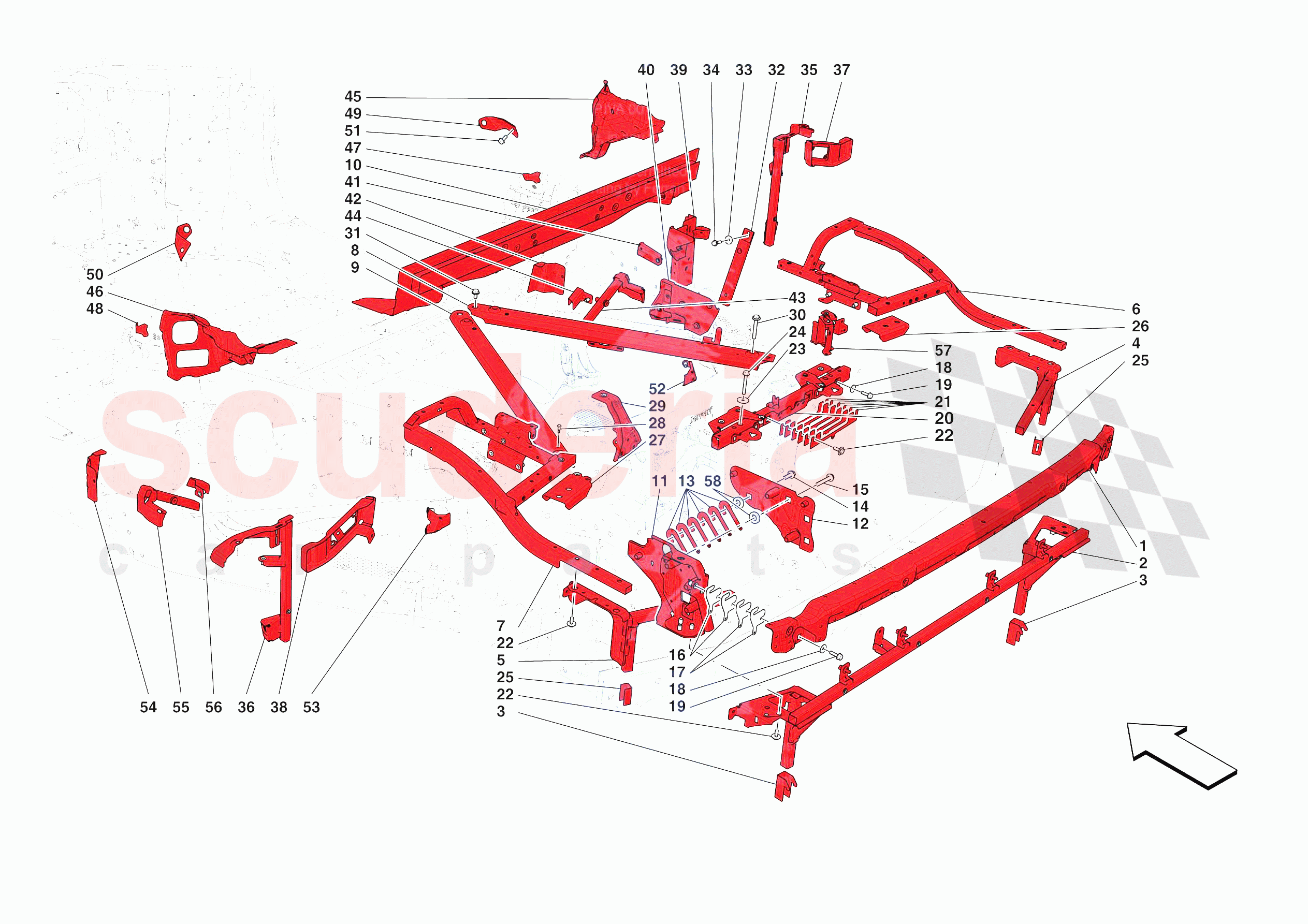

REAR SUBFRAME of Ferrari Ferrari SF90 XX Spider Europe RH Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
0001 985886117
COMPL. PYLON BRACKET CONNECTOR CROSS PIECE 		$770.19 1
0002 985868160
COMPL. CENTRE REAR TRELLIS 		$673.92 1
0003 830363
VERTICLE TRELLIS BRACKET 		$11.38 2
0004 985877493
COMPL. RH REAR TRELLIS 		$272.77 1
0005 985877492
COMPL. LH REAR TRELLIS 		$272.77 1
0006 985877477
RH REAR FLANK TRELLIS 		$882.51 1
0007 985877476
LH REAR FLANK TRELLIS 		$882.51 1
0008 985745315
RH ENGINE COMPARTMENT DIAGONAL BRACE 		$946.70 1
0009 985745302
LH ENGINE COMPARTMENT DIAGONAL BRACE 		$946.70 1
0010 985896282
REAR ROOF TUB CROSS MEMBER 		$802.28 1
0011 959420
COMPL. LH BASE BRACKET 		- 1 Enquire
0011 960460
COMPL. RH BASE BRACKET 		- 1 Enquire
0012 959334
COMPL. LH PYLON BRACKET 		$176.49 1
0012 959489
COMPL. RH PYLON BRACKET 		$176.49 1
0013 946823
ADJUSTMENT SHIM
Th. 1 mm 		$6.05 12
0014 16287524
SCREW
M8 X 25
IN STOCK 		$1.38 2
0015 16287721
SCREW 		$1.17 6
0016 905706
ADJUSTMENT SHIM
Th. 1 mm 		$10.57 4
0017 905667
ADJUSTMENT SHIM
Th. 1.5 mm 		$10.57 4
0018 12643724
WASHER
IN STOCK 		$0.06 (88% off) 4
0019 16286121
SCREW
M6 X 20
IN STOCK 		$0.70 (48.1% off) 7
0020 985877500
COMPL. ENGINE COMPARTMENT LID LOCK MOUNT 		$754.15 1
0021 830401
LOCK BRACKET THICKNESS
1 mm 		$10.73 3
0022 16286121
SCREW
M6 X 18
IN STOCK 		$0.70 (48.1% off) 14
0023 12640624
WASHER
IN STOCK 		$0.15 (48.3% off) 2
0024 14304824
SCREW
M6 X 50 		$0.28 2
0025 830381
EXTERNAL VERTICLE TRELLIS BRACKET 		$10.73 2
0026 830370
UPPER BRACKET FOR REAR RH NODE 		$11.38 1
0027 877549
UPPER BRACKET FOR REAR LH NODE 		$20.29 1
0028 14639591
RIVET 		$1.57 6
0029 877504
COMPL. MOUNTING BRACKET FOR LH REAR COVER 		$38.49 1
0030 985572
SCREW 		$4.55 4
0031 985571
SCREW 		$1.65 4
0032 896312
RH FLANK INNER CARRIER PROFILE 		$35.28 1
0032 896310
LH FLANK INNER CARRIER PROFILE 		$35.28 1
0033 12647724
WASHER
IN STOCK 		$0.15 2
0034 231625
SCREW
M6 X 25
IN STOCK 		$0.66 2
0035 985877497
COMPL. RH AIR FILTER MOUNT 		$401.13 1
0036 985877494
COMPL. LH AIR FILTER MOUNT 		$401.13 1
0037 985830424
RH WHEELHOUSE BRACKET 		$134.77 1
0038 985830415
LH WHEELHOUSE BRACKET 		$134.77 1
0039 985896277
COMPL. RH VERTICAL EXTRUDED ELEMENT 		$401.13 1
0039 985896273
COMPL. LH VERTICAL EXTRUDED ELEMENT 		$336.95 1
0040 896305
COMPL. RH FLANK REINFORCEMENT 		$385.09 1
0040 896303
COMPL. LH FLANK REINFORCEMENT 		$385.09 1
0041 831878
BRACKET 		$33.68 2
0042 830360
RH FLANK ADJUSTMENT BRACKET 		$33.68 1
0043 985877489
COMPL. RH INTERCOOLER MOUNTING TUBE 		$290.06 1
0044 877491
COMPL. RH ADJUSTER CUP 		$17.63 1
0045 985901889
COMPL. RH FRONT ROOF TUB BRACKET 		$401.13 1
0046 985901877
COMPL. LH FRONT ROOF TUB BRACKET 		$401.13 1
0047 910807
RH COMPARTMENT BLANKING PLATE 		$14.75 1
0048 910805
LH COMPARTMENT BLANKING PLATE 		$14.75 1
0049 905399
COMPL. RH B PILLAR REINFORCEMENT 		$54.54 1
0050 905398
COMPL. LH B PILLAR REINFORCEMENT 		$54.54 1
0051 16297934
SCREW
M8 X 18 		$0.68 2
0052 925914
COMPL. RH BRACKET 		$64.17 1
0053 925913
COMPL. LH BRACKET 		$64.17 1
0054 830359
LH FLANK ADJUSTMENT BRACKET 		$33.68 1
0055 985877488
COMPL. LH INTERCOOLER MOUNTING TUBE 		$290.06 1
0056 877490
COMPL. LH ADJUSTER CUP 		$17.63 1
0057 909590
COMPL. STRUT MOUNTING BRACKET 		$150.82 1
0058 263276
WASHER
IN STOCK 		$0.15 8
