GEARBOX AND FASTENERS of Ferrari Ferrari SF90 XX Spider Europe

View All

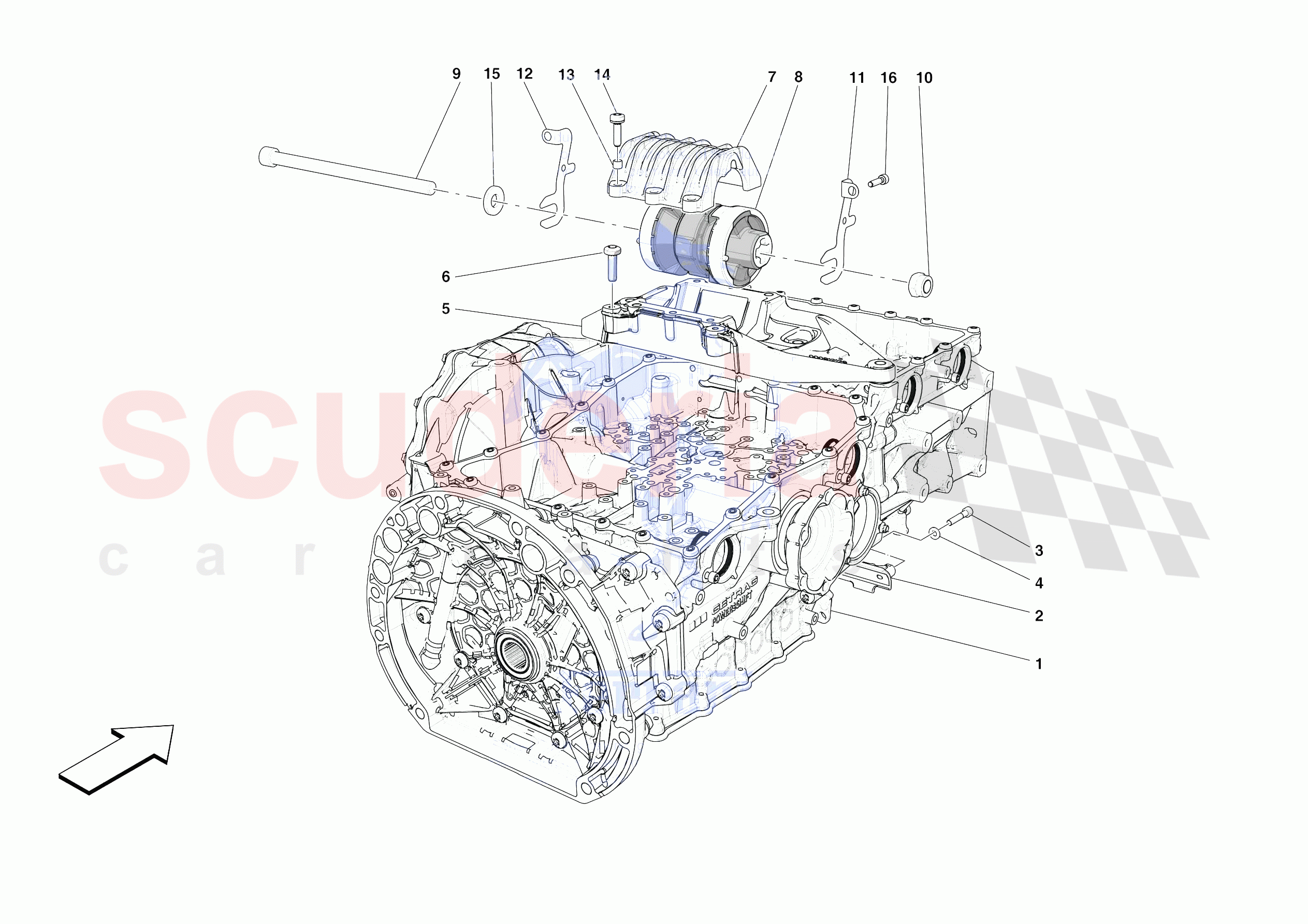

Ferrari SF90 XX Spider Europe - GEARBOX AND FASTENERS

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	990446	COMPL. DCT GEARBOX	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	769008	RETENTION BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14306734	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	13578324	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	912129	GEARBOX MOUNT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	763347	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	259441	BUSHING COVER COLLAR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	247723	VIBRATION DAMPER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	921971	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	851485	SELF-LOCKING NUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	938921	RH GEARBOX BUSHING SHIM	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	938909	LH GEARBOX BUSHING SHIM	Enquire	To Order
	938916	LH GEARBOX BUSHING SHIM	Enquire	To Order
	938918	LH GEARBOX BUSHING SHIM	Enquire	To Order

...and 3 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	102032	CENTERING DOWEL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	292738	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12644924	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	231619	SOCKET HEAD SCREW M6 X 22 WITH WASHER	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
0001	990446	COMPL. DCT GEARBOX	990446 COMPL. DCT GEARBOX Request ASM authorisation	-	1	Enquire
0002	769008	RETENTION BRACKET	769008 RETENTION BRACKET	-	1	Enquire
0003	14306734	SCREW	14306734 SCREW M8 X 40	-	2	Enquire
0004	13578324	WASHER	13578324 WASHER	-	2	Enquire
0005	912129	GEARBOX MOUNT	912129 GEARBOX MOUNT	-	1	Enquire
0006	763347	SCREW	763347 SCREW M10 X 1.25 X 35	-	4	Enquire
0007	259441	BUSHING COVER COLLAR	259441 BUSHING COVER COLLAR	-	1	Enquire
0008	247723	VIBRATION DAMPER	247723 VIBRATION DAMPER	-	1	Enquire
0009	921971	SCREW	921971 SCREW M14 X 1.5 X 210	-	1	Enquire
0010	851485	SELF-LOCKING NUT	851485 SELF-LOCKING NUT	-	1	Enquire
0011	938921	RH GEARBOX BUSHING SHIM	938921 RH GEARBOX BUSHING SHIM Th. 0.49 mm	-	1	Enquire
0012	938909	LH GEARBOX BUSHING SHIM	938909 LH GEARBOX BUSHING SHIM Th. 0.49 mm	-	1	Enquire
0012	938916	LH GEARBOX BUSHING SHIM	938916 LH GEARBOX BUSHING SHIM Th. 0.89 mm	-	1	Enquire
0012	938918	LH GEARBOX BUSHING SHIM	938918 LH GEARBOX BUSHING SHIM Th. 1.29 mm	-	1	Enquire
0012	938917	LH GEARBOX BUSHING SHIM	938917 LH GEARBOX BUSHING SHIM Th. 1.09 mm	-	1	Enquire
0012	938915	LH GEARBOX BUSHING SHIM	938915 LH GEARBOX BUSHING SHIM Th. 0.69 mm	-	1	Enquire
0012	938919	LH GEARBOX BUSHING SHIM	938919 LH GEARBOX BUSHING SHIM Th. 1.59 mm	-	1	Enquire
0013	102032	CENTERING DOWEL	102032 CENTERING DOWEL	-	2	Enquire
0014	292738	SCREW	292738 SCREW M8 X 30	-	6	Enquire
0015	12644924	WASHER	12644924 WASHER	-	2	Enquire
0016	231619	SOCKET HEAD SCREW M6 X 22 WITH WASHER	231619 SOCKET HEAD SCREW M6 X 22 WITH WASHER M6 X 22	-	2	Enquire
