Name: ENGINE COVERS
Rating: 5.0 (1 reviews)

View All

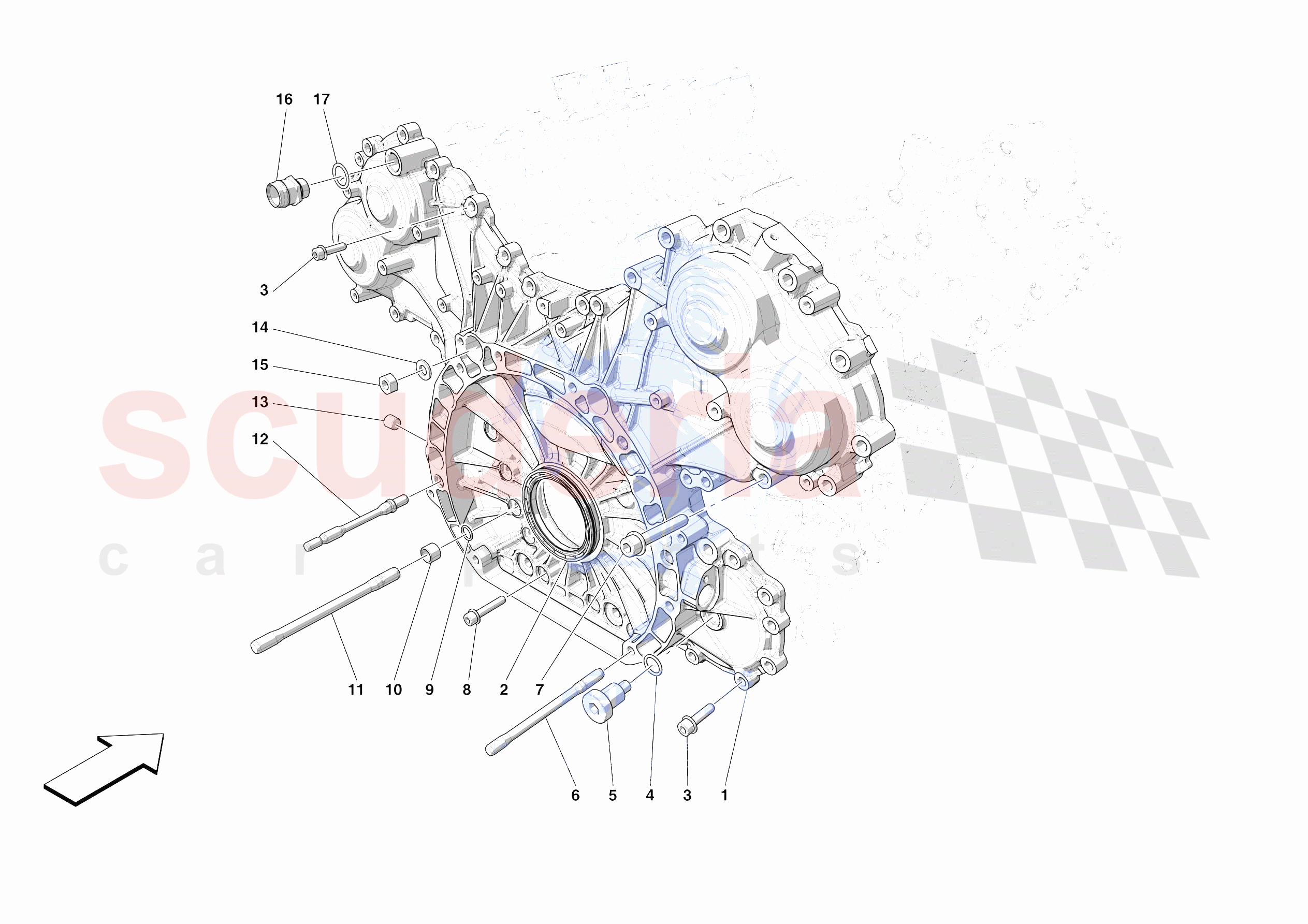

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	904256	REAR TIMING COVER	$1,536.82	To Order

Photo	Part No	Description	Price (each)	Stock
	240214	GASKET	$62.56	To Order

Photo	Part No	Description	Price (each)	Stock
	231629	SCREW	$0.65	To Order

Photo	Part No	Description	Price (each)	Stock
	302618	GASKET	$1.26	To Order

Photo	Part No	Description	Price (each)	Stock
	307936	PLUG	$22.45	To Order

Photo	Part No	Description	Price (each)	Stock
	872074	STUD BOLT	$18.59	To Order

Photo	Part No	Description	Price (each)	Stock
	285494	SCREW	$1.07	To Order

Photo	Part No	Description	Price (each)	Stock
	265097	SCREW	$7.63	To Order

Photo	Part No	Description	Price (each)	Stock
	134705	GASKET	$0.36	To Order

Photo	Part No	Description	Price (each)	Stock
	873065	BUSH	$7.83	To Order

Photo	Part No	Description	Price (each)	Stock
	872963	STUD BOLT	$21.54	To Order

Photo	Part No	Description	Price (each)	Stock
	872073	STUD BOLT	$58.77	To Order

Photo	Part No	Description	Price (each)	Stock
	235754	THREADED PLUG	$8.33	To Order

Photo	Part No	Description	Price (each)	Stock
	178348	WASHER D.10.2-20 X 2	$0.78	To Order

Photo	Part No	Description	Price (each)	Stock
	133988	HEX NUT M10 X 1.25 X 8	$0.21	To Order

Photo	Part No	Description	Price (each)	Stock
	309101	CONNECTOR	$22.45	To Order

Photo	Part No	Description	Price (each)	Stock
	10263160	GASKET	$0.28	To Order

View All

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
0001	904256	REAR TIMING COVER	904256 REAR TIMING COVER	$1,536.82	1
0002	240214	GASKET	240214 GASKET Also included in engine gasket set	$62.56 MSRP: ~~77.65~~ (19.4% off)	1
0003	231629	SCREW	231629 SCREW M8 X 30	$0.65 MSRP: ~~0.95~~ (31.6% off)	23
0004	302618	GASKET	302618 GASKET Also included in engine gasket set	$1.26	1
0005	307936	PLUG	307936 PLUG	$22.45	1
0006	872074	STUD BOLT	872074 STUD BOLT	$18.59	6
0007	285494	SCREW	285494 SCREW M8 X 50	$1.07	12
0008	265097	SCREW	265097 SCREW M8 X 40	$7.63	3
0009	134705	GASKET	134705 GASKET Also included in engine gasket set	$0.36 MSRP: ~~0.82~~ (56.1% off)	1
0010	873065	BUSH	873065 BUSH	$7.83	1
0011	872963	STUD BOLT	872963 STUD BOLT	$21.54	1
0012	872073	STUD BOLT	872073 STUD BOLT	$58.77	2
0013	235754	THREADED PLUG	235754 THREADED PLUG	$8.33	1
0014	178348	WASHER D.10.2-20 X 2	178348 WASHER D.10.2-20 X 2	$0.78	8
0015	133988	HEX NUT M10 X 1.25 X 8	133988 HEX NUT M10 X 1.25 X 8	$0.21 MSRP: ~~0.35~~ (40% off)	8
0016	309101	CONNECTOR	309101 CONNECTOR	$22.45	1
0017	10263160	GASKET	10263160 GASKET Also included in engine gasket set	$0.28 MSRP: ~~1.00~~ (72% off)	1
