Name: REAR SUBSTRUCTURE
Rating: 4.3 (1 reviews)

REAR SUBSTRUCTURE of Ferrari Ferrari SF90 Stradale Europe RH

View All

Ferrari SF90 Stradale Europe RH - REAR SUBSTRUCTURE

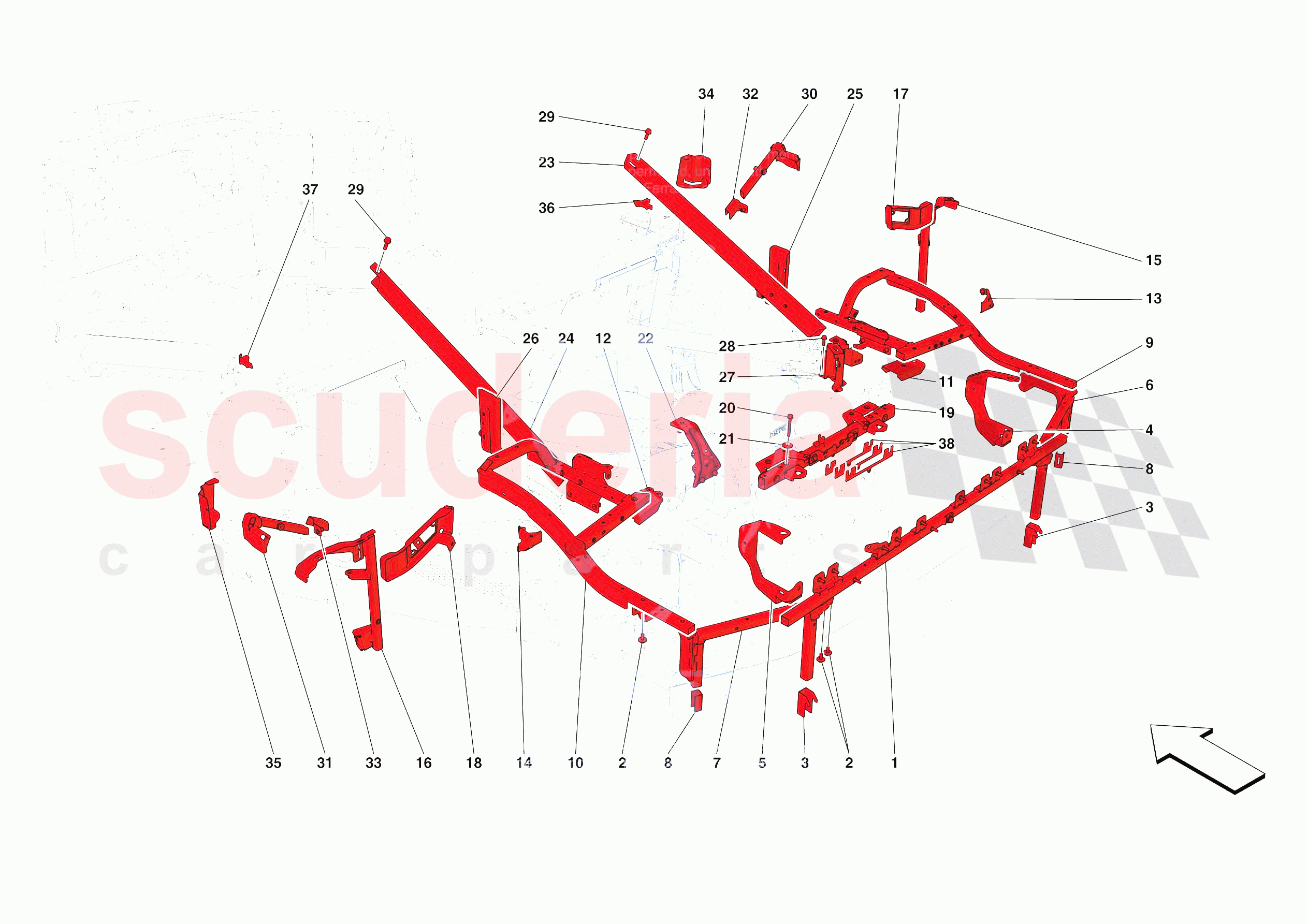

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	985877479	COMPL. CENTRE REAR TRELLIS	$786.24	To Order

Photo	Part No	Description	Price (each)	Stock
	16286121	SCREW	$0.70	To Order

Photo	Part No	Description	Price (each)	Stock
	830363	VERTICLE TRELLIS BRACKET	$11.59	To Order

Photo	Part No	Description	Price (each)	Stock
	985830369	RH BASE FASTENER BRACKET	$136.16	To Order

Photo	Part No	Description	Price (each)	Stock
	985830361	LH BASE FASTENER BRACKET	$136.16	To Order

Photo	Part No	Description	Price (each)	Stock
	985877493	COMPL. RH REAR TRELLIS	$286.67	To Order

Photo	Part No	Description	Price (each)	Stock
	985877492	COMPL. LH REAR TRELLIS	$286.67	To Order

Photo	Part No	Description	Price (each)	Stock
	830381	EXTERNAL VERTICLE TRELLIS BRACKET	$10.89	To Order

Photo	Part No	Description	Price (each)	Stock
	985877477	RH REAR FLANK TRELLIS	$888.72	To Order

Photo	Part No	Description	Price (each)	Stock
	985877476	LH REAR FLANK TRELLIS	$888.72	To Order

Photo	Part No	Description	Price (each)	Stock
	830370	UPPER BRACKET FOR REAR RH NODE	$11.59	To Order

Photo	Part No	Description	Price (each)	Stock
	877549	UPPER BRACKET FOR REAR LH NODE	$20.05	To Order

Photo	Part No	Description	Price (each)	Stock
	925914	COMPL. RH BRACKET	$65.92	To Order

Photo	Part No	Description	Price (each)	Stock
	925913	COMPL. LH BRACKET	$65.92	To Order

Photo	Part No	Description	Price (each)	Stock
	985877497	COMPL. RH AIR FILTER MOUNT	$415.69	To Order

Photo	Part No	Description	Price (each)	Stock
	985877494	COMPL. LH AIR FILTER MOUNT	$415.69	To Order

Photo	Part No	Description	Price (each)	Stock
	985830424	RH WHEELHOUSE BRACKET	$136.16	To Order

Photo	Part No	Description	Price (each)	Stock
	985830415	LH WHEELHOUSE BRACKET	$136.16	To Order

Photo	Part No	Description	Price (each)	Stock
	985877500	COMPL. ENGINE COMPARTMENT LID LOCK MOUNT	$802.28	To Order

Photo	Part No	Description	Price (each)	Stock
	14304824	SCREW	$0.28	To Order

Photo	Part No	Description	Price (each)	Stock
	12640624	WASHER	$0.16	To Order

Photo	Part No	Description	Price (each)	Stock
	877504	COMPL. MOUNTING BRACKET FOR LH REAR COVER	$38.69	To Order

Photo	Part No	Description	Price (each)	Stock
	985830341	COMPL. RH BOX ELEMENT REINFORCEMENT TUBE	$272.34	To Order

Photo	Part No	Description	Price (each)	Stock
	985925466	COMPL. LH BOX ELEMENT REINFORCEMENT TUBE	$272.34	To Order

Photo	Part No	Description	Price (each)	Stock
	985830380	FASTENER BRACKET FOR RH FRONT FLANK REINFORCEMENT	$136.16	To Order

Photo	Part No	Description	Price (each)	Stock
	985865666	FASTENER BRACKET FOR LH FRONT FLANK REINFORCEMENT	$136.16	To Order

Photo	Part No	Description	Price (each)	Stock
	909590	COMPL. STRUT MOUNTING BRACKET	$157.66	To Order

Photo	Part No	Description	Price (each)	Stock
	16286121	SCREW	$0.70	To Order

Photo	Part No	Description	Price (each)	Stock
	16287524	SCREW	$1.36	To Order

Photo	Part No	Description	Price (each)	Stock
	985877489	COMPL. RH INTERCOOLER MOUNTING TUBE	$286.67	To Order

Photo	Part No	Description	Price (each)	Stock
	985877488	COMPL. LH INTERCOOLER MOUNTING TUBE	$286.67	To Order

Photo	Part No	Description	Price (each)	Stock
	877491	COMPL. RH ADJUSTER CUP	$18.62	To Order

Photo	Part No	Description	Price (each)	Stock
	877490	COMPL. LH ADJUSTER CUP	$18.62	To Order

Photo	Part No	Description	Price (each)	Stock
	830360	RH FLANK ADJUSTMENT BRACKET	$34.38	To Order

Photo	Part No	Description	Price (each)	Stock
	830359	LH FLANK ADJUSTMENT BRACKET	$34.38	To Order

Photo	Part No	Description	Price (each)	Stock
	910807	RH COMPARTMENT BLANKING PLATE	$15.54	To Order

Photo	Part No	Description	Price (each)	Stock
	910805	LH COMPARTMENT BLANKING PLATE	$15.54	To Order

Photo	Part No	Description	Price (each)	Stock
	830401	LOCK BRACKET THICKNESS	$10.73	To Order

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
0001	985877479	COMPL. CENTRE REAR TRELLIS	985877479 COMPL. CENTRE REAR TRELLIS	$786.24	1
0002	16286121	SCREW	16286121 SCREW M6 X 20	$0.70 MSRP: ~~1.35~~ (48.1% off)	3
0003	830363	VERTICLE TRELLIS BRACKET	830363 VERTICLE TRELLIS BRACKET	$11.59	2
0004	985830369	RH BASE FASTENER BRACKET	985830369 RH BASE FASTENER BRACKET	$136.16	1
0005	985830361	LH BASE FASTENER BRACKET	985830361 LH BASE FASTENER BRACKET	$136.16	1
0006	985877493	COMPL. RH REAR TRELLIS	985877493 COMPL. RH REAR TRELLIS	$286.67	1
0007	985877492	COMPL. LH REAR TRELLIS	985877492 COMPL. LH REAR TRELLIS	$286.67	1
0008	830381	EXTERNAL VERTICLE TRELLIS BRACKET	830381 EXTERNAL VERTICLE TRELLIS BRACKET	$10.89	2
0009	985877477	RH REAR FLANK TRELLIS	985877477 RH REAR FLANK TRELLIS	$888.72	1
0010	985877476	LH REAR FLANK TRELLIS	985877476 LH REAR FLANK TRELLIS	$888.72	1
0011	830370	UPPER BRACKET FOR REAR RH NODE	830370 UPPER BRACKET FOR REAR RH NODE	$11.59	1
0012	877549	UPPER BRACKET FOR REAR LH NODE	877549 UPPER BRACKET FOR REAR LH NODE	$20.05	1
0013	925914	COMPL. RH BRACKET	925914 COMPL. RH BRACKET	$65.92	1
0014	925913	COMPL. LH BRACKET	925913 COMPL. LH BRACKET	$65.92	1
0015	985877497	COMPL. RH AIR FILTER MOUNT	985877497 COMPL. RH AIR FILTER MOUNT	$415.69	1
0016	985877494	COMPL. LH AIR FILTER MOUNT	985877494 COMPL. LH AIR FILTER MOUNT	$415.69	1
0017	985830424	RH WHEELHOUSE BRACKET	985830424 RH WHEELHOUSE BRACKET	$136.16	1
0018	985830415	LH WHEELHOUSE BRACKET	985830415 LH WHEELHOUSE BRACKET	$136.16	1
0019	985877500	COMPL. ENGINE COMPARTMENT LID LOCK MOUNT	985877500 COMPL. ENGINE COMPARTMENT LID LOCK MOUNT	$802.28	1
0020	14304824	SCREW	14304824 SCREW M6 X 50	$0.28	2
0021	12640624	WASHER	12640624 WASHER	$0.16 MSRP: ~~0.29~~ (44.8% off)	2
0022	877504	COMPL. MOUNTING BRACKET FOR LH REAR COVER	877504 COMPL. MOUNTING BRACKET FOR LH REAR COVER	$38.69	1
0023	985830341	COMPL. RH BOX ELEMENT REINFORCEMENT TUBE	985830341 COMPL. RH BOX ELEMENT REINFORCEMENT TUBE Request ASM authorisation	$272.34	1
0024	985925466	COMPL. LH BOX ELEMENT REINFORCEMENT TUBE	985925466 COMPL. LH BOX ELEMENT REINFORCEMENT TUBE Request ASM authorisation	$272.34	1
0025	985830380	FASTENER BRACKET FOR RH FRONT FLANK REINFORCEMENT	985830380 FASTENER BRACKET FOR RH FRONT FLANK REINFORCEMENT	$136.16	1
0026	985865666	FASTENER BRACKET FOR LH FRONT FLANK REINFORCEMENT	985865666 FASTENER BRACKET FOR LH FRONT FLANK REINFORCEMENT	$136.16	1
0027	909590	COMPL. STRUT MOUNTING BRACKET	909590 COMPL. STRUT MOUNTING BRACKET	$157.66	1
0028	16286121	SCREW	16286121 SCREW M6 X 20	$0.70 MSRP: ~~1.35~~ (48.1% off)	3
0029	16287524	SCREW	16287524 SCREW M8 X 25	$1.36	2
0030	985877489	COMPL. RH INTERCOOLER MOUNTING TUBE	985877489 COMPL. RH INTERCOOLER MOUNTING TUBE	$286.67	1
0031	985877488	COMPL. LH INTERCOOLER MOUNTING TUBE	985877488 COMPL. LH INTERCOOLER MOUNTING TUBE	$286.67	1
0032	877491	COMPL. RH ADJUSTER CUP	877491 COMPL. RH ADJUSTER CUP	$18.62	1
0033	877490	COMPL. LH ADJUSTER CUP	877490 COMPL. LH ADJUSTER CUP	$18.62	1
0034	830360	RH FLANK ADJUSTMENT BRACKET	830360 RH FLANK ADJUSTMENT BRACKET	$34.38	1
0035	830359	LH FLANK ADJUSTMENT BRACKET	830359 LH FLANK ADJUSTMENT BRACKET	$34.38	1
0036	910807	RH COMPARTMENT BLANKING PLATE	910807 RH COMPARTMENT BLANKING PLATE	$15.54	1
0037	910805	LH COMPARTMENT BLANKING PLATE	910805 LH COMPARTMENT BLANKING PLATE	$15.54	1
0038	830401	LOCK BRACKET THICKNESS	830401 LOCK BRACKET THICKNESS 1 mm	$10.73	3
