EXHAUST SYSTEM - FRONT SECTION of Ferrari Ferrari SF90 Stradale Europe RH

View All

Ferrari SF90 Stradale Europe RH - EXHAUST SYSTEM - FRONT SECTION

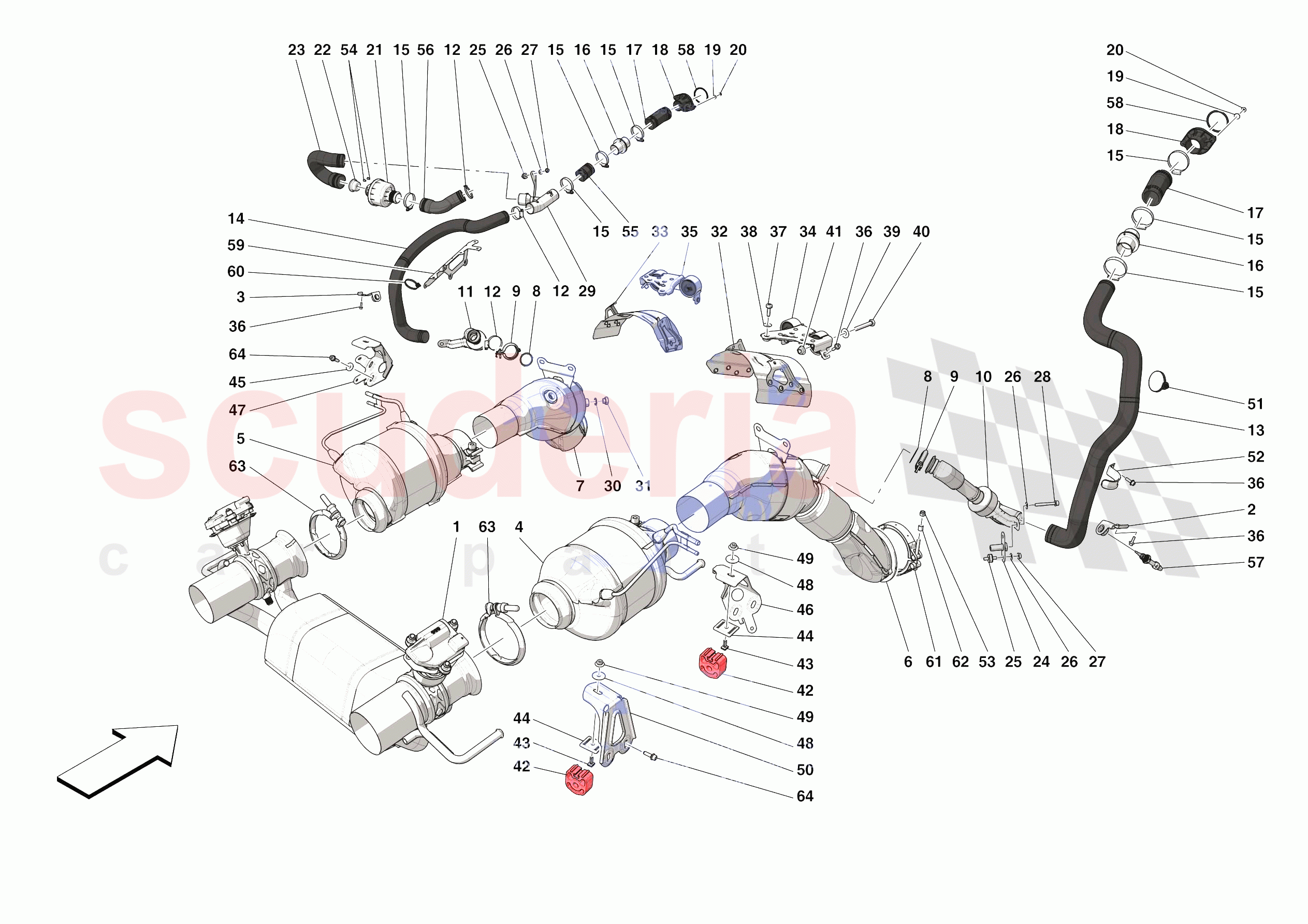

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	938141	SILENCER	Enquire	To Order
	958639	SILENCER	Enquire	To Order
	938340	SILENCER	Enquire	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	895925	RH TEMPERATURE SENSOR MOUNT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	895926	LH TEMPERATURE SENSOR MOUNT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	867548	COMPL. RH GPF	Enquire	To Order
	832344	COMPL. RH GPF	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	867549	COMPL. LH GPF	Enquire	To Order
	832347	COMPL. LH GPF	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	939966	RH- PRE-CAT	Enquire	To Order
	939970	RH- PRE-CAT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	939968	LH- PRE-CAT	Enquire	To Order
	939972	LH- PRE-CAT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	898288	GASKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	855141	V-CLAMP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	968310	RH RIGID PIPE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	968311	LH RIGID PIPE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	296781	COLLAR 30-45MM	Enquire	ARRIVING SOON

Photo	Part No	Description	Price (each)	Stock
	949108	RH COILED PIPE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	965519	LH COILED PIPE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	296781	COLLAR 30-45MM	Enquire	ARRIVING SOON

Photo	Part No	Description	Price (each)	Stock
	786536	COMPL. MEMBRANE HOLDER PIPE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	939880	HOSE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	917223	HORN	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12638170	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14040511	NUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	310096	SOUND GENERATOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	904595	REDUCER FOR RESONATOR	Enquire	To Order
	741450	REDUCER FOR RESONATOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	917220	HOSE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	842654	BRACKET FOR RIGID PIPE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	239829	VIBRATION DAMPER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	13577724	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14040614	NUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	231624	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	939874	3-WAY	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	10298460	GASKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	110860	THREADED PLUG	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	826110	RH CATALYTIC CONVERTER SHIELD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	826111	LH CATALYTIC CONVERTER SHIELD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	981836	COMPL. RH BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	981838	COMPL. LH BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	85833700	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	216565	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14498824	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12625224	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	16044234	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14059311	NUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	239798	FLEXIBLE SILENCER MOUNTING BUSH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	283425	SQUARE HEADED SCREW M6 X 18.5MM	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	240598	PLATE	Enquire	To Order
	240598	PLATE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12643724	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	827919	BRACKET FOR RH GPF	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	919089	BRACKET FOR LH GPF	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12648978	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14059290	FLANGED NUT M6	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	917049	SILENCE FASTENER BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	303385	CLIP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	880303	BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	292945	NUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	314100	RIVET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	917218	HOSE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	917221	HOSE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	890950	TEMPERATURE SENSOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	901095	GASKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	939195	WIRING HARNESS BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	303385	CLIP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	290743	V-CLAMP FOR FASTENING CATALYTIC CONVERTER TO MANIFOLD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	292946	SPACER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	806375	V-CLAMP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	231619	SOCKET HEAD SCREW M6 X 22 WITH WASHER	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
0001	938141	SILENCER	938141 SILENCER Applies until depletion	-	1	Enquire
0001	958639	SILENCER	958639 SILENCER Applicable after depletion of 938141	-	1	Enquire
0001	938340	SILENCER	938340 SILENCER Applicable for Assetto Fiorano FIO1/FIO2 - Version with lightened exhaust system; Applies until depletion	-	1	Enquire
0001	958641	SILENCER	958641 SILENCER Applicable for Assetto Fiorano FIO1/FIO2 - Version with lightened exhaust system; Applicable after depletion of 938340	-	1	Enquire
0002	895925	RH TEMPERATURE SENSOR MOUNT	895925 RH TEMPERATURE SENSOR MOUNT	-	1	Enquire
0003	895926	LH TEMPERATURE SENSOR MOUNT	895926 LH TEMPERATURE SENSOR MOUNT	-	1	Enquire
0004	867548	COMPL. RH GPF	867548 COMPL. RH GPF In case of replacement, also order LH GPF 867549	-	1	Enquire
0004	832344	COMPL. RH GPF	832344 COMPL. RH GPF In case of replacement, also order LH GPF 832347	-	1	Enquire
0005	867549	COMPL. LH GPF	867549 COMPL. LH GPF In case of replacement, also order RH GPF 867548	-	1	Enquire
0005	832347	COMPL. LH GPF	832347 COMPL. LH GPF In case of replacement, also order RH GPF 832344	-	1	Enquire
0006	939966	RH- PRE-CAT	939966 RH- PRE-CAT	-	1	Enquire
0006	939970	RH- PRE-CAT	939970 RH- PRE-CAT Applicable for Assetto Fiorano FIO1/FIO2 - Version with lightened exhaust system	-	1	Enquire
0007	939968	LH- PRE-CAT	939968 LH- PRE-CAT	-	1	Enquire
0007	939972	LH- PRE-CAT	939972 LH- PRE-CAT Applicable for Assetto Fiorano FIO1/FIO2 - Version with lightened exhaust system	-	1	Enquire
0008	898288	GASKET	898288 GASKET	-	2	Enquire
0009	855141	V-CLAMP	855141 V-CLAMP	-	2	Enquire
0010	968310	RH RIGID PIPE	968310 RH RIGID PIPE	-	1	Enquire
0011	968311	LH RIGID PIPE	968311 LH RIGID PIPE	-	1	Enquire
0012	296781	COLLAR 30-45MM ARRIVING SOON	296781 COLLAR 30-45MM ARRIVING SOON	-	5	Enquire
0013	949108	RH COILED PIPE	949108 RH COILED PIPE	-	1	Enquire
0014	965519	LH COILED PIPE	965519 LH COILED PIPE	-	1	Enquire
0015	296781	COLLAR 30-45MM ARRIVING SOON	296781 COLLAR 30-45MM ARRIVING SOON	-	9	Enquire
0016	786536	COMPL. MEMBRANE HOLDER PIPE	786536 COMPL. MEMBRANE HOLDER PIPE	-	2	Enquire
0017	939880	HOSE	939880 HOSE	-	2	Enquire
0018	917223	HORN	917223 HORN	-	2	Enquire
0019	12638170	WASHER	12638170 WASHER	-	4	Enquire
0020	14040511	NUT	14040511 NUT	-	4	Enquire
0021	310096	SOUND GENERATOR	310096 SOUND GENERATOR	-	1	Enquire
0022	904595	REDUCER FOR RESONATOR	904595 REDUCER FOR RESONATOR	-	1	Enquire
0022	741450	REDUCER FOR RESONATOR	741450 REDUCER FOR RESONATOR	-	1	Enquire
0023	917220	HOSE	917220 HOSE	-	1	Enquire
0024	842654	BRACKET FOR RIGID PIPE	842654 BRACKET FOR RIGID PIPE	-	2	Enquire
0025	239829	VIBRATION DAMPER	239829 VIBRATION DAMPER	-	5	Enquire
0026	13577724	WASHER	13577724 WASHER	-	7	Enquire
0027	14040614	NUT	14040614 NUT	-	5	Enquire
0028	231624	SCREW	231624 SCREW M6 X 45	-	2	Enquire
0029	939874	3-WAY	939874 3-WAY	-	1	Enquire
0030	10298460	GASKET	10298460 GASKET	-	2	Enquire
0031	110860	THREADED PLUG	110860 THREADED PLUG	-	2	Enquire
0032	826110	RH CATALYTIC CONVERTER SHIELD	826110 RH CATALYTIC CONVERTER SHIELD	-	1	Enquire
0033	826111	LH CATALYTIC CONVERTER SHIELD	826111 LH CATALYTIC CONVERTER SHIELD	-	1	Enquire
0034	981836	COMPL. RH BRACKET	981836 COMPL. RH BRACKET	-	1	Enquire
0035	981838	COMPL. LH BRACKET	981838 COMPL. LH BRACKET	-	1	Enquire
0036	85833700	SCREW	85833700 SCREW M5 X 16	-	11	Enquire
0037	216565	SCREW	216565 SCREW M6 X 20	-	6	Enquire
0038	14498824	WASHER	14498824 WASHER	-	6	Enquire
0039	12625224	WASHER	12625224 WASHER	-	8	Enquire
0040	16044234	SCREW	16044234 SCREW M8 X 50	-	4	Enquire
0041	14059311	NUT	14059311 NUT	-	4	Enquire
0042	239798	FLEXIBLE SILENCER MOUNTING BUSH	239798 FLEXIBLE SILENCER MOUNTING BUSH	-	4	Enquire
0043	283425	SQUARE HEADED SCREW M6 X 18.5MM	283425 SQUARE HEADED SCREW M6 X 18.5MM M6 X 18.5	-	4	Enquire
0044	240598	PLATE	240598 PLATE Applicable after depletion of 799014	-	4	Enquire
0044	240598	PLATE	240598 PLATE	-	4	Enquire
0045	12643724	WASHER	12643724 WASHER	-	4	Enquire
0046	827919	BRACKET FOR RH GPF	827919 BRACKET FOR RH GPF	-	1	Enquire
0047	919089	BRACKET FOR LH GPF	919089 BRACKET FOR LH GPF	-	1	Enquire
0048	12648978	WASHER	12648978 WASHER	-	4	Enquire
0049	14059290	FLANGED NUT M6	14059290 FLANGED NUT M6	-	4	Enquire
0050	917049	SILENCE FASTENER BRACKET	917049 SILENCE FASTENER BRACKET	-	2	Enquire
0051	303385	CLIP	303385 CLIP 170 mm	-	4	Enquire
0052	880303	BRACKET	880303 BRACKET	-	3	Enquire
0053	292945	NUT	292945 NUT M8 X1.25 X 11	-	2	Enquire
0054	314100	RIVET	314100 RIVET	-	2	Enquire
0055	917218	HOSE	917218 HOSE	-	1	Enquire
0056	917221	HOSE	917221 HOSE	-	1	Enquire
0057	890950	TEMPERATURE SENSOR	890950 TEMPERATURE SENSOR	-	2	Enquire
0058	901095	GASKET	901095 GASKET	-	2	Enquire
0059	939195	WIRING HARNESS BRACKET	939195 WIRING HARNESS BRACKET	-	1	Enquire
0060	303385	CLIP	303385 CLIP 170 mm	-	1	Enquire
0061	290743	V-CLAMP FOR FASTENING CATALYTIC CONVERTER TO MANIFOLD	290743 V-CLAMP FOR FASTENING CATALYTIC CONVERTER TO MANIFOLD	-	2	Enquire
0062	292946	SPACER	292946 SPACER	-	2	Enquire
0063	806375	V-CLAMP	806375 V-CLAMP	-	2	Enquire
0064	231619	SOCKET HEAD SCREW M6 X 22 WITH WASHER	231619 SOCKET HEAD SCREW M6 X 22 WITH WASHER M6 X 20	-	8	Enquire
