Front Suspension - Shock Absorbers

Ferrari SF90 Stradale Europe

Find Your Part

Ferrari SF90 Stradale Europe - FRONT SUSPENSION - SHOCK ABSORBERS

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
902987 LH FRONT SHOCK ABSORBER $2,395.65 To Order
989988 LH FRONT SHOCK ABSORBER Enquire To Order
902989 LH FRONT SHOCK ABSORBER $2,986.14 To Order
...and 3 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
267936 SHOCK ABSORBER BUSH $40.10 IN STOCK
Photo Part No Description Price (each) Stock
188996 LOWER SPACER $14.59 IN STOCK
293648 LOWER SPRING SPACER $7.42 To Order
Photo Part No Description Price (each) Stock
893343 FRONT SUSPENSION SPRING $121.93 To Order
893345 FRONT SUSPENSION SPRING $2,639.55 To Order
986716 FRONT SUSPENSION SPRING $2,644.36 To Order
...and 2 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
293621 UPPER SPRING SPACER $13.31 IN STOCK
917866 UPPER SPRING SPACER $57.75 To Order
Photo Part No Description Price (each) Stock
340250 SHOCK ABSORBER RETAINER CAP $240.67 IN STOCK
Photo Part No Description Price (each) Stock
248790 SCREW $4.08 To Order
Photo Part No Description Price (each) Stock
237297 SCREW $30.71 IN STOCK
Photo Part No Description Price (each) Stock
157630 SHOCK ABSORBER BUSH $112.31 IN STOCK
Photo Part No Description Price (each) Stock
237821 BUSH $4.91 IN STOCK
Photo Part No Description Price (each) Stock
12646921 WASHER $0.53 IN STOCK
Photo Part No Description Price (each) Stock
255271 NUT $1.43 IN STOCK
Photo Part No Description Price (each) Stock
819425 FRONT AXLE SHAFT $962.74 To Order
792154 FRONT AXLE SHAFT $898.06 To Order
816510 FRONT AXLE SHAFT $929.11 To Order
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
966201 PLATE $40.10 To Order
Photo Part No Description Price (each) Stock
818339 SCREW WITH THREAD LOCK ADHESIVE $1.88 To Order
818339 SCREW WITH THREAD LOCK ADHESIVE $1.88 To Order
Photo Part No Description Price (each) Stock
939890 SPECIAL RING BEARING FOR AXLE SHAFT $17.39 To Order
939890 SPECIAL RING BEARING FOR AXLE SHAFT $17.39 To Order
Photo Part No Description Price (each) Stock
203780 HUB NUT HEX M28 $23.39 To Order
Photo Part No Description Price (each) Stock
220377 WASHER $7.62 To Order
Photo Part No Description Price (each) Stock
220383 BUSH $40.10 To Order
Photo Part No Description Price (each) Stock
220378 NUT $4.55 To Order
Photo Part No Description Price (each) Stock
790604 COMPL. ACTUATOR $1,163.25 To Order
Photo Part No Description Price (each) Stock
259638 GASKET $14.10 IN STOCK
Photo Part No Description Price (each) Stock
277168 HOSE $149.21 To Order
Photo Part No Description Price (each) Stock
261587 HOSE $30.47 IN STOCK
View All

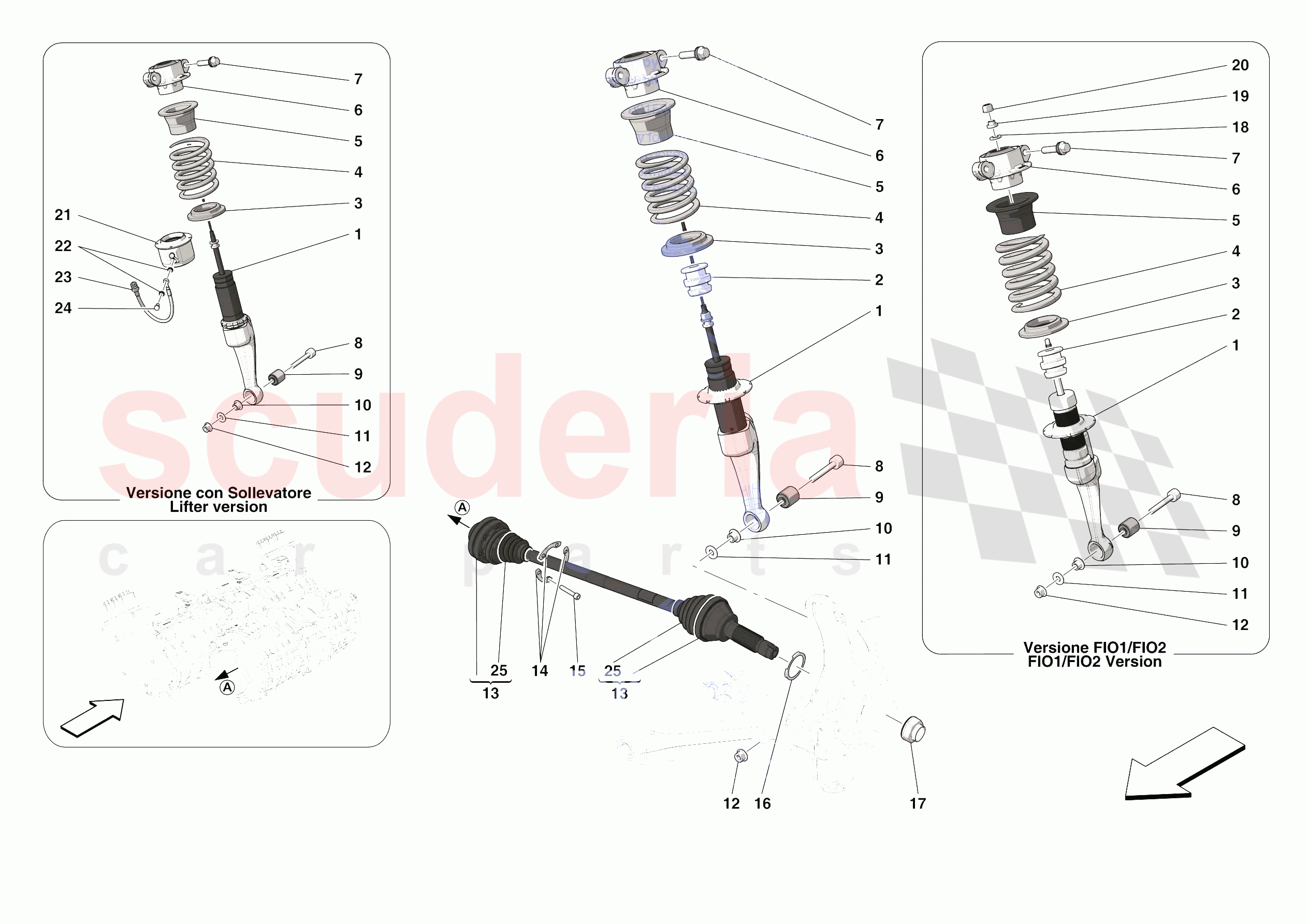

FRONT SUSPENSION - SHOCK ABSORBERS of Ferrari Ferrari SF90 Stradale Europe Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
0001 902987
LH FRONT SHOCK ABSORBER
Not for Assetto Fiorano FIO1/FIO2 - Not for version with lift system 		$2,395.65 1
0001 989988
LH FRONT SHOCK ABSORBER 		- 1 Enquire
0001 902989
LH FRONT SHOCK ABSORBER
Version with lift system - Not for Assetto Fiorano FIO1/FIO2 		$2,986.14 1
0001 902988
RH FRONT SHOCK ABSORBER
Not for Assetto Fiorano FIO1/FIO2 - Not for version with lift system 		$2,395.65 1
0001 989990
RH FRONT SHOCK ABSORBER 		- 1 Enquire
0001 902990
RH FRONT SHOCK ABSORBER
Version with lift system - Not for Assetto Fiorano FIO1/FIO2 		$2,986.14 1
0002 267936
SHOCK ABSORBER BUSH
IN STOCK 		$40.10 2
0003 188996
LOWER SPACER
Not for Assetto Fiorano FIO1/FIO2
IN STOCK 		$14.59 2
0003 293648
LOWER SPRING SPACER
Applicable for Assetto Fiorano FIO1/FIO2 		$7.42 2
0004 893343
FRONT SUSPENSION SPRING
Not for Assetto Fiorano FIO1/FIO2 - Not for version with lift system 		$121.93 2
0004 893345
FRONT SUSPENSION SPRING
Applicable for Assetto Fiorano FIO1/FIO2 - Not for version with lift system; Applies until depletion 		$2,639.55 2
0004 986716
FRONT SUSPENSION SPRING
Applicable for Assetto Fiorano FIO1/FIO2 - Not for version with lift system; Applicable after depletion of 893345 		$2,644.36 2
0004 958077
FRONT SUSPENSION SPRING
Version with lift system - Not for Assetto Fiorano FIO1/FIO2; No longer supplied - Replaced by 778460 		- 2 Enquire
0004 778460
FRONT SUSPENSION SPRING
Version with lift system - Not for Assetto Fiorano FIO1/FIO2 		$147.61 2
0005 293621
UPPER SPRING SPACER
Not for Assetto Fiorano FIO1/FIO2
IN STOCK 		$13.31 2
0005 917866
UPPER SPRING SPACER 		$57.75 2
0006 340250
SHOCK ABSORBER RETAINER CAP
IN STOCK 		$240.67 2
0007 248790
SCREW
M12 X 1.25 X 50 		$4.08 4
0008 237297
SCREW
M12 X 1.25 X 80
IN STOCK 		$30.71 2
0009 157630
SHOCK ABSORBER BUSH
IN STOCK 		$112.31 (26.2% off) 2
0010 237821
BUSH
D 18 X 15
IN STOCK 		$4.91 (10.7% off) 2
0011 12646921
WASHER
IN STOCK 		$0.53 2
0012 255271
NUT
IN STOCK 		$1.43 (1.4% off) 2
0013 819425
FRONT AXLE SHAFT 		$962.74 2
0013 792154
FRONT AXLE SHAFT
No longer supplied - Replaced by 816510 		$898.06 2
0013 816510
FRONT AXLE SHAFT
Applies until depletion 		$929.11 2
0013 892151
FRONT AXLE SHAFT
Applicable after depletion of 816510 		$1,042.97 2
0014 966201
PLATE 		$40.10 6
0015 818339
SCREW WITH THREAD LOCK ADHESIVE
M8 X 46.5 		$1.88 12
0015 818339
SCREW WITH THREAD LOCK ADHESIVE
M8 X 46.5 		$1.88 12
0016 939890
SPECIAL RING BEARING FOR AXLE SHAFT 		$17.39 2
0016 939890
SPECIAL RING BEARING FOR AXLE SHAFT 		$17.39 2
0017 203780
HUB NUT HEX M28 		$23.39 (9.3% off) 2
0018 220377
WASHER
Applicable for Assetto Fiorano FIO1/FIO2 		$7.62 2
0019 220383
BUSH
Applicable for Assetto Fiorano FIO1/FIO2 		$40.10 2
0020 220378
NUT
Applicable for Assetto Fiorano FIO1/FIO2 		$4.55 2
0021 790604
COMPL. ACTUATOR
Version with lift system - Not for Assetto Fiorano FIO1/FIO2 		$1,163.25 2
0022 259638
GASKET
Not for Assetto Fiorano FIO1/FIO2; Version with lift system
IN STOCK 		$14.10 (14.8% off) 3
0023 277168
HOSE
Not for Assetto Fiorano FIO1/FIO2; Version with lift system 		$149.21 2
0024 261587
HOSE
Not for Assetto Fiorano FIO1/FIO2; Version with lift system
IN STOCK 		$30.47 (64.1% off) 2
