Injector Pipes

Ferrari SF90 Stradale Europe

Find Your Part

Ferrari SF90 Stradale Europe - INJECTOR PIPES

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
800585 RH FUEL PIPE COMPL. WITH INJECTORS $1,123.20 To Order
850856 RH FUEL PIPE COMPL. WITH INJECTORS $2,400.46 To Order
850856 RH FUEL PIPE COMPL. WITH INJECTORS $2,400.46 To Order
Photo Part No Description Price (each) Stock
800587 LH FUEL PIPE COMPL. WITH INJECTORS $1,123.20 To Order
850857 LH FUEL PIPE COMPL. WITH INJECTORS $2,400.46 To Order
850857 LH FUEL PIPE COMPL. WITH INJECTORS $2,400.46 To Order
Photo Part No Description Price (each) Stock
800583 ELECTRO-INJECTOR $1,340.68 To Order
827711 ELECTRO-INJECTOR $164.48 To Order
Photo Part No Description Price (each) Stock
838883 BRACKET $15.38 To Order
964896 BRACKET $32.08 To Order
Photo Part No Description Price (each) Stock
70005234 SEAL KIT $123.28 To Order
70007597 SEAL KIT $86.63 To Order
View All

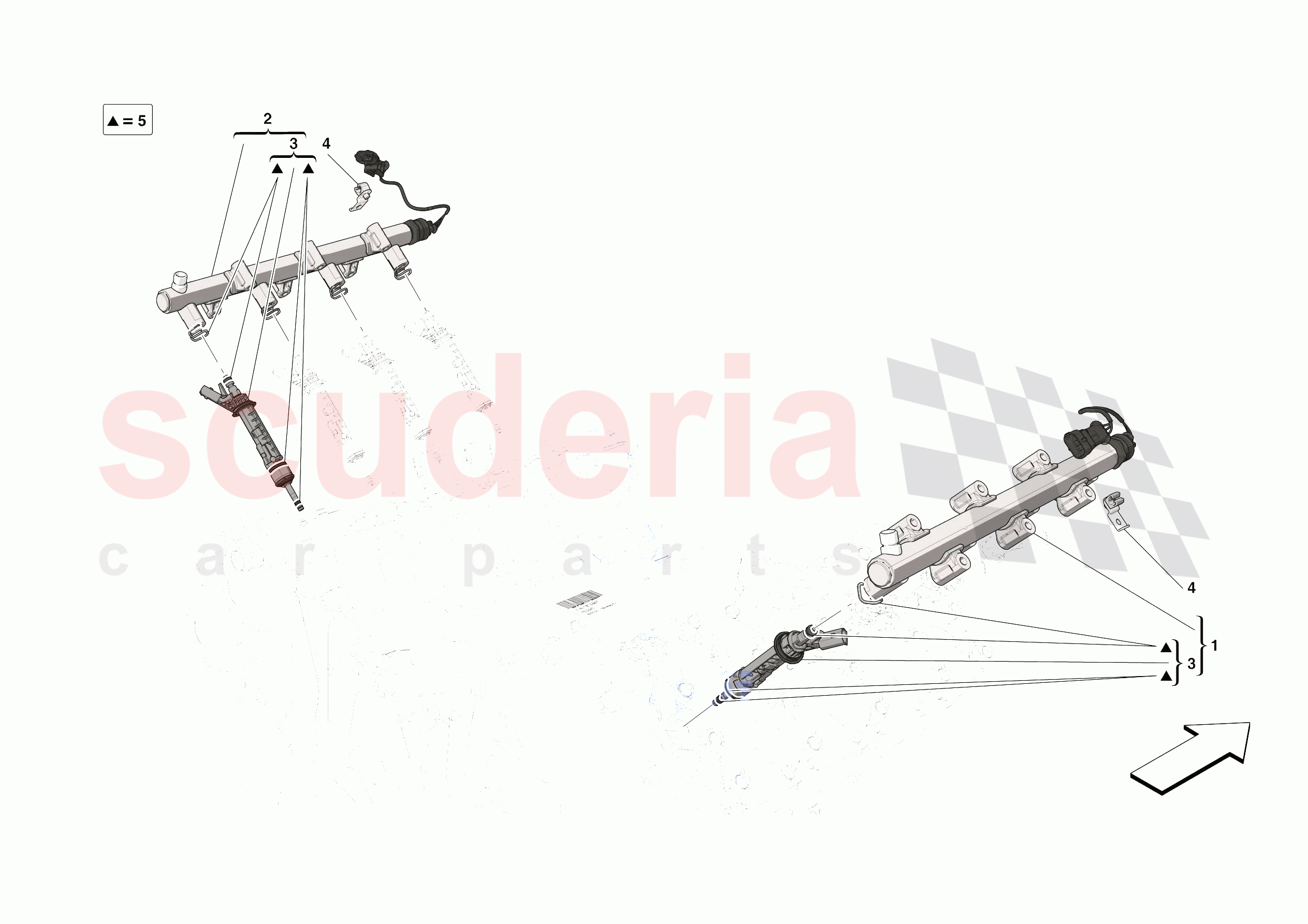

INJECTOR PIPES of Ferrari Ferrari SF90 Stradale Europe Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
0001 800585
RH FUEL PIPE COMPL. WITH INJECTORS
Also order ref. 4 in tab. 23 fuel pipe and ref. 16 in tab. 23 M8 X 20 screw; Applicable up to engine No. 504552 		$1,123.20 1
0001 850856
RH FUEL PIPE COMPL. WITH INJECTORS
Also order ref. 4 in tab. 23 fuel pipe and ref. 16 in tab. 23 M8 X 20 screw; Applicable from engine No. 504553 		$2,400.46 1
0001 850856
RH FUEL PIPE COMPL. WITH INJECTORS 		$2,400.46 1
0002 800587
LH FUEL PIPE COMPL. WITH INJECTORS
Also order ref. 5 in tab. 23 fuel pipe and ref. 16 in tab. 23 M8 X 20 screw; Applicable up to engine No. 504552 		$1,123.20 1
0002 850857
LH FUEL PIPE COMPL. WITH INJECTORS
Also order ref. 5 in tab. 23 fuel pipe and ref. 16 in tab. 23 M8 X 20 screw; Applicable from engine No. 504553 		$2,400.46 1
0002 850857
LH FUEL PIPE COMPL. WITH INJECTORS 		$2,400.46 1
0003 800583
ELECTRO-INJECTOR
Applicable up to engine No. 504552 		$1,340.68 8
0003 827711
ELECTRO-INJECTOR
Applicable from engine No. 504553 		$164.48 8
0004 838883
BRACKET 		$15.38 1
0004 964896
BRACKET 		$32.08 1
0005 70005234
SEAL KIT
Applicable for 4 injectors - Also included in Short block gasket series - Also included in engine gasket set; Applies until depletion 		$123.28 2
0005 70007597
SEAL KIT
Applicable for 4 injectors - Also included in Short block gasket series - Also included in engine gasket set; Applicable after depletion of 70005234 		$86.63 2
