FRONT SUSPENSION - SHOCK ABSORBERS

Find Your Part

Ferrari SF90 Spider Europe - FRONT SUSPENSION - SHOCK ABSORBERS

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
902987 LH FRONT SHOCK ABSORBER $2,442.59 To Order
902989 LH FRONT SHOCK ABSORBER $3,153.02 To Order
989988 LH FRONT SHOCK ABSORBER Enquire To Order
...and 3 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
267936 SHOCK ABSORBER BUSH $43.31 To Order
Photo Part No Description Price (each) Stock
188996 LOWER SPACER $15.38 To Order
293648 LOWER SPRING SPACER $7.73 To Order
Photo Part No Description Price (each) Stock
893343 FRONT SUSPENSION SPRING $124.69 To Order
778460 FRONT SUSPENSION SPRING $155.63 To Order
893345 FRONT SUSPENSION SPRING $2,692.01 To Order
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
293621 UPPER SPRING SPACER $14.15 To Order
917866 UPPER SPRING SPACER $60.96 To Order
Photo Part No Description Price (each) Stock
340250 SHOCK ABSORBER RETAINER CAP $256.72 To Order
Photo Part No Description Price (each) Stock
237297 SCREW $30.36 To Order
Photo Part No Description Price (each) Stock
157630 SHOCK ABSORBER BUSH $118.72 ARRIVING SOON
Photo Part No Description Price (each) Stock
237821 BUSH $4.86 To Order
Photo Part No Description Price (each) Stock
12646921 WASHER $0.53 To Order
Photo Part No Description Price (each) Stock
255271 NUT $1.41 To Order
Photo Part No Description Price (each) Stock
816510 FRONT AXLE SHAFT $918.25 To Order
892151 FRONT AXLE SHAFT $1,118.08 To Order
Photo Part No Description Price (each) Stock
966201 PLATE $40.11 To Order
Photo Part No Description Price (each) Stock
939890 SPECIAL RING BEARING FOR AXLE SHAFT $18.62 To Order
Photo Part No Description Price (each) Stock
203780 HUB NUT HEX M28 $24.62 To Order
Photo Part No Description Price (each) Stock
220377 WASHER $8.09 To Order
Photo Part No Description Price (each) Stock
220383 BUSH $43.31 To Order
Photo Part No Description Price (each) Stock
220378 NUT $4.80 To Order
Photo Part No Description Price (each) Stock
790604 COMPL. ACTUATOR $1,219.33 To Order
Photo Part No Description Price (each) Stock
259638 GASKET $14.10 To Order
Photo Part No Description Price (each) Stock
277168 HOSE $157.23 To Order
Photo Part No Description Price (each) Stock
261587 HOSE $32.08 To Order
Photo Part No Description Price (each) Stock
818339 SCREW WITH THREAD LOCK ADHESIVE $1.85 To Order
View All

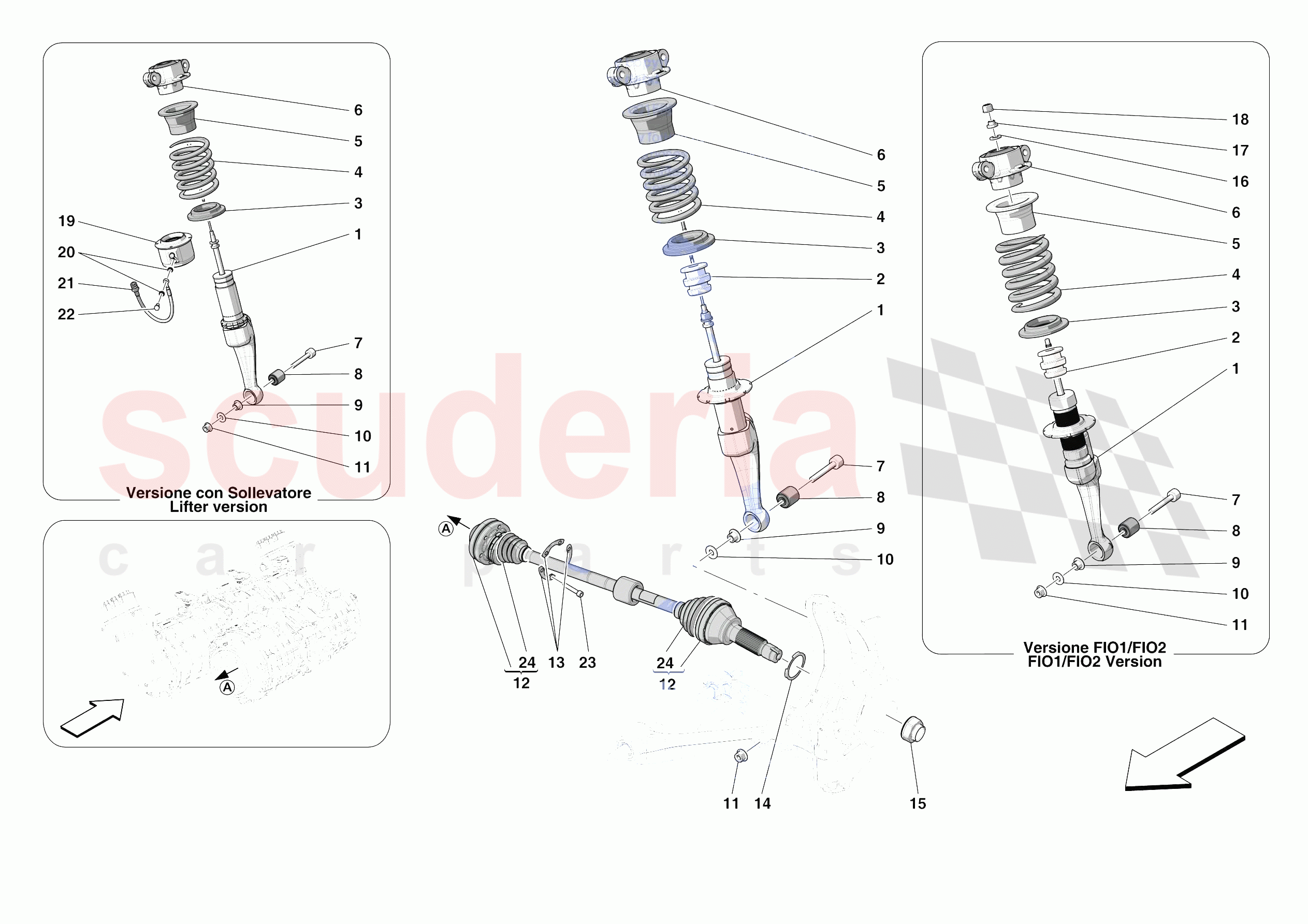

FRONT SUSPENSION - SHOCK ABSORBERS of Ferrari Ferrari SF90 Spider Europe Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
0001 902987
LH FRONT SHOCK ABSORBER
Not for Assetto Fiorano FIO1/FIO2 - Not for version with lift system 		$2,442.59 1
0001 902989
LH FRONT SHOCK ABSORBER
Not for Assetto Fiorano FIO1/FIO2 - Version with lift system 		$3,153.02 1
0001 989988
LH FRONT SHOCK ABSORBER 		- 1 Enquire
0001 902988
RH FRONT SHOCK ABSORBER
Not for Assetto Fiorano FIO1/FIO2 - Not for version with lift system 		$2,442.59 1
0001 902990
RH FRONT SHOCK ABSORBER
Not for Assetto Fiorano FIO1/FIO2 - Version with lift system 		$3,153.02 1
0001 989990
RH FRONT SHOCK ABSORBER 		- 1 Enquire
0002 267936
SHOCK ABSORBER BUSH 		$43.31 2
0003 188996
LOWER SPACER
Not for Assetto Fiorano FIO1/FIO2 		$15.38 2
0003 293648
LOWER SPRING SPACER
Applicable for Assetto Fiorano FIO1/FIO2 		$7.73 2
0004 893343
FRONT SUSPENSION SPRING
Not for Assetto Fiorano FIO1/FIO2 - Not for version with lift system 		$124.69 2
0004 778460
FRONT SUSPENSION SPRING
Not for Assetto Fiorano FIO1/FIO2 - Version with lift system 		$155.63 2
0004 893345
FRONT SUSPENSION SPRING
Applicable for Assetto Fiorano FIO1/FIO2 - Not for version with lift system; Applies until depletion 		$2,692.01 2
0004 986716
FRONT SUSPENSION SPRING
Applicable for Assetto Fiorano FIO1/FIO2 - Not for version with lift system; Applicable after depletion of 893345 		$2,693.44 2
0005 293621
UPPER SPRING SPACER
Not for Assetto Fiorano FIO1/FIO2 		$14.15 2
0005 917866
UPPER SPRING SPACER 		$60.96 2
0006 340250
SHOCK ABSORBER RETAINER CAP 		$256.72 2
0007 237297
SCREW
M12 X 1.25 X 80 		$30.36 2
0008 157630
SHOCK ABSORBER BUSH
ARRIVING SOON 		$118.72 (22% off) 2
0009 237821
BUSH
D 18 X 15 		$4.86 (11.6% off) 2
0010 12646921
WASHER 		$0.53 2
0011 255271
NUT 		$1.41 (2.8% off) 2
0012 816510
FRONT AXLE SHAFT
Applies until depletion 		$918.25 2
0012 892151
FRONT AXLE SHAFT
Applicable after depletion of 816510 		$1,118.08 2
0013 966201
PLATE 		$40.11 6
0014 939890
SPECIAL RING BEARING FOR AXLE SHAFT 		$18.62 2
0015 203780
HUB NUT HEX M28 		$24.62 (4.6% off) 2
0016 220377
WASHER
Applicable for Assetto Fiorano FIO1/FIO2 		$8.09 2
0017 220383
BUSH
Applicable for Assetto Fiorano FIO1/FIO2 		$43.31 2
0018 220378
NUT
Applicable for Assetto Fiorano FIO1/FIO2 		$4.80 2
0019 790604
COMPL. ACTUATOR
Not for Assetto Fiorano FIO1/FIO2 - Version with lift system 		$1,219.33 2
0020 259638
GASKET
Not for Assetto Fiorano FIO1/FIO2; Version with lift system 		$14.10 (14.8% off) 4
0021 277168
HOSE
Not for Assetto Fiorano FIO1/FIO2; Version with lift system 		$157.23 2
0022 261587
HOSE
Not for Assetto Fiorano FIO1/FIO2; Version with lift system 		$32.08 (62.2% off) 2
0023 818339
SCREW WITH THREAD LOCK ADHESIVE
M8 X 46.5 		$1.85 12
