DASHBOARD - SUBSTRUCTURE -APPLICABLE FOR RHD- of Ferrari Ferrari Roma USA

View All

Ferrari Roma USA - DASHBOARD - SUBSTRUCTURE -APPLICABLE FOR RHD-

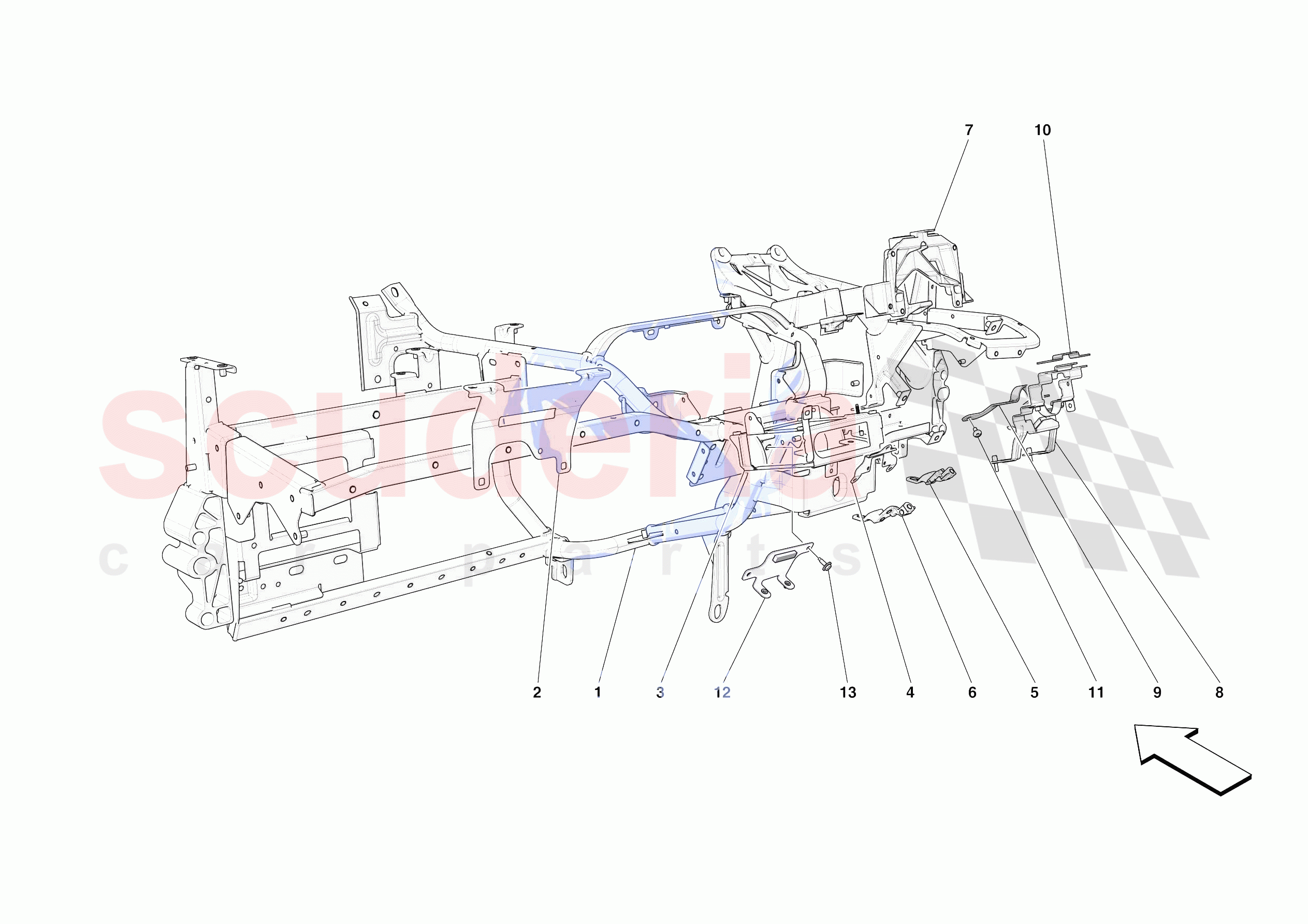

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	914436	DASHBOARD CROSS MEMBER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	916502	PASSENGER SIDE COVER REINFORCEMENT BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	915116	NIT - NAV BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	940771	MOUNTING BRACKET FOR ENGINE COMPARTMENT LID HANDLE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	901113	RH FLANK FASTENER BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	901111	LH FLANK FASTENER BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	898332	INSTRUMENT BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	837920	LOWER BRACKET FOR STEERING COLUMN TRIM	Enquire	To Order
	86592000	LOWER BRACKET FOR LOWER STEERING COLUMN TRIM	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	940779	UPPER BRACKET FOR LOWER STEERING COLUMN TRIM	Enquire	To Order
	870753	UPPER BRACKET FOR LOWER STEERING COLUMN TRIM	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	837930	UPPER STEERING COLUMN TRIM BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	88822200	SCREW TORX HEAD M4 X 10MM	Enquire	To Order
	15687275	Screw	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	82118300	SCREW -No longer supplied- -Replaced by 11625714-	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
0001	914436	DASHBOARD CROSS MEMBER	914436 DASHBOARD CROSS MEMBER	-	1	Enquire
0002	916502	PASSENGER SIDE COVER REINFORCEMENT BRACKET	916502 PASSENGER SIDE COVER REINFORCEMENT BRACKET Version with passenger display	-	1	Enquire
0003	915116	NIT - NAV BRACKET	915116 NIT - NAV BRACKET	-	1	Enquire
0004	940771	MOUNTING BRACKET FOR ENGINE COMPARTMENT LID HANDLE	940771 MOUNTING BRACKET FOR ENGINE COMPARTMENT LID HANDLE	-	1	Enquire
0005	901113	RH FLANK FASTENER BRACKET	901113 RH FLANK FASTENER BRACKET	-	1	Enquire
0006	901111	LH FLANK FASTENER BRACKET	901111 LH FLANK FASTENER BRACKET	-	1	Enquire
0007	898332	INSTRUMENT BRACKET	898332 INSTRUMENT BRACKET	-	1	Enquire
0008	837920	LOWER BRACKET FOR STEERING COLUMN TRIM	837920 LOWER BRACKET FOR STEERING COLUMN TRIM	-	1	Enquire
0008	86592000	LOWER BRACKET FOR LOWER STEERING COLUMN TRIM	86592000 LOWER BRACKET FOR LOWER STEERING COLUMN TRIM Applicable for full electric seats or full electric seats with ventilation	-	1	Enquire
0009	940779	UPPER BRACKET FOR LOWER STEERING COLUMN TRIM	940779 UPPER BRACKET FOR LOWER STEERING COLUMN TRIM Applies until depletion	-	1	Enquire
0009	870753	UPPER BRACKET FOR LOWER STEERING COLUMN TRIM	870753 UPPER BRACKET FOR LOWER STEERING COLUMN TRIM For vehicles up to Ass.ly No. 194978, also order screw 15688801 ref. 11; Applicable after depletion of 940779	-	1	Enquire
0010	837930	UPPER STEERING COLUMN TRIM BRACKET	837930 UPPER STEERING COLUMN TRIM BRACKET Applicable for full electric seats or full electric seats with ventilation	-	1	Enquire
0011	88822200	SCREW TORX HEAD M4 X 10MM	88822200 SCREW TORX HEAD M4 X 10MM 3.5 X 13	-	2	Enquire
0011	15687275	Screw	15687275 Screw	-	4	Enquire
0013	82118300	SCREW -No longer supplied- -Replaced by 11625714-	82118300 SCREW -No longer supplied- -Replaced by 11625714- M6 X 16	-	2	Enquire
