Name: REAR LID SUBSTRUCTURE
Rating: 4.6 (1 reviews)

View All

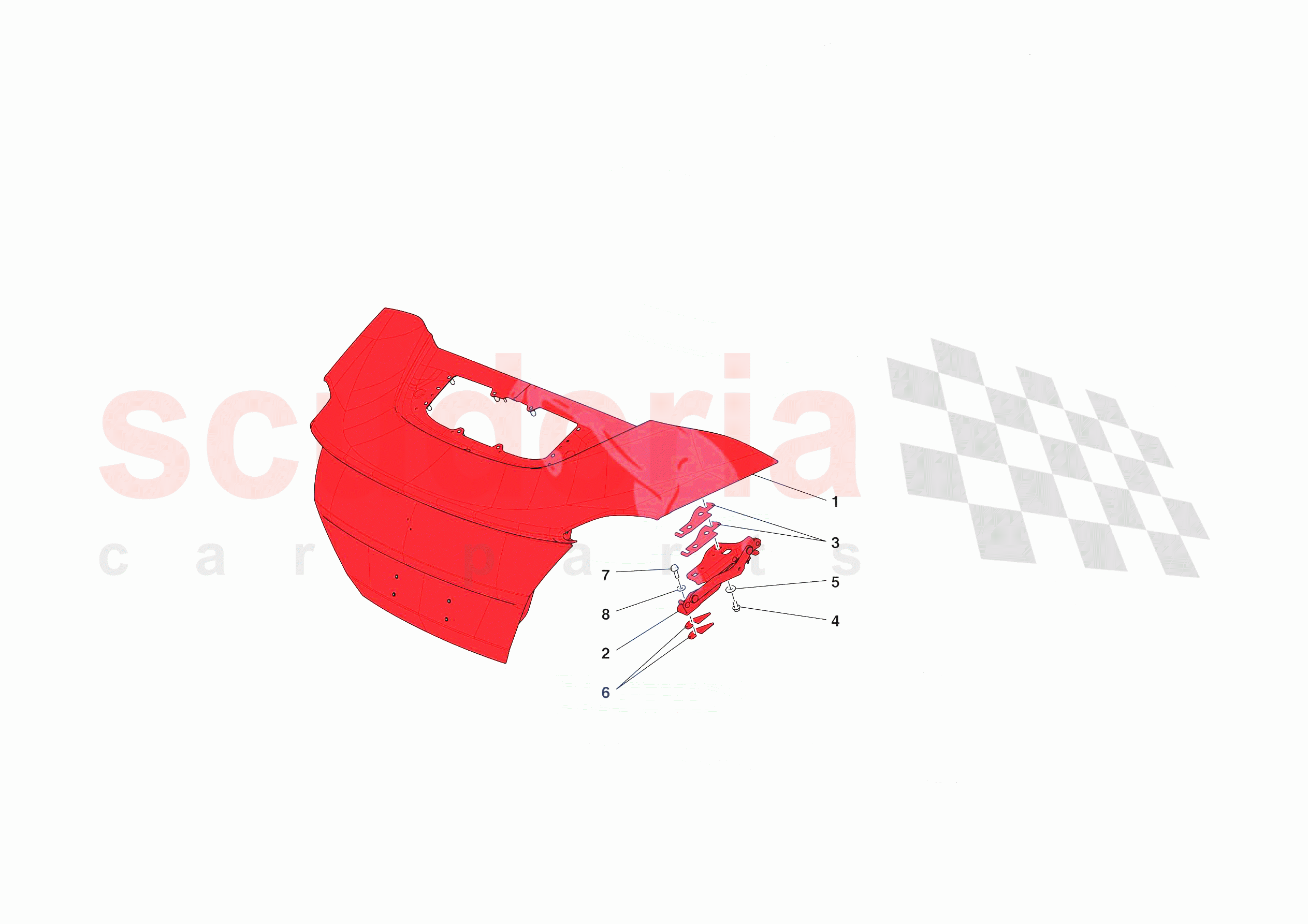

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	985838744	REAR LID	$13,604.82	To Order

Photo	Part No	Description	Price (each)	Stock
	984256	SHIM	$5.43	To Order

Photo	Part No	Description	Price (each)	Stock
	16297924	SCREW	$1.56	To Order

Photo	Part No	Description	Price (each)	Stock
	13578324	WASHER	$0.23	To Order

Photo	Part No	Description	Price (each)	Stock
	16287524	SCREW	$1.36	To Order

Photo	Part No	Description	Price (each)	Stock
	13578324	WASHER	$0.23	To Order

View All

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
0001	985838744	REAR LID	985838744 REAR LID	$13,604.82	1
0002	859157	RH LUGG. COMP. LID HINGE	859157 RH LUGG. COMP. LID HINGE	$286.67	1
0002	859156	LH LUGG. COMP. LID HINGE	859156 LH LUGG. COMP. LID HINGE	$286.67	1
0003	984256	SHIM	984256 SHIM	$5.43	4
0004	16297924	SCREW	16297924 SCREW	$1.56	4
0005	13578324	WASHER	13578324 WASHER D. 8.15 - 24 X 2	$0.23	4
0006	984298	SHIM	984298 SHIM 1 mm	$6.73	4
0006	983993	SHIM	983993 SHIM 1 mm	$5.15	4
0007	16287524	SCREW	16287524 SCREW M8 X 25	$1.36	4
0008	13578324	WASHER	13578324 WASHER	$0.23	4
