Name: FRONT SHIELDS
Rating: 4.8 (1 reviews)

View All

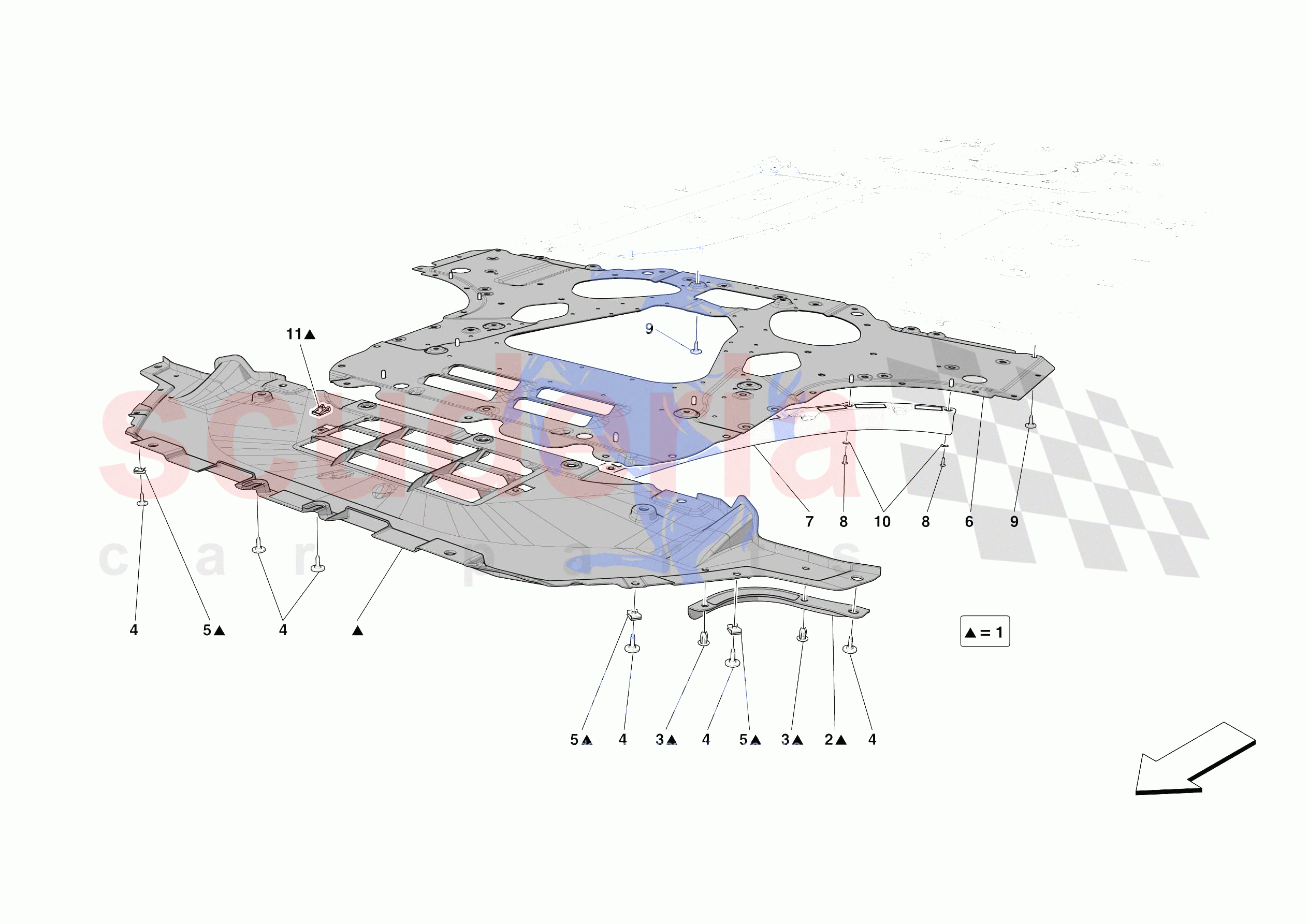

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	897682	FRONT FLAT UNDERTRAY SECTION	$336.95	ARRIVING SOON

Photo	Part No	Description	Price (each)	Stock
	82531200	FASTENER BUTTON	$0.63	To Order

Photo	Part No	Description	Price (each)	Stock
	880041	Allen Head Bolt M6 X 26	$6.18	To Order

Photo	Part No	Description	Price (each)	Stock
	80874300	CLIP	$1.10	To Order

Photo	Part No	Description	Price (each)	Stock
	966936	ENGINE SUBFRAME FRONT UNDERTRAY	$1,123.20	To Order
	966936	ENGINE SUBFRAME FRONT UNDERTRAY	$1,123.20	To Order

Photo	Part No	Description	Price (each)	Stock
	85833900	SCREW	$0.36	ARRIVING SOON

Photo	Part No	Description	Price (each)	Stock
	880041	Allen Head Bolt M6 X 26	$6.18	To Order

Photo	Part No	Description	Price (each)	Stock
	12643724	WASHER	$0.06	To Order

Photo	Part No	Description	Price (each)	Stock
	68700800	CLIP	$1.09	To Order

View All

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
0001	897682	FRONT FLAT UNDERTRAY SECTION ARRIVING SOON	897682 FRONT FLAT UNDERTRAY SECTION ARRIVING SOON	$336.95	1
0002	88972500	RH FRONT DAM	88972500 RH FRONT DAM	$32.08	1
0002	88972400	LH FRONT DAM	88972400 LH FRONT DAM	$32.08	1
0003	82531200	FASTENER BUTTON	82531200 FASTENER BUTTON	$0.63	4
0004	880041	Allen Head Bolt M6 X 26	880041 Allen Head Bolt M6 X 26 M6 X 22	$6.18	15
0005	80874300	CLIP	80874300 CLIP	$1.10 MSRP: ~~1.24~~ (11.3% off)	4
0006	966936	ENGINE SUBFRAME FRONT UNDERTRAY	966936 ENGINE SUBFRAME FRONT UNDERTRAY	$1,123.20	1
0006	966936	ENGINE SUBFRAME FRONT UNDERTRAY	966936 ENGINE SUBFRAME FRONT UNDERTRAY	$1,123.20	1
0007	967499	LH FRONT DAM	967499 LH FRONT DAM	$113.91	1
0007	967498	RH FRONT DAM	967498 RH FRONT DAM	$113.91	1
0008	85833900	SCREW ARRIVING SOON	85833900 SCREW M5 X 16 ARRIVING SOON	$0.36	10
0009	880041	Allen Head Bolt M6 X 26	880041 Allen Head Bolt M6 X 26 M6 X 20	$6.18	53
0010	12643724	WASHER	12643724 WASHER	$0.06 MSRP: ~~0.50~~ (88% off)	10
0011	68700800	CLIP	68700800 CLIP	$1.09	2
