REAR SUSPENSION - ARMS

Find Your Part

Ferrari Roma Spider Europe RH - REAR SUSPENSION - ARMS

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
867720 COMPL. LH REAR HUB CARRIER $2,576.97 To Order
867728 COMPL. RH REAR HUB CARRIER $2,576.97 To Order
Photo Part No Description Price (each) Stock
336026 ABS SENSOR $76.57 To Order
Photo Part No Description Price (each) Stock
896443 COMPL. LOWER LH REAR ARM Enquire To Order
911176 LH LOWER REAR ARM $1,139.25 To Order
896445 COMPL. LOWER RH REAR ARM Enquire To Order
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
238656 SPECIAL SCREW $25.85 To Order
Photo Part No Description Price (each) Stock
238063 NUT $4.17 To Order
Photo Part No Description Price (each) Stock
259688 ANTI-ROTATION LINKAGE $192.54 To Order
Photo Part No Description Price (each) Stock
238258 SCREW $33.39 To Order
Photo Part No Description Price (each) Stock
14507987 PLUG $1.83 To Order
Photo Part No Description Price (each) Stock
104114 NUT $0.41 To Order
Photo Part No Description Price (each) Stock
14496624 WASHER D.10.5-21 X 2 $0.06 To Order
Photo Part No Description Price (each) Stock
333338 ADJUSTMENT SHIM $3.23 To Order
333339 ADJUSTMENT SHIM $3.61 To Order
333340 CAMBER ADJUSTMENT SHIM $4.75 To Order
...and 5 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
264528 THREADED ROD $3.94 To Order
Photo Part No Description Price (each) Stock
216973 BALL JOINT $3.55 To Order
Photo Part No Description Price (each) Stock
984046 COMPL. REAR MOTION SENSOR $194.50 To Order
Photo Part No Description Price (each) Stock
820889 REAR LH BRACKET FOR MOTION SENSOR $20.05 To Order
820890 REAR RH BRACKET FOR MOTION SENSOR $20.05 To Order
Photo Part No Description Price (each) Stock
231619 SCREW $0.31 To Order
Photo Part No Description Price (each) Stock
16284934 FLANGED SCREW $0.81 To Order
Photo Part No Description Price (each) Stock
250657 SCREW $7.60 To Order
Photo Part No Description Price (each) Stock
338394 LH REAR JOINT BRACKET $27.26 To Order
338395 RH REAR JOINT BRACKET $27.21 To Order
Photo Part No Description Price (each) Stock
13046011 NUT $0.39 To Order
Photo Part No Description Price (each) Stock
245161 TIE ROD REAR SUSPENSION $336.95 To Order
Photo Part No Description Price (each) Stock
15541434 SCREW $2.12 To Order
Photo Part No Description Price (each) Stock
14496721 WASHER $0.10 To Order
Photo Part No Description Price (each) Stock
203666 NUT $0.94 To Order
Photo Part No Description Price (each) Stock
259687 REAR UPPER ARM $449.27 To Order
Photo Part No Description Price (each) Stock
12646821 WASHER D.10 20-25 X 2 $0.11 To Order
View All

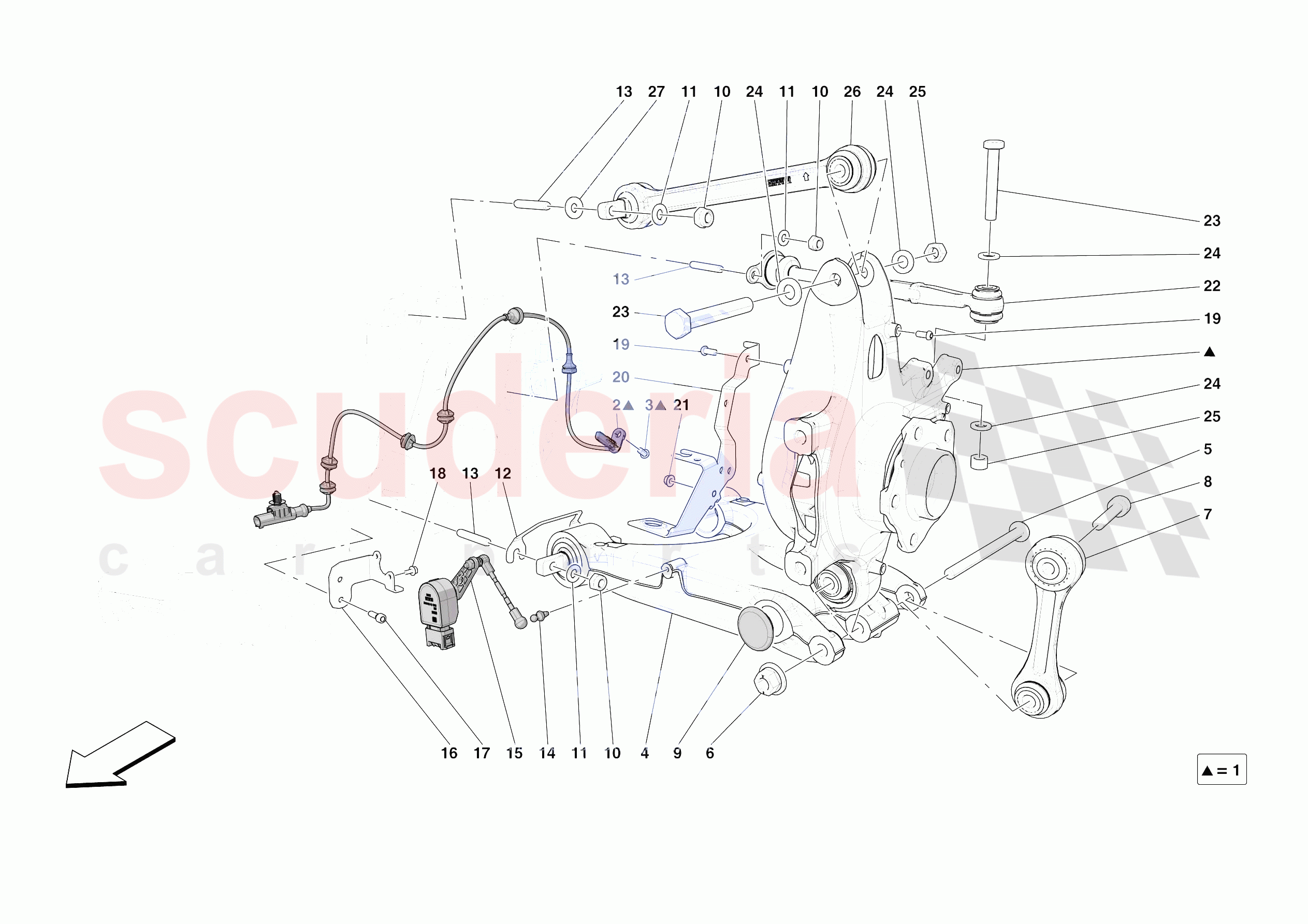

REAR SUSPENSION - ARMS of Ferrari Ferrari Roma Spider Europe RH Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
0001 867720
COMPL. LH REAR HUB CARRIER 		$2,576.97 1
0001 867728
COMPL. RH REAR HUB CARRIER 		$2,576.97 1
0002 336026
ABS SENSOR 		$76.57 2
0004 896443
COMPL. LOWER LH REAR ARM
No longer supplied - Replaced by 911176 		- 1 Enquire
0004 911176
LH LOWER REAR ARM 		$1,139.25 1
0004 896445
COMPL. LOWER RH REAR ARM
No longer supplied - Replaced by 911175 		- 1 Enquire
0004 911175
RH REAR LOWER ARM 		$1,139.25 1
0005 238656
SPECIAL SCREW
M14 X 1.5 X 210 		$25.85 (5.6% off) 2
0006 238063
NUT 		$4.17 (24.2% off) 2
0007 259688
ANTI-ROTATION LINKAGE 		$192.54 2
0008 238258
SCREW
M12 X 1.25 X 75 		$33.39 2
0009 14507987
PLUG 		$1.83 (25.3% off) 4
0010 104114
NUT 		$0.41 (18% off) 16
0011 14496624
WASHER D.10.5-21 X 2
D. 10.5-21 X 2 		$0.06 16
0012 333338
ADJUSTMENT SHIM
Th. 0.5 mm 		$3.23 4
0012 333339
ADJUSTMENT SHIM
Th. 1 mm 		$3.61 4
0012 333340
CAMBER ADJUSTMENT SHIM
Th. 1.5 mm 		$4.75 4
0012 333341
ADJUSTMENT SHIM
Th. 2 mm 		$5.67 4
0012 333342
ADJUSTMENT SHIM
Th. 2.5 mm 		$6.84 4
0012 333343
ADJUSTMENT SHIM
Th. 3 mm 		$7.83 4
0012 333344
ADJUSTMENT SHIM
Th. 3.5 mm 		$9.11 4
0012 333345
ADJUSTMENT SHIM
Th. 4 mm 		$10.76 4
0013 264528
THREADED ROD 		$3.94 16
0014 216973
BALL JOINT
Dual Mode Magneride 		$3.55 (21.1% off) 2
0015 984046
COMPL. REAR MOTION SENSOR
Dual Mode Magneride 		$194.50 2
0016 820889
REAR LH BRACKET FOR MOTION SENSOR
Dual Mode Magneride 		$20.05 1
0016 820890
REAR RH BRACKET FOR MOTION SENSOR
Dual Mode Magneride 		$20.05 1
0017 231619
SCREW
M6 X 18 		$0.31 4
0018 16284934
FLANGED SCREW
M5 X 10 		$0.81 4
0019 250657
SCREW
M6 X 14 		$7.60 7
0020 338394
LH REAR JOINT BRACKET 		$27.26 1
0020 338395
RH REAR JOINT BRACKET 		$27.21 1
0021 13046011
NUT 		$0.39 2
0022 245161
TIE ROD REAR SUSPENSION 		$336.95 (25.1% off) 2
0023 15541434
SCREW
M12 X 1.25 X 80 		$2.12 (28.9% off) 3
0024 14496721
WASHER 		$0.10 6
0025 203666
NUT 		$0.94 (53% off) 4
0026 259687
REAR UPPER ARM 		$449.27 (27.4% off) 2
0027 12646821
WASHER D.10 20-25 X 2 		$0.11 (78% off) 4
