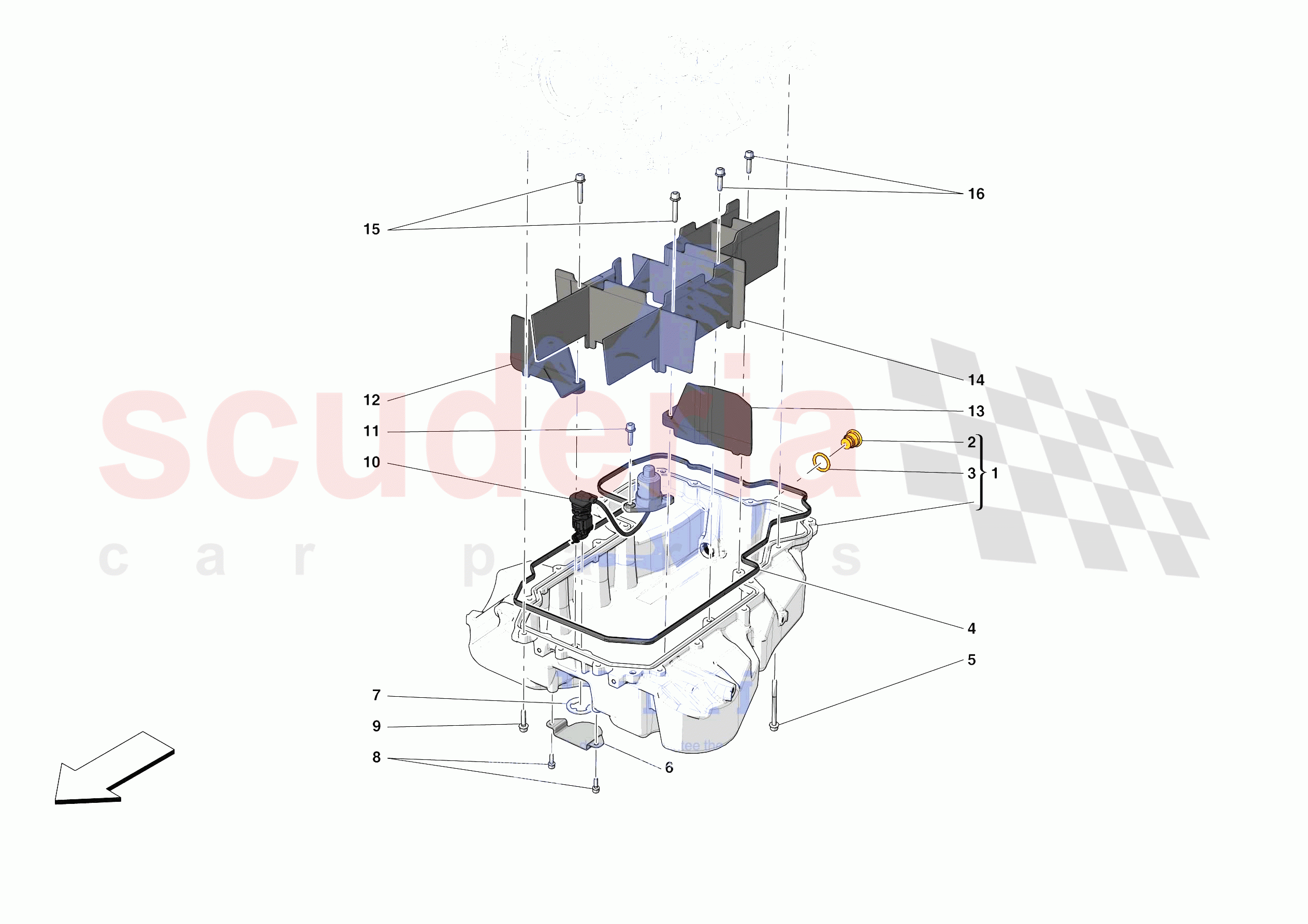

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	306807	OIL SUMP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	104280	MAGNETIC THREADED PLUG M22 X 1.5	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	10261860	COPPER WASHER FOR OIL DRAIN PLUG D.20 - 30 X 1.5	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	782978	OIL SUMP GASKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	231626	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	304668	SENSOR PROTECTIVE SHIELD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	16165276	SNAP RING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	299916	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	231620	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	230171	OIL LEVEL SENSOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	282396	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	303457	RH OIL SUMP BAFFLE FIN	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	303456	LH OIL SUMP BAFFLE FIN	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	311171	OIL SUMP BAFFLE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	282398	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	282396	SCREW	Enquire	To Order

View All

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
0001	306807	OIL SUMP	306807 OIL SUMP	-	1	Enquire
0002	104280	MAGNETIC THREADED PLUG M22 X 1.5	104280 MAGNETIC THREADED PLUG M22 X 1.5	-	1	Enquire
0003	10261860	COPPER WASHER FOR OIL DRAIN PLUG D.20 - 30 X 1.5	10261860 COPPER WASHER FOR OIL DRAIN PLUG D.20 - 30 X 1.5 Also included in engine gasket set	-	1	Enquire
0004	782978	OIL SUMP GASKET	782978 OIL SUMP GASKET Also included in engine gasket set; Without lug	-	1	Enquire
0005	231626	SCREW	231626 SCREW M6 X 70	-	9	Enquire
0006	304668	SENSOR PROTECTIVE SHIELD	304668 SENSOR PROTECTIVE SHIELD	-	1	Enquire
0007	16165276	SNAP RING	16165276 SNAP RING	-	1	Enquire
0008	299916	SCREW	299916 SCREW M5 X 16	-	2	Enquire
0009	231620	SCREW	231620 SCREW M6 X 25	-	8	Enquire
0010	230171	OIL LEVEL SENSOR	230171 OIL LEVEL SENSOR	-	1	Enquire
0011	282396	SCREW	282396 SCREW M6 X 22	-	2	Enquire
0012	303457	RH OIL SUMP BAFFLE FIN	303457 RH OIL SUMP BAFFLE FIN	-	1	Enquire
0013	303456	LH OIL SUMP BAFFLE FIN	303456 LH OIL SUMP BAFFLE FIN	-	1	Enquire
0014	311171	OIL SUMP BAFFLE	311171 OIL SUMP BAFFLE	-	1	Enquire
0015	282398	SCREW	282398 SCREW M6 X 30	-	2	Enquire
0016	282396	SCREW	282396 SCREW M6 X 22	-	2	Enquire
