INTERCOOLER

Find Your Part

Ferrari Roma Europe - INTERCOOLER

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
340704 RH INTERCOOLER $818.33 To Order
340705 LH INTERCOOLER $818.33 To Order
Photo Part No Description Price (each) Stock
327937 RH INTERCOOLER OUTLET HOSE $142.79 To Order
327938 LH INTERCOOLER OUTLET HOSE $142.79 To Order
Photo Part No Description Price (each) Stock
786970 INTERMEDIATE PIPE BETWEEN INTERCOOLER AND THROTTLE BODY HOSE $64.17 To Order
Photo Part No Description Price (each) Stock
272880 PRESSURE AND TEMPERATURE SENSOR $40.18 To Order
Photo Part No Description Price (each) Stock
231619 SCREW $0.31 To Order
Photo Part No Description Price (each) Stock
328619 THROTTLE BODY CONNECTOR HOSE UNION Enquire To Order
Photo Part No Description Price (each) Stock
66121400 WASHER $11.46 To Order
Photo Part No Description Price (each) Stock
338492 SPACER $5.36 To Order
Photo Part No Description Price (each) Stock
290938 INTERCOOLER FASTENER RUBBER BUSH $11.05 To Order
Photo Part No Description Price (each) Stock
782582 BUSH - INTERCOOLER SUPPORT $4.04 To Order
Photo Part No Description Price (each) Stock
332707 INTERCOOLER INLET HOSE $116.10 To Order
Photo Part No Description Price (each) Stock
339351 RH PIPE FROM ENGINE TO INTERCOOLER $208.58 To Order
339352 LH PIPE FROM ENGINE TO INTERCOOLER $208.58 To Order
Photo Part No Description Price (each) Stock
813624 HOSE CONNECTION FROM TURBO TO INTERCOOLER $75.95 To Order
Photo Part No Description Price (each) Stock
813619 RH COMPRESSOR FLANGED OUTLET PIPE $272.34 To Order
813620 LH COMPRESSOR FLANGED OUTLET PIPE $288.81 To Order
Photo Part No Description Price (each) Stock
308862 COMPRESSOR OUTLET GASKET $21.48 To Order
Photo Part No Description Price (each) Stock
231620 SCREW $0.32 To Order
Photo Part No Description Price (each) Stock
780895 COLLAR $3.81 To Order
Photo Part No Description Price (each) Stock
311609 COLLAR $3.13 To Order
Photo Part No Description Price (each) Stock
908630 COLLAR $5.58 To Order
Photo Part No Description Price (each) Stock
297483 COLLAR $5.77 To Order
Photo Part No Description Price (each) Stock
340923 RH INTAKE DUCT CONNECTOR $80.21 To Order
340924 LH INTAKE DUCT CONNECTOR $80.21 To Order
Photo Part No Description Price (each) Stock
875742 COMPL. RH ANCILLARIES PIPE $186.33 To Order
875742 COMPL. RH ANCILLARIES PIPE $186.33 To Order
945330 COMPL. RH ANCILLARIES PIPE $229.33 To Order
...and 2 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
974284 TURBO INLET DUCT HOSE $143.33 To Order
974284 TURBO INLET DUCT HOSE $143.33 To Order
Photo Part No Description Price (each) Stock
769698 RH COMPRESSOR INLET PIPE $110.70 To Order
769698 RH COMPRESSOR INLET PIPE $110.70 To Order
769699 LH COMPRESSOR INLET PIPE $107.49 To Order
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
330933 COMPRESSOR INTAKE GASKET $23.83 To Order
Photo Part No Description Price (each) Stock
900284 HOSE SCREW COLLAR D.80-100 X 9 $6.06 To Order
Photo Part No Description Price (each) Stock
308759 COLLAR $3.71 To Order
Photo Part No Description Price (each) Stock
257273 CLIP $1.26 To Order
257273 CLIP $1.26 To Order
Photo Part No Description Price (each) Stock
285553 VIBRATION DAMPER $20.84 To Order
Photo Part No Description Price (each) Stock
14040614 NUT $0.15 To Order
Photo Part No Description Price (each) Stock
747660 PIPE FROM INTAKE TO RH VENTURI $94.66 To Order
747661 PIPE FROM INTAKE TO LH VENTURI $91.72 To Order
Photo Part No Description Price (each) Stock
875746 COMPL. RH PIPE $272.34 To Order
875747 COMPL. LH PIPE $272.77 To Order
898692 COMPL. LH PIPE $315.34 To Order
Photo Part No Description Price (each) Stock
248334 SCREW $0.68 To Order
Photo Part No Description Price (each) Stock
198253 CLIP $3.71 To Order
Photo Part No Description Price (each) Stock
828057 COMPL. FLUSH PIPE BRACKET $71.66 To Order
828057 COMPL. FLUSH PIPE BRACKET $71.66 To Order
Photo Part No Description Price (each) Stock
303697 BRACKET $41.56 To Order
Photo Part No Description Price (each) Stock
329520 BRACKET $18.62 To Order
Photo Part No Description Price (each) Stock
253512 BRACKET $8.70 To Order
Photo Part No Description Price (each) Stock
878603 COMPL. BRACKET $34.38 To Order
Photo Part No Description Price (each) Stock
340995 FLUSH VALVE MOUNTING BRACKET $47.28 To Order
Photo Part No Description Price (each) Stock
86705100 CLIP $2.54 To Order
Photo Part No Description Price (each) Stock
897379 RUBBER BUSHING $11.59 To Order
897379 RUBBER BUSHING $11.59 To Order
Photo Part No Description Price (each) Stock
878601 COMPL. RH PIPE $372.69 To Order
878602 COMPL. LH PIPE $329.67 To Order
Photo Part No Description Price (each) Stock
340221 SCREW $0.81 To Order
323665 SCREW $0.34 To Order
Photo Part No Description Price (each) Stock
62769800 WASHER $0.23 To Order
113113 WASHER $1.07 To Order
Photo Part No Description Price (each) Stock
113113 WASHER $1.07 To Order
Photo Part No Description Price (each) Stock
332708 COMPL. RH THROTTLE BODY COLLAR HOSE UNION $258.00 To Order
332709 COMPL. LH THROTTLE BODY COLLAR HOSE $243.67 To Order
Photo Part No Description Price (each) Stock
949011 BLOW-BY PIPE MOUNTING BRACKET $25.79 To Order
Photo Part No Description Price (each) Stock
248061 CLIP $2.22 To Order
View All

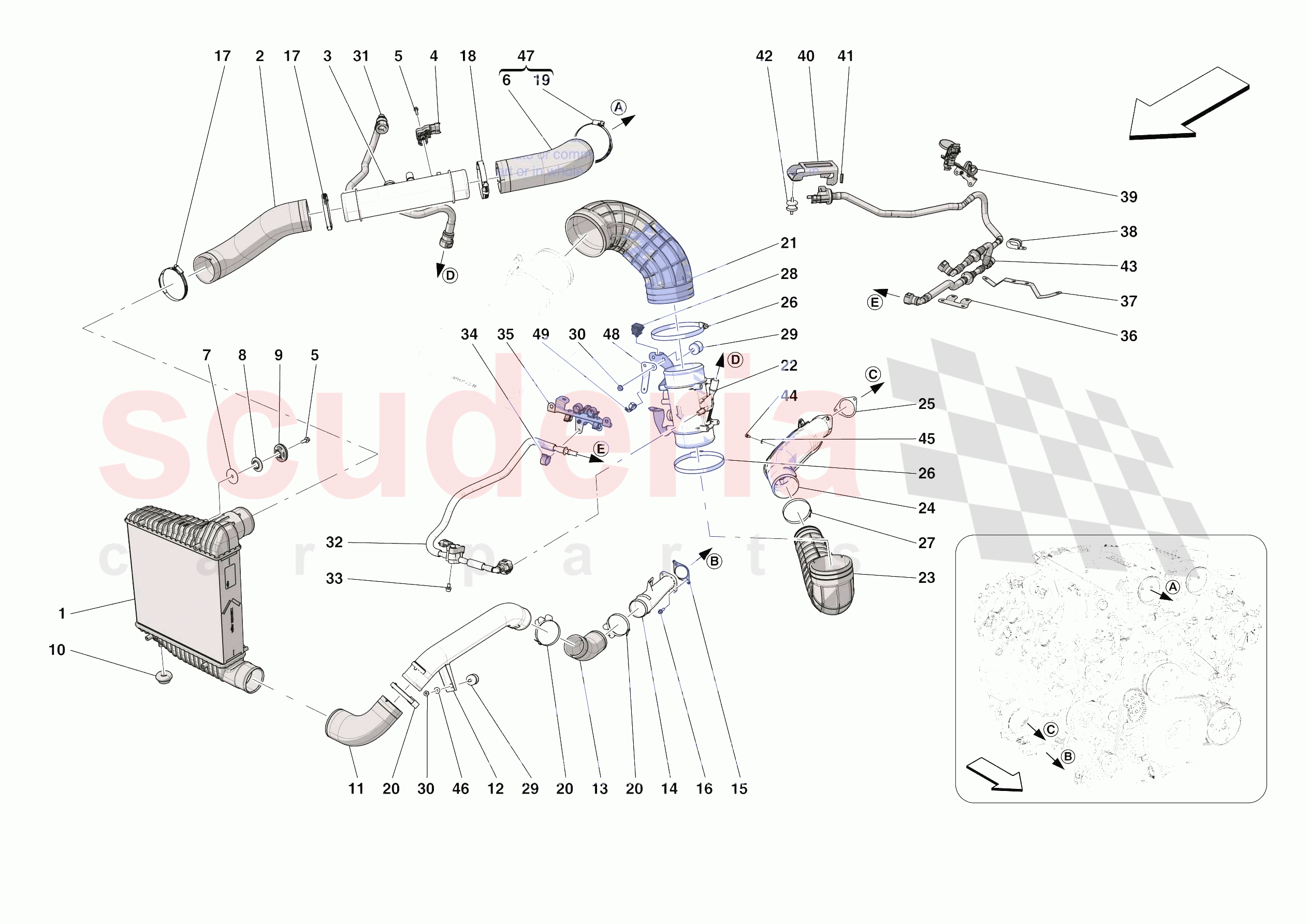

INTERCOOLER of Ferrari Ferrari Roma Europe Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
0001 340704
RH INTERCOOLER 		$818.33 1
0001 340705
LH INTERCOOLER 		$818.33 1
0002 327937
RH INTERCOOLER OUTLET HOSE 		$142.79 1
0002 327938
LH INTERCOOLER OUTLET HOSE 		$142.79 1
0003 786970
INTERMEDIATE PIPE BETWEEN INTERCOOLER AND THROTTLE BODY HOSE 		$64.17 2
0004 272880
PRESSURE AND TEMPERATURE SENSOR 		$40.18 2
0005 231619
SCREW
M6 X 18 		$0.31 8
0006 328619
THROTTLE BODY CONNECTOR HOSE UNION
No longer supplied 		- 2 Enquire
0007 66121400
WASHER 		$11.46 (22.4% off) 2
0008 338492
SPACER 		$5.36 2
0009 290938
INTERCOOLER FASTENER RUBBER BUSH 		$11.05 2
0010 782582
BUSH - INTERCOOLER SUPPORT 		$4.04 4
0011 332707
INTERCOOLER INLET HOSE 		$116.10 2
0012 339351
RH PIPE FROM ENGINE TO INTERCOOLER 		$208.58 1
0012 339352
LH PIPE FROM ENGINE TO INTERCOOLER 		$208.58 1
0013 813624
HOSE CONNECTION FROM TURBO TO INTERCOOLER 		$75.95 2
0014 813619
RH COMPRESSOR FLANGED OUTLET PIPE 		$272.34 1
0014 813620
LH COMPRESSOR FLANGED OUTLET PIPE 		$288.81 1
0015 308862
COMPRESSOR OUTLET GASKET 		$21.48 2
0016 231620
SCREW
M6 X 25 		$0.32 (8.6% off) 8
0017 780895
COLLAR 		$3.81 6
0018 311609
COLLAR 		$3.13 2
0019 908630
COLLAR 		$5.58 2
0020 297483
COLLAR 		$5.77 6
0021 340923
RH INTAKE DUCT CONNECTOR 		$80.21 1
0021 340924
LH INTAKE DUCT CONNECTOR 		$80.21 1
0022 875742
COMPL. RH ANCILLARIES PIPE
Applicable up to MY 22 		$186.33 1
0022 875742
COMPL. RH ANCILLARIES PIPE 		$186.33 1
0022 945330
COMPL. RH ANCILLARIES PIPE
Applicable from MY 23 		$229.33 1
0022 843953
COMPL. LH ANCILLARIES PIPE 		$158.84 1
0022 342016
COMPL. LH ANCILLARIES PIPE 		$154.03 1
0023 974284
TURBO INLET DUCT HOSE 		$143.33 2
0023 974284
TURBO INLET DUCT HOSE 		$143.33 2
0024 769698
RH COMPRESSOR INLET PIPE
Also order screw 323665 ref. 44 and washer 12647604 ref. 45 		$110.70 1
0024 769698
RH COMPRESSOR INLET PIPE 		$110.70 1
0024 769699
LH COMPRESSOR INLET PIPE
Also order screw 323665 ref. 44 and washer 12647604 ref. 45 		$107.49 1
0024 769699
LH COMPRESSOR INLET PIPE 		$107.49 1
0025 330933
COMPRESSOR INTAKE GASKET 		$23.83 2
0026 900284
HOSE SCREW COLLAR D.80-100 X 9 		$6.06 4
0027 308759
COLLAR 		$3.71 2
0028 257273
CLIP 		$1.26 1
0028 257273
CLIP 		$1.26 1
0029 285553
VIBRATION DAMPER 		$20.84 6
0030 14040614
NUT 		$0.15 8
0031 747660
PIPE FROM INTAKE TO RH VENTURI 		$94.66 1
0031 747661
PIPE FROM INTAKE TO LH VENTURI 		$91.72 1
0032 875746
COMPL. RH PIPE 		$272.34 1
0032 875747
COMPL. LH PIPE 		$272.77 1
0032 898692
COMPL. LH PIPE 		$315.34 1
0033 248334
SCREW
M6 X 12 		$0.68 2
0034 198253
CLIP 		$3.71 (3.6% off) 4
0035 828057
COMPL. FLUSH PIPE BRACKET 		$71.66 1
0035 828057
COMPL. FLUSH PIPE BRACKET 		$71.66 1
0036 303697
BRACKET 		$41.56 1
0037 329520
BRACKET 		$18.62 1
0038 253512
BRACKET 		$8.70 1
0039 878603
COMPL. BRACKET 		$34.38 1
0040 340995
FLUSH VALVE MOUNTING BRACKET 		$47.28 1
0041 86705100
CLIP 		$2.54 2
0042 897379
RUBBER BUSHING 		$11.59 2
0042 897379
RUBBER BUSHING 		$11.59 2
0043 878601
COMPL. RH PIPE 		$372.69 1
0043 878602
COMPL. LH PIPE 		$329.67 1
0044 340221
SCREW
M6 X 18 		$0.81 2
0044 323665
SCREW
M6 X 14 		$0.34 2
0045 62769800
WASHER 		$0.23 (23.3% off) 2
0045 113113
WASHER
D. 6.45-16 X 2 		$1.07 (58.2% off) 2
0046 113113
WASHER
D. 6.45-16 X 2 		$1.07 (58.2% off) 2
0047 332708
COMPL. RH THROTTLE BODY COLLAR HOSE UNION 		$258.00 1
0047 332709
COMPL. LH THROTTLE BODY COLLAR HOSE 		$243.67 1
0048 949011
BLOW-BY PIPE MOUNTING BRACKET
Applicable for MY 23 		$25.79 1
0049 248061
CLIP 		$2.22 1
