Name: LATERAL SUBSTRUCTURE
Rating: 5.0 (1 reviews)

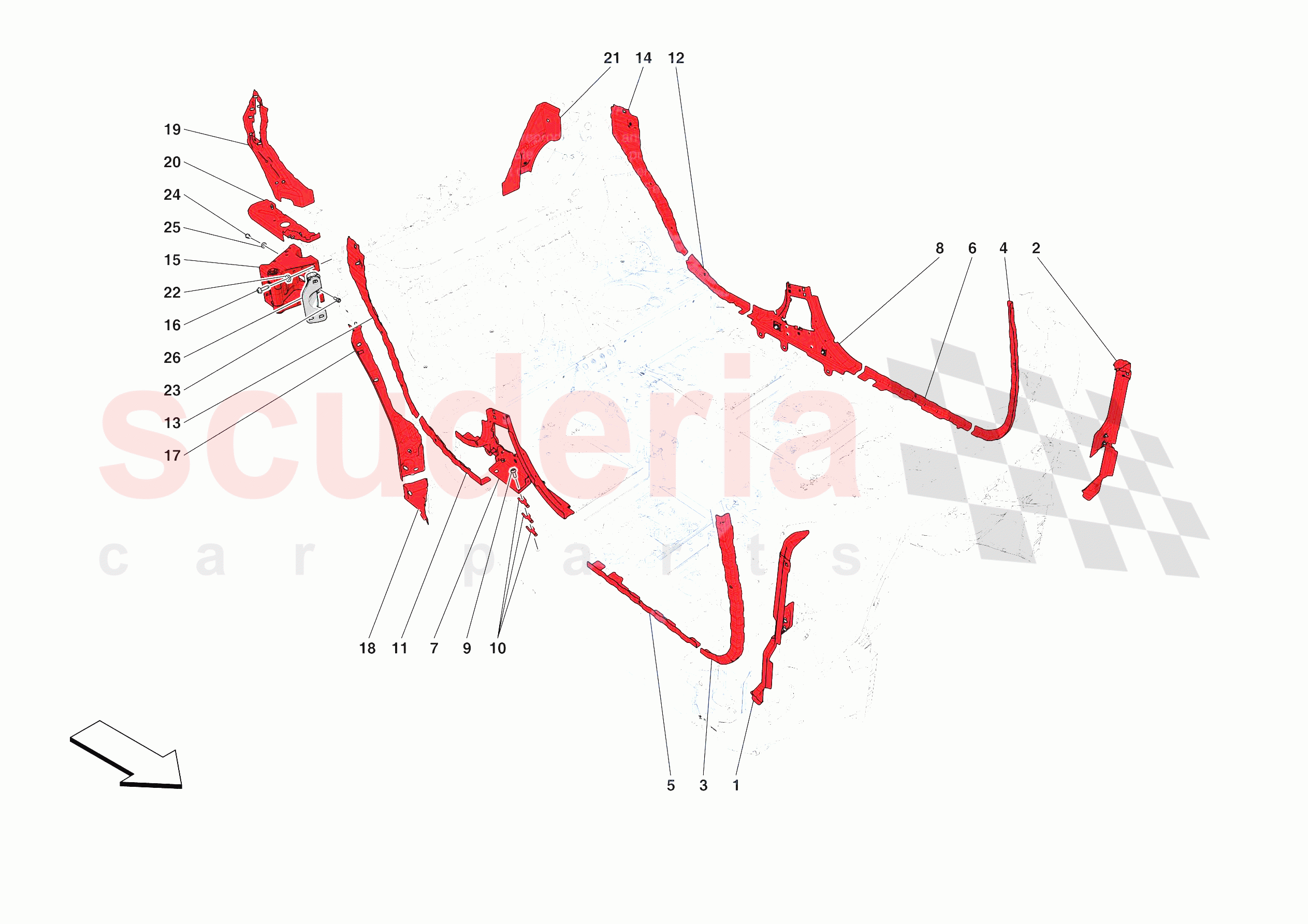

LATERAL SUBSTRUCTURE of Ferrari Ferrari Purosangue Europe RH

View All

Ferrari Purosangue Europe RH - LATERAL SUBSTRUCTURE

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	985822561	COMPL. RH PILLAR FLANGE	$358.34	To Order

Photo	Part No	Description	Price (each)	Stock
	985822565	COMPL. LH PILLAR FLANGE	$358.34	To Order

Photo	Part No	Description	Price (each)	Stock
	985822553	RH NODE FLANGE	$107.49	To Order

Photo	Part No	Description	Price (each)	Stock
	985822543	LH NODE FLANGE	$103.20	To Order

Photo	Part No	Description	Price (each)	Stock
	985822567	RH FRONT FLANGE	$85.03	To Order

Photo	Part No	Description	Price (each)	Stock
	985822541	LH FRONT FLANGE	$81.69	To Order

Photo	Part No	Description	Price (each)	Stock
	985822554	COMPL. RH PILLAR FOOT	$530.36	To Order

Photo	Part No	Description	Price (each)	Stock
	985822533	COMPL. LH PILLAR FOOT	$530.36	To Order

Photo	Part No	Description	Price (each)	Stock
	812752	SCREW	$5.36	To Order

Photo	Part No	Description	Price (each)	Stock
	887113	SHIM	$7.44	To Order
	887114	SHIM	$7.88	To Order

Photo	Part No	Description	Price (each)	Stock
	985822526	RH DOOR TRUSS	$99.47	To Order

Photo	Part No	Description	Price (each)	Stock
	985822558	LH DOOR TRUSS	$96.02	To Order

Photo	Part No	Description	Price (each)	Stock
	985845190	COMPL. LOWER TRUSS FOR RH REAR DOOR	$155.63	To Order

Photo	Part No	Description	Price (each)	Stock
	985845184	COMPL. LOWER TRUSS FOR LH REAR DOOR	$155.63	To Order

Photo	Part No	Description	Price (each)	Stock
	947482	RH REAR DOOR HINGE	$1,376.10	To Order
	947484	LH REAR DOOR HINGE	$1,376.10	To Order

Photo	Part No	Description	Price (each)	Stock
	81267100	SCREW	$5.19	To Order

Photo	Part No	Description	Price (each)	Stock
	985822563	COMPL. RH FRONT FLANK FASTENER MOUNT	$272.34	To Order
	985822532	COMPL. LH FRONT FLANK FASTENER MOUNT	$272.34	To Order

Photo	Part No	Description	Price (each)	Stock
	863072	RH FLANK COMPLETION PART	$50.15	To Order
	822564	LH FLANK COMPLETION PART	$50.15	To Order

Photo	Part No	Description	Price (each)	Stock
	985822538	COMPL. RH LUGGAGE COMPARTMENT SIDE CLOSURE ELEMENT	$315.34	To Order

Photo	Part No	Description	Price (each)	Stock
	985822540	COMPL. LOWER RH REAR COMPLETION PART	$176.49	To Order
	985822544	COMPL. LOWER LH REAR COMPLETION PART	$172.00	To Order

Photo	Part No	Description	Price (each)	Stock
	985822535	COMPL. LH REAR FLANK FASTENER MOUNT	$258.00	To Order

Photo	Part No	Description	Price (each)	Stock
	12646824	WASHER	$0.10	To Order

Photo	Part No	Description	Price (each)	Stock
	877730	SCREW	$7.44	To Order

Photo	Part No	Description	Price (each)	Stock
	877740	SCREW	$3.71	To Order
	877730	SCREW	$7.44	To Order

Photo	Part No	Description	Price (each)	Stock
	877744	WASHER	$7.25	To Order

Photo	Part No	Description	Price (each)	Stock
	859163	MOBILE RH REAR DOOR HINGE	$1,132.41	To Order
	859200	MOBILE LH REAR DOOR HINGE	$1,132.41	To Order

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
0001	985822561	COMPL. RH PILLAR FLANGE	985822561 COMPL. RH PILLAR FLANGE	$358.34	1
0002	985822565	COMPL. LH PILLAR FLANGE	985822565 COMPL. LH PILLAR FLANGE	$358.34	1
0003	985822553	RH NODE FLANGE	985822553 RH NODE FLANGE	$107.49	1
0004	985822543	LH NODE FLANGE	985822543 LH NODE FLANGE	$103.20	1
0005	985822567	RH FRONT FLANGE	985822567 RH FRONT FLANGE	$85.03	1
0006	985822541	LH FRONT FLANGE	985822541 LH FRONT FLANGE	$81.69	1
0007	985822554	COMPL. RH PILLAR FOOT	985822554 COMPL. RH PILLAR FOOT	$530.36	1
0008	985822533	COMPL. LH PILLAR FOOT	985822533 COMPL. LH PILLAR FOOT	$530.36	1
0009	812752	SCREW	812752 SCREW M8X30	$5.36	18
0010	887113	SHIM	887113 SHIM Th. 0.5 mm	$7.44	10
0010	887114	SHIM	887114 SHIM Th. 1 mm	$7.88	12
0011	985822526	RH DOOR TRUSS	985822526 RH DOOR TRUSS	$99.47	1
0012	985822558	LH DOOR TRUSS	985822558 LH DOOR TRUSS	$96.02	1
0013	985845190	COMPL. LOWER TRUSS FOR RH REAR DOOR	985845190 COMPL. LOWER TRUSS FOR RH REAR DOOR	$155.63	1
0014	985845184	COMPL. LOWER TRUSS FOR LH REAR DOOR	985845184 COMPL. LOWER TRUSS FOR LH REAR DOOR	$155.63	1
0015	947482	RH REAR DOOR HINGE	947482 RH REAR DOOR HINGE	$1,376.10	1
0015	947484	LH REAR DOOR HINGE	947484 LH REAR DOOR HINGE	$1,376.10	1
0016	81267100	SCREW	81267100 SCREW M10 X 30	$5.19 MSRP: ~~5.35~~ (3% off)	8
0017	985822563	COMPL. RH FRONT FLANK FASTENER MOUNT	985822563 COMPL. RH FRONT FLANK FASTENER MOUNT	$272.34	1
0017	985822532	COMPL. LH FRONT FLANK FASTENER MOUNT	985822532 COMPL. LH FRONT FLANK FASTENER MOUNT	$272.34	1
0018	863072	RH FLANK COMPLETION PART	863072 RH FLANK COMPLETION PART	$50.15	1
0018	822564	LH FLANK COMPLETION PART	822564 LH FLANK COMPLETION PART	$50.15	1
0019	985822538	COMPL. RH LUGGAGE COMPARTMENT SIDE CLOSURE ELEMENT	985822538 COMPL. RH LUGGAGE COMPARTMENT SIDE CLOSURE ELEMENT	$315.34	1
0020	985822540	COMPL. LOWER RH REAR COMPLETION PART	985822540 COMPL. LOWER RH REAR COMPLETION PART	$176.49	1
0020	985822544	COMPL. LOWER LH REAR COMPLETION PART	985822544 COMPL. LOWER LH REAR COMPLETION PART	$172.00	1
0021	985822535	COMPL. LH REAR FLANK FASTENER MOUNT	985822535 COMPL. LH REAR FLANK FASTENER MOUNT	$258.00	1
0022	12646824	WASHER	12646824 WASHER	$0.10 MSRP: ~~0.38~~ (73.7% off)	8
0023	877730	SCREW	877730 SCREW Applicable after depletion of 877740; M10	$7.44	4
0024	877740	SCREW	877740 SCREW Applies until depletion; M10	$3.71	4
0024	877730	SCREW	877730 SCREW M10	$7.44	4
0025	877744	WASHER	877744 WASHER 10.5 X 21	$7.25	4
0026	859163	MOBILE RH REAR DOOR HINGE	859163 MOBILE RH REAR DOOR HINGE	$1,132.41	1
0026	859200	MOBILE LH REAR DOOR HINGE	859200 MOBILE LH REAR DOOR HINGE	$1,132.41	1
