Name: FRONT SUSPENSION - ARMS
Rating: 5.0 (1 reviews)

FRONT SUSPENSION - ARMS of Ferrari Ferrari Purosangue Europe RH

View All

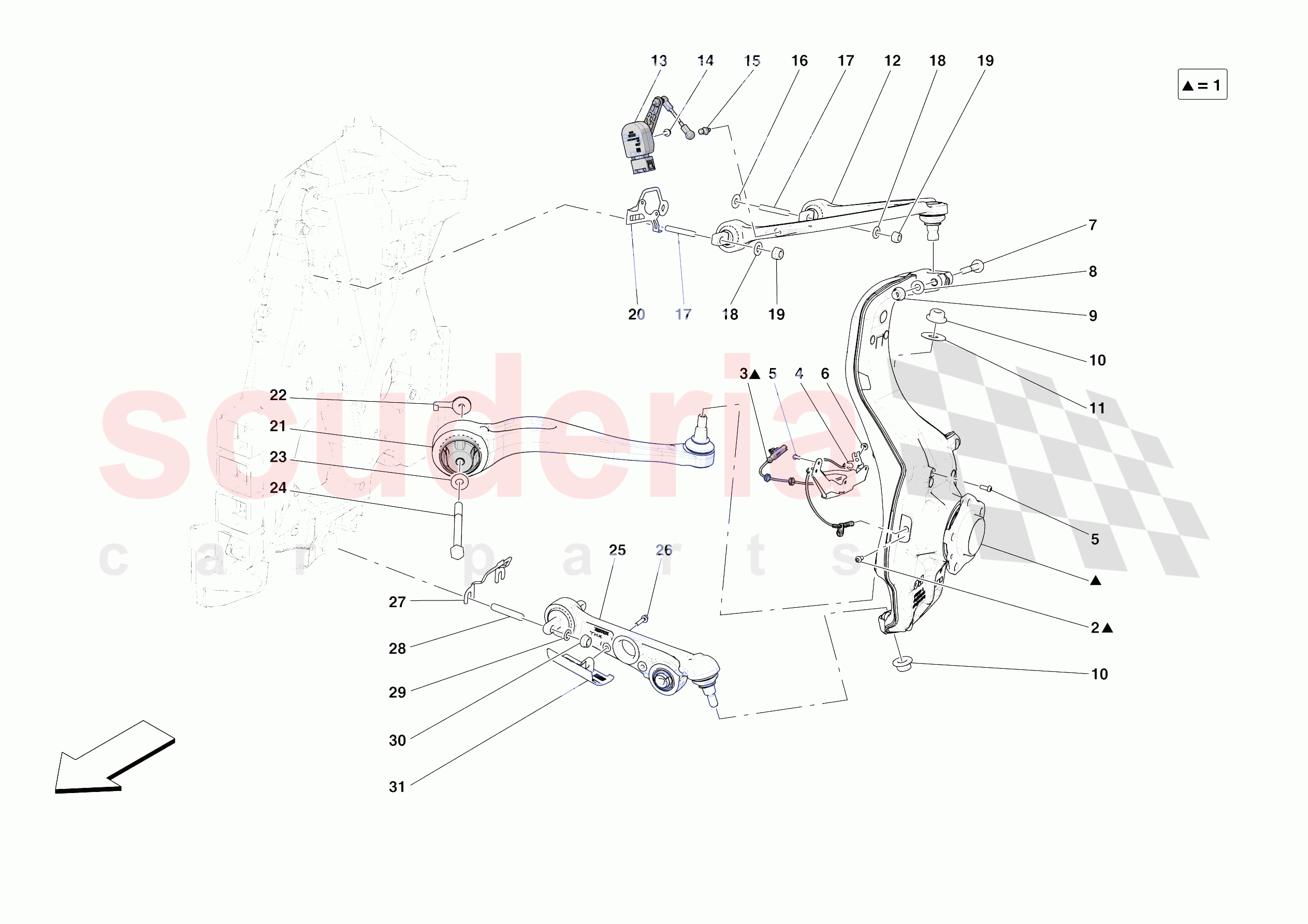

Ferrari Purosangue Europe RH - FRONT SUSPENSION - ARMS

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	799945	COMPL. LH FRONT HUB CARRIER	$3,782.02	To Order
	799949	COMPL. RH FRONT HUB CARRIER	$3,782.02	To Order

Photo	Part No	Description	Price (each)	Stock
	336025	ABS SENSOR FRONT	$79.13	To Order

Photo	Part No	Description	Price (each)	Stock
	881681	LH FRONT BRAKE HOSE FASTENER BRACKET	$55.89	To Order
	881682	RH FRONT BRAKE HOSE FASTENER BRACKET	$55.89	To Order

Photo	Part No	Description	Price (each)	Stock
	250657	SCREW	$7.60	To Order

Photo	Part No	Description	Price (each)	Stock
	13046011	NUT	$0.39	To Order

Photo	Part No	Description	Price (each)	Stock
	986576	SCREW	$6.26	To Order

Photo	Part No	Description	Price (each)	Stock
	13578324	WASHER	$0.23	To Order

Photo	Part No	Description	Price (each)	Stock
	14058621	NUT	$0.44	To Order

Photo	Part No	Description	Price (each)	Stock
	863632	NUT	$4.99	To Order

Photo	Part No	Description	Price (each)	Stock
	863832	WASHER	$1.46	To Order

Photo	Part No	Description	Price (each)	Stock
	746752	COMPL. UPPER LH FRONT ARM	$1,404.77	To Order
	746754	COMPL. UPPER RH FRONT ARM	$1,404.77	To Order

Photo	Part No	Description	Price (each)	Stock
	934265	COMPL. TRAVEL SENSOR	$206.65	To Order

Photo	Part No	Description	Price (each)	Stock
	16284934	FLANGED SCREW	$0.81	To Order

Photo	Part No	Description	Price (each)	Stock
	216973	BALL JOINT	$3.55	To Order

Photo	Part No	Description	Price (each)	Stock
	12646821	WASHER D.10 20-25 X 2	$0.11	To Order

Photo	Part No	Description	Price (each)	Stock
	264528	THREADED ROD	$3.94	To Order

Photo	Part No	Description	Price (each)	Stock
	14496624	WASHER D.10.5-21 X 2	$0.06	To Order

Photo	Part No	Description	Price (each)	Stock
	104114	NUT	$0.41	To Order

Photo	Part No	Description	Price (each)	Stock
	952664	LH FRONT SENSOR BRACKET	$32.95	To Order
	952665	RH FRONT SENSOR BRACKET	$32.95	To Order

Photo	Part No	Description	Price (each)	Stock
	862188	COMPL. LH FRONT COMFORT ROD	$1,132.41	To Order
	862189	COMPL. RH FRONT COMFORT ROD	$1,132.41	To Order

Photo	Part No	Description	Price (each)	Stock
	917755	CAGE	$116.10	To Order

Photo	Part No	Description	Price (each)	Stock
	12646921	WASHER	$0.53	To Order

Photo	Part No	Description	Price (each)	Stock
	16241434	SCREW	$10.76	To Order

Photo	Part No	Description	Price (each)	Stock
	864182	COMPL. LH FRONT HANDLING ROD	$1,299.71	To Order
	864183	COMPL. RH FRONT HANDLING ROD	$1,299.71	To Order

Photo	Part No	Description	Price (each)	Stock
	231620	SCREW	$0.32	To Order

Photo	Part No	Description	Price (each)	Stock
	986488	ADJUSTER SHIM	$45.85	To Order
	986489	ADJUSTER SHIM	$51.33	To Order
	986491	ADJUSTER SHIM	$53.02	To Order

...and 5 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	896438	THREADED ROD	$3.81	To Order

Photo	Part No	Description	Price (each)	Stock
	13507434	WASHER	$1.26	To Order

Photo	Part No	Description	Price (each)	Stock
	148020	NUT	$4.46	To Order

Photo	Part No	Description	Price (each)	Stock
	905119	DEFLECTOR ON LH HANDLING ARM	$24.34	To Order
	905139	DEFLECTOR ON RH HANDLING ARM	$24.34	To Order

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
0001	799945	COMPL. LH FRONT HUB CARRIER	799945 COMPL. LH FRONT HUB CARRIER	$3,782.02	1
0001	799949	COMPL. RH FRONT HUB CARRIER	799949 COMPL. RH FRONT HUB CARRIER	$3,782.02	1
0003	336025	ABS SENSOR FRONT	336025 ABS SENSOR FRONT	$79.13	2
0004	881681	LH FRONT BRAKE HOSE FASTENER BRACKET	881681 LH FRONT BRAKE HOSE FASTENER BRACKET	$55.89	1
0004	881682	RH FRONT BRAKE HOSE FASTENER BRACKET	881682 RH FRONT BRAKE HOSE FASTENER BRACKET	$55.89	1
0005	250657	SCREW	250657 SCREW M6 X 14	$7.60	5
0006	13046011	NUT	13046011 NUT	$0.39	2
0007	986576	SCREW	986576 SCREW	$6.26	2
0008	13578324	WASHER	13578324 WASHER	$0.23	2
0009	14058621	NUT	14058621 NUT M10 X 1.25 X 11.8	$0.44	2
0010	863632	NUT	863632 NUT	$4.99	4
0011	863832	WASHER	863832 WASHER	$1.46	3
0012	746752	COMPL. UPPER LH FRONT ARM	746752 COMPL. UPPER LH FRONT ARM	$1,404.77	1
0012	746754	COMPL. UPPER RH FRONT ARM	746754 COMPL. UPPER RH FRONT ARM	$1,404.77	1
0013	934265	COMPL. TRAVEL SENSOR	934265 COMPL. TRAVEL SENSOR	$206.65	2
0014	16284934	FLANGED SCREW	16284934 FLANGED SCREW M5 X 10	$0.81	4
0015	216973	BALL JOINT	216973 BALL JOINT	$3.55 MSRP: ~~4.50~~ (21.1% off)	2
0016	12646821	WASHER D.10 20-25 X 2	12646821 WASHER D.10 20-25 X 2	$0.11 MSRP: ~~0.50~~ (78% off)	4
0017	264528	THREADED ROD	264528 THREADED ROD	$3.94	8
0018	14496624	WASHER D.10.5-21 X 2	14496624 WASHER D.10.5-21 X 2 D. 10.5-21 X 2	$0.06	8
0019	104114	NUT	104114 NUT	$0.41 MSRP: ~~0.50~~ (18% off)	8
0020	952664	LH FRONT SENSOR BRACKET	952664 LH FRONT SENSOR BRACKET	$32.95	1
0020	952665	RH FRONT SENSOR BRACKET	952665 RH FRONT SENSOR BRACKET	$32.95	1
0021	862188	COMPL. LH FRONT COMFORT ROD	862188 COMPL. LH FRONT COMFORT ROD	$1,132.41	1
0021	862189	COMPL. RH FRONT COMFORT ROD	862189 COMPL. RH FRONT COMFORT ROD	$1,132.41	1
0022	917755	CAGE	917755 CAGE	$116.10	2
0023	12646921	WASHER	12646921 WASHER	$0.53	2
0024	16241434	SCREW	16241434 SCREW	$10.76	2
0025	864182	COMPL. LH FRONT HANDLING ROD	864182 COMPL. LH FRONT HANDLING ROD	$1,299.71	1
0025	864183	COMPL. RH FRONT HANDLING ROD	864183 COMPL. RH FRONT HANDLING ROD	$1,299.71	1
0026	231620	SCREW	231620 SCREW M6 X 30	$0.32 MSRP: ~~0.35~~ (8.6% off)	2
0027	986488	ADJUSTER SHIM	986488 ADJUSTER SHIM Th. 0.5 mm	$45.85	2
0027	986489	ADJUSTER SHIM	986489 ADJUSTER SHIM Th. 1 mm	$51.33	2
0027	986491	ADJUSTER SHIM	986491 ADJUSTER SHIM Th. 1.5 mm	$53.02	2
0027	985786	ADJUSTER SHIM	985786 ADJUSTER SHIM Th. 2 mm	$60.96	2
0027	986492	ADJUSTER SHIM	986492 ADJUSTER SHIM Th. 2.5 mm	$64.17	2
0027	986493	ADJUSTER SHIM	986493 ADJUSTER SHIM Th. 3 mm	$74.52	2
0027	986494	ADJUSTER SHIM	986494 ADJUSTER SHIM Th. 3.5 mm	$74.52	2
0027	986495	ADJUSTER SHIM	986495 ADJUSTER SHIM Th. 4 mm	$81.82	2
0028	896438	THREADED ROD	896438 THREADED ROD	$3.81	4
0029	13507434	WASHER	13507434 WASHER	$1.26	4
0030	148020	NUT	148020 NUT	$4.46	4
0031	905119	DEFLECTOR ON LH HANDLING ARM	905119 DEFLECTOR ON LH HANDLING ARM	$24.34	1
0031	905139	DEFLECTOR ON RH HANDLING ARM	905139 DEFLECTOR ON RH HANDLING ARM	$24.34	1
