Ferrari Purosangue Europe - A/C SYSTEM - AIR CONDITIONER SYSTEM

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
956125 REAR HVAC PIPES $561.59 To Order
Photo Part No Description Price (each) Stock
781458 IHX PIPE $657.87 To Order
Photo Part No Description Price (each) Stock
14066017 NUT $2.66 To Order
Photo Part No Description Price (each) Stock
291225 P clip Bracket With Sheath $4.80 IN STOCK
Photo Part No Description Price (each) Stock
231619 SCREW $0.31 IN STOCK
Photo Part No Description Price (each) Stock
787854 CLIP $12.87 To Order
Photo Part No Description Price (each) Stock
914567 CYLINDRICAL BUSHING $12.17 To Order
Photo Part No Description Price (each) Stock
320597 CLIP $1.78 To Order
Photo Part No Description Price (each) Stock
320598 CLIP $1.88 To Order
Photo Part No Description Price (each) Stock
865647 PIPE FROM CONDENSER TO IHX $174.03 To Order
Photo Part No Description Price (each) Stock
810135 AC SYSTEM PIPE ON COMPRESSOR $529.50 To Order
Photo Part No Description Price (each) Stock
82329900 CLIP $0.97 IN STOCK
Photo Part No Description Price (each) Stock
14040614 NUT $0.15 IN STOCK
Photo Part No Description Price (each) Stock
294693 CLIP $3.95 To Order
Photo Part No Description Price (each) Stock
282393 SCREW $0.75 To Order
Photo Part No Description Price (each) Stock
808838 PIPE FROM COMPRESSOR DISCONNECTOR UNION TO CONDENSER $121.93 To Order
Photo Part No Description Price (each) Stock
13837017 SCREW $3.76 IN STOCK
Photo Part No Description Price (each) Stock
16044024 SCREW $0.37 IN STOCK
Photo Part No Description Price (each) Stock
896357 COMPL. REAR HVAC PIPES Enquire To Order
957131 COMPL. REAR HVAC PIPES $401.13 To Order
Photo Part No Description Price (each) Stock
790253 CLIP $2.17 To Order
Photo Part No Description Price (each) Stock
160013 CLIP $0.92 To Order
Photo Part No Description Price (each) Stock
888688 COMPL. HVAC DELIVERY PIPE $465.32 To Order
Photo Part No Description Price (each) Stock
899352 COMPL. HVAC DELIVERY PIPE DISCONNECTOR UNION $353.00 To Order
Photo Part No Description Price (each) Stock
266156 CLIP $0.63 To Order
769594 CLIP $5.14 To Order
Photo Part No Description Price (each) Stock
81649300 CLIP $6.74 To Order
Photo Part No Description Price (each) Stock
291225 P clip Bracket With Sheath $4.80 IN STOCK
Photo Part No Description Price (each) Stock
910791 BRACKET $20.84 To Order
Photo Part No Description Price (each) Stock
248061 CLIP $2.14 IN STOCK
Photo Part No Description Price (each) Stock
85833900 SCREW $0.36 IN STOCK
Photo Part No Description Price (each) Stock
809455 REAR PUMP BRACKET $30.44 To Order
Photo Part No Description Price (each) Stock
809454 FRONT PUMP BRACKET $33.68 To Order
Photo Part No Description Price (each) Stock
282394 SCREW $0.73 To Order
Photo Part No Description Price (each) Stock
231620 SCREW $0.32 IN STOCK
Photo Part No Description Price (each) Stock
12643724 WASHER $0.06 IN STOCK
Photo Part No Description Price (each) Stock
812273 CABLE GROMMET $1.67 To Order
Photo Part No Description Price (each) Stock
149707 SPACER $1.10 IN STOCK
Photo Part No Description Price (each) Stock
838313 HV CIRCUIT ELECTRIC PUMP $411.25 To Order
Photo Part No Description Price (each) Stock
809453 PUMP INLET HOSE $113.91 To Order
Photo Part No Description Price (each) Stock
262111 JUBILEE CLAMP $1.64 IN STOCK
Photo Part No Description Price (each) Stock
856056 COMPL. HVAC OUTLET PIPE $481.36 To Order
Photo Part No Description Price (each) Stock
943538 CPL. HVAC PIPE ON ENGINE $401.13 To Order
Photo Part No Description Price (each) Stock
292861 CLIP $1.17 To Order
Photo Part No Description Price (each) Stock
14040511 NUT $0.57 To Order
Photo Part No Description Price (each) Stock
943590 BRACKET FASTENING HVAC PIPE TO ENGINE $7.21 To Order
Photo Part No Description Price (each) Stock
306938 SCREW $0.41 To Order
Photo Part No Description Price (each) Stock
887370 90° UNION $30.47 To Order
Photo Part No Description Price (each) Stock
766563 EXTERNAL PARTICULATE SENSOR $393.61 To Order
Photo Part No Description Price (each) Stock
887227 EXTERNAL PARTICULATE SENSOR COVER $33.68 To Order
Photo Part No Description Price (each) Stock
850550 RH BRACKET OF EXTERNAL PARTICULATE SENSOR $33.34 To Order
944761 EXTERNAL PARTICULATE SENSOR BRACKET $30.47 To Order
Photo Part No Description Price (each) Stock
887225 EXTERNAL PARTICULATE SENSOR RETURN PIPE $36.24 To Order
Photo Part No Description Price (each) Stock
887224 EXTERNAL PARTICULATE SENSOR DELIVERY PIPE $36.24 To Order
Photo Part No Description Price (each) Stock
303385 CLIP $0.29 IN STOCK
Photo Part No Description Price (each) Stock
839918 AC AIR QUALITY SENSOR $100.85 To Order
Photo Part No Description Price (each) Stock
766562 IONISING UNIT E-BOX $192.54 To Order
Photo Part No Description Price (each) Stock
868997 IONISING UNIT EMITTER WIRING HARNESS $232.05 To Order
Photo Part No Description Price (each) Stock
841432 INTERNAL PARTICULATE SENSOR $393.61 To Order
Photo Part No Description Price (each) Stock
865328 REAR HVAC DRAIN PIPE $59.35 To Order
Photo Part No Description Price (each) Stock
896231 CLIP $0.68 To Order
Photo Part No Description Price (each) Stock
980168 CONDENSATE DRAIN PIPE $36.89 To Order
Photo Part No Description Price (each) Stock
11084284 GASKET $6.95 To Order
Photo Part No Description Price (each) Stock
11084084 GASKET $6.82 To Order
Photo Part No Description Price (each) Stock
11342584 GASKET $14.13 To Order
Photo Part No Description Price (each) Stock
11342784 GASKET $14.13 To Order
Photo Part No Description Price (each) Stock
11084384 GASKET $14.13 To Order
Photo Part No Description Price (each) Stock
11342484 GASKET $6.82 To Order
Photo Part No Description Price (each) Stock
11342584 GASKET $14.13 To Order
Photo Part No Description Price (each) Stock
14450683 GASKET $6.95 To Order
Photo Part No Description Price (each) Stock
10319184 GASKET $6.95 To Order
Photo Part No Description Price (each) Stock
10319184 GASKET $6.95 To Order
Photo Part No Description Price (each) Stock
14450683 GASKET $6.95 To Order
Photo Part No Description Price (each) Stock
11342684 GASKET $33.49 To Order
View All

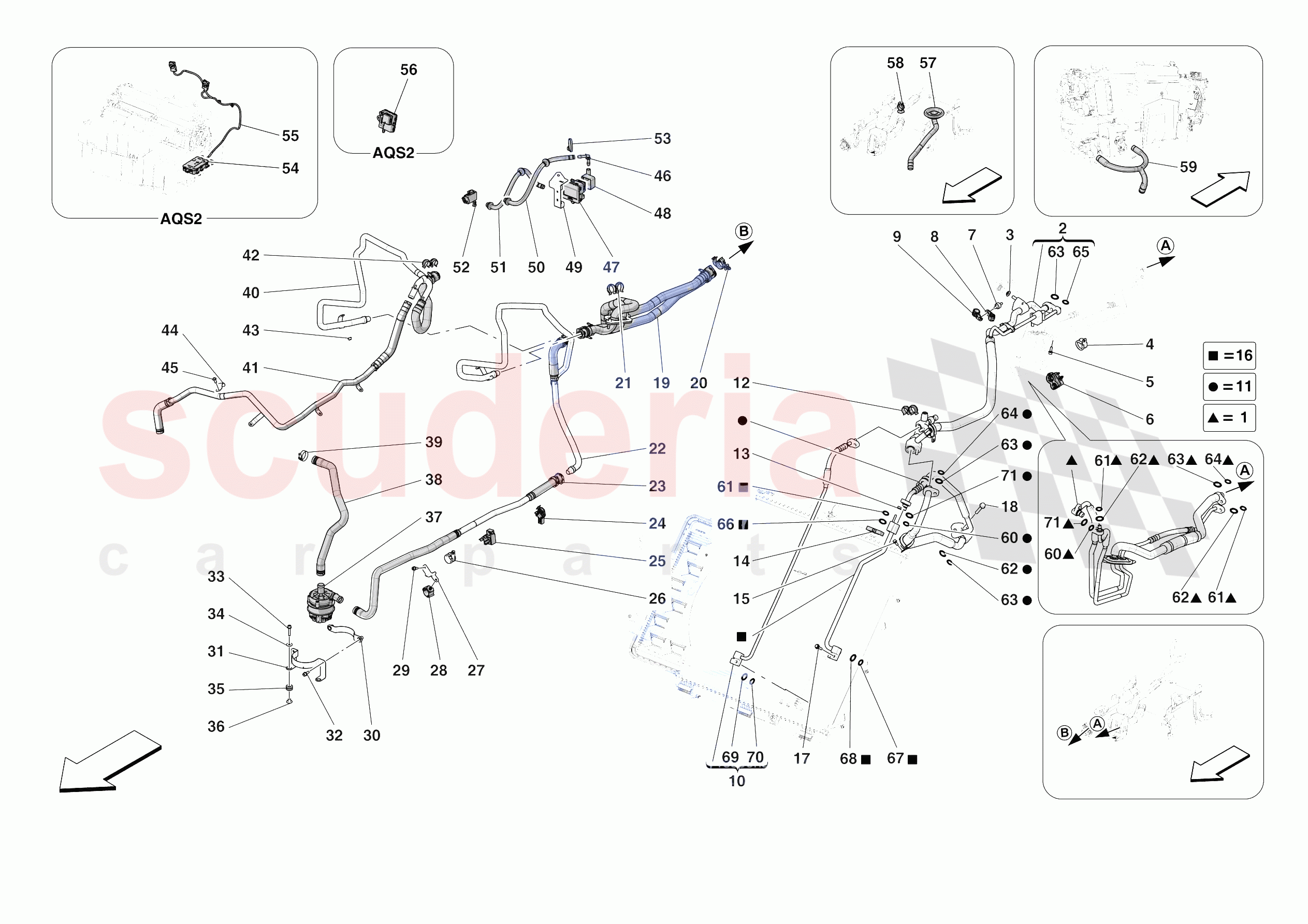

A/C SYSTEM - AIR CONDITIONER SYSTEM of Ferrari Ferrari Purosangue Europe Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
0001 956125
REAR HVAC PIPES 		$561.59 1
0002 781458
IHX PIPE 		$657.87 1
0003 14066017
NUT 		$2.66 7
0004 291225
P clip Bracket With Sheath
IN STOCK 		$4.80 2
0005 231619
SCREW
M6 X 18
IN STOCK 		$0.31 4
0006 787854
CLIP 		$12.87 1
0007 914567
CYLINDRICAL BUSHING 		$12.17 1
0008 320597
CLIP 		$1.78 1
0009 320598
CLIP 		$1.88 1
0010 865647
PIPE FROM CONDENSER TO IHX 		$174.03 2
0011 810135
AC SYSTEM PIPE ON COMPRESSOR 		$529.50 2
0012 82329900
CLIP
IN STOCK 		$0.97 2
0013 14040614
NUT
IN STOCK 		$0.15 5
0014 294693
CLIP 		$3.95 1
0015 282393
SCREW
M6 X 14 		$0.75 4
0016 808838
PIPE FROM COMPRESSOR DISCONNECTOR UNION TO CONDENSER 		$121.93 2
0017 13837017
SCREW
M6 X 30
IN STOCK 		$3.76 2
0018 16044024
SCREW
M8 X 40
IN STOCK 		$0.37 (57.5% off) 1
0019 896357
COMPL. REAR HVAC PIPES
No longer supplied - Replaced by 957131 		- 1 Enquire
0019 957131
COMPL. REAR HVAC PIPES 		$401.13 1
0020 790253
CLIP 		$2.17 2
0021 160013
CLIP 		$0.92 2
0022 888688
COMPL. HVAC DELIVERY PIPE 		$465.32 1
0023 899352
COMPL. HVAC DELIVERY PIPE DISCONNECTOR UNION 		$353.00 2
0024 266156
CLIP 		$0.63 7
0024 769594
CLIP 		$5.14 7
0025 81649300
CLIP 		$6.74 1
0026 291225
P clip Bracket With Sheath
IN STOCK 		$4.80 1
0027 910791
BRACKET 		$20.84 1
0028 248061
CLIP
IN STOCK 		$2.14 2
0029 85833900
SCREW
M5 X 14
IN STOCK 		$0.36 1
0030 809455
REAR PUMP BRACKET 		$30.44 2
0031 809454
FRONT PUMP BRACKET 		$33.68 2
0032 282394
SCREW
M6 X 18 		$0.73 9
0033 231620
SCREW
M6 X 30
IN STOCK 		$0.32 (8.6% off) 2
0034 12643724
WASHER
IN STOCK 		$0.06 (88% off) 2
0035 812273
CABLE GROMMET 		$1.67 2
0036 149707
SPACER
IN STOCK 		$1.10 (37.1% off) 2
0037 838313
HV CIRCUIT ELECTRIC PUMP 		$411.25 2
0038 809453
PUMP INLET HOSE 		$113.91 2
0039 262111
JUBILEE CLAMP
IN STOCK 		$1.64 13
0040 856056
COMPL. HVAC OUTLET PIPE 		$481.36 2
0041 943538
CPL. HVAC PIPE ON ENGINE 		$401.13 1
0042 292861
CLIP 		$1.17 1
0043 14040511
NUT 		$0.57 2
0044 943590
BRACKET FASTENING HVAC PIPE TO ENGINE 		$7.21 1
0045 306938
SCREW
M6 X 14 		$0.41 1
0046 887370
90° UNION 		$30.47 1
0047 766563
EXTERNAL PARTICULATE SENSOR 		$393.61 1
0048 887227
EXTERNAL PARTICULATE SENSOR COVER 		$33.68 1
0049 850550
RH BRACKET OF EXTERNAL PARTICULATE SENSOR 		$33.34 1
0049 944761
EXTERNAL PARTICULATE SENSOR BRACKET 		$30.47 1
0050 887225
EXTERNAL PARTICULATE SENSOR RETURN PIPE 		$36.24 1
0051 887224
EXTERNAL PARTICULATE SENSOR DELIVERY PIPE 		$36.24 1
0052 303385
CLIP
170 mm
IN STOCK 		$0.29 1
0053 839918
AC AIR QUALITY SENSOR 		$100.85 1
0054 766562
IONISING UNIT E-BOX
Version with air quality sensor 		$192.54 1
0055 868997
IONISING UNIT EMITTER WIRING HARNESS
Version with air quality sensor 		$232.05 1
0056 841432
INTERNAL PARTICULATE SENSOR
Version with air quality sensor 		$393.61 1
0057 865328
REAR HVAC DRAIN PIPE 		$59.35 1
0058 896231
CLIP 		$0.68 1
0059 980168
CONDENSATE DRAIN PIPE 		$36.89 1
0060 11084284
GASKET 		$6.95 2
0061 11084084
GASKET 		$6.82 3
0062 11342584
GASKET 		$14.13 1
0063 11342784
GASKET 		$14.13 4
0064 11084384
GASKET 		$14.13 2
0065 11342484
GASKET 		$6.82 1
0066 11342584
GASKET 		$14.13 1
0067 14450683
GASKET 		$6.95 1
0068 10319184
GASKET 		$6.95 1
0069 10319184
GASKET 		$6.95 1
0070 14450683
GASKET 		$6.95 1
0071 11342684
GASKET 		$33.49 2
