Name: CYLINDER HEADS - TIMING SYSTEM
Rating: 5.0 (1 reviews)

CYLINDER HEADS - TIMING SYSTEM of Ferrari Ferrari Portofino USA

View All

Ferrari Portofino USA - CYLINDER HEADS - TIMING SYSTEM

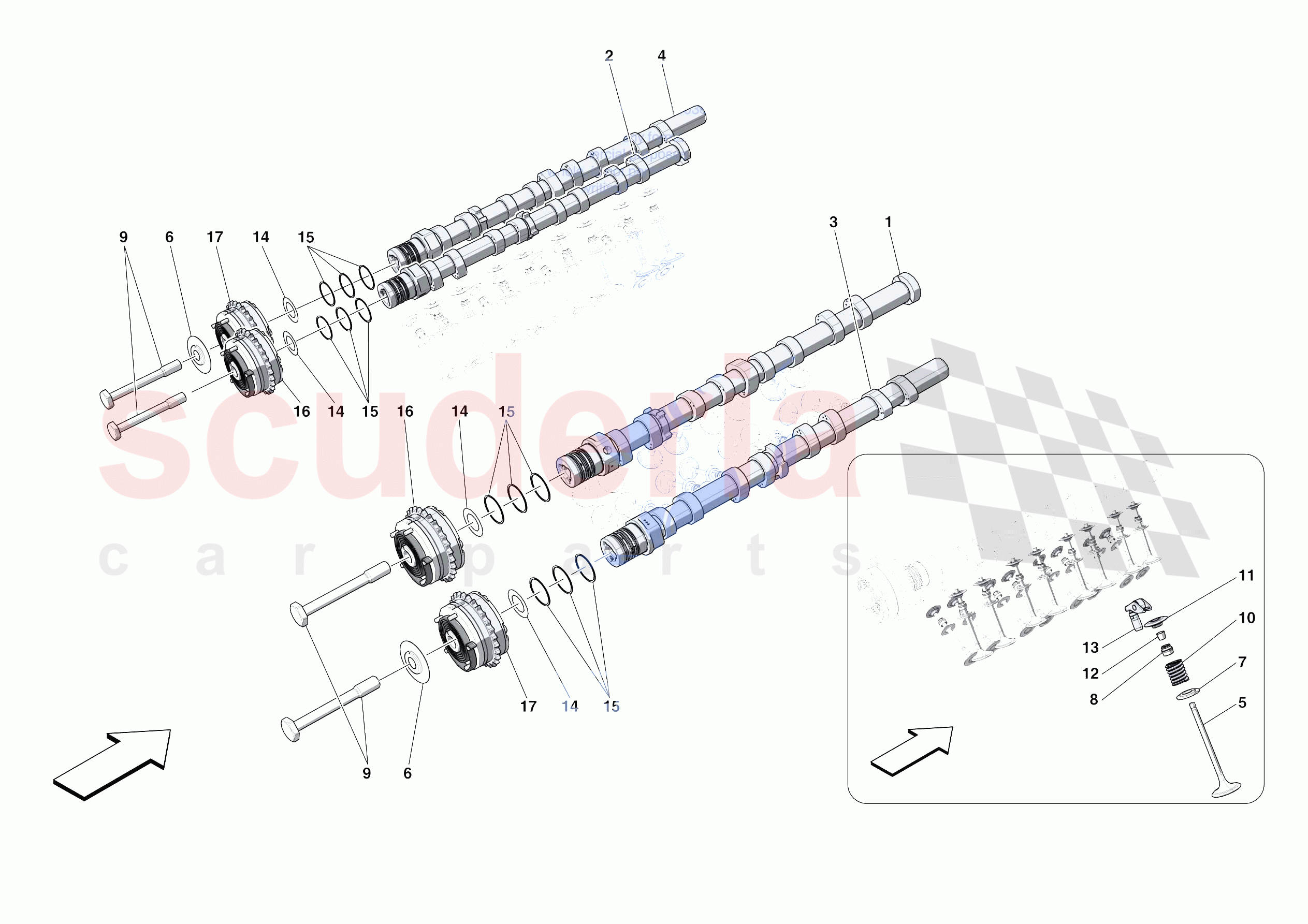

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	330638	RH INTAKE CAMSHAFT	$323.40	To Order

Photo	Part No	Description	Price (each)	Stock
	330639	LH INTAKE CAMSHAFT	$323.40	To Order

Photo	Part No	Description	Price (each)	Stock
	328693	RH EXHAUST CAMSHAFT	$693.01	To Order

Photo	Part No	Description	Price (each)	Stock
	328694	LH EXHAUST CAMSHAFT	$693.01	To Order

Photo	Part No	Description	Price (each)	Stock
	314784	INTAKE VALVE	$20.29	To Order
	314857	EXHAUST VALVE	$80.21	To Order

Photo	Part No	Description	Price (each)	Stock
	296310	SPACER	$24.05	To Order

Photo	Part No	Description	Price (each)	Stock
	287553	LOWER INTAKE VALVE SPRING CAP	$3.16	To Order
	287551	LOWER EXHAUST VALVE SPRING CAP	$3.06	To Order

Photo	Part No	Description	Price (each)	Stock
	221473	OIL SEAL	$1.75	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	287708	SCREW M14 X 1.5	$14.33	To Order

Photo	Part No	Description	Price (each)	Stock
	331715	VALVE RETURN SPRING	$21.74	To Order

Photo	Part No	Description	Price (each)	Stock
	287554	UPPER VALVE SPRING CAP	$4.94	To Order

Photo	Part No	Description	Price (each)	Stock
	179763	VALVE SPRING SEMI-CONE	$0.86	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	927517	COMPL. FINGER-TAPPET	$81.82	To Order
	927517	COMPL. FINGER-TAPPET	$81.82	To Order

Photo	Part No	Description	Price (each)	Stock
	240559	DIAMOND COATED WASHER	$9.11	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	246965	O-RING	$12.03	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	279099	VARIABLE VALVE TIMING ADJUSTER, INTAKE CAMSHAFT	$609.73	To Order

Photo	Part No	Description	Price (each)	Stock
	295300	VARIABLE VALVE TIMING ADJUSTER, EXHAUST CAMSHAFT	$577.64	To Order

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
0001	330638	RH INTAKE CAMSHAFT	330638 RH INTAKE CAMSHAFT	$323.40	1
0002	330639	LH INTAKE CAMSHAFT	330639 LH INTAKE CAMSHAFT	$323.40	1
0003	328693	RH EXHAUST CAMSHAFT	328693 RH EXHAUST CAMSHAFT	$693.01	1
0004	328694	LH EXHAUST CAMSHAFT	328694 LH EXHAUST CAMSHAFT	$693.01	1
0005	314784	INTAKE VALVE	314784 INTAKE VALVE	$20.29	16
0005	314857	EXHAUST VALVE	314857 EXHAUST VALVE	$80.21	16
0006	296310	SPACER	296310 SPACER	$24.05	2
0007	287553	LOWER INTAKE VALVE SPRING CAP	287553 LOWER INTAKE VALVE SPRING CAP	$3.16	16
0007	287551	LOWER EXHAUST VALVE SPRING CAP	287551 LOWER EXHAUST VALVE SPRING CAP	$3.06	16
0008	221473	OIL SEAL IN STOCK	221473 OIL SEAL IN STOCK	$1.75 MSRP: ~~2.60~~ (32.7% off)	32
0009	287708	SCREW M14 X 1.5	287708 SCREW M14 X 1.5 M14 X 1.5	$14.33	4
0010	331715	VALVE RETURN SPRING	331715 VALVE RETURN SPRING	$21.74	32
0011	287554	UPPER VALVE SPRING CAP	287554 UPPER VALVE SPRING CAP	$4.94	32
0012	179763	VALVE SPRING SEMI-CONE IN STOCK	179763 VALVE SPRING SEMI-CONE IN STOCK	$0.86 MSRP: ~~0.90~~ (4.4% off)	64
0013	927517	COMPL. FINGER-TAPPET	927517 COMPL. FINGER-TAPPET	$81.82	32
0013	927517	COMPL. FINGER-TAPPET	927517 COMPL. FINGER-TAPPET	$81.82	32
0014	240559	DIAMOND COATED WASHER IN STOCK	240559 DIAMOND COATED WASHER IN STOCK	$9.11	4
0015	246965	O-RING IN STOCK	246965 O-RING Also included in engine gasket set IN STOCK	$12.03	12
0016	279099	VARIABLE VALVE TIMING ADJUSTER, INTAKE CAMSHAFT	279099 VARIABLE VALVE TIMING ADJUSTER, INTAKE CAMSHAFT	$609.73	2
0017	295300	VARIABLE VALVE TIMING ADJUSTER, EXHAUST CAMSHAFT	295300 VARIABLE VALVE TIMING ADJUSTER, EXHAUST CAMSHAFT	$577.64	2

Cylinder Heads - Timing System

Ferrari Portofino USA

Ferrari Portofino USA - CYLINDER HEADS - TIMING SYSTEM
