STRUCTURES AND ELEMENTS, FRONT OF VEHICLE of Ferrari Ferrari Portofino Europe RH

View All

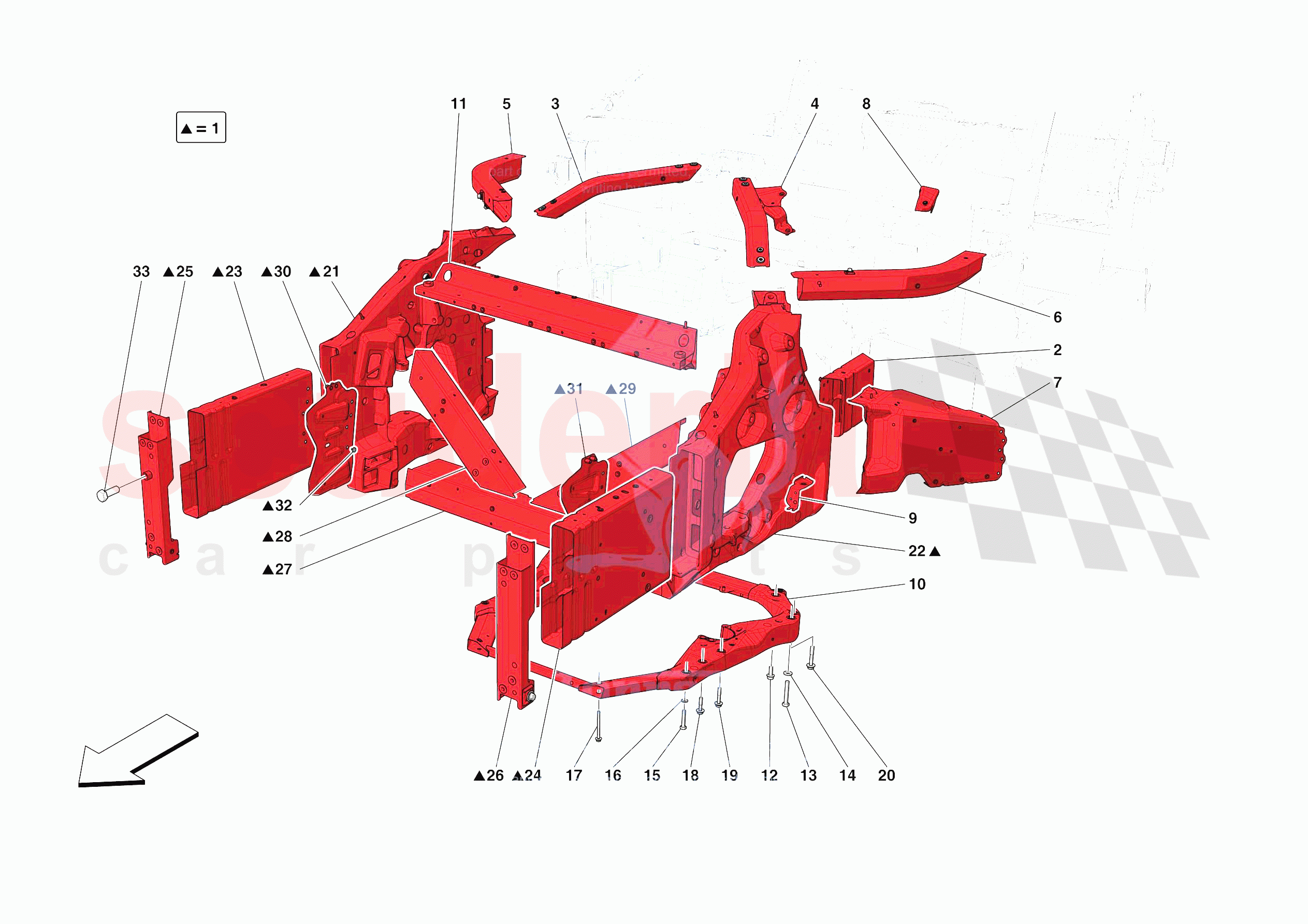

Ferrari Portofino Europe RH - STRUCTURES AND ELEMENTS, FRONT OF VEHICLE

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	322791	FRONT MODULE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	985337752	COMPL. LH INTERNAL CENTRE ENGINE COMPARTMENT DIAGONAL BRACE	Enquire	To Order
	985337754	COMPL. RH INTERNAL CENTRE ENGINE COMPARTMENT DIAGONAL BRACE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	985339480	COMPL. RH INTERNAL UPPER ENGINE COMPARTMENT DIAGONAL BRACE	Enquire	To Order
	985804503	COMPL. RH INTERNAL UPPER ENGINE COMPARTMENT DIAGONAL BRACE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	985339479	COMPL. LH INTERNAL UPPER ENGINE COMPARTMENT DIAGONAL BRACE	Enquire	To Order
	985768622	COMPL. LH INTERNAL UPPER ENGINE COMPARTMENT DIAGONAL BRACE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	985337371	COMPL. RH UPPER EXTERNAL ENGINE COMPARTMENT DIAGONAL BRACE	Enquire	To Order
	985803863	COMPL. RH UPPER EXTERNAL ENGINE COMPARTMENT DIAGONAL BRACE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	985337370	COMPL. LH UPPER EXTERNAL ENGINE COMPARTMENT DIAGONAL BRACE	Enquire	To Order
	985803910	COMPL. LH UPPER EXTERNAL ENGINE COMPARTMENT DIAGONAL BRACE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	985335236	COMPL. LH LOWER FRONT BOX	Enquire	To Order
	985909545	COMPL. LH LOWER FRONT BOX	Enquire	To Order
	985803892	COMPL. LH LOWER FRONT BOX	Enquire	To Order

...and 2 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	985329884	COMPL. BRACKET	Enquire	To Order
	985804508	COMPL. BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	985786159	FRONT LH HOSE BRACKET	Enquire	To Order
	771140	FRONT LH HOSE BRACKET	Enquire	To Order
	985786159	FRONT LH HOSE BRACKET	Enquire	To Order

...and 3 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	985333845	ENGINE SUBFRAME	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	985339826	COMPL. STRUT TOWER CONNECTOR CROSS MEMBER	Enquire	To Order
	985803870	COMPL. STRUT TOWER CONNECTOR CROSS MEMBER	Enquire	To Order
	985803870	COMPL. STRUT TOWER CONNECTOR CROSS MEMBER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	16289834	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	15541234	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12646921	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	11343821	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	128944	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	749849	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	299580	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	749853	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	749854	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	985334831	FST 2WD RH	Enquire	To Order
	985806661	FST 2WD RH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	985334829	FST 2WD LH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	985337746	RH FRONT SPAR	Enquire	To Order
	985910528	COMPL. FRONT RH STRUT	Enquire	To Order
	985837485	COMPL. FRONT RH STRUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	985337744	COMPL. FRONT LH STRUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	985340715	RH FRONT CRASH BOX UPRIGHT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	985340713	LH FRONT CRASH BOX UPRIGHT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	985338589	LOWER FRONT CROSS MEMBER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	985339709	RH K-BRACE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	985339707	LH K-BRACE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	985786178	RH STRUT REINFORCEMENT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	985786176	LH STRUT REINFORCEMENT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	330777	RIVET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	11390521	SCREW	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
0001	322791	FRONT MODULE	322791 FRONT MODULE Request ASM authorisation; No longer supplied	-	1	Enquire
0002	985337752	COMPL. LH INTERNAL CENTRE ENGINE COMPARTMENT DIAGONAL BRACE	985337752 COMPL. LH INTERNAL CENTRE ENGINE COMPARTMENT DIAGONAL BRACE Request ASM authorisation	-	1	Enquire
0002	985337754	COMPL. RH INTERNAL CENTRE ENGINE COMPARTMENT DIAGONAL BRACE	985337754 COMPL. RH INTERNAL CENTRE ENGINE COMPARTMENT DIAGONAL BRACE Request ASM authorisation	-	1	Enquire
0003	985339480	COMPL. RH INTERNAL UPPER ENGINE COMPARTMENT DIAGONAL BRACE	985339480 COMPL. RH INTERNAL UPPER ENGINE COMPARTMENT DIAGONAL BRACE Request ASM authorisation	-	1	Enquire
0003	985804503	COMPL. RH INTERNAL UPPER ENGINE COMPARTMENT DIAGONAL BRACE	985804503 COMPL. RH INTERNAL UPPER ENGINE COMPARTMENT DIAGONAL BRACE Request ASM authorisation	-	1	Enquire
0004	985339479	COMPL. LH INTERNAL UPPER ENGINE COMPARTMENT DIAGONAL BRACE	985339479 COMPL. LH INTERNAL UPPER ENGINE COMPARTMENT DIAGONAL BRACE Request ASM authorisation	-	1	Enquire
0004	985768622	COMPL. LH INTERNAL UPPER ENGINE COMPARTMENT DIAGONAL BRACE	985768622 COMPL. LH INTERNAL UPPER ENGINE COMPARTMENT DIAGONAL BRACE Request ASM authorisation	-	1	Enquire
0005	985337371	COMPL. RH UPPER EXTERNAL ENGINE COMPARTMENT DIAGONAL BRACE	985337371 COMPL. RH UPPER EXTERNAL ENGINE COMPARTMENT DIAGONAL BRACE Request ASM authorisation	-	1	Enquire
0005	985803863	COMPL. RH UPPER EXTERNAL ENGINE COMPARTMENT DIAGONAL BRACE	985803863 COMPL. RH UPPER EXTERNAL ENGINE COMPARTMENT DIAGONAL BRACE Request ASM authorisation	-	1	Enquire
0006	985337370	COMPL. LH UPPER EXTERNAL ENGINE COMPARTMENT DIAGONAL BRACE	985337370 COMPL. LH UPPER EXTERNAL ENGINE COMPARTMENT DIAGONAL BRACE Request ASM authorisation	-	1	Enquire
0006	985803910	COMPL. LH UPPER EXTERNAL ENGINE COMPARTMENT DIAGONAL BRACE	985803910 COMPL. LH UPPER EXTERNAL ENGINE COMPARTMENT DIAGONAL BRACE Request ASM authorisation	-	1	Enquire
0007	985335236	COMPL. LH LOWER FRONT BOX	985335236 COMPL. LH LOWER FRONT BOX Request ASM authorisation; Applies until depletion	-	1	Enquire
0007	985909545	COMPL. LH LOWER FRONT BOX	985909545 COMPL. LH LOWER FRONT BOX Request ASM authorisation; Applicable after depletion of 985335236	-	1	Enquire
0007	985803892	COMPL. LH LOWER FRONT BOX	985803892 COMPL. LH LOWER FRONT BOX Request ASM authorisation	-	1	Enquire
0007	985335235	COMPL. RH LOWER FRONT BOX	985335235 COMPL. RH LOWER FRONT BOX Request ASM authorisation	-	1	Enquire
0007	985803913	COMPL. RH LOWER FRONT BOX	985803913 COMPL. RH LOWER FRONT BOX Request ASM authorisation	-	1	Enquire
0008	985329884	COMPL. BRACKET	985329884 COMPL. BRACKET	-	1	Enquire
0008	985804508	COMPL. BRACKET	985804508 COMPL. BRACKET	-	1	Enquire
0009	985786159	FRONT LH HOSE BRACKET	985786159 FRONT LH HOSE BRACKET Request ASM authorisation	-	1	Enquire
0009	771140	FRONT LH HOSE BRACKET	771140 FRONT LH HOSE BRACKET No longer supplied - Replaced by 985786159	-	1	Enquire
0009	985786159	FRONT LH HOSE BRACKET	985786159 FRONT LH HOSE BRACKET	-	1	Enquire
0009	985786160	FRONT RH HOSE BRACKET	985786160 FRONT RH HOSE BRACKET Request ASM authorisation	-	1	Enquire
0009	771141	FRONT RH HOSE BRACKET	771141 FRONT RH HOSE BRACKET No longer supplied - Replaced by 985786160	-	1	Enquire
0009	985786160	FRONT RH HOSE BRACKET	985786160 FRONT RH HOSE BRACKET	-	1	Enquire
0010	985333845	ENGINE SUBFRAME	985333845 ENGINE SUBFRAME Request ASM authorisation	-	1	Enquire
0011	985339826	COMPL. STRUT TOWER CONNECTOR CROSS MEMBER	985339826 COMPL. STRUT TOWER CONNECTOR CROSS MEMBER Request ASM authorisation; Applies until depletion	-	1	Enquire
0011	985803870	COMPL. STRUT TOWER CONNECTOR CROSS MEMBER	985803870 COMPL. STRUT TOWER CONNECTOR CROSS MEMBER Request ASM authorisation	-	1	Enquire
0011	985803870	COMPL. STRUT TOWER CONNECTOR CROSS MEMBER	985803870 COMPL. STRUT TOWER CONNECTOR CROSS MEMBER	-	1	Enquire
0012	16289834	SCREW	16289834 SCREW M10 X 1.25 X 30	-	2	Enquire
0013	15541234	SCREW	15541234 SCREW M12 X 1.25 X 70	-	2	Enquire
0014	12646921	WASHER	12646921 WASHER	-	2	Enquire
0015	11343821	SCREW	11343821 SCREW M10 X 1.25 X 50	-	2	Enquire
0016	128944	WASHER	128944 WASHER	-	2	Enquire
0017	749849	SCREW	749849 SCREW M8 X 100	-	2	Enquire
0018	299580	SCREW	299580 SCREW M10 X 1.25 X 55	-	2	Enquire
0019	749853	SCREW	749853 SCREW M10 X 1.25 X 60	-	2	Enquire
0020	749854	SCREW	749854 SCREW M12 X 1.25 X 75	-	2	Enquire
0021	985334831	FST 2WD RH	985334831 FST 2WD RH Request ASM authorisation	-	1	Enquire
0021	985806661	FST 2WD RH	985806661 FST 2WD RH Request ASM authorisation	-	1	Enquire
0022	985334829	FST 2WD LH	985334829 FST 2WD LH Request ASM authorisation	-	1	Enquire
0023	985337746	RH FRONT SPAR	985337746 RH FRONT SPAR Request ASM authorisation; Applies until depletion	-	1	Enquire
0023	985910528	COMPL. FRONT RH STRUT	985910528 COMPL. FRONT RH STRUT Request ASM authorisation; Applicable after depletion of 985337746	-	1	Enquire
0023	985837485	COMPL. FRONT RH STRUT	985837485 COMPL. FRONT RH STRUT Request ASM authorisation	-	1	Enquire
0024	985337744	COMPL. FRONT LH STRUT	985337744 COMPL. FRONT LH STRUT Request ASM authorisation	-	1	Enquire
0025	985340715	RH FRONT CRASH BOX UPRIGHT	985340715 RH FRONT CRASH BOX UPRIGHT Request ASM authorisation	-	1	Enquire
0026	985340713	LH FRONT CRASH BOX UPRIGHT	985340713 LH FRONT CRASH BOX UPRIGHT Request ASM authorisation	-	1	Enquire
0027	985338589	LOWER FRONT CROSS MEMBER	985338589 LOWER FRONT CROSS MEMBER Request ASM authorisation	-	1	Enquire
0028	985339709	RH K-BRACE	985339709 RH K-BRACE Request ASM authorisation	-	1	Enquire
0029	985339707	LH K-BRACE	985339707 LH K-BRACE Request ASM authorisation	-	1	Enquire
0030	985786178	RH STRUT REINFORCEMENT	985786178 RH STRUT REINFORCEMENT Request ASM authorisation	-	1	Enquire
0031	985786176	LH STRUT REINFORCEMENT	985786176 LH STRUT REINFORCEMENT Request ASM authorisation	-	1	Enquire
0032	330777	RIVET	330777 RIVET	-	-	Enquire
0033	11390521	SCREW	11390521 SCREW M16 X 1.5 X 40	-	1	Enquire
