Name: GEARBOX AND FASTENERS
Rating: 4.1 (1 reviews)

GEARBOX AND FASTENERS of Ferrari Ferrari Portofino Europe RH

View All

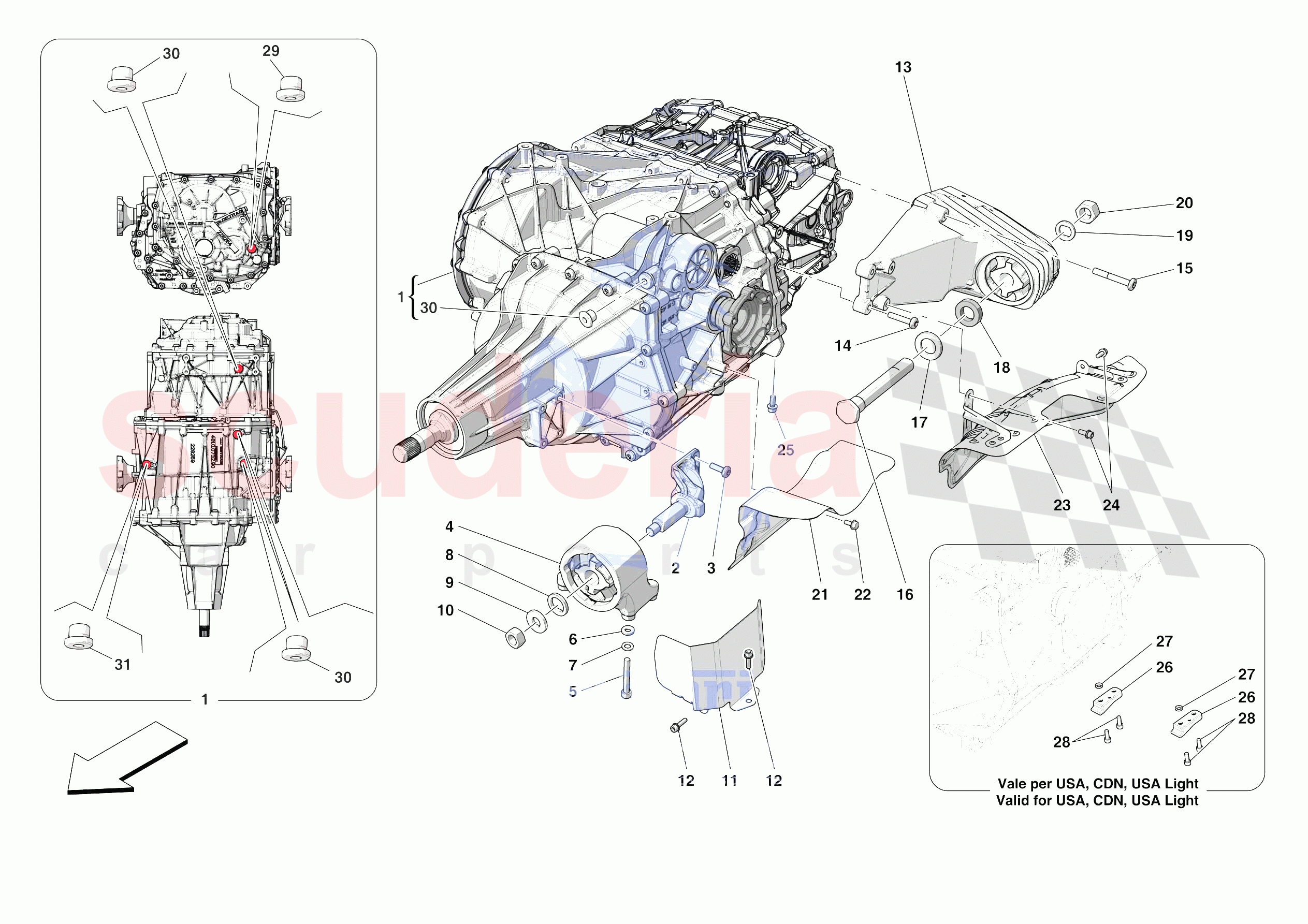

Ferrari Portofino Europe RH - GEARBOX AND FASTENERS

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	815469	COMPL. DCT GEARBOX	$36,526.09	To Order

Photo	Part No	Description	Price (each)	Stock
	301073	LH FRONT DCT GEARBOX STRUT	$224.63	To Order
	301074	RH FRONT DCT GEARBOX STRUT	$224.63	To Order

Photo	Part No	Description	Price (each)	Stock
	247856	SCREW	$1.94	To Order

Photo	Part No	Description	Price (each)	Stock
	767031	COMPL. LH FRONT BUSH MOUNT	$430.02	To Order
	796457	COMPL. RH FRONT BUSH MOUNT	$430.02	To Order

Photo	Part No	Description	Price (each)	Stock
	14302234	SCREW	$0.91	To Order
	14302234	SCREW	$0.91	To Order

Photo	Part No	Description	Price (each)	Stock
	12654424	WASHER	$0.50	To Order

Photo	Part No	Description	Price (each)	Stock
	986899	WASHER	$6.26	To Order

Photo	Part No	Description	Price (each)	Stock
	300597	SPLIT WASHER	$19.24	To Order

Photo	Part No	Description	Price (each)	Stock
	12644924	WASHER	$1.85	To Order

Photo	Part No	Description	Price (each)	Stock
	12164024	NUT	$1.65	To Order

Photo	Part No	Description	Price (each)	Stock
	803089	LH FRONT GEARBOX HEAT SHIELD	$44.43	To Order
	803088	RH FRONT GEARBOX HEAT SHIELD	$44.43	To Order

Photo	Part No	Description	Price (each)	Stock
	231619	SCREW	$0.31	To Order

Photo	Part No	Description	Price (each)	Stock
	766806	COMPL. LH REAR STRUT	$449.27	To Order
	766804	COMPL. RH REAR STRUT	$433.23	To Order

Photo	Part No	Description	Price (each)	Stock
	750165	SCREW	$2.33	To Order

Photo	Part No	Description	Price (each)	Stock
	764636	SCREW	$2.84	To Order

Photo	Part No	Description	Price (each)	Stock
	753432	GEARBOX MOUNTING BUSH PIN	$104.62	To Order

Photo	Part No	Description	Price (each)	Stock
	10731314	WASHER	$1.56	To Order

Photo	Part No	Description	Price (each)	Stock
	243122	SPACER	$6.32	To Order

Photo	Part No	Description	Price (each)	Stock
	331997	WASHER	$2.25	To Order

Photo	Part No	Description	Price (each)	Stock
	12164424	NUT	$4.99	To Order

Photo	Part No	Description	Price (each)	Stock
	752490	LH AXLE SHAFT HEAT SHIELD	$131.85	To Order
	958190	LH AXLE SHAFT HEAT SHIELD	$123.26	To Order
	931307993	RH AXLE SHAFT HEAT SHIELD	$124.69	To Order

Photo	Part No	Description	Price (each)	Stock
	16296934	SCREW 6 X 14MM	$0.47	To Order

Photo	Part No	Description	Price (each)	Stock
	783309	COMPL. LH GEARBOX HEAT SHIELD	$229.33	To Order
	813349	COMPL. RH GEARBOX HEAT SHIELD	$229.33	To Order

Photo	Part No	Description	Price (each)	Stock
	248334	SCREW	$0.68	To Order

Photo	Part No	Description	Price (each)	Stock
	248471	SCREW	$1.07	To Order

Photo	Part No	Description	Price (each)	Stock
	767212	REAR IMPACT RETAINER BRACKET	$101.75	To Order

Photo	Part No	Description	Price (each)	Stock
	12638524	WASHER	$0.06	To Order

Photo	Part No	Description	Price (each)	Stock
	13028734	SCREW	$0.53	To Order

Photo	Part No	Description	Price (each)	Stock
	70005055	GL5 OIL LEVEL PLUG	$57.75	To Order

Photo	Part No	Description	Price (each)	Stock
	70004679	OIL DRAIN PLUG	$24.05	To Order

Photo	Part No	Description	Price (each)	Stock
	70005056	ATF OIL LEVEL PLUG KIT	$17.63	To Order

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
0001	815469	COMPL. DCT GEARBOX	815469 COMPL. DCT GEARBOX Request ASM authorisation	$36,526.09	1
0002	301073	LH FRONT DCT GEARBOX STRUT	301073 LH FRONT DCT GEARBOX STRUT	$224.63	1
0002	301074	RH FRONT DCT GEARBOX STRUT	301074 RH FRONT DCT GEARBOX STRUT	$224.63	1
0003	247856	SCREW	247856 SCREW M8 X 1.25 X 25	$1.94	8
0004	767031	COMPL. LH FRONT BUSH MOUNT	767031 COMPL. LH FRONT BUSH MOUNT	$430.02	1
0004	796457	COMPL. RH FRONT BUSH MOUNT	796457 COMPL. RH FRONT BUSH MOUNT	$430.02	1
0005	14302234	SCREW	14302234 SCREW M8 X 55	$0.91	8
0005	14302234	SCREW	14302234 SCREW M8 X 55	$0.91	8
0006	12654424	WASHER	12654424 WASHER	$0.50	8
0007	986899	WASHER	986899 WASHER	$6.26	8
0008	300597	SPLIT WASHER	300597 SPLIT WASHER	$19.24	2
0009	12644924	WASHER	12644924 WASHER	$1.85	2
0010	12164024	NUT	12164024 NUT	$1.65	2
0011	803089	LH FRONT GEARBOX HEAT SHIELD	803089 LH FRONT GEARBOX HEAT SHIELD	$44.43	1
0011	803088	RH FRONT GEARBOX HEAT SHIELD	803088 RH FRONT GEARBOX HEAT SHIELD	$44.43	1
0012	231619	SCREW	231619 SCREW M6 X 22	$0.31	4
0013	766806	COMPL. LH REAR STRUT	766806 COMPL. LH REAR STRUT	$449.27	1
0013	766804	COMPL. RH REAR STRUT	766804 COMPL. RH REAR STRUT	$433.23	1
0014	750165	SCREW	750165 SCREW M8 X 1.25 X 40	$2.33	4
0015	764636	SCREW	764636 SCREW	$2.84	4
0016	753432	GEARBOX MOUNTING BUSH PIN	753432 GEARBOX MOUNTING BUSH PIN	$104.62	2
0017	10731314	WASHER	10731314 WASHER	$1.56	2
0018	243122	SPACER	243122 SPACER	$6.32	1
0019	331997	WASHER	331997 WASHER	$2.25	2
0020	12164424	NUT	12164424 NUT	$4.99	2
0021	752490	LH AXLE SHAFT HEAT SHIELD	752490 LH AXLE SHAFT HEAT SHIELD Applies until depletion	$131.85	1
0021	958190	LH AXLE SHAFT HEAT SHIELD	958190 LH AXLE SHAFT HEAT SHIELD Applicable after depletion of 752490	$123.26	1
0021	931307993	RH AXLE SHAFT HEAT SHIELD	931307993 RH AXLE SHAFT HEAT SHIELD	$124.69	1
0022	16296934	SCREW 6 X 14MM	16296934 SCREW 6 X 14MM M6 X 14	$0.47	6
0023	783309	COMPL. LH GEARBOX HEAT SHIELD	783309 COMPL. LH GEARBOX HEAT SHIELD	$229.33	1
0023	813349	COMPL. RH GEARBOX HEAT SHIELD	813349 COMPL. RH GEARBOX HEAT SHIELD	$229.33	1
0024	248334	SCREW	248334 SCREW M6 X 16	$0.68	4
0025	248471	SCREW	248471 SCREW M8 X 20	$1.07	2
0026	767212	REAR IMPACT RETAINER BRACKET	767212 REAR IMPACT RETAINER BRACKET	$101.75	2
0027	12638524	WASHER	12638524 WASHER D. 8.15 -15 X 1.5	$0.06 MSRP: ~~0.25~~ (76% off)	4
0028	13028734	SCREW	13028734 SCREW M8 X 25	$0.53 MSRP: ~~2.25~~ (76.4% off)	4
0029	70005055	GL5 OIL LEVEL PLUG	70005055 GL5 OIL LEVEL PLUG	$57.75	1
0030	70004679	OIL DRAIN PLUG	70004679 OIL DRAIN PLUG	$24.05	4
0031	70005056	ATF OIL LEVEL PLUG KIT	70005056 ATF OIL LEVEL PLUG KIT	$17.63	1
