STRUCTURES AND ELEMENTS, FRONT OF VEHICLE

Find Your Part

Ferrari Portofino Europe - STRUCTURES AND ELEMENTS, FRONT OF VEHICLE

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
322791 FRONT MODULE Enquire To Order
Photo Part No Description Price (each) Stock
985337752 COMPL. LH INTERNAL CENTRE ENGINE COMPARTMENT DIAGONAL BRACE $759.72 To Order
985337754 COMPL. RH INTERNAL CENTRE ENGINE COMPARTMENT DIAGONAL BRACE $759.72 To Order
Photo Part No Description Price (each) Stock
985339480 COMPL. RH INTERNAL UPPER ENGINE COMPARTMENT DIAGONAL BRACE $874.39 To Order
985804503 COMPL. RH INTERNAL UPPER ENGINE COMPARTMENT DIAGONAL BRACE $1,204.08 To Order
Photo Part No Description Price (each) Stock
985339479 COMPL. LH INTERNAL UPPER ENGINE COMPARTMENT DIAGONAL BRACE $931.74 To Order
985768622 COMPL. LH INTERNAL UPPER ENGINE COMPARTMENT DIAGONAL BRACE $1,103.74 To Order
Photo Part No Description Price (each) Stock
985337371 COMPL. RH UPPER EXTERNAL ENGINE COMPARTMENT DIAGONAL BRACE $960.39 To Order
985803863 COMPL. RH UPPER EXTERNAL ENGINE COMPARTMENT DIAGONAL BRACE $1,290.10 To Order
Photo Part No Description Price (each) Stock
985337370 COMPL. LH UPPER EXTERNAL ENGINE COMPARTMENT DIAGONAL BRACE $946.70 To Order
985803910 COMPL. LH UPPER EXTERNAL ENGINE COMPARTMENT DIAGONAL BRACE $1,247.10 To Order
Photo Part No Description Price (each) Stock
985335236 COMPL. LH LOWER FRONT BOX $1,032.06 To Order
985909545 COMPL. LH LOWER FRONT BOX $1,633.46 To Order
985803892 COMPL. LH LOWER FRONT BOX $1,532.34 To Order
...and 2 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
985329884 COMPL. BRACKET $344.02 To Order
985804508 COMPL. BRACKET $587.70 To Order
Photo Part No Description Price (each) Stock
985786159 FRONT LH HOSE BRACKET $336.95 To Order
771140 FRONT LH HOSE BRACKET Enquire To Order
985786159 FRONT LH HOSE BRACKET $336.95 To Order
...and 3 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
985333845 ENGINE SUBFRAME $8,397.17 To Order
Photo Part No Description Price (each) Stock
985339826 COMPL. STRUT TOWER CONNECTOR CROSS MEMBER $1,003.41 To Order
985803870 COMPL. STRUT TOWER CONNECTOR CROSS MEMBER $1,261.42 To Order
985803870 COMPL. STRUT TOWER CONNECTOR CROSS MEMBER $1,261.42 To Order
Photo Part No Description Price (each) Stock
16289834 SCREW $1.36 To Order
Photo Part No Description Price (each) Stock
15541234 SCREW $1.54 To Order
Photo Part No Description Price (each) Stock
12646921 WASHER $0.53 To Order
Photo Part No Description Price (each) Stock
11343821 SCREW $1.15 To Order
Photo Part No Description Price (each) Stock
128944 WASHER $3.18 To Order
Photo Part No Description Price (each) Stock
749849 SCREW $2.06 To Order
Photo Part No Description Price (each) Stock
299580 SCREW $2.54 To Order
Photo Part No Description Price (each) Stock
749853 SCREW $2.54 To Order
Photo Part No Description Price (each) Stock
749854 SCREW $4.39 To Order
Photo Part No Description Price (each) Stock
985334831 FST 2WD RH $23,563.51 To Order
985806661 FST 2WD RH $23,968.83 To Order
Photo Part No Description Price (each) Stock
985334829 FST 2WD LH $22,883.70 To Order
Photo Part No Description Price (each) Stock
985337746 RH FRONT SPAR $1,283.66 To Order
985910528 COMPL. FRONT RH STRUT $1,412.03 To Order
985837485 COMPL. FRONT RH STRUT $1,283.66 To Order
Photo Part No Description Price (each) Stock
985337744 COMPL. FRONT LH STRUT $1,283.66 To Order
Photo Part No Description Price (each) Stock
985340715 RH FRONT CRASH BOX UPRIGHT $1,161.08 To Order
Photo Part No Description Price (each) Stock
985340713 LH FRONT CRASH BOX UPRIGHT $994.83 To Order
Photo Part No Description Price (each) Stock
985338589 LOWER FRONT CROSS MEMBER $1,428.08 To Order
Photo Part No Description Price (each) Stock
985339709 RH K-BRACE $817.05 To Order
Photo Part No Description Price (each) Stock
985339707 LH K-BRACE $802.72 To Order
Photo Part No Description Price (each) Stock
985786178 RH STRUT REINFORCEMENT $802.72 To Order
Photo Part No Description Price (each) Stock
985786176 LH STRUT REINFORCEMENT $802.72 To Order
Photo Part No Description Price (each) Stock
330777 RIVET $4.51 To Order
Photo Part No Description Price (each) Stock
11390521 SCREW $6.26 To Order
View All

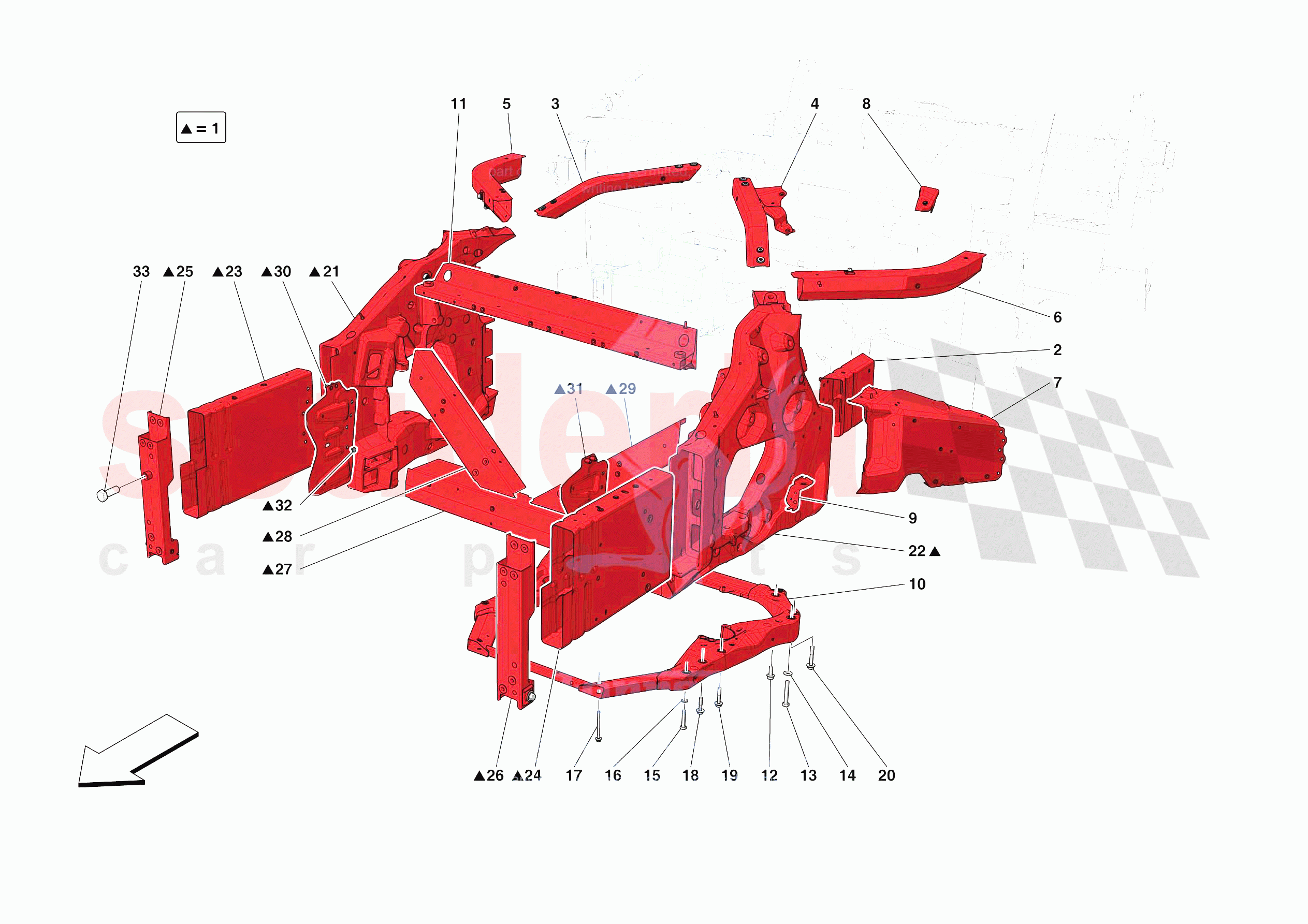

STRUCTURES AND ELEMENTS, FRONT OF VEHICLE of Ferrari Ferrari Portofino Europe Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
0001 322791
FRONT MODULE
Request ASM authorisation; No longer supplied 		- 1 Enquire
0002 985337752
COMPL. LH INTERNAL CENTRE ENGINE COMPARTMENT DIAGONAL BRACE
Request ASM authorisation 		$759.72 1
0002 985337754
COMPL. RH INTERNAL CENTRE ENGINE COMPARTMENT DIAGONAL BRACE
Request ASM authorisation 		$759.72 1
0003 985339480
COMPL. RH INTERNAL UPPER ENGINE COMPARTMENT DIAGONAL BRACE
Request ASM authorisation 		$874.39 1
0003 985804503
COMPL. RH INTERNAL UPPER ENGINE COMPARTMENT DIAGONAL BRACE
Request ASM authorisation 		$1,204.08 1
0004 985339479
COMPL. LH INTERNAL UPPER ENGINE COMPARTMENT DIAGONAL BRACE
Request ASM authorisation 		$931.74 1
0004 985768622
COMPL. LH INTERNAL UPPER ENGINE COMPARTMENT DIAGONAL BRACE
Request ASM authorisation 		$1,103.74 1
0005 985337371
COMPL. RH UPPER EXTERNAL ENGINE COMPARTMENT DIAGONAL BRACE
Request ASM authorisation 		$960.39 1
0005 985803863
COMPL. RH UPPER EXTERNAL ENGINE COMPARTMENT DIAGONAL BRACE
Request ASM authorisation 		$1,290.10 1
0006 985337370
COMPL. LH UPPER EXTERNAL ENGINE COMPARTMENT DIAGONAL BRACE
Request ASM authorisation 		$946.70 1
0006 985803910
COMPL. LH UPPER EXTERNAL ENGINE COMPARTMENT DIAGONAL BRACE
Request ASM authorisation 		$1,247.10 1
0007 985335236
COMPL. LH LOWER FRONT BOX
Request ASM authorisation; Applies until depletion 		$1,032.06 1
0007 985909545
COMPL. LH LOWER FRONT BOX
Request ASM authorisation; Applicable after depletion of 985335236 		$1,633.46 1
0007 985803892
COMPL. LH LOWER FRONT BOX
Request ASM authorisation 		$1,532.34 1
0007 985335235
COMPL. RH LOWER FRONT BOX
Request ASM authorisation 		$1,089.41 1
0007 985803913
COMPL. RH LOWER FRONT BOX
Request ASM authorisation 		$1,614.05 1
0008 985329884
COMPL. BRACKET 		$344.02 1
0008 985804508
COMPL. BRACKET 		$587.70 1
0009 985786159
FRONT LH HOSE BRACKET
Request ASM authorisation 		$336.95 1
0009 771140
FRONT LH HOSE BRACKET
No longer supplied - Replaced by 985786159 		- 1 Enquire
0009 985786159
FRONT LH HOSE BRACKET 		$336.95 1
0009 985786160
FRONT RH HOSE BRACKET
Request ASM authorisation 		$336.95 1
0009 771141
FRONT RH HOSE BRACKET
No longer supplied - Replaced by 985786160 		- 1 Enquire
0009 985786160
FRONT RH HOSE BRACKET 		$336.95 1
0010 985333845
ENGINE SUBFRAME
Request ASM authorisation 		$8,397.17 1
0011 985339826
COMPL. STRUT TOWER CONNECTOR CROSS MEMBER
Request ASM authorisation; Applies until depletion 		$1,003.41 1
0011 985803870
COMPL. STRUT TOWER CONNECTOR CROSS MEMBER
Request ASM authorisation 		$1,261.42 1
0011 985803870
COMPL. STRUT TOWER CONNECTOR CROSS MEMBER 		$1,261.42 1
0012 16289834
SCREW
M10 X 1.25 X 30 		$1.36 2
0013 15541234
SCREW
M12 X 1.25 X 70 		$1.54 2
0014 12646921
WASHER 		$0.53 2
0015 11343821
SCREW
M10 X 1.25 X 50 		$1.15 2
0016 128944
WASHER 		$3.18 2
0017 749849
SCREW
M8 X 100 		$2.06 2
0018 299580
SCREW
M10 X 1.25 X 55 		$2.54 2
0019 749853
SCREW
M10 X 1.25 X 60 		$2.54 2
0020 749854
SCREW
M12 X 1.25 X 75 		$4.39 2
0021 985334831
FST 2WD RH
Request ASM authorisation 		$23,563.51 1
0021 985806661
FST 2WD RH
Request ASM authorisation 		$23,968.83 1
0022 985334829
FST 2WD LH
Request ASM authorisation 		$22,883.70 1
0023 985337746
RH FRONT SPAR
Request ASM authorisation; Applies until depletion 		$1,283.66 1
0023 985910528
COMPL. FRONT RH STRUT
Request ASM authorisation; Applicable after depletion of 985337746 		$1,412.03 1
0023 985837485
COMPL. FRONT RH STRUT
Request ASM authorisation 		$1,283.66 1
0024 985337744
COMPL. FRONT LH STRUT
Request ASM authorisation 		$1,283.66 1
0025 985340715
RH FRONT CRASH BOX UPRIGHT
Request ASM authorisation 		$1,161.08 1
0026 985340713
LH FRONT CRASH BOX UPRIGHT
Request ASM authorisation 		$994.83 1
0027 985338589
LOWER FRONT CROSS MEMBER
Request ASM authorisation 		$1,428.08 1
0028 985339709
RH K-BRACE
Request ASM authorisation 		$817.05 1
0029 985339707
LH K-BRACE
Request ASM authorisation 		$802.72 1
0030 985786178
RH STRUT REINFORCEMENT
Request ASM authorisation 		$802.72 1
0031 985786176
LH STRUT REINFORCEMENT
Request ASM authorisation 		$802.72 1
0032 330777
RIVET 		$4.51 -
0033 11390521
SCREW
M16 X 1.5 X 40 		$6.26 1
