Name: HEAT EXCHANGER AND GEARBOX OIL PIPES - HEAT EXCHANGER AND REAR PIPES
Rating: 5.0 (1 reviews)

HEAT EXCHANGER AND GEARBOX OIL PIPES - HEAT EXCHANGER AND REAR PIPES of Ferrari Ferrari Portofino Europe

View All

Ferrari Portofino Europe - HEAT EXCHANGER AND GEARBOX OIL PIPES - HEAT EXCHANGER AND REAR PIPES

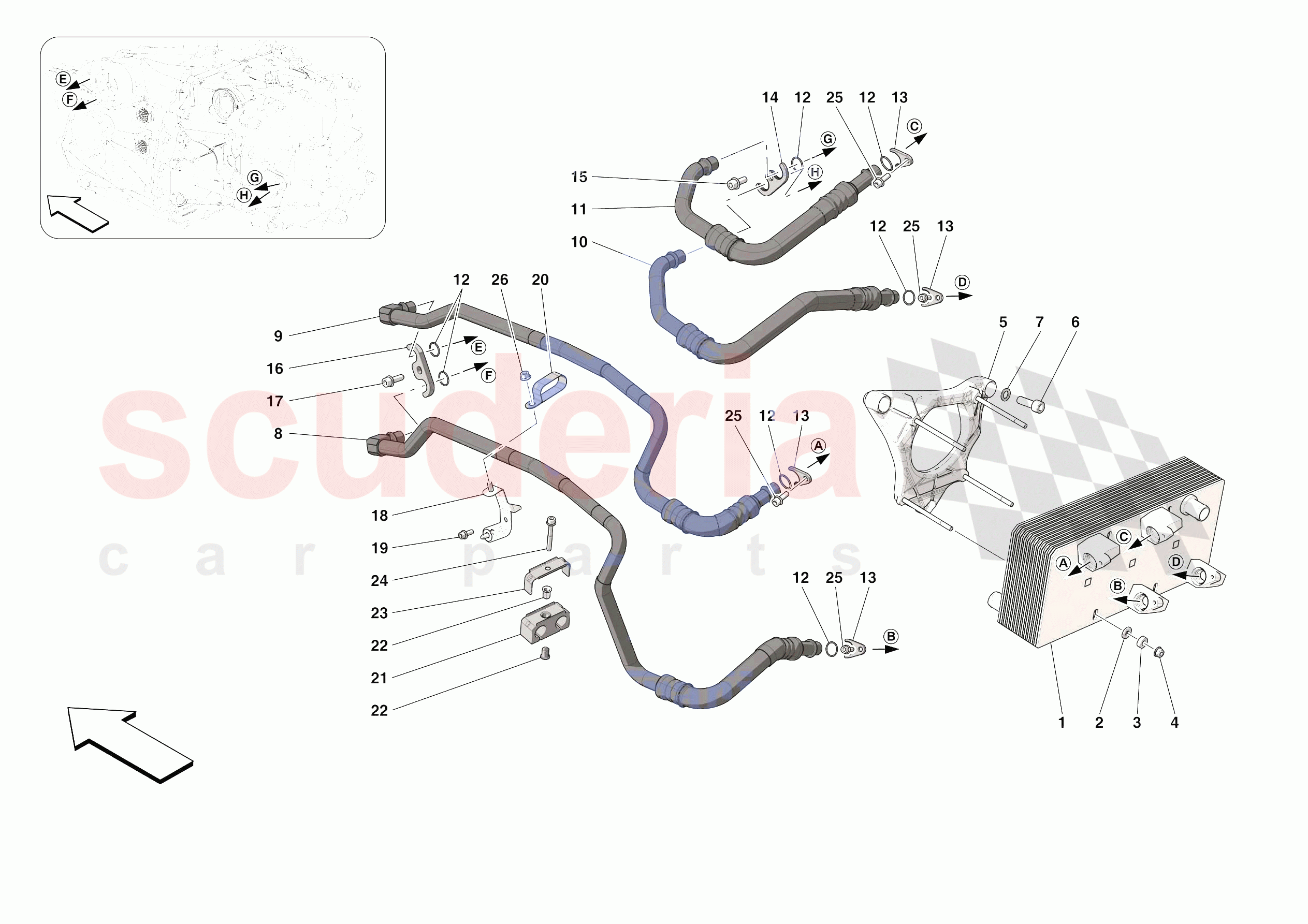

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	326420	OIL HEAT EXCHANGER	$1,659.14	To Order

Photo	Part No	Description	Price (each)	Stock
	14498801	WASHER	$0.11	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	13604015	SPACER	$0.81	To Order

Photo	Part No	Description	Price (each)	Stock
	14058421	NUT	$1.15	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	318265	GEARBOX SINGLE OIL HEAT EXCHANGER MOUNT	$112.31	To Order

Photo	Part No	Description	Price (each)	Stock
	14307534	SCREW	$2.66	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	12648321	WASHER	$0.75	To Order

Photo	Part No	Description	Price (each)	Stock
	741028	ATF FLUID DELIVERY PIPE	$369.04	To Order

Photo	Part No	Description	Price (each)	Stock
	741032	ATF FLUID RETURN PIPE	$320.90	To Order
	925844	ATF FLUID RETURN PIPE	$320.90	To Order

Photo	Part No	Description	Price (each)	Stock
	334875	GL-5 OIL DELIVERY PIPE	$256.72	To Order

Photo	Part No	Description	Price (each)	Stock
	334874	GL-5 OIL RETURN PIPE	$240.67	To Order

Photo	Part No	Description	Price (each)	Stock
	254644	O-RING	$0.41	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	262827	FORK	$19.24	To Order

Photo	Part No	Description	Price (each)	Stock
	261824	FORK	$30.44	To Order

Photo	Part No	Description	Price (each)	Stock
	248471	SCREW	$1.09	To Order

Photo	Part No	Description	Price (each)	Stock
	253463	FORK WITH CAPTIVE SCREW	$52.94	To Order

Photo	Part No	Description	Price (each)	Stock
	84317700	SCREW 8 X 30	$23.55	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	748015	COMPL. BRACKET	$33.68	To Order

Photo	Part No	Description	Price (each)	Stock
	248334	SCREW	$0.68	To Order

Photo	Part No	Description	Price (each)	Stock
	275752	BRACKET	$12.82	To Order

Photo	Part No	Description	Price (each)	Stock
	243397	RETAINER BLOCK	$17.63	To Order

Photo	Part No	Description	Price (each)	Stock
	243399	BUSH	$0.75	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	243398	PLATE	$14.10	To Order

Photo	Part No	Description	Price (each)	Stock
	231624	SCREW	$0.44	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	231619	SCREW	$0.31	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	14040611	NUT	$0.28	IN STOCK

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
0001	326420	OIL HEAT EXCHANGER	326420 OIL HEAT EXCHANGER	$1,659.14	1
0002	14498801	WASHER IN STOCK	14498801 WASHER D. 6.45 - 16 X 2 IN STOCK	$0.11 MSRP: ~~0.20~~ (45% off)	4
0003	13604015	SPACER	13604015 SPACER	$0.81	4
0004	14058421	NUT IN STOCK	14058421 NUT IN STOCK	$1.15	4
0005	318265	GEARBOX SINGLE OIL HEAT EXCHANGER MOUNT	318265 GEARBOX SINGLE OIL HEAT EXCHANGER MOUNT	$112.31	1
0006	14307534	SCREW IN STOCK	14307534 SCREW M10 X 1.25 X 30 IN STOCK	$2.66	3
0007	12648321	WASHER	12648321 WASHER	$0.75	3
0008	741028	ATF FLUID DELIVERY PIPE	741028 ATF FLUID DELIVERY PIPE	$369.04	1
0009	741032	ATF FLUID RETURN PIPE	741032 ATF FLUID RETURN PIPE Applies until depletion	$320.90	1
0009	925844	ATF FLUID RETURN PIPE	925844 ATF FLUID RETURN PIPE Applicable after depletion of 741032	$320.90	1
0010	334875	GL-5 OIL DELIVERY PIPE	334875 GL-5 OIL DELIVERY PIPE	$256.72	1
0011	334874	GL-5 OIL RETURN PIPE	334874 GL-5 OIL RETURN PIPE	$240.67	1
0012	254644	O-RING IN STOCK	254644 O-RING IN STOCK	$0.41 MSRP: ~~0.50~~ (18% off)	8
0013	262827	FORK	262827 FORK	$19.24	4
0014	261824	FORK	261824 FORK	$30.44	1
0015	248471	SCREW	248471 SCREW M8 X 20	$1.09	1
0016	253463	FORK WITH CAPTIVE SCREW	253463 FORK WITH CAPTIVE SCREW	$52.94	1
0017	84317700	SCREW 8 X 30 IN STOCK	84317700 SCREW 8 X 30 M8 X 25 IN STOCK	$23.55	1
0018	748015	COMPL. BRACKET	748015 COMPL. BRACKET	$33.68	1
0019	248334	SCREW	248334 SCREW M6 X 16	$0.68	1
0020	275752	BRACKET	275752 BRACKET	$12.82	1
0021	243397	RETAINER BLOCK	243397 RETAINER BLOCK	$17.63	1
0022	243399	BUSH IN STOCK	243399 BUSH IN STOCK	$0.75	2
0023	243398	PLATE	243398 PLATE	$14.10	1
0024	231624	SCREW IN STOCK	231624 SCREW M6 X 45 IN STOCK	$0.44	1
0025	231619	SCREW IN STOCK	231619 SCREW M6 X 18 IN STOCK	$0.31	4
0026	14040611	NUT IN STOCK	14040611 NUT IN STOCK	$0.28	1

Heat Exchanger And Gearbox Oil Pipes - Heat Exchanger And Rear Pipes

Ferrari Portofino Europe
