Name: ENGINE ELECTRICAL SYSTEM
Rating: 4.4 (1 reviews)

ENGINE ELECTRICAL SYSTEM of Ferrari Ferrari Portofino Europe

View All

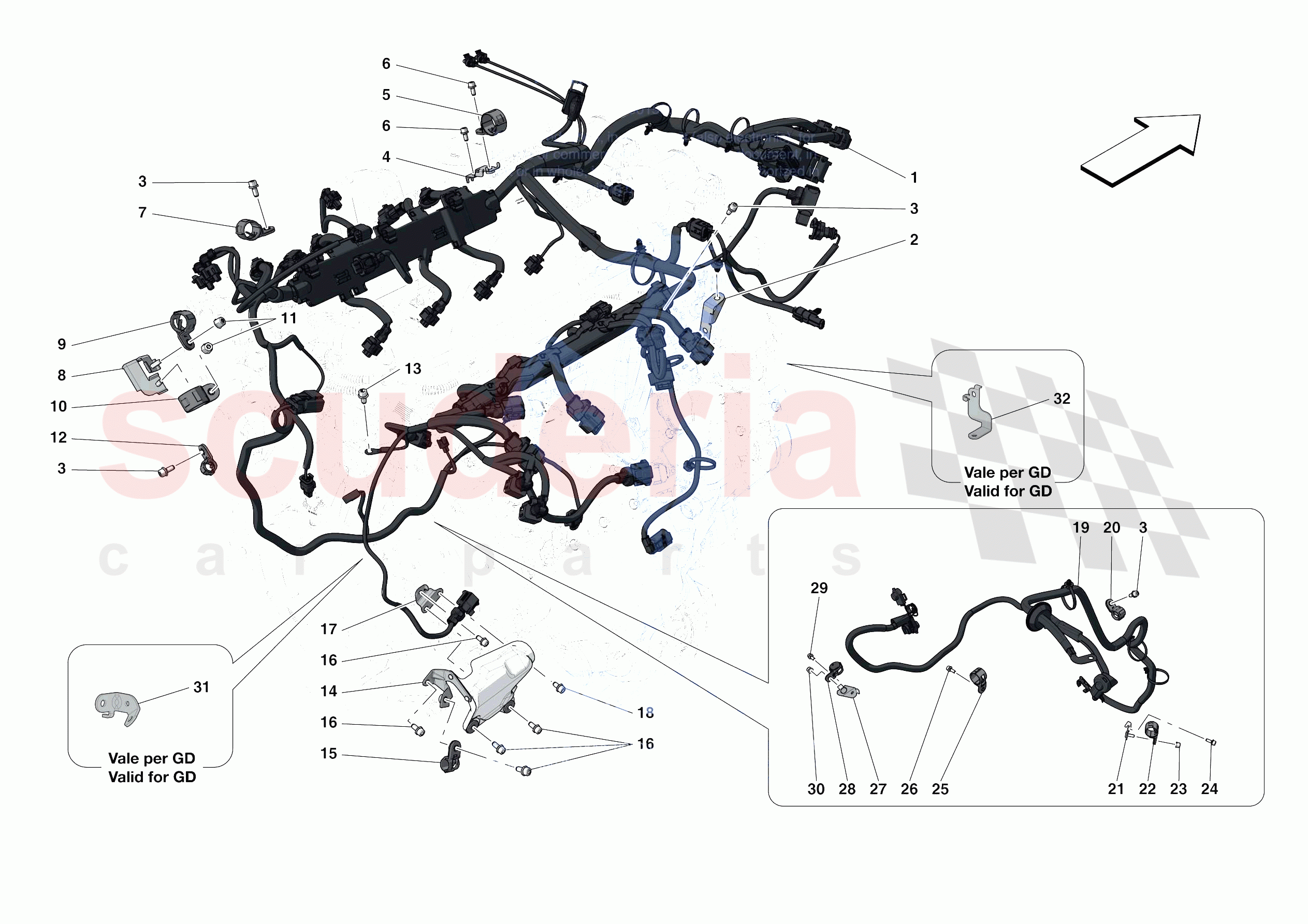

Ferrari Portofino Europe - ENGINE ELECTRICAL SYSTEM

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	813110	INJECTION WIRING HARNESS	$2,601.70	To Order
	813110	INJECTION WIRING HARNESS	$2,601.70	To Order
	813111	INJECTION WIRING HARNESS	$2,832.10	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	340740	RH BRACKET	$18.62	To Order

Photo	Part No	Description	Price (each)	Stock
	248334	SCREW	$0.68	To Order

Photo	Part No	Description	Price (each)	Stock
	769597	BRACKET	$24.34	To Order

Photo	Part No	Description	Price (each)	Stock
	320601	CLIP	$2.25	To Order

Photo	Part No	Description	Price (each)	Stock
	248334	SCREW	$0.68	To Order

Photo	Part No	Description	Price (each)	Stock
	320599	CLIP	$1.85	To Order

Photo	Part No	Description	Price (each)	Stock
	295730	CABLE RETAINER BRACKET	$25.79	To Order

Photo	Part No	Description	Price (each)	Stock
	320599	CLIP	$1.85	To Order

Photo	Part No	Description	Price (each)	Stock
	320600	CLIP	$2.25	To Order

Photo	Part No	Description	Price (each)	Stock
	14059290	FLANGED NUT M6	$1.51	To Order

Photo	Part No	Description	Price (each)	Stock
	320597	CLIP	$1.85	To Order

Photo	Part No	Description	Price (each)	Stock
	248334	SCREW	$0.68	To Order

Photo	Part No	Description	Price (each)	Stock
	291662	SOLENOID VALVE HEAT SHIELD	$215.00	To Order

Photo	Part No	Description	Price (each)	Stock
	320597	CLIP	$1.85	To Order

Photo	Part No	Description	Price (each)	Stock
	248334	SCREW	$0.68	To Order

Photo	Part No	Description	Price (each)	Stock
	279626	SHIELD MOUNTING BRACKET	$9.61	To Order

Photo	Part No	Description	Price (each)	Stock
	248334	SCREW	$0.68	To Order

Photo	Part No	Description	Price (each)	Stock
	820264	ENGINE SERVICES CABLE	$344.02	To Order
	819376	ENGINE SERVICES CABLE	$444.36	To Order

Photo	Part No	Description	Price (each)	Stock
	320598	CLIP	$1.85	To Order

Photo	Part No	Description	Price (each)	Stock
	329905	COMPL. BRACKET	$25.79	To Order

Photo	Part No	Description	Price (each)	Stock
	320600	CLIP	$2.25	To Order

Photo	Part No	Description	Price (each)	Stock
	14059290	FLANGED NUT M6	$1.51	To Order

Photo	Part No	Description	Price (each)	Stock
	248334	SCREW	$0.68	To Order

Photo	Part No	Description	Price (each)	Stock
	320600	CLIP	$2.25	To Order

Photo	Part No	Description	Price (each)	Stock
	248334	SCREW	$0.68	To Order

Photo	Part No	Description	Price (each)	Stock
	329906	WIRING HARNESS MOUNTING BRACKET	$13.61	To Order

Photo	Part No	Description	Price (each)	Stock
	320599	CLIP	$1.85	To Order

Photo	Part No	Description	Price (each)	Stock
	248334	SCREW	$0.68	To Order

Photo	Part No	Description	Price (each)	Stock
	14059290	FLANGED NUT M6	$1.51	To Order

Photo	Part No	Description	Price (each)	Stock
	820917	BRACKET	$13.61	To Order

Photo	Part No	Description	Price (each)	Stock
	794721	BRACKET	$28.66	To Order

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
0001	813110	INJECTION WIRING HARNESS	813110 INJECTION WIRING HARNESS Applicable up to engine No. 416456	$2,601.70	1
0001	813110	INJECTION WIRING HARNESS	813110 INJECTION WIRING HARNESS	$2,601.70	1
0001	813111	INJECTION WIRING HARNESS	813111 INJECTION WIRING HARNESS Applicable from engine No. 416457	$2,832.10	1
0001	813111	INJECTION WIRING HARNESS	813111 INJECTION WIRING HARNESS	$2,832.10	1
0002	340740	RH BRACKET	340740 RH BRACKET	$18.62	1
0003	248334	SCREW	248334 SCREW M6 X 16	$0.68	1
0004	769597	BRACKET	769597 BRACKET	$24.34	1
0005	320601	CLIP	320601 CLIP	$2.25	1
0006	248334	SCREW	248334 SCREW M6 X 14	$0.68	2
0007	320599	CLIP	320599 CLIP	$1.85	1
0008	295730	CABLE RETAINER BRACKET	295730 CABLE RETAINER BRACKET	$25.79	1
0009	320599	CLIP	320599 CLIP	$1.85	1
0010	320600	CLIP	320600 CLIP	$2.25	3
0011	14059290	FLANGED NUT M6	14059290 FLANGED NUT M6	$1.51	2
0012	320597	CLIP	320597 CLIP	$1.85	1
0013	248334	SCREW	248334 SCREW M6 X 12	$0.68	2
0014	291662	SOLENOID VALVE HEAT SHIELD	291662 SOLENOID VALVE HEAT SHIELD	$215.00	1
0015	320597	CLIP	320597 CLIP	$1.85	1
0016	248334	SCREW	248334 SCREW M6 X 14	$0.68	5
0017	279626	SHIELD MOUNTING BRACKET	279626 SHIELD MOUNTING BRACKET	$9.61	1
0018	248334	SCREW	248334 SCREW M6 X 12	$0.68	1
0019	820264	ENGINE SERVICES CABLE	820264 ENGINE SERVICES CABLE	$344.02	1
0019	819376	ENGINE SERVICES CABLE	819376 ENGINE SERVICES CABLE	$444.36	1
0020	320598	CLIP	320598 CLIP	$1.85	1
0021	329905	COMPL. BRACKET	329905 COMPL. BRACKET	$25.79	1
0022	320600	CLIP	320600 CLIP	$2.25	1
0023	14059290	FLANGED NUT M6	14059290 FLANGED NUT M6	$1.51	1
0024	248334	SCREW	248334 SCREW M6 X 16	$0.68	1
0025	320600	CLIP	320600 CLIP	$2.25	3
0026	248334	SCREW	248334 SCREW M6 X 16	$0.68	6
0027	329906	WIRING HARNESS MOUNTING BRACKET	329906 WIRING HARNESS MOUNTING BRACKET	$13.61	1
0028	320599	CLIP	320599 CLIP	$1.85	1
0029	248334	SCREW	248334 SCREW M6 X 16	$0.68	1
0030	14059290	FLANGED NUT M6	14059290 FLANGED NUT M6	$1.51	1
0031	820917	BRACKET	820917 BRACKET	$13.61	1
0032	794721	BRACKET	794721 BRACKET	$28.66	2
