FRONT SUSPENSION - ARMS

Find Your Part

Ferrari Portofino M USA - FRONT SUSPENSION - ARMS

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
867714 COMPL. RH FRONT HUB CARRIER $2,576.97 To Order
867707 COMPL. LH FRONT HUB CARRIER $2,576.97 To Order
Photo Part No Description Price (each) Stock
338963 ABS SENSOR $82.64 To Order
Photo Part No Description Price (each) Stock
289163 COMPL. FRONT LH JOINT BRACKET $38.69 To Order
289164 COMPL. FRONT RH JOINT BRACKET $38.69 To Order
Photo Part No Description Price (each) Stock
13046011 NUT $0.39 To Order
Photo Part No Description Price (each) Stock
241689 WASHER $7.68 To Order
Photo Part No Description Price (each) Stock
203795 NUT $2.58 To Order
Photo Part No Description Price (each) Stock
268896 LH FRONT LOWER ARM $1,331.80 To Order
268897 RH FRONT LOWER ARM $1,412.03 To Order
Photo Part No Description Price (each) Stock
104114 NUT $0.41 To Order
Photo Part No Description Price (each) Stock
14496624 WASHER D.10.5-21 X 2 $0.06 To Order
Photo Part No Description Price (each) Stock
264528 THREADED ROD $3.94 To Order
Photo Part No Description Price (each) Stock
238885 CAMBER SPACER 4MM $5.77 To Order
238882 ADJUSTMENT SHIM $5.59 To Order
238883 ADJUSTMENT SHIM $5.59 To Order
...and 5 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
333345 ADJUSTMENT SHIM $10.76 To Order
333343 ADJUSTMENT SHIM $7.83 To Order
333344 ADJUSTMENT SHIM $9.11 To Order
...and 5 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
275791 ABS CABLE AND GROUND CABLE GUIDE BRACKET $28.66 To Order
Photo Part No Description Price (each) Stock
261214 CLIP $1.36 To Order
Photo Part No Description Price (each) Stock
12646821 WASHER D.10 20-25 X 2 $0.11 To Order
Photo Part No Description Price (each) Stock
331629 UPPER RH FRONT ARM $882.51 To Order
331628 UPPER LH FRONT ARM $834.37 To Order
Photo Part No Description Price (each) Stock
12646921 WASHER $0.53 To Order
Photo Part No Description Price (each) Stock
149807 NUT $1.18 To Order
Photo Part No Description Price (each) Stock
984045 COMPL. TRAVEL SENSOR $206.65 To Order
Photo Part No Description Price (each) Stock
340267 FRONT LH BRACKET FOR TRAVEL SENSOR $14.10 To Order
Photo Part No Description Price (each) Stock
340268 FRONT RH BRACKET FOR TRAVEL SENSOR $14.10 To Order
Photo Part No Description Price (each) Stock
16284934 FLANGED SCREW $0.81 To Order
Photo Part No Description Price (each) Stock
231619 SCREW $0.31 To Order
Photo Part No Description Price (each) Stock
216973 BALL JOINT $3.55 To Order
View All

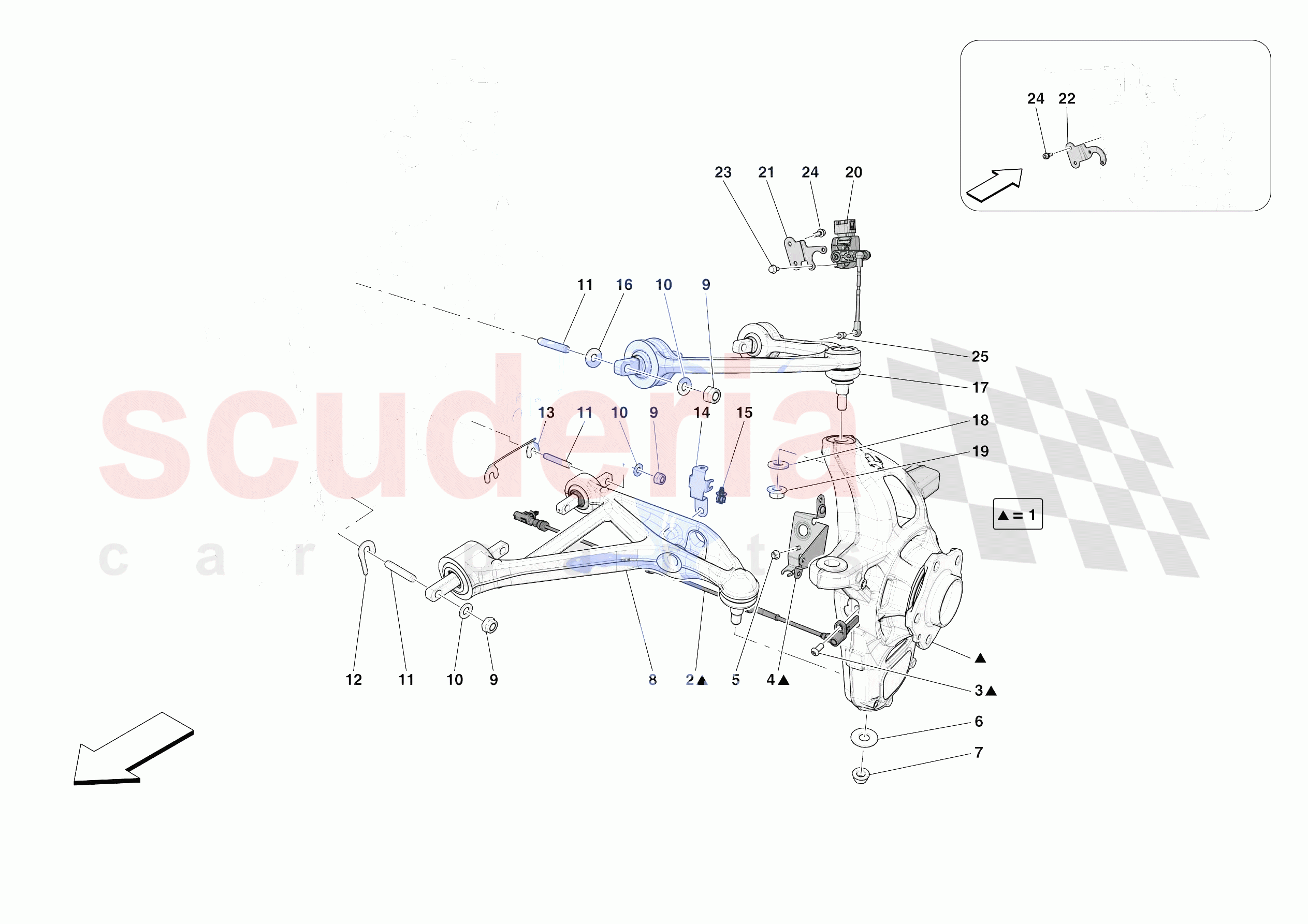

FRONT SUSPENSION - ARMS of Ferrari Ferrari Portofino M USA Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
0001 867714
COMPL. RH FRONT HUB CARRIER 		$2,576.97 1
0001 867707
COMPL. LH FRONT HUB CARRIER 		$2,576.97 1
0002 338963
ABS SENSOR 		$82.64 2
0004 289163
COMPL. FRONT LH JOINT BRACKET 		$38.69 1
0004 289164
COMPL. FRONT RH JOINT BRACKET 		$38.69 1
0005 13046011
NUT 		$0.39 2
0006 241689
WASHER 		$7.68 2
0007 203795
NUT 		$2.58 2
0008 268896
LH FRONT LOWER ARM 		$1,331.80 1
0008 268897
RH FRONT LOWER ARM 		$1,412.03 1
0009 104114
NUT 		$0.41 (18% off) 16
0010 14496624
WASHER D.10.5-21 X 2
D. 10.5-21 X 2 		$0.06 16
0011 264528
THREADED ROD 		$3.94 16
0012 238885
CAMBER SPACER 4MM
Th. 4 mm 		$5.77 (7.7% off) 4
0012 238882
ADJUSTMENT SHIM
Th. 2.5 mm 		$5.59 (10.6% off) 4
0012 238883
ADJUSTMENT SHIM
Th. 3 mm 		$5.59 (10.6% off) 4
0012 238884
ADJUSTMENT SHIM
Th. 3.5 mm 		$5.59 (10.6% off) 4
0012 263035
ADJUSTMENT SHIM
Th. 2 mm 		$3.61 4
0012 263032
ADJUSTMENT SHIM
Th. 0.5 mm 		$11.73 4
0012 263033
ADJUSTMENT SHIM
Th. 1 mm 		$3.61 4
0012 238881
CAMBER SPACER 1.5MM
Th. 1.5 mm 		$5.77 (6.2% off) 4
0013 333345
ADJUSTMENT SHIM
Th. 4 mm 		$10.76 2
0013 333343
ADJUSTMENT SHIM
Th. 3 mm 		$7.83 2
0013 333344
ADJUSTMENT SHIM
Th. 3.5 mm 		$9.11 2
0013 333342
ADJUSTMENT SHIM
Th. 2.5 mm 		$6.84 2
0013 333341
ADJUSTMENT SHIM
Th. 2 mm 		$5.67 2
0013 333340
CAMBER ADJUSTMENT SHIM
Th. 1.5 mm 		$4.75 2
0013 333339
ADJUSTMENT SHIM
Th. 1 mm 		$3.61 2
0013 333338
ADJUSTMENT SHIM
Th. 0.5 mm 		$3.23 2
0014 275791
ABS CABLE AND GROUND CABLE GUIDE BRACKET 		$28.66 2
0015 261214
CLIP 		$1.36 2
0016 12646821
WASHER D.10 20-25 X 2 		$0.11 (78% off) 8
0017 331629
UPPER RH FRONT ARM 		$882.51 1
0017 331628
UPPER LH FRONT ARM 		$834.37 1
0018 12646921
WASHER 		$0.53 1
0019 149807
NUT 		$1.18 (41% off) 2
0020 984045
COMPL. TRAVEL SENSOR
Dual Mode Magneride 		$206.65 2
0021 340267
FRONT LH BRACKET FOR TRAVEL SENSOR
Dual Mode Magneride 		$14.10 1
0022 340268
FRONT RH BRACKET FOR TRAVEL SENSOR
Dual Mode Magneride 		$14.10 1
0023 16284934
FLANGED SCREW
Dual Mode Magneride; M5 X 10 		$0.81 4
0024 231619
SCREW
Dual Mode Magneride; M6 X 18 		$0.31 4
0025 216973
BALL JOINT
Dual Mode Magneride 		$3.55 (21.1% off) 2
