FUEL PUMPS of Ferrari Ferrari Portofino M Europe

View All

Ferrari Portofino M Europe - FUEL PUMPS

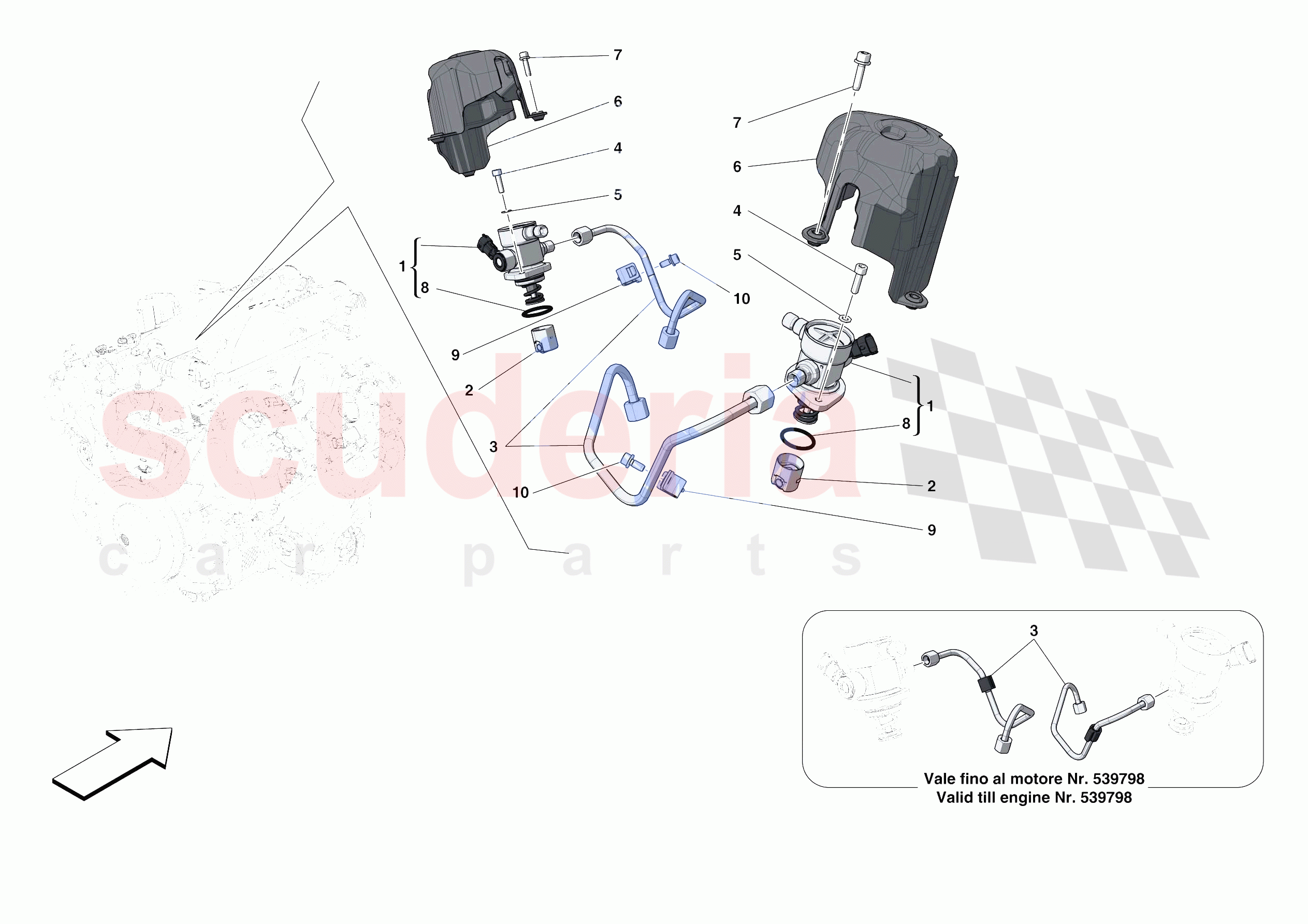

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	330624	FUEL PUMP	Enquire	To Order
	330624	FUEL PUMP	Enquire	To Order
	330624	FUEL PUMP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	270601	HIG PRESSURE PUMP BUCKET	Enquire	To Order
	270601	HIG PRESSURE PUMP BUCKET	Enquire	To Order
	270601	HIG PRESSURE PUMP BUCKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	297510	HIGH PRESSURE FUEL PIPE	Enquire	To Order
	321485	FUEL PIPE	Enquire	To Order
	297510	HIGH PRESSURE FUEL PIPE	Enquire	To Order

...and 3 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	14305334	SCREW	Enquire	To Order
	14305334	SCREW	Enquire	To Order
	14305334	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12639724	WASHER	Enquire	To Order
	12639724	WASHER	Enquire	To Order
	12639724	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	297021	GDI PUMP SOUNDPROOFING COVER	Enquire	To Order
	793242	GDI PUMP SOUNDPROOFING COVER	Enquire	To Order
	297021	GDI PUMP SOUNDPROOFING COVER	Enquire	To Order

...and 3 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	231619	SOCKET HEAD SCREW M6 X 22 WITH WASHER	Enquire	To Order
	231619	SOCKET HEAD SCREW M6 X 22 WITH WASHER	Enquire	To Order
	231619	SOCKET HEAD SCREW M6 X 22 WITH WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	769201	O-RING	Enquire	To Order
	769201	O-RING	Enquire	To Order
	769201	O-RING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	836236	BRACKET	Enquire	To Order
	836236	BRACKET	Enquire	To Order
	836236	BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	248334	SCREW M6 X 14MM	Enquire	To Order
	248334	SCREW M6 X 14MM	Enquire	To Order
	248334	SCREW M6 X 14MM	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
0001	330624	FUEL PUMP	330624 FUEL PUMP Also order ref. 3 high pressure fuel pipe	-	2	Enquire
0001	330624	FUEL PUMP	330624 FUEL PUMP	-	2	Enquire
0001	330624	FUEL PUMP	330624 FUEL PUMP	-	2	Enquire
0002	270601	HIG PRESSURE PUMP BUCKET	270601 HIG PRESSURE PUMP BUCKET	-	2	Enquire
0002	270601	HIG PRESSURE PUMP BUCKET	270601 HIG PRESSURE PUMP BUCKET	-	2	Enquire
0002	270601	HIG PRESSURE PUMP BUCKET	270601 HIG PRESSURE PUMP BUCKET	-	2	Enquire
0003	297510	HIGH PRESSURE FUEL PIPE	297510 HIGH PRESSURE FUEL PIPE Applicable up to engine No. 539798	-	2	Enquire
0003	321485	FUEL PIPE	321485 FUEL PIPE Applicable from engine No. 539799	-	2	Enquire
0003	297510	HIGH PRESSURE FUEL PIPE	297510 HIGH PRESSURE FUEL PIPE	-	2	Enquire
0003	321485	FUEL PIPE	321485 FUEL PIPE	-	2	Enquire
0003	297510	HIGH PRESSURE FUEL PIPE	297510 HIGH PRESSURE FUEL PIPE	-	2	Enquire
0003	321485	FUEL PIPE	321485 FUEL PIPE	-	2	Enquire
0004	14305334	SCREW	14305334 SCREW M6 X 20	-	4	Enquire
0004	14305334	SCREW	14305334 SCREW M6 X 20	-	4	Enquire
0004	14305334	SCREW	14305334 SCREW M6 X 20	-	4	Enquire
0005	12639724	WASHER	12639724 WASHER	-	4	Enquire
0005	12639724	WASHER	12639724 WASHER	-	4	Enquire
0005	12639724	WASHER	12639724 WASHER	-	4	Enquire
0006	297021	GDI PUMP SOUNDPROOFING COVER	297021 GDI PUMP SOUNDPROOFING COVER Applies until depletion	-	2	Enquire
0006	793242	GDI PUMP SOUNDPROOFING COVER	793242 GDI PUMP SOUNDPROOFING COVER Applicable after depletion of 297021	-	2	Enquire
0006	297021	GDI PUMP SOUNDPROOFING COVER	297021 GDI PUMP SOUNDPROOFING COVER	-	2	Enquire
0006	793242	GDI PUMP SOUNDPROOFING COVER	793242 GDI PUMP SOUNDPROOFING COVER	-	2	Enquire
0006	297021	GDI PUMP SOUNDPROOFING COVER	297021 GDI PUMP SOUNDPROOFING COVER	-	2	Enquire
0006	793242	GDI PUMP SOUNDPROOFING COVER	793242 GDI PUMP SOUNDPROOFING COVER	-	2	Enquire
0007	231619	SOCKET HEAD SCREW M6 X 22 WITH WASHER	231619 SOCKET HEAD SCREW M6 X 22 WITH WASHER M6 X 22	-	6	Enquire
0007	231619	SOCKET HEAD SCREW M6 X 22 WITH WASHER	231619 SOCKET HEAD SCREW M6 X 22 WITH WASHER M6 X 22	-	6	Enquire
0007	231619	SOCKET HEAD SCREW M6 X 22 WITH WASHER	231619 SOCKET HEAD SCREW M6 X 22 WITH WASHER M6 X 22	-	6	Enquire
0008	769201	O-RING	769201 O-RING	-	2	Enquire
0008	769201	O-RING	769201 O-RING	-	2	Enquire
0008	769201	O-RING	769201 O-RING	-	2	Enquire
0009	836236	BRACKET	836236 BRACKET Applicable from engine No. 539799	-	2	Enquire
0009	836236	BRACKET	836236 BRACKET	-	2	Enquire
0009	836236	BRACKET	836236 BRACKET	-	2	Enquire
0010	248334	SCREW M6 X 14MM	248334 SCREW M6 X 14MM M6 X 14	-	2	Enquire
0010	248334	SCREW M6 X 14MM	248334 SCREW M6 X 14MM M6 X 14	-	2	Enquire
0010	248334	SCREW M6 X 14MM	248334 SCREW M6 X 14MM M6 X 14	-	2	Enquire
