FRONT SUBSTRUCTURE

Find Your Part

Ferrari Portofino M Europe RH - FRONT SUBSTRUCTURE

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
985769896 FRONT BUMPER CROSS MEMBER $641.82 To Order
Photo Part No Description Price (each) Stock
231619 SCREW $0.31 To Order
Photo Part No Description Price (each) Stock
12643724 WASHER $0.06 To Order
Photo Part No Description Price (each) Stock
985769903 COMPL. INNER LATERAL FASTENER BRACKET FOR HEADLIGHT $97.86 To Order
Photo Part No Description Price (each) Stock
16286121 SCREW $0.70 To Order
Photo Part No Description Price (each) Stock
68040000 WASHER $0.15 To Order
Photo Part No Description Price (each) Stock
985790906 COMPL. RH HEADLIGHT-CHASSIS FASTENER BRACKET $97.86 To Order
985790908 COMPL. LH HEADLIGHT-CHASSIS FASTENER BRACKET $97.86 To Order
Photo Part No Description Price (each) Stock
68040000 WASHER $0.15 To Order
Photo Part No Description Price (each) Stock
88731411 COMPL. RH FRONT FENDER MOUNT $722.05 To Order
88732311 COMPL. LH FRONT FENDER MOUNT $722.05 To Order
Photo Part No Description Price (each) Stock
88732911 UPPER FRONT CONNECTOR ELEMENT $97.86 To Order
Photo Part No Description Price (each) Stock
985783773 RH FENDER TRELLIS FASTENER BRACKET $85.03 To Order
985783774 LH FENDER TRELLIS FASTENER BRACKET $85.03 To Order
Photo Part No Description Price (each) Stock
88731911 COMPL. EXPANSION TANK MOUNTING BRACKET $97.86 To Order
Photo Part No Description Price (each) Stock
985780486 RH INTERCOOLER TRELLIS $1,010.88 To Order
985780486 RH INTERCOOLER TRELLIS $1,010.88 To Order
985780482 LH FRONT INTERCOOLER TRELLIS $1,010.88 To Order
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
88730911 RH INTERCOOLER CROSS PIECE TIE-ROD $192.54 To Order
88730811 LH INTERCOOLER CROSS PIECE TIE-ROD $192.54 To Order
Photo Part No Description Price (each) Stock
86225600 METAL PLATE $4.86 To Order
Photo Part No Description Price (each) Stock
88730011 RH OUTER LOWER HEADLIGHT FASTENER BRACKET $97.86 To Order
800427 RH OUTER LOWER HEADLIGHT FASTENER BRACKET $13.31 To Order
88729911 LH OUTER LOWER HEADLIGHT FASTENER BRACKET $97.86 To Order
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
88731211 COMPL. EXTERNAL RH FENDER CONNECTOR BRACKET $126.75 To Order
88731011 COMPL. EXTERNAL LH FENDER CONNECTOR BRACKET $126.75 To Order
Photo Part No Description Price (each) Stock
985340709 COMPL. RH BUMPER $430.02 To Order
985340703 COMPL. LH BUMPER $433.23 To Order
Photo Part No Description Price (each) Stock
13028734 SCREW $0.53 To Order
Photo Part No Description Price (each) Stock
14639791 RIVET $1.36 To Order
Photo Part No Description Price (each) Stock
87944700 WASHER $0.29 To Order
View All

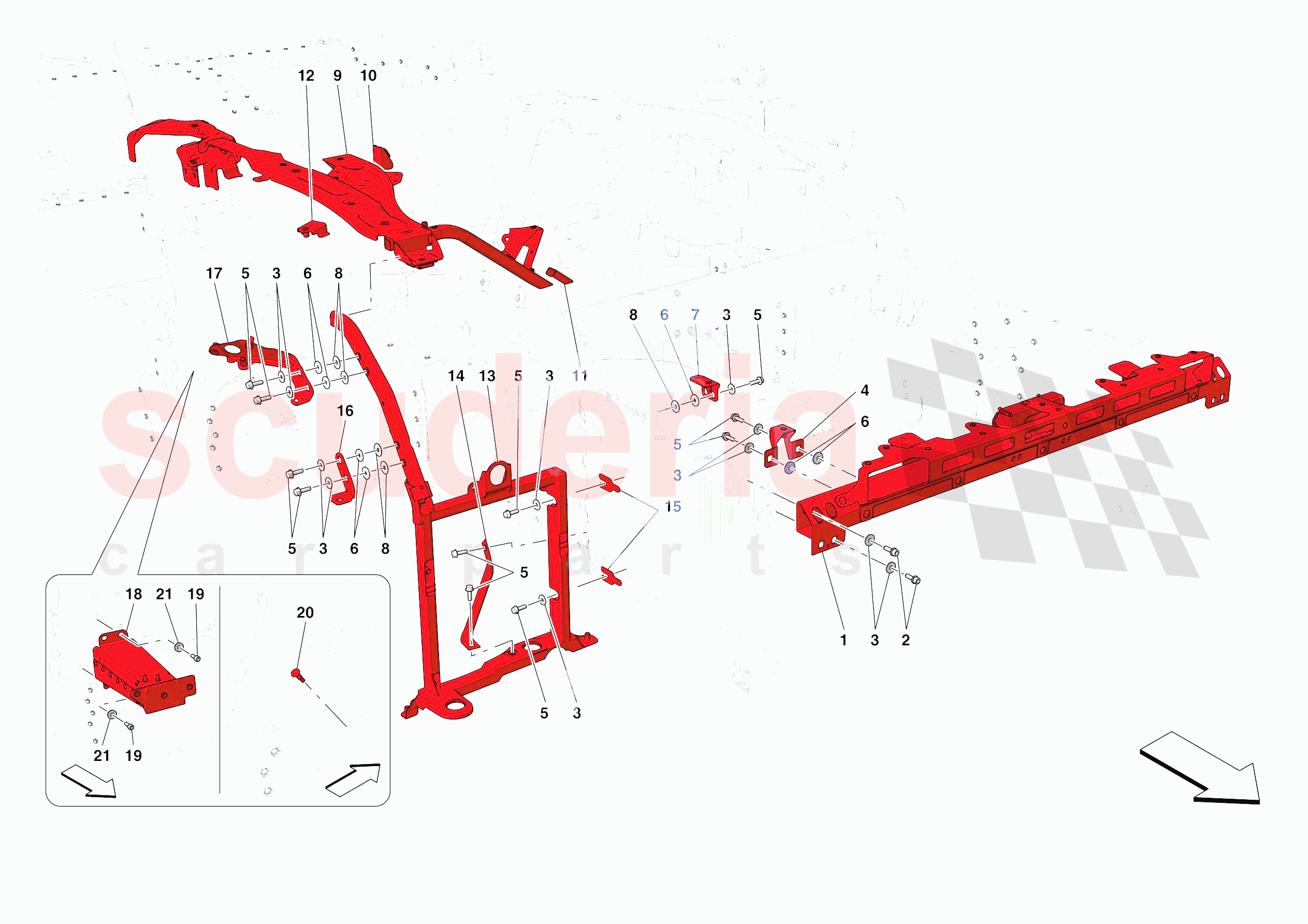

FRONT SUBSTRUCTURE of Ferrari Ferrari Portofino M Europe RH Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
0001 985769896
FRONT BUMPER CROSS MEMBER 		$641.82 1
0002 231619
SCREW
M6 X 20 		$0.31 4
0003 12643724
WASHER 		$0.06 (88% off) 24
0004 985769903
COMPL. INNER LATERAL FASTENER BRACKET FOR HEADLIGHT 		$97.86 2
0005 16286121
SCREW
M6 X 20 		$0.70 (48.1% off) 24
0006 68040000
WASHER 		$0.15 16
0007 985790906
COMPL. RH HEADLIGHT-CHASSIS FASTENER BRACKET 		$97.86 1
0007 985790908
COMPL. LH HEADLIGHT-CHASSIS FASTENER BRACKET 		$97.86 1
0008 68040000
WASHER 		$0.15 12
0009 88731411
COMPL. RH FRONT FENDER MOUNT
Request ASM authorisation 		$722.05 1
0009 88732311
COMPL. LH FRONT FENDER MOUNT
Request ASM authorisation 		$722.05 1
0010 88732911
UPPER FRONT CONNECTOR ELEMENT 		$97.86 2
0011 985783773
RH FENDER TRELLIS FASTENER BRACKET 		$85.03 1
0011 985783774
LH FENDER TRELLIS FASTENER BRACKET 		$85.03 1
0012 88731911
COMPL. EXPANSION TANK MOUNTING BRACKET 		$97.86 1
0013 985780486
RH INTERCOOLER TRELLIS
Request ASM authorisation - For vehicles up to Ass.ly No. 185991 also order bracket 800427 ref. 16 		$1,010.88 1
0013 985780486
RH INTERCOOLER TRELLIS 		$1,010.88 1
0013 985780482
LH FRONT INTERCOOLER TRELLIS
Request ASM authorisation - For vehicles up to Ass.ly No. 185991 also order bracket 800426 ref. 16 		$1,010.88 1
0013 985780482
LH FRONT INTERCOOLER TRELLIS 		$1,010.88 1
0014 88730911
RH INTERCOOLER CROSS PIECE TIE-ROD 		$192.54 1
0014 88730811
LH INTERCOOLER CROSS PIECE TIE-ROD 		$192.54 1
0015 86225600
METAL PLATE 		$4.86 4
0016 88730011
RH OUTER LOWER HEADLIGHT FASTENER BRACKET 		$97.86 1
0016 800427
RH OUTER LOWER HEADLIGHT FASTENER BRACKET 		$13.31 1
0016 88729911
LH OUTER LOWER HEADLIGHT FASTENER BRACKET 		$97.86 1
0016 800426
LH OUTER LOWER HEADLIGHT FASTENER BRACKET 		$13.31 1
0017 88731211
COMPL. EXTERNAL RH FENDER CONNECTOR BRACKET 		$126.75 1
0017 88731011
COMPL. EXTERNAL LH FENDER CONNECTOR BRACKET 		$126.75 1
0018 985340709
COMPL. RH BUMPER
Request ASM authorisation 		$430.02 1
0018 985340703
COMPL. LH BUMPER
Request ASM authorisation 		$433.23 1
0019 13028734
SCREW
M8 X 25 		$0.53 (76.4% off) 6
0020 14639791
RIVET 		$1.36 8
0021 87944700
WASHER 		$0.29 6
